NEW Soldered MMDVM DUPLEX hotspot Support P25 DMR YSF NXDN DMR SLOT 1+ SLOT 2 for Raspberry pi + OLED
NEW Soldered MMDVM DUPLEX hotspot Support P25 DMR YSF NXDN DMR SLOT 1+ SLOT 2 for Raspberry pi + OLED
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout

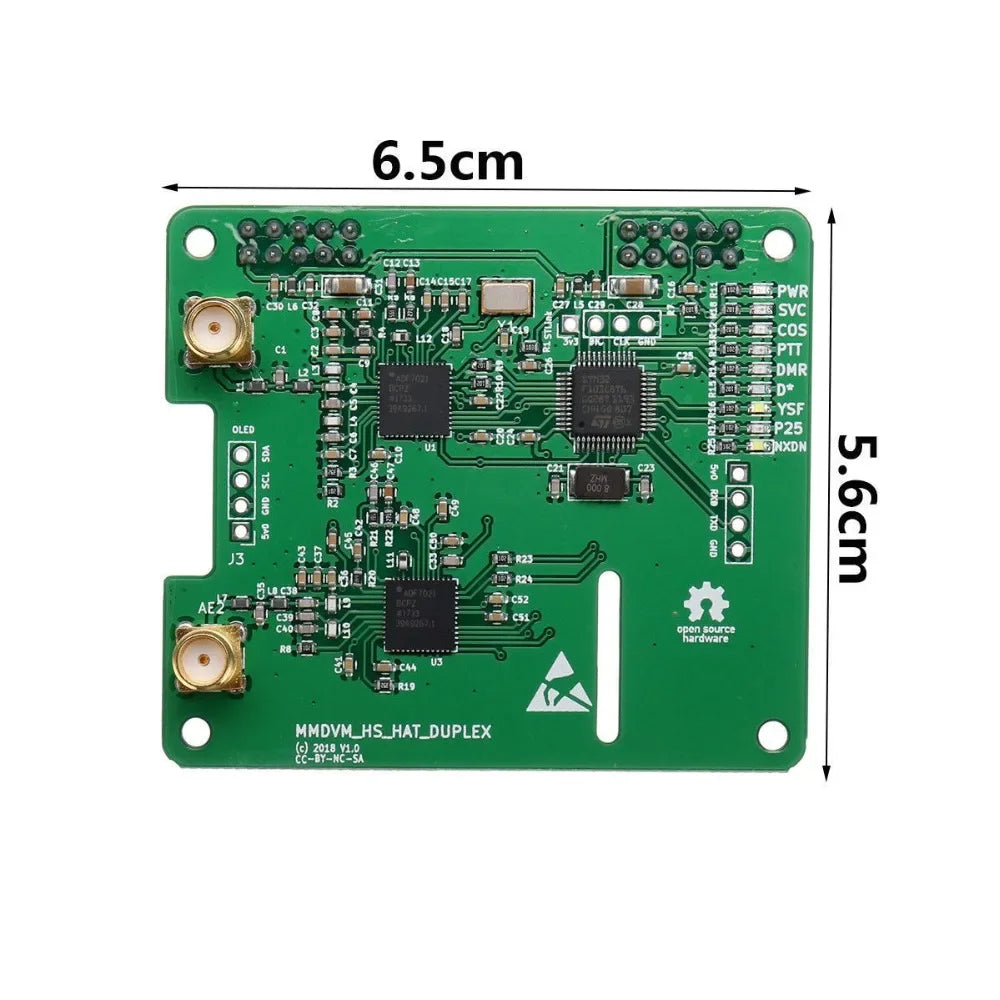

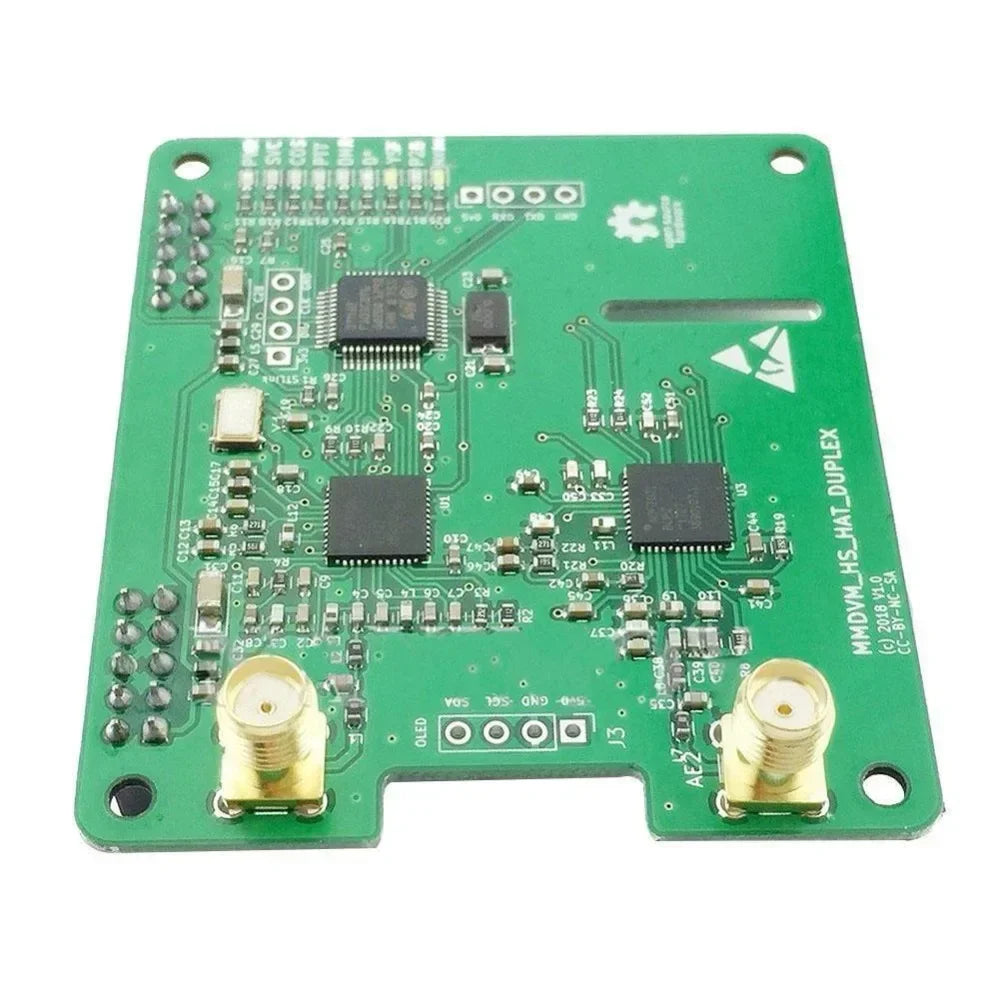

This PCB uses the MMDVM_HS . It has two ADF7021 onboard and allows for duplex operation with two time slots on DMR.
Note: it is only mmdvm board, need to prepare one raspberry pi and one SD card !
Features:
- High performance 32-bit ARM processor
- Fully tested
- Supports DMR, P-25,D-Star YSF and System Fusion
- Onboard LEDs to show status (Tx,Rx,PTT,Mode)
- Up to 10mW RF power
- SMA antenna connector,Antenna included

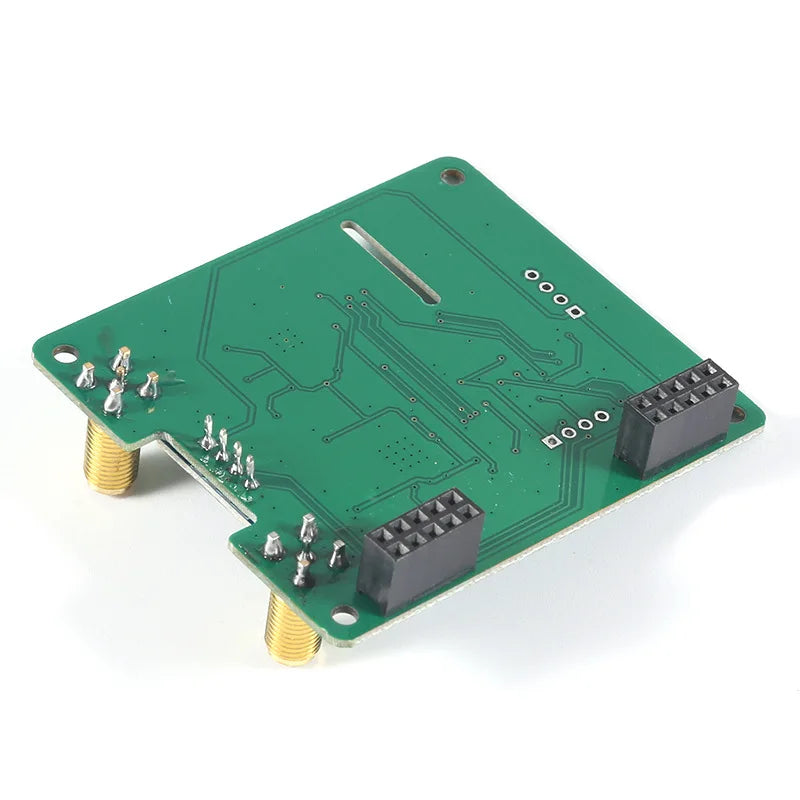

- Mounts cleanly on all current Raspberry Pi's including the Pi Zero
- The firmware is pre-loaded and is easily upgraded via software.
- Open source 3D printable case available
- UHF 430-450 MHz,433mhz and 900MHz
VHF 144 220 Opera FREQ
Duplex variant of MMDVM_HS_Hat

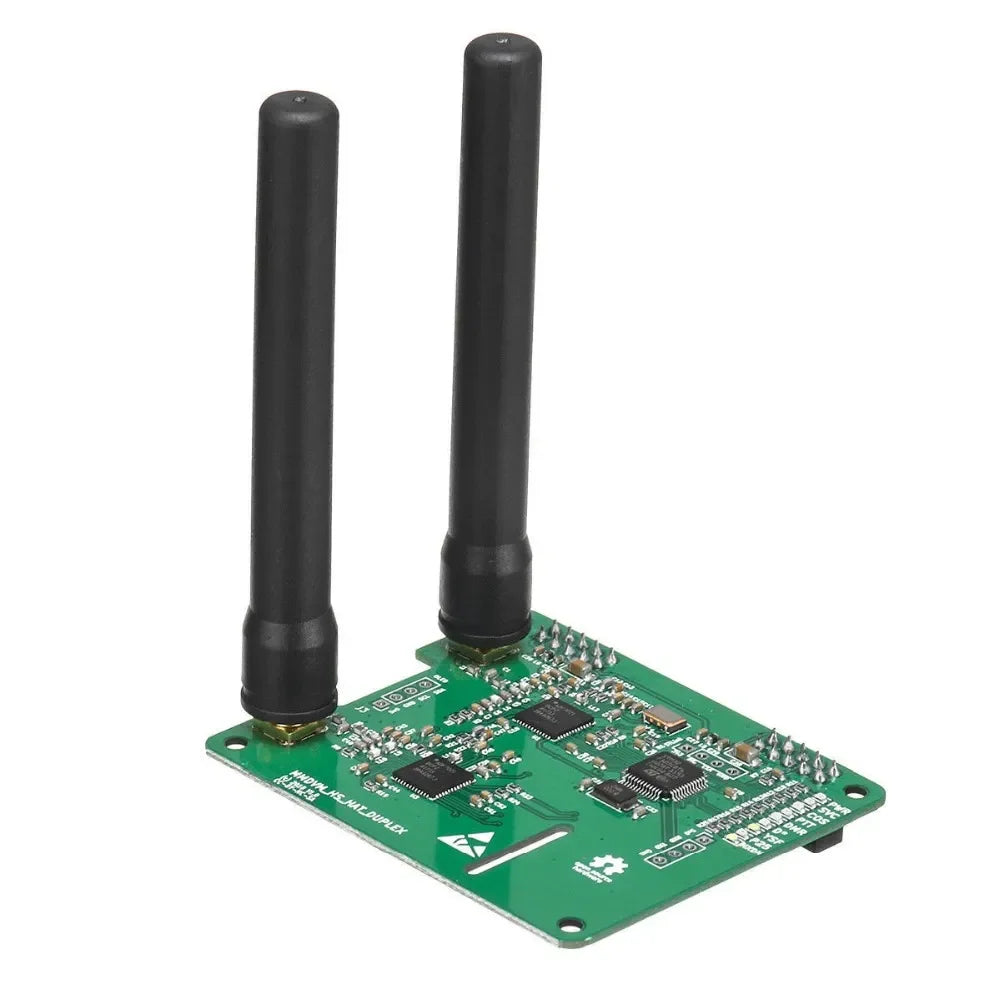

The upper part is TX,the lower is RX antenna.
UHF+VHF
SMA,antenna
Modem select: STM32_HS_GPIO
Set TX frequency,RX frequency
TX,RX frequency had better 10M or more apart.
SLOT1,SLOT2 support.

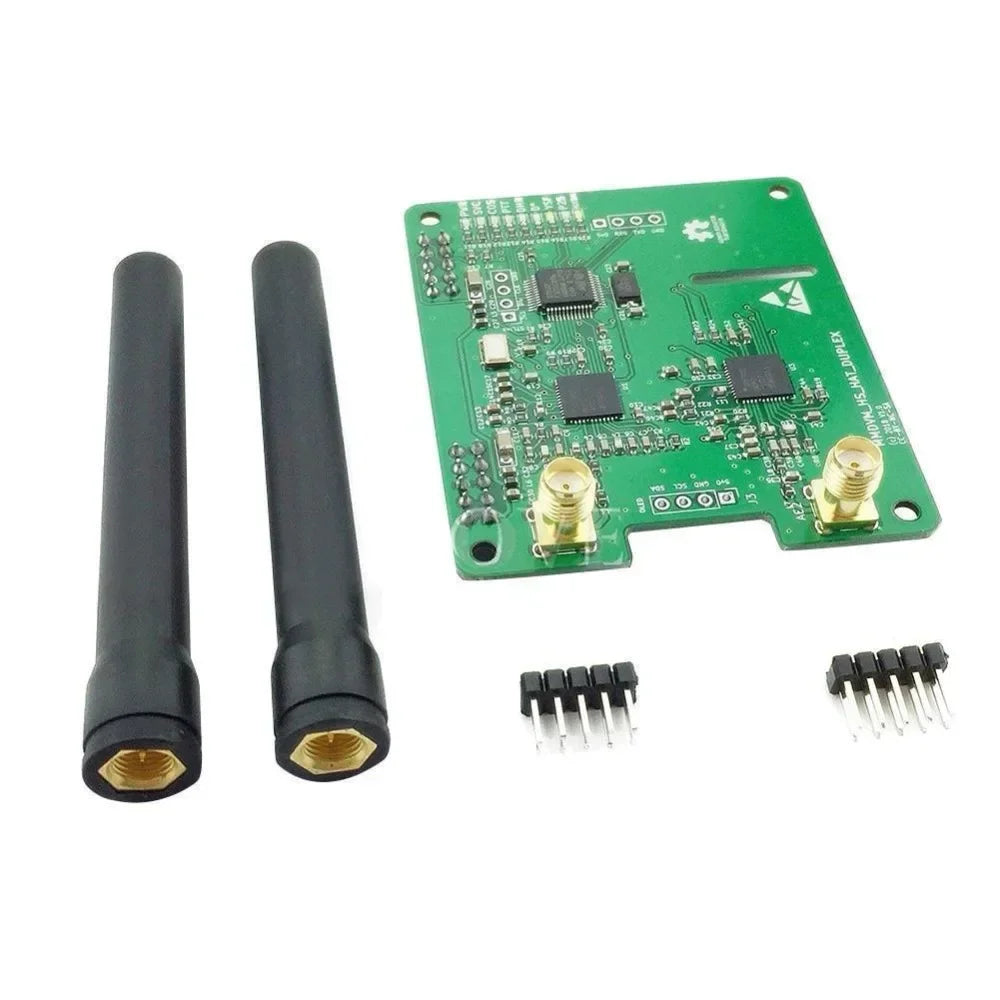

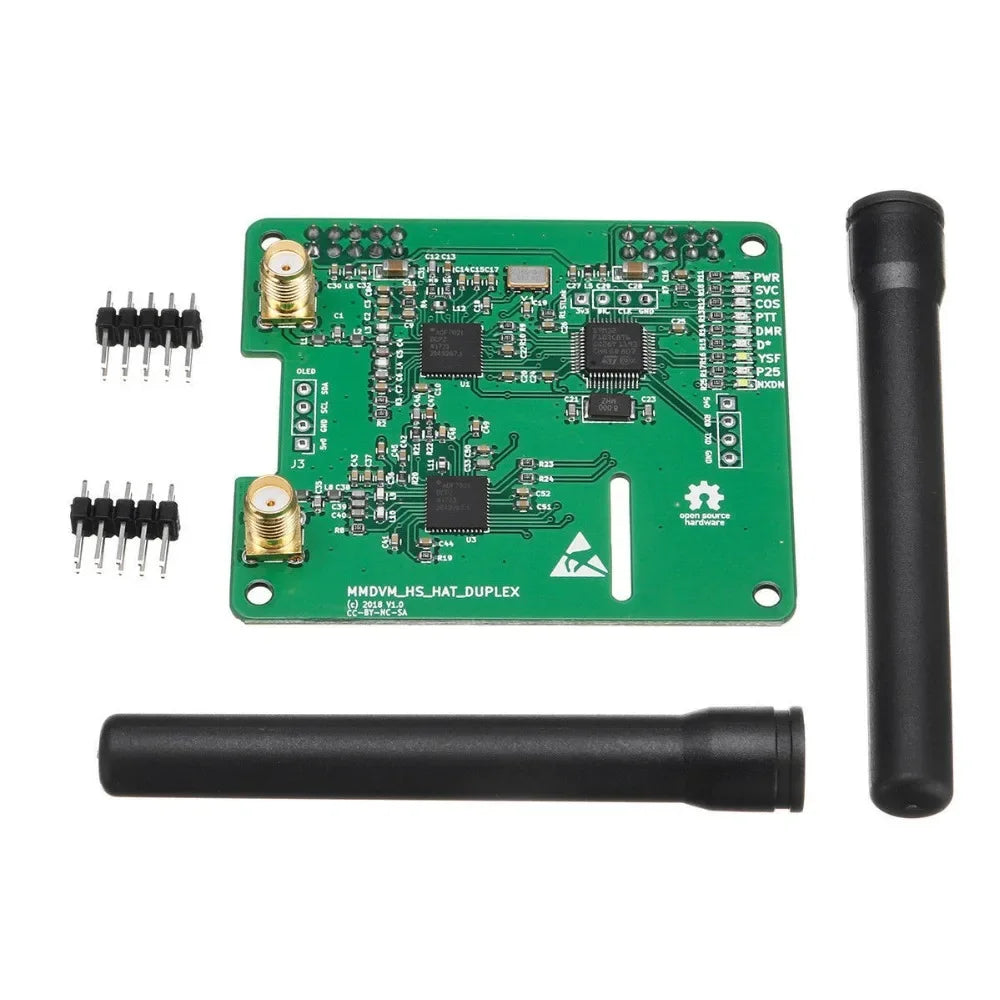

Package List:
- MMDVM duplex HotSPOT Module x1
- Antenna x 2
