New SA6 6GHz Portable Spectrum Analyzer Signal Genertor HT6 Log Periodic Antenna LPDA for 3G 4G LTE CDMA DCS GSM GPRS GLONASS

Different of the two options, SA6 only not include the HT6 LPDA

SA6

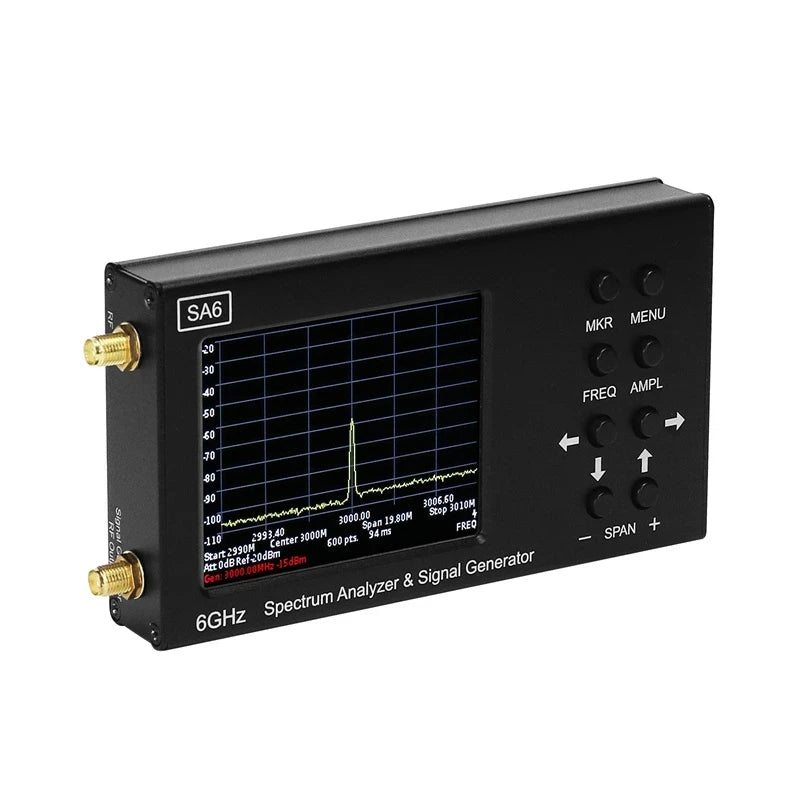

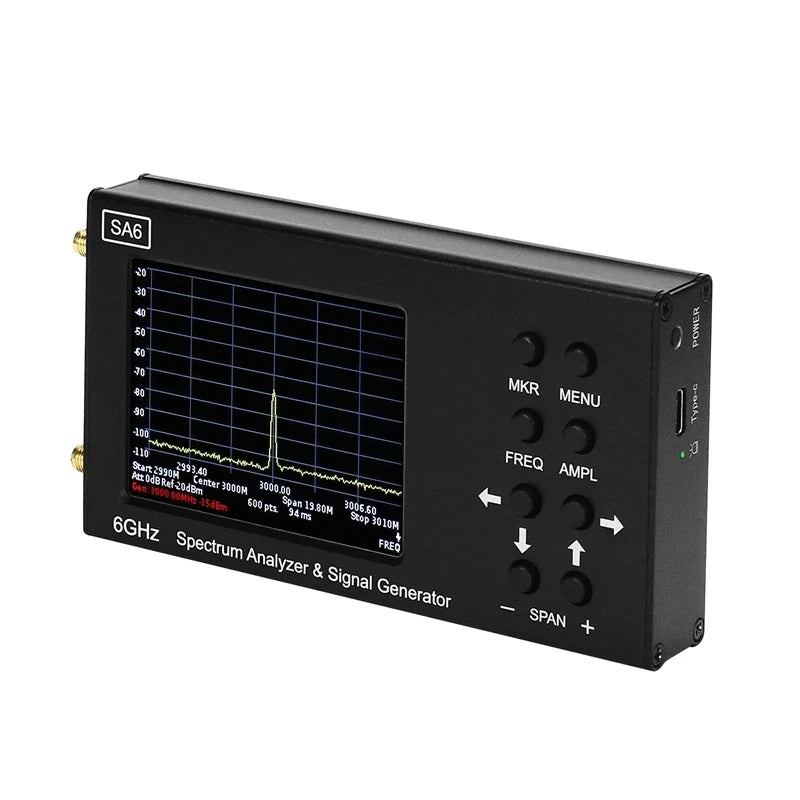

SA6 is a simple portable spectrum analyzer and signal range, designed to display the signal spectrum in the frequency range of 35 to 6200 MHz.

The analyzer finds the amplitude and frequency of the spectral components of the analyzed process. The spectrum analyzer can process signals from all widely used technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.

Another important feature is the additional function of the tracking generator, which makes it possible to measure the frequency response of passive or active devices (such as filters or amplifiers). The software allows measurement of SWR and return loss modules. This requires an external directional coupler and a set of calibration measures.

SA6 is mainly used for on-site operation. The equipment is durable, light in weight and low in energy consumption. It enables service centers and maintenance teams to perform on-site HF analysis for commissioning and repair work. In addition, the spectrum analyzer is the perfect solution for repair shops and radio enthusiasts.

Specification:

Display frequency range: 35 — 6200 MHz

Measuring frequency range: 35 — 4500 MHz

Dynamic range of 35-3000 MHz frequency band: 75 dB

Dynamic range of 3000-4500 MHz frequency band: 70 dB

Maximum span: 6165 MHz

Bandwidth: 200 kHz, fixed

View the scanning speed of the frequency band above 100MHz: 700MHz/sec

Sweep 100 MHz: <0.25 seconds

Noise floor up to 3000 MHz: <-90 dBm

Noise floor 3000-4500 MHz: <-85 dBm

Noise floor 4500-6200 MHz: <-80 dBm

Wave impedance: 50 ohms

Standing wave ratio in the working frequency range: <1,5

Internal attenuator: 0-30 dB

Error at attenuation up to 10 dB: 2 dB
10 to 20 dB attenuation error: 5 dB
20 to 30 dB attenuation error: 8 dB

Tracking generator output power: -15...-25 dBm

Accuracy in dynamic range: 2,0 dB

The maximum input power of the attenuator at 0 dB: 10 dBm

Maximum input power when attenuation is greater than 20dB: +20dBm

Maximum input measurement signal: +10 dBm

Maximum input DC voltage: 25 volts

Maximum current consumption when running on battery: 450 mA

Maximum current consumption when running from USB: 500 mA (when charging)

Battery: 2500 mAh

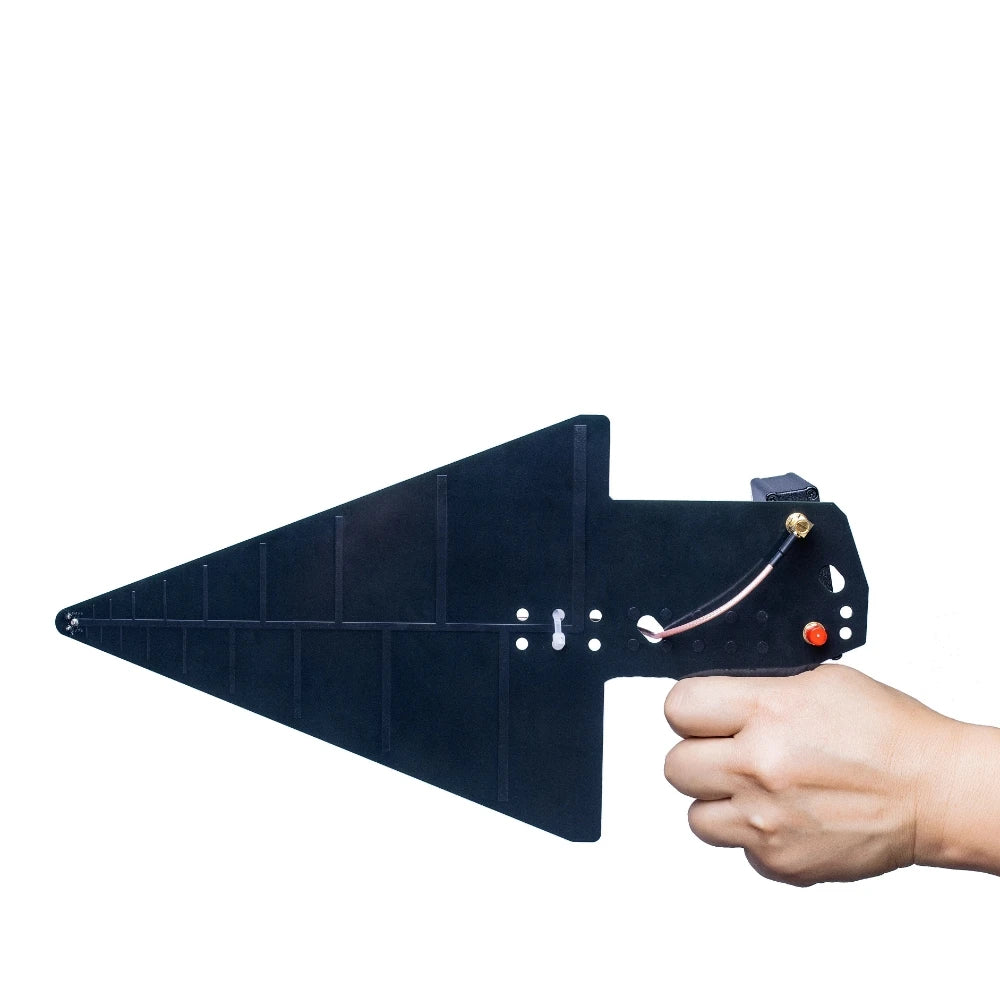

HT6

Antenna size: 400 * 185 * 20mm

Operating frequency range - 600 MHz - 10000 MHz

Antenna gain - from 1 dB to 6.5 dB

SWR in the operating frequency range - not more than 2.2

Polarization - Linear

Input impedance - 50 Ohm

Connector - SMA-female

Applications:

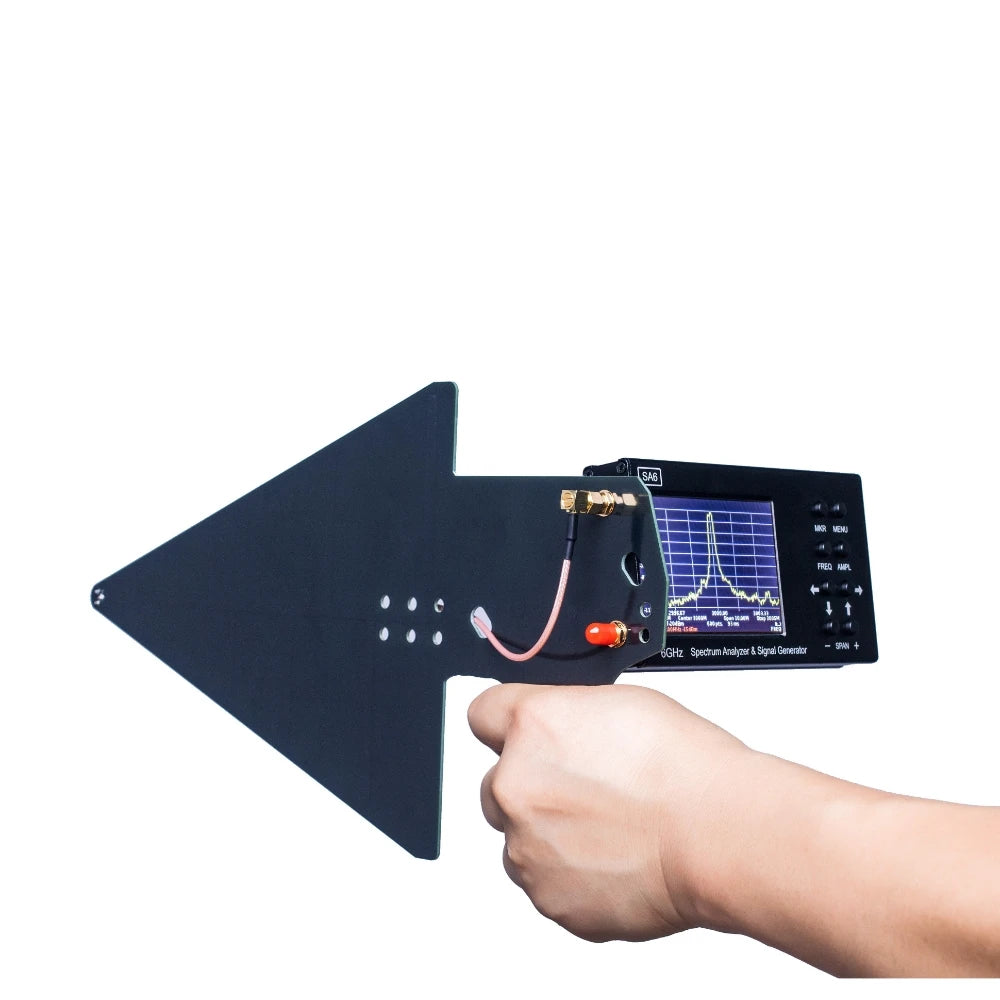

Place the external antenna on the base station

Quick analysis of the RF environment

Check the correct operation of the relay cell

Repair and adjustment of repeaters, generators, filters, etc.

Measure SWR when using an external directional coupler.

The device is controlled by one of the following two methods:

Through the buttons and touch screen on the device.

All measurement data are displayed on the screen of the device or PC in real time.

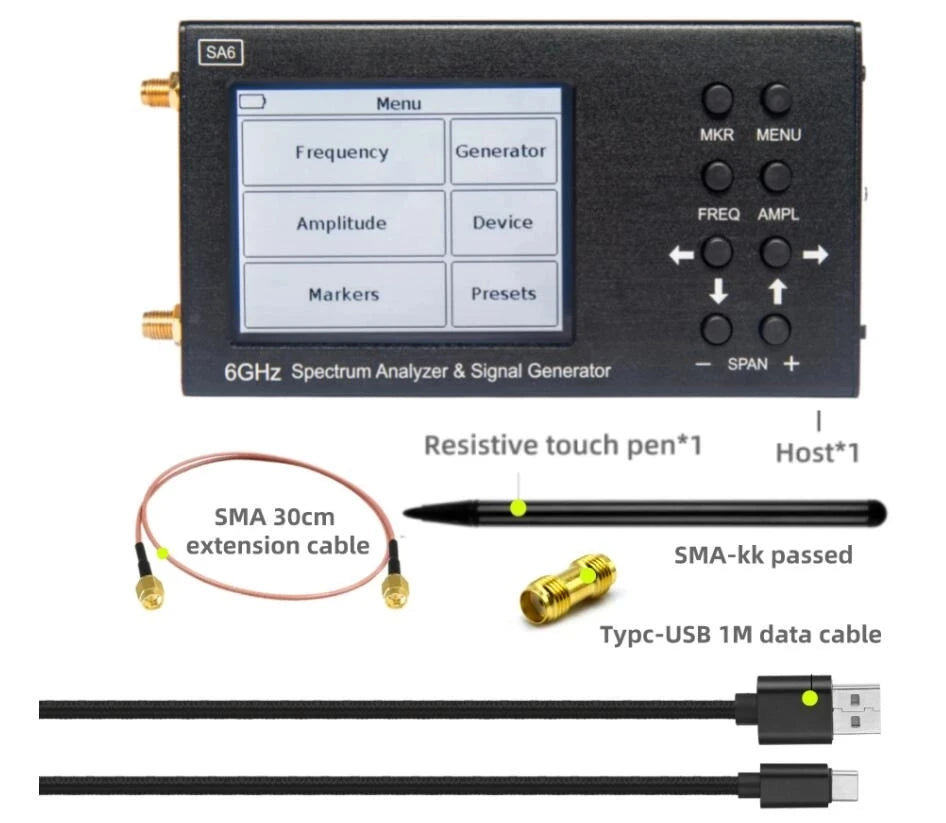

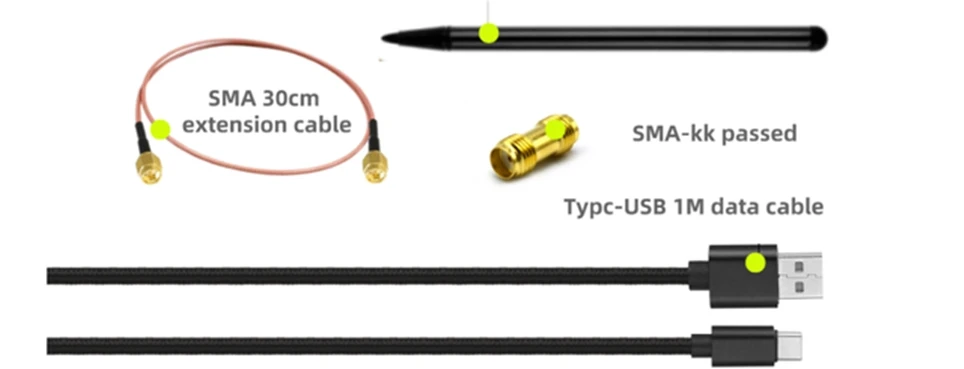

Package include

SA6 only

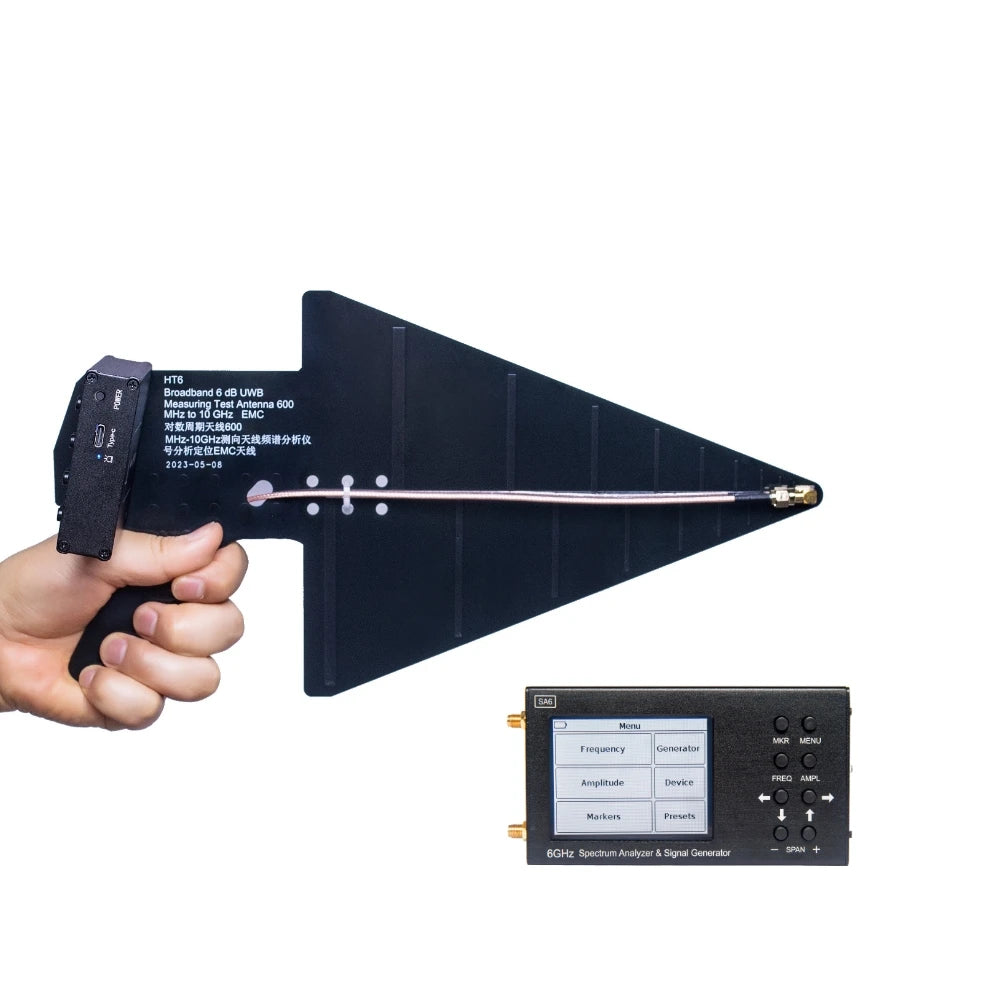

SA6 and HT6
