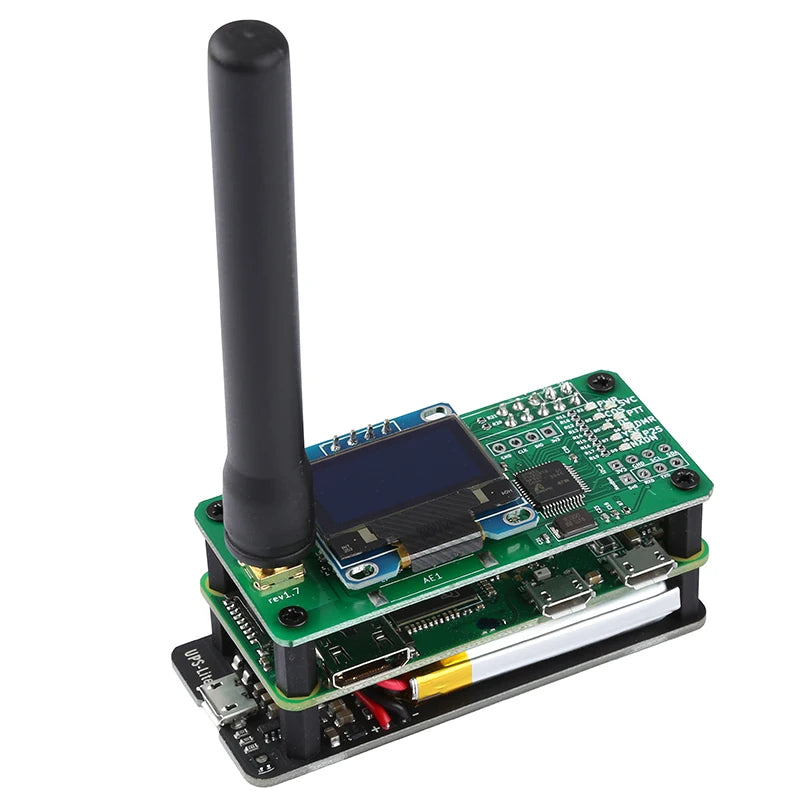

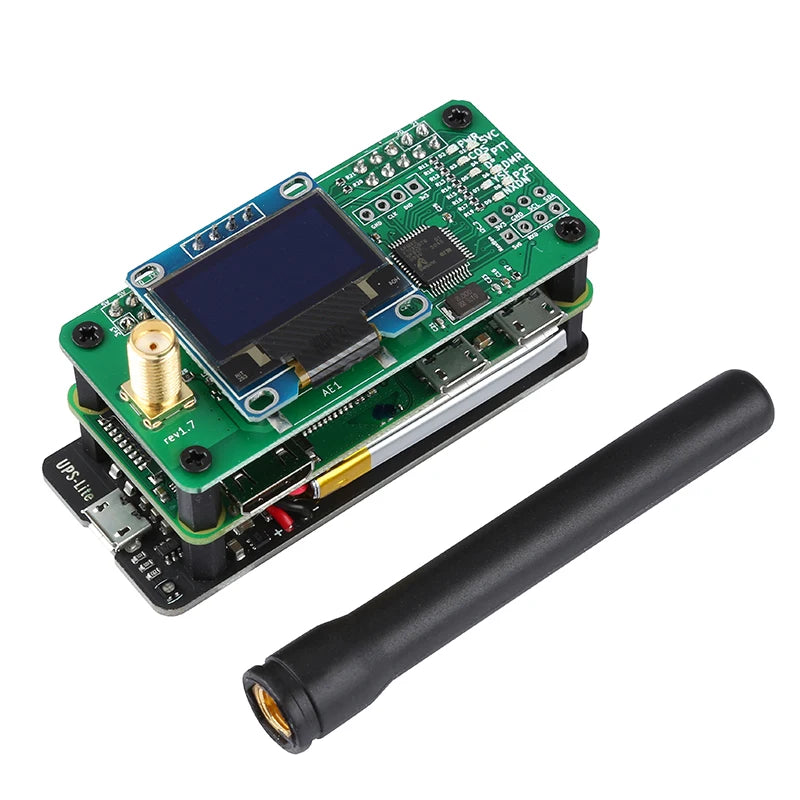

New Raspberry Pi Zero W + UPS Lite Module +16G TF Card + Simplex/Duplex MMDVM Hotspot UHF VHF UV For P25 DMR YSF DSTAR NXDN

Features

1. With the UPS module, make your hotspot is portable

2. OLED and connector are soldered.

3. Include the raspberry pi zero w

4. Come with the 16G TF card with image flashed.

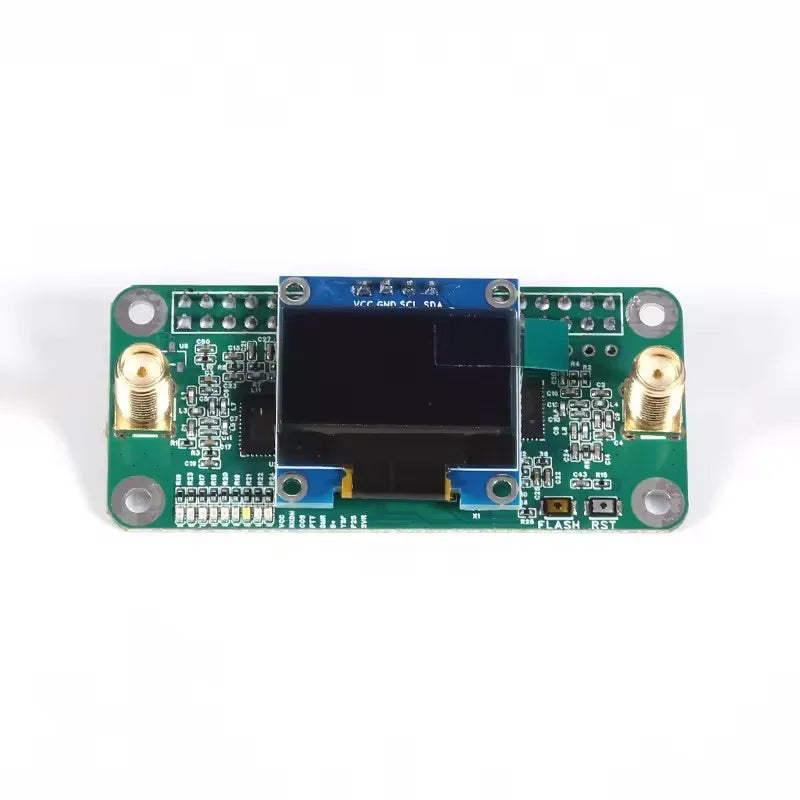

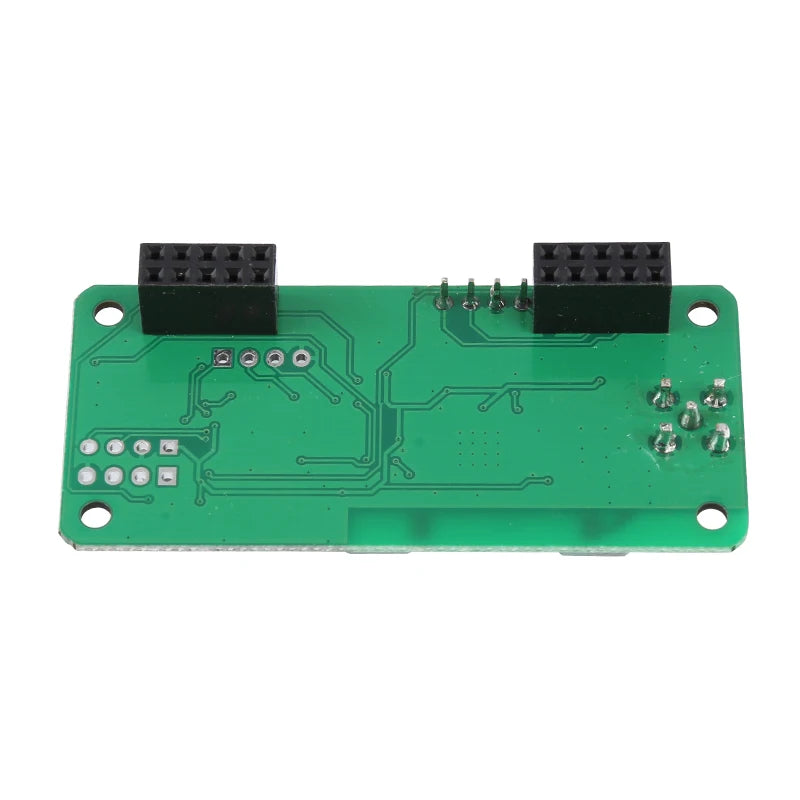

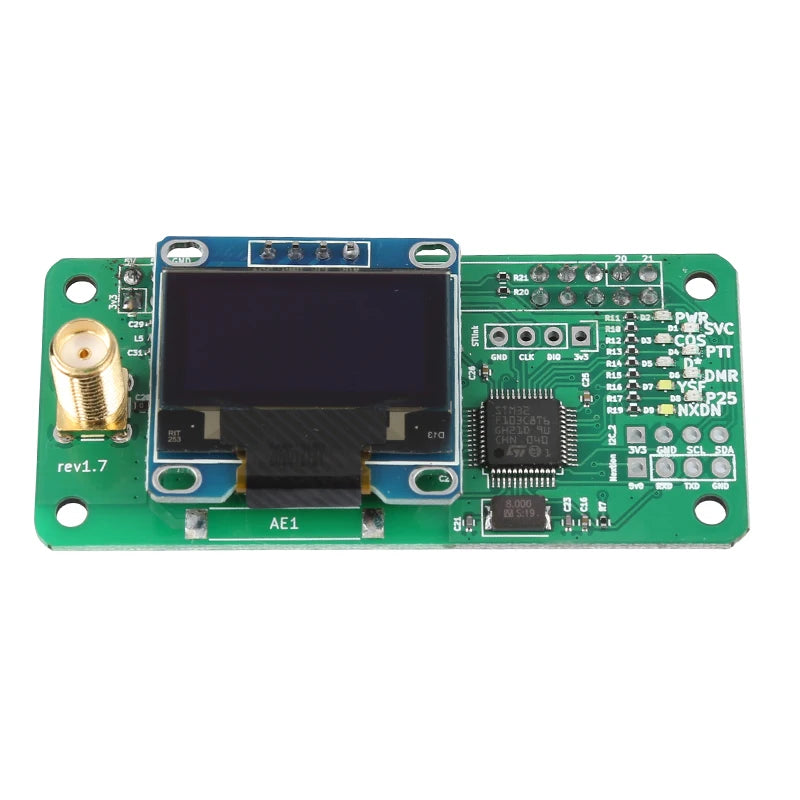

Duplex mmdvm module

Simplex mmdvm module

Descripiton

The MMDVM hotspot support module can work with UHF or VHF(VHF is not the main band)

· RX offset = TX offset = 0
· High performance 32-bit ARM processor
· Fully assembled and tested
· Supports DMR, P-25, D-Star and System Fusion
· Onboard LEDs to show status (Tx, Rx, PTT, Mode)
· Up to 10mW RF power
· SMA antenna connector, UHF&VHF antenna included
· Mounts cleanly on all current Raspberry Pi’s including the Pi Zero
· The firmware is pre-loaded and is easily upgraded via software.
·UHF 433 900 MHZ,VHF 144 220MHZ Opera FREQ
· Support and tested with PI-STAR


Parameter of the ups module
Charging current: 400mA

Output voltage: 5V ±0.1V

Output current: 1.3A@5V (Without external adapter, only battery powered)

2A@5V (When inserting external adapter)

Electricity measurement accuracy: error±2%

1000mAh Battery include

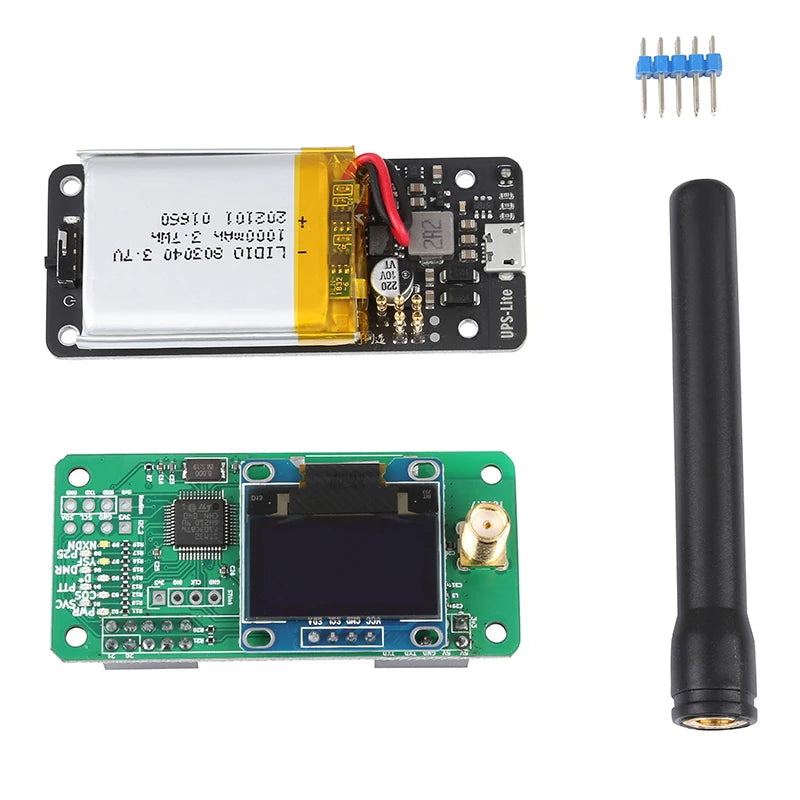

Package include

1 x MMDVM module(Duplex or simplex)
1 x Raspberry pi zero w
1 x UPS lite module
1 x 16G TF card
