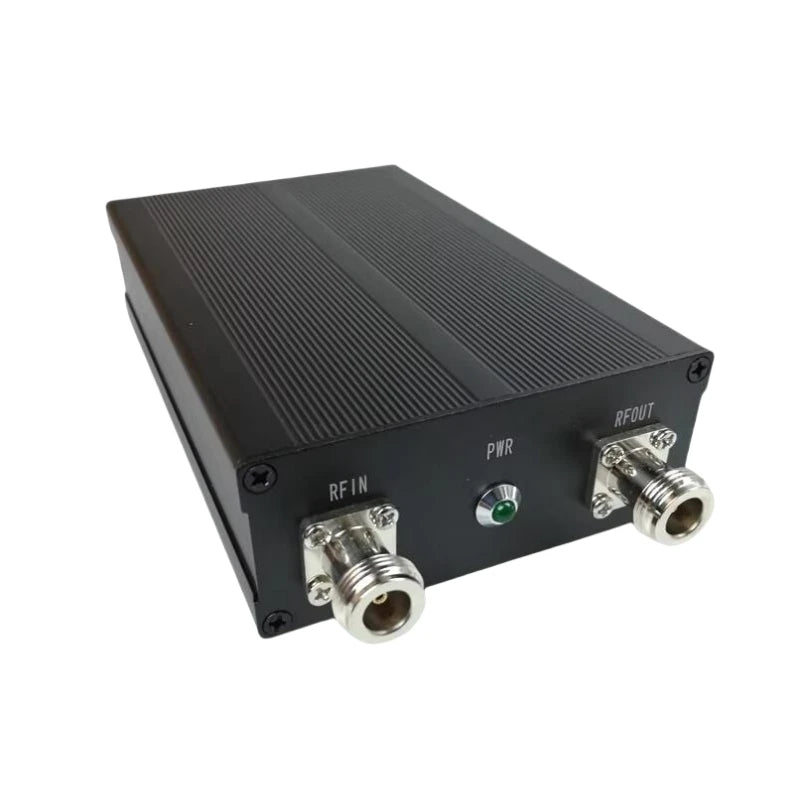

New NWT6000 25M-6G Sweeper Network Analyzer Network Sub-source Signal Source Spectrum Analyzer
New NWT6000 25M-6G Sweeper Network Analyzer Network Sub-source Signal Source Spectrum Analyzer
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
NWT6000 is suitable for the majority of FM product R&D personnel, production and testing personnel, field engineers, hardware engineers, software engineers, scientific researchers and university teachers and students engaged in the electronics industry.
Specification

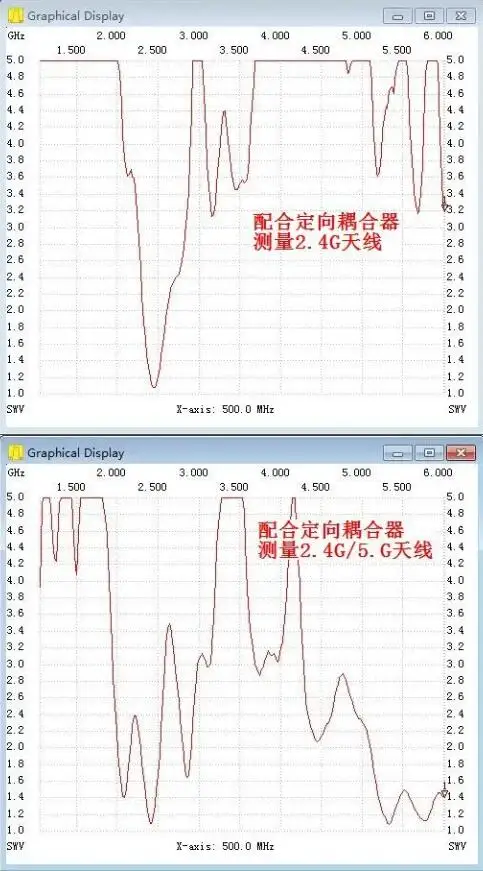

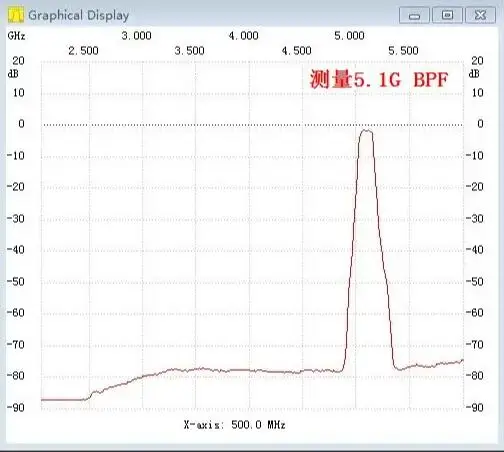

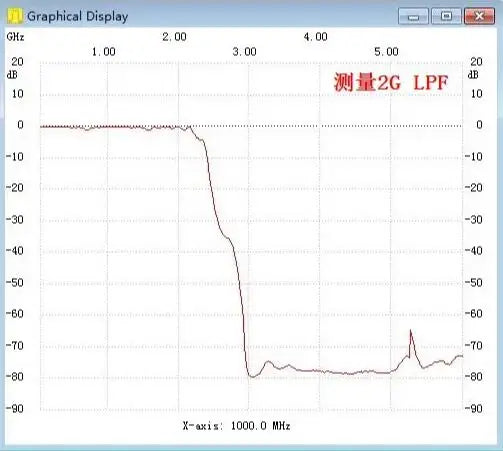

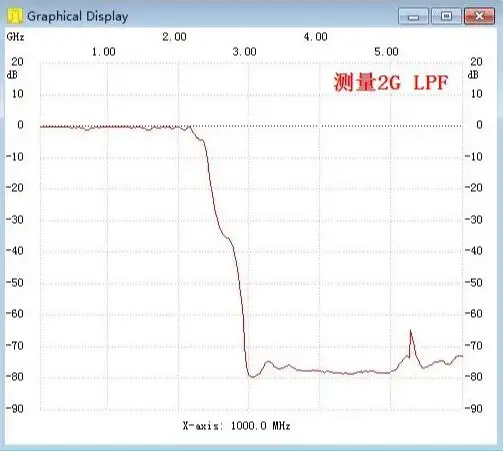

25MHz-6GHz frequency range S21, S11(need to cooperate with the shop bridge 500K-2.6G), simple spectrum, RF signal generator
Step by 1Hz
Dynamic range: 25MHZ-4.4GHZ > 70dB
4.4-6GHZ > 60dB
Dot frequency signal generator output range: 25M-6GHz
Frequency step: 1Hz
Typical output power: -5dBm

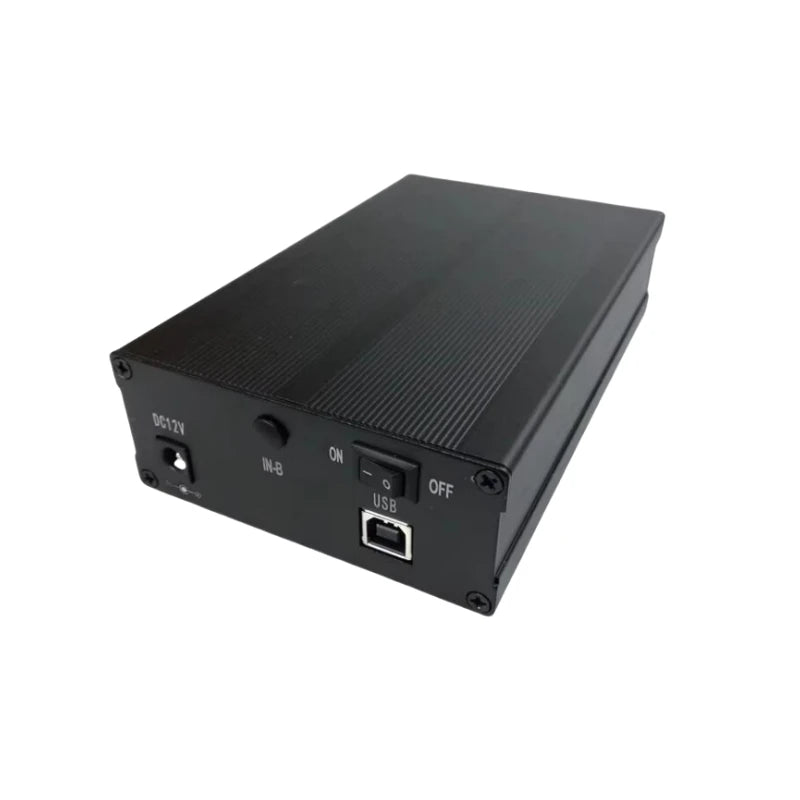

Data interface: USB
Rf interface: N female connector
Power supply DC-12V 1A
Size: 100*42*150 (mm)

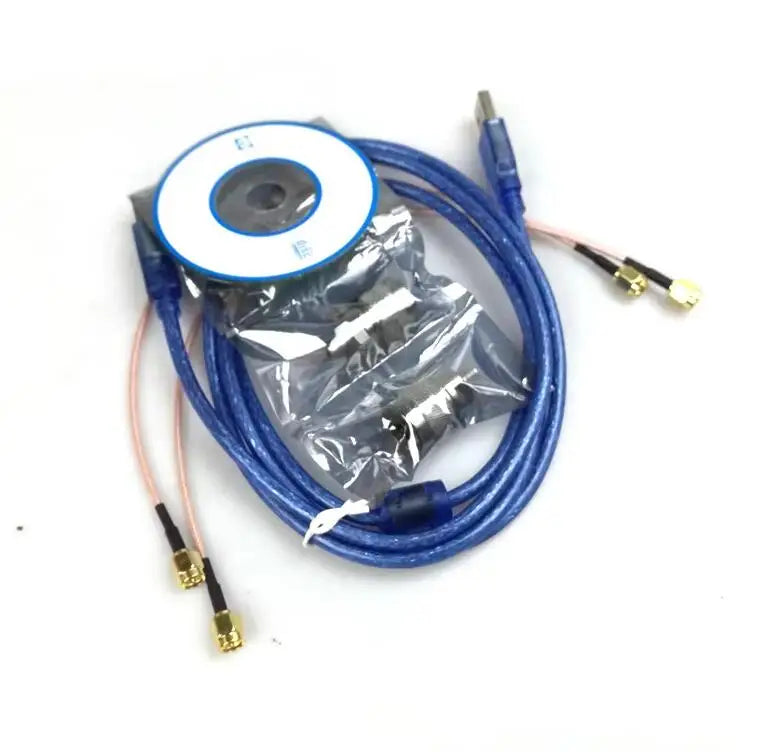

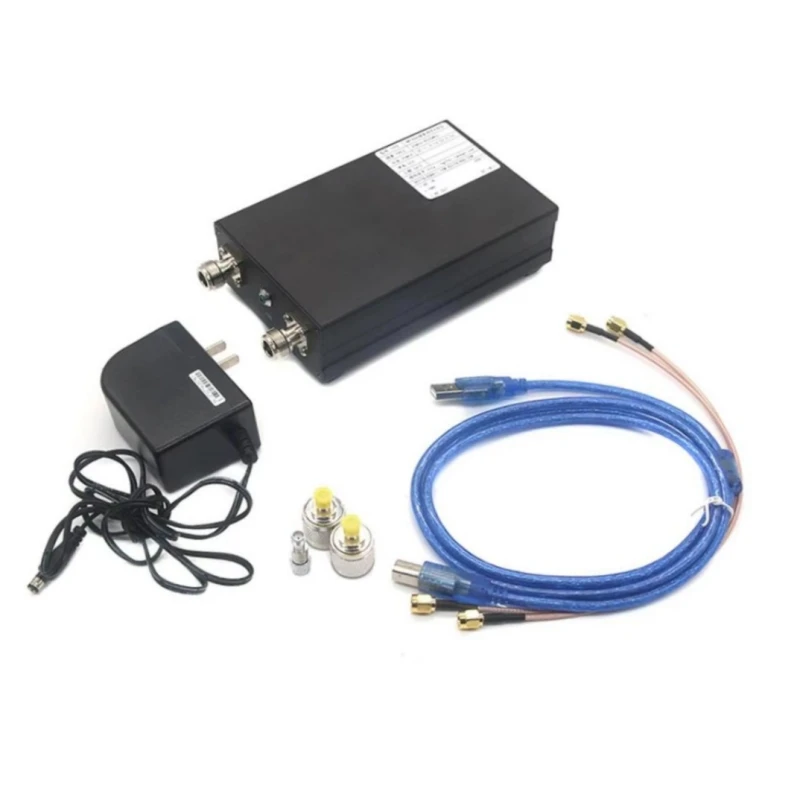

Package include
Description
Description
Description
NWT6000 is suitable for the majority of FM product R&D personnel, production and testing personnel, field engineers, hardware engineers, software engineers, scientific researchers and university teachers and students engaged in the electronics industry.
Specification
25MHz-6GHz frequency range S21, S11(need to cooperate with the shop bridge 500K-2.6G), simple spectrum, RF signal generator
Step by 1Hz
Dynamic range: 25MHZ-4.4GHZ > 70dB
4.4-6GHZ > 60dB
Dot frequency signal generator output range: 25M-6GHz
Frequency step: 1Hz
Typical output power: -5dBm
Data interface: USB
Rf interface: N female connector
Power supply DC-12V 1A
Size: 100*42*150 (mm)
Package include
