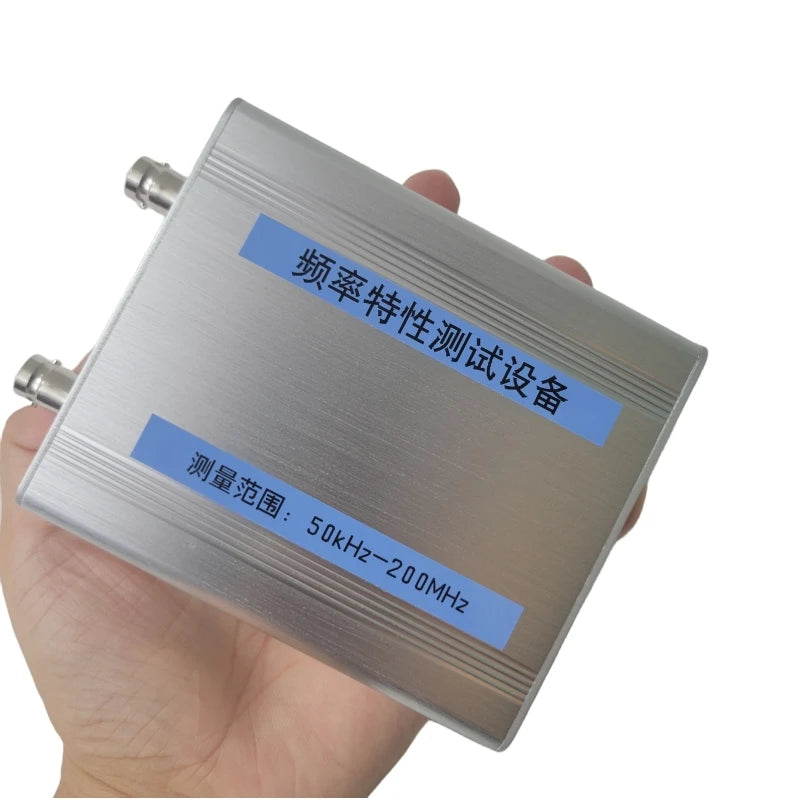

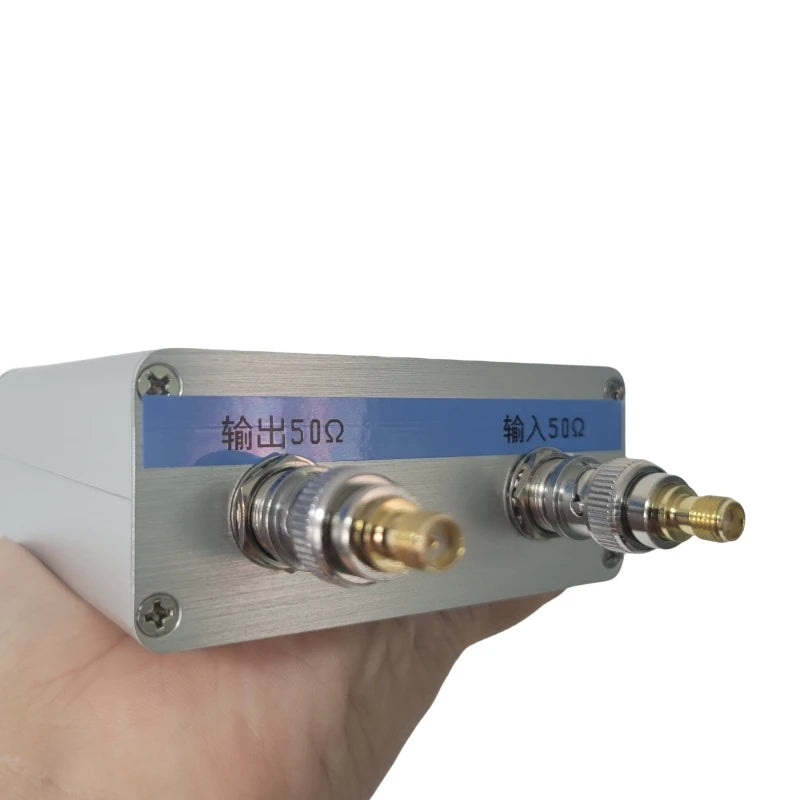

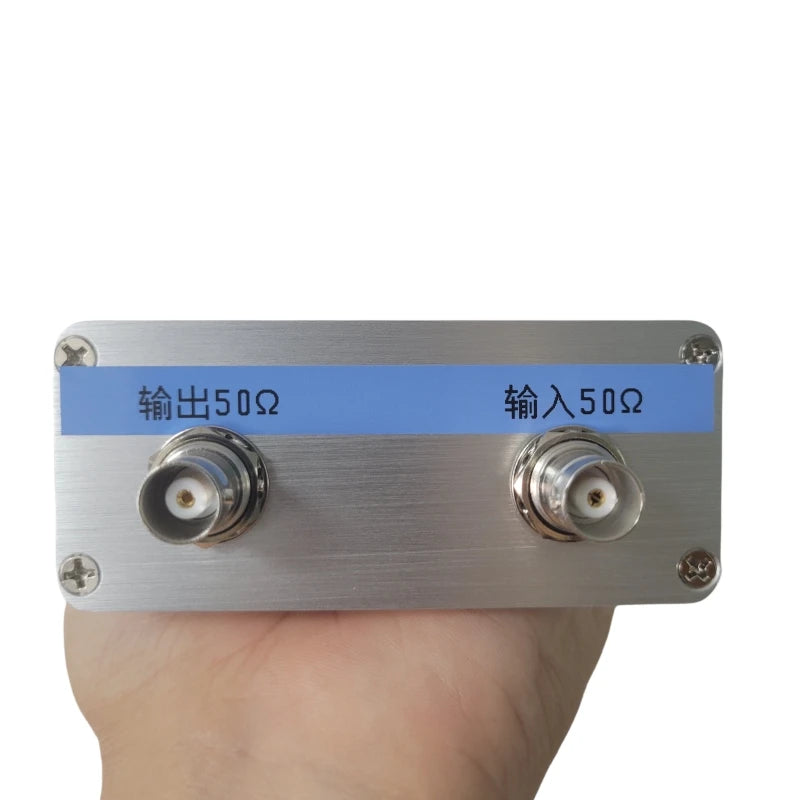

The NWT-200 is a high-precision, high-resolution frequency characteristic tester with the functions of a signal source and an RF power meter. The popular application of the device is to test the amplitude and frequency characteristics of filters and RF amplifying circuits, and at the same time have an ultra-high test resolution of 1 Hz. At the same time, many domestic and foreign experts also use NWT series equipment to test the standing wave ratio, inductance, capacitance, RF power and function as a signal source.
Specifications
Working current: 170mA~270mA
Dynamic range: better than 75dB;
Bottom noise: -80dBm (50 ohm impedance);
Measuring frequency range: 50KHz~200MHz;
Measurement frequency resolution: 1 Hz.
5 gear attenuation: 10, 20, 30, 40, 50dB
Hardware:FT232+PIC16f876a+AD9951+AD8307
Software:WinNWT4

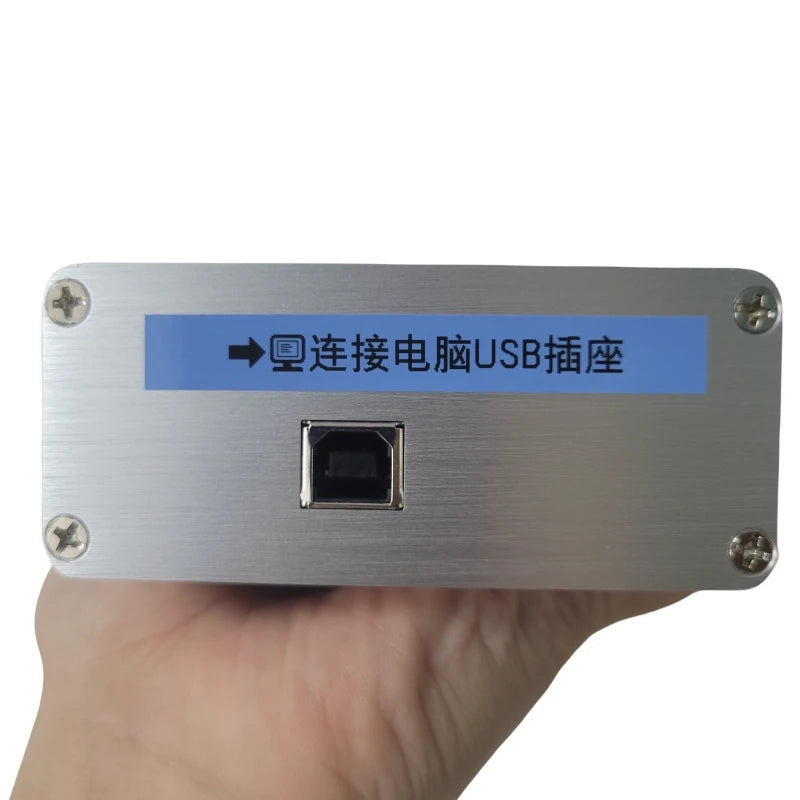

Power by USB port, don't need extra power supply

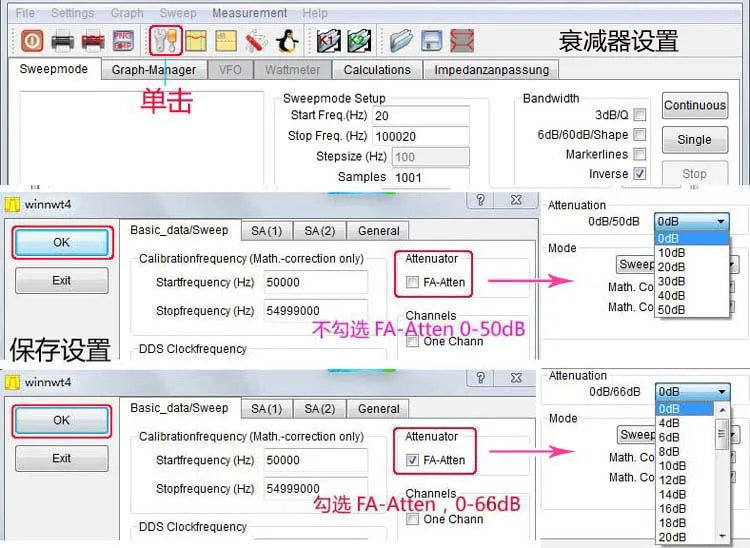

Software interface

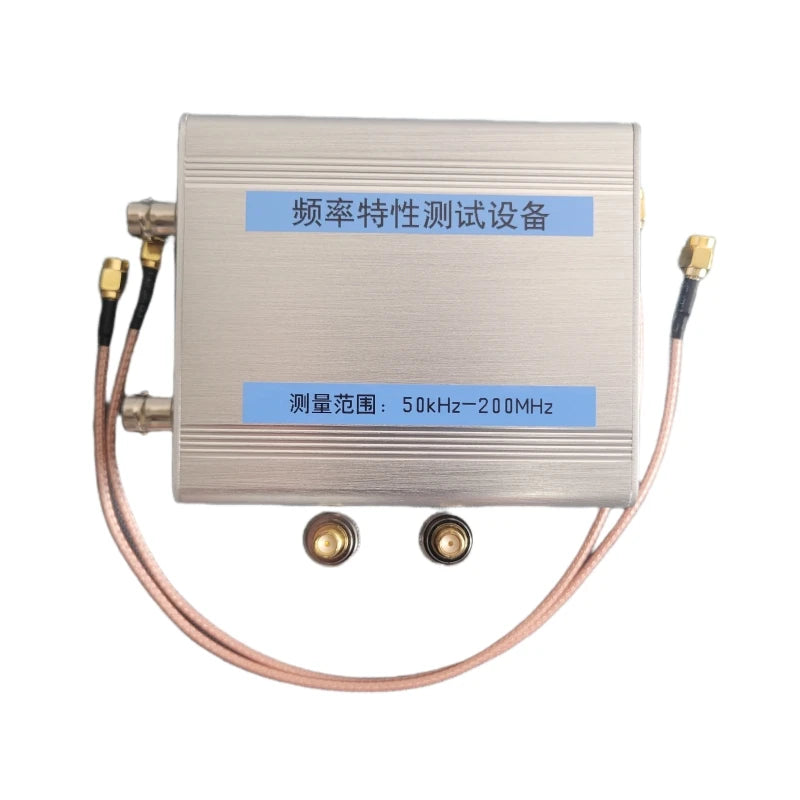

Package include
1 x NWT200
2 x SMA cable
2 x BNC to SMA adapter
1 x USB cable

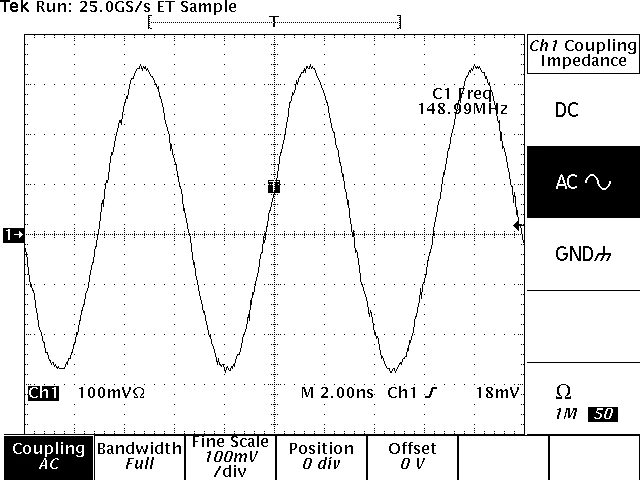

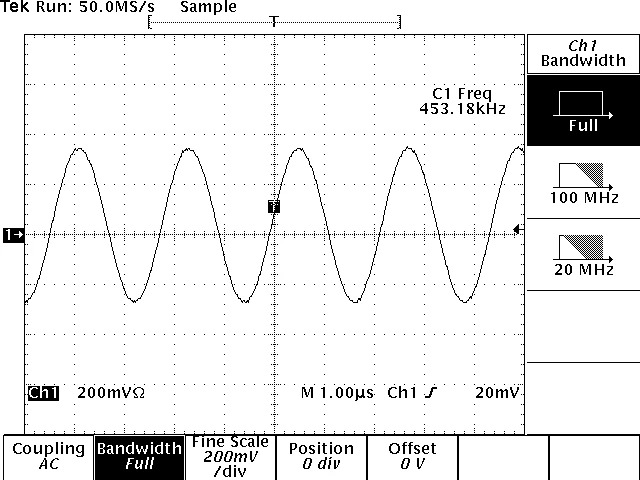

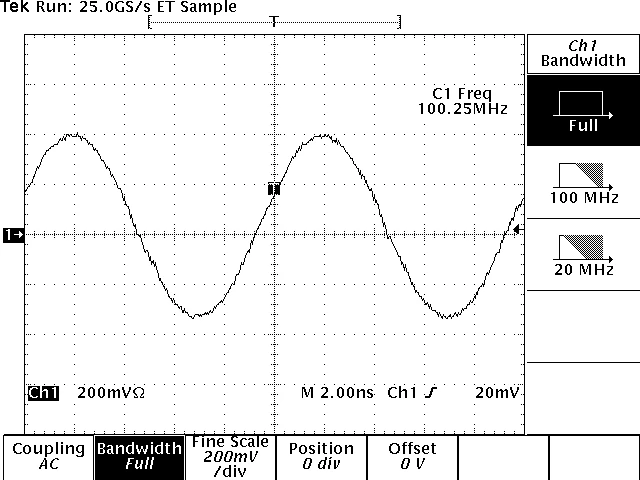

Oscilloscope test diagram output frequency (Tektronix TDS430a)

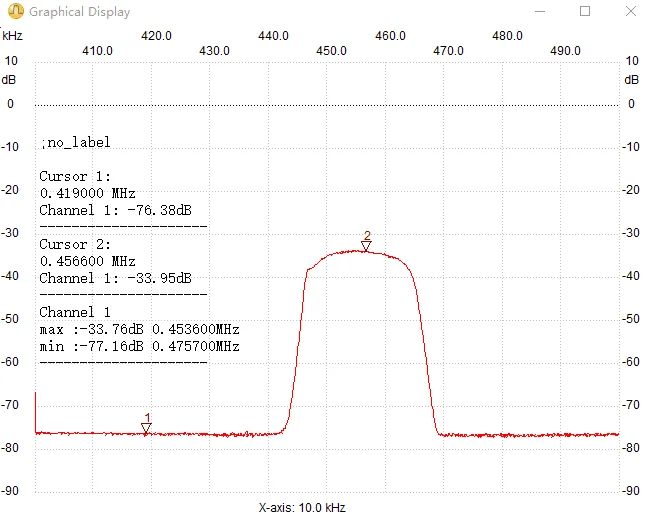

Amplitude frequency curve of 455KHz ceramic filter

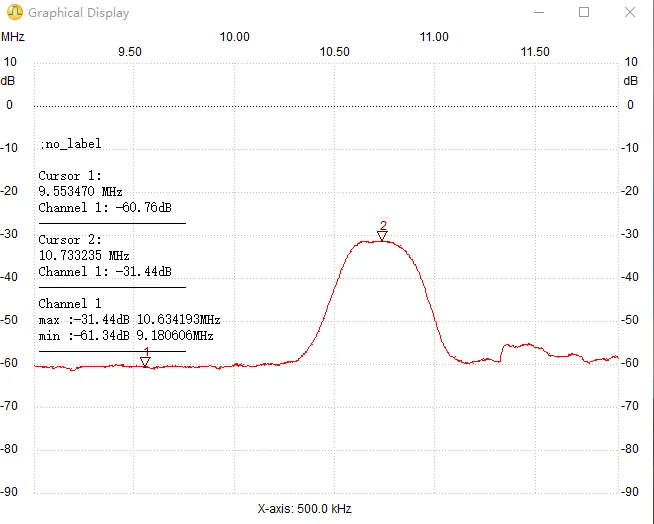

Amplitude frequency curve of 10.7MHz ceramic filter

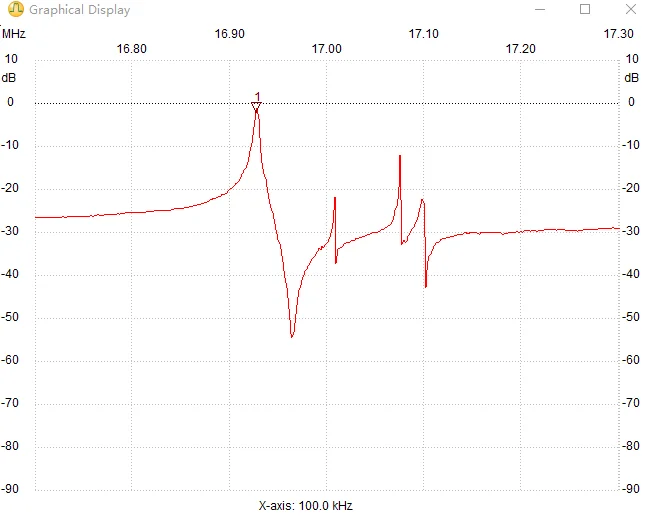

16.934MHz crystal oscillator measurement curve

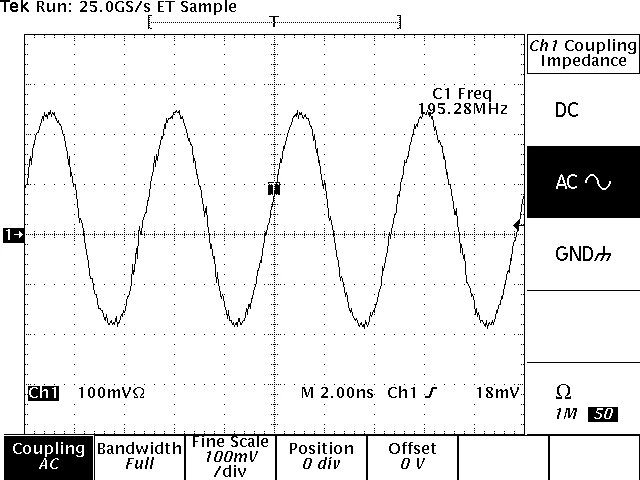

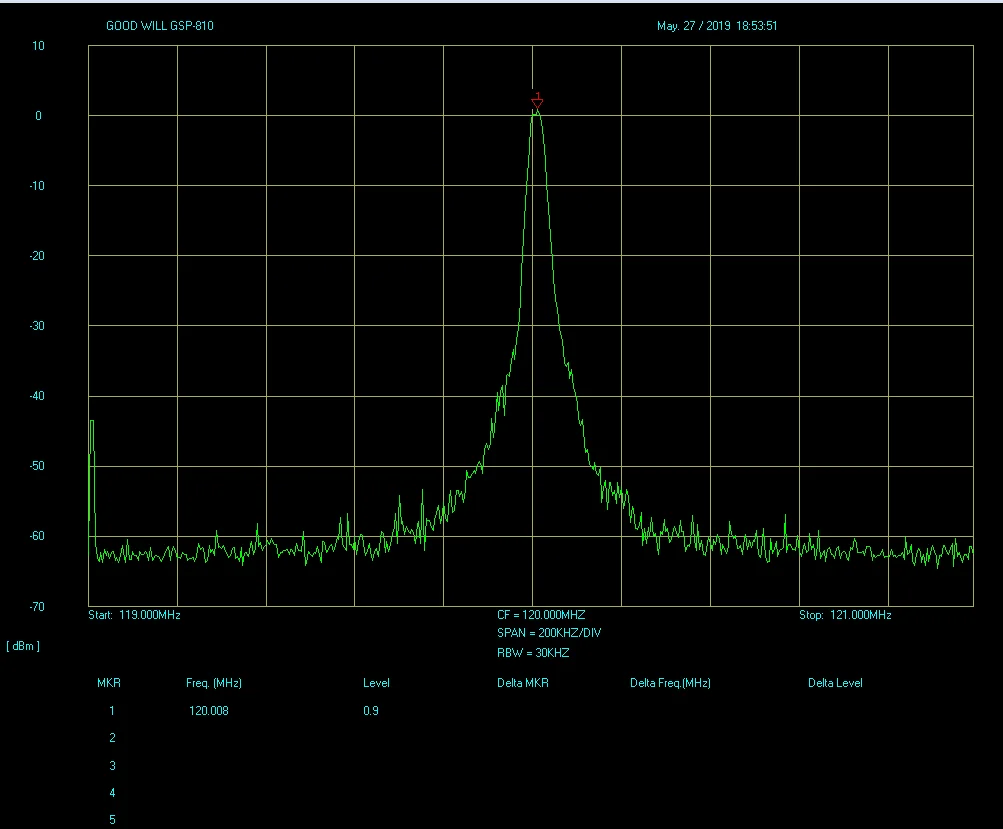

120MHz sine wave signal output spectrum

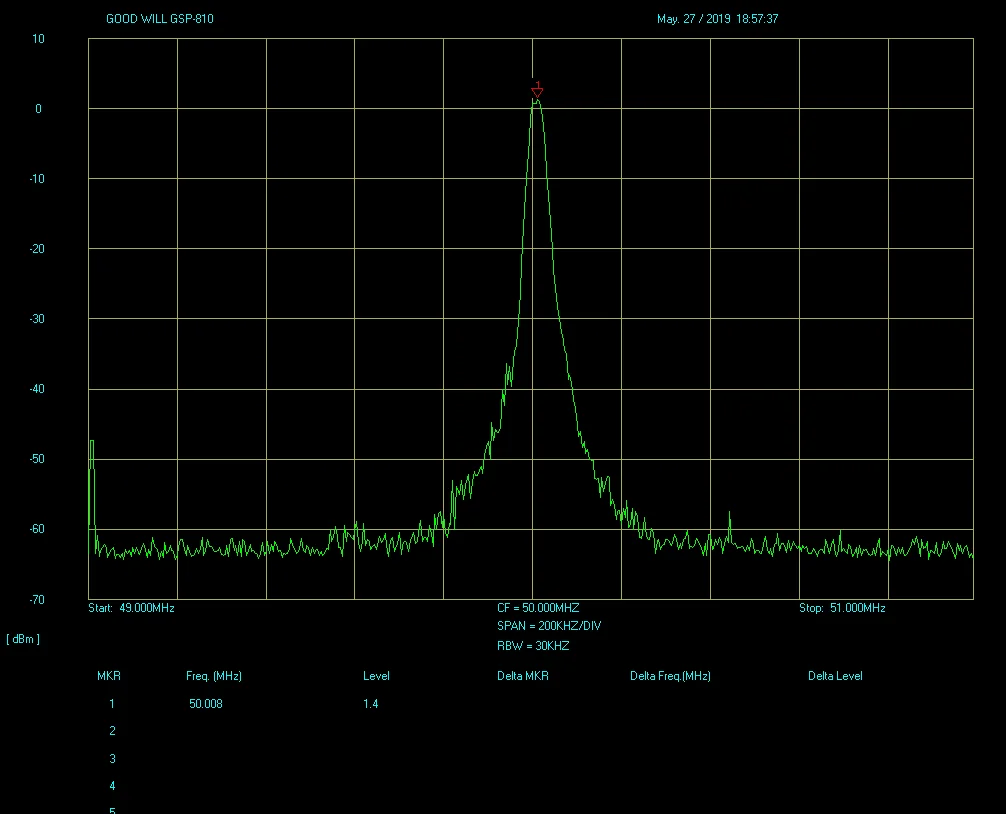

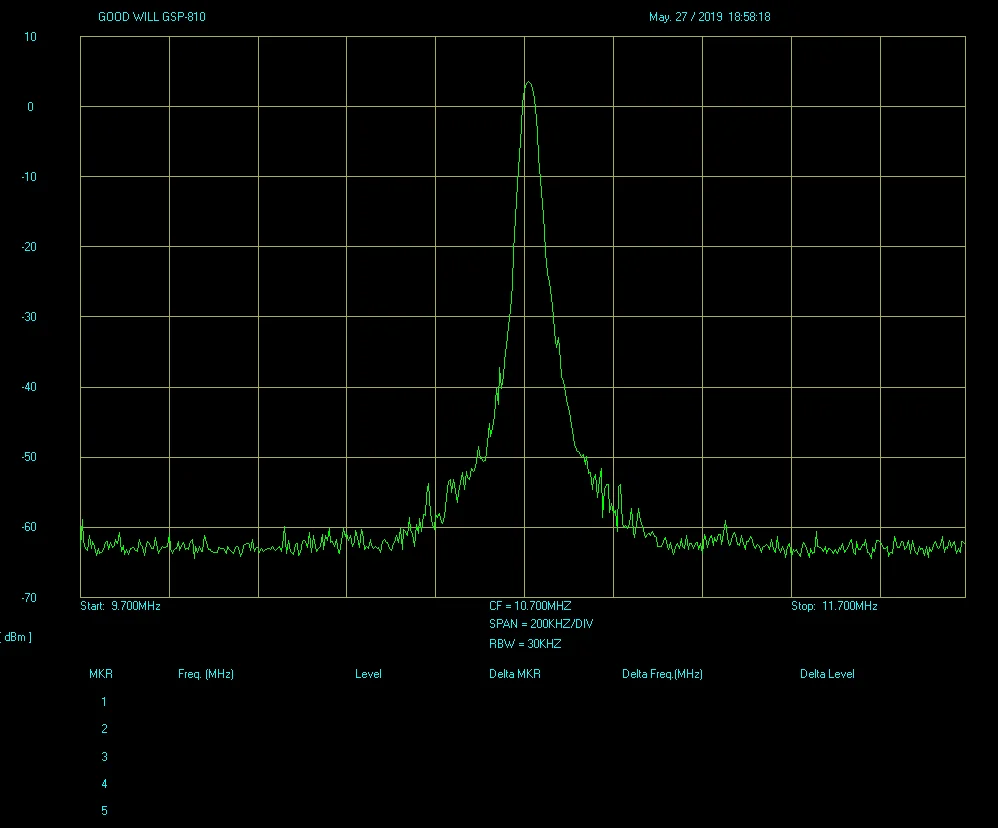

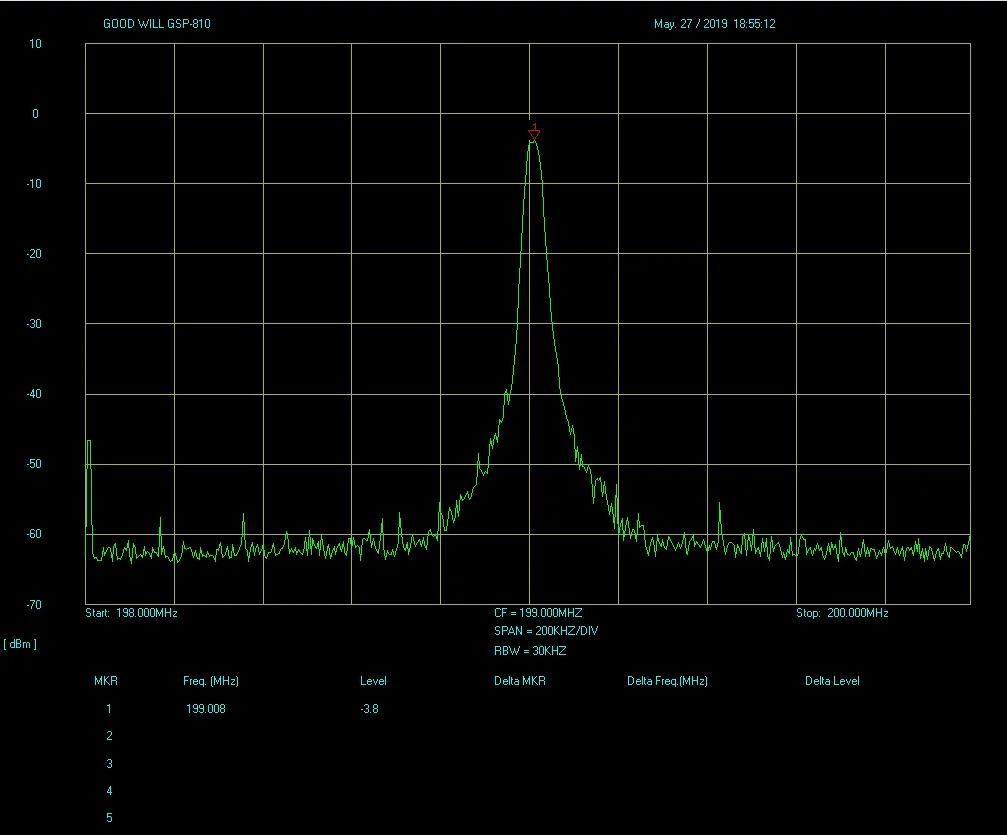

199MHz, 50MHz and 10.7MHz sine wave signal output spectrum
