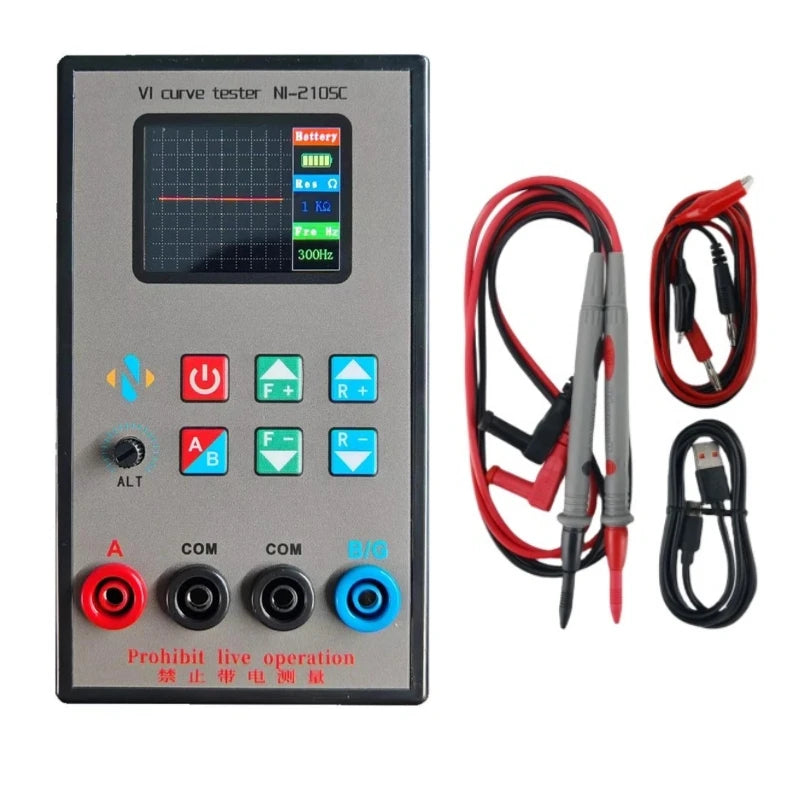

New NI-210SC Handheld VI Curve Tester Dual Channel Simultaneous Display 2.0 inch TFT Screen
New NI-210SC Handheld VI Curve Tester Dual Channel Simultaneous Display 2.0 inch TFT Screen
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Features:
- Dual signal input, adjustable B position, 18 frequency levels, 9 internal resistance levels.
- Supports A or A+B display, trigger signal output (5V).
- Type-C charging, built-in 3000mAh lithium battery, can work continuously for 5-6 hours.
- 2.0-inch TFT screen display, if there is no button operation for 15 minutes, it will automatically shutdown.
Specification:
- Voltage: 4V
- Internal resistance: 50R, 500R, 1K, 2K, 3K, 4K, 5K, 6K, 7K.
- Frequency: 20Hz, 100Hz, 500Hz, 1kHz, 2kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7kHz, 8kHz, 9kHz, 10kHz, 11kHz, 12kHz, 13kHz, 14kHz, 15kHz.
- Size: 140 x 80 x 40mm
- Net weight: 270g for host; 120g for accessory
Note:

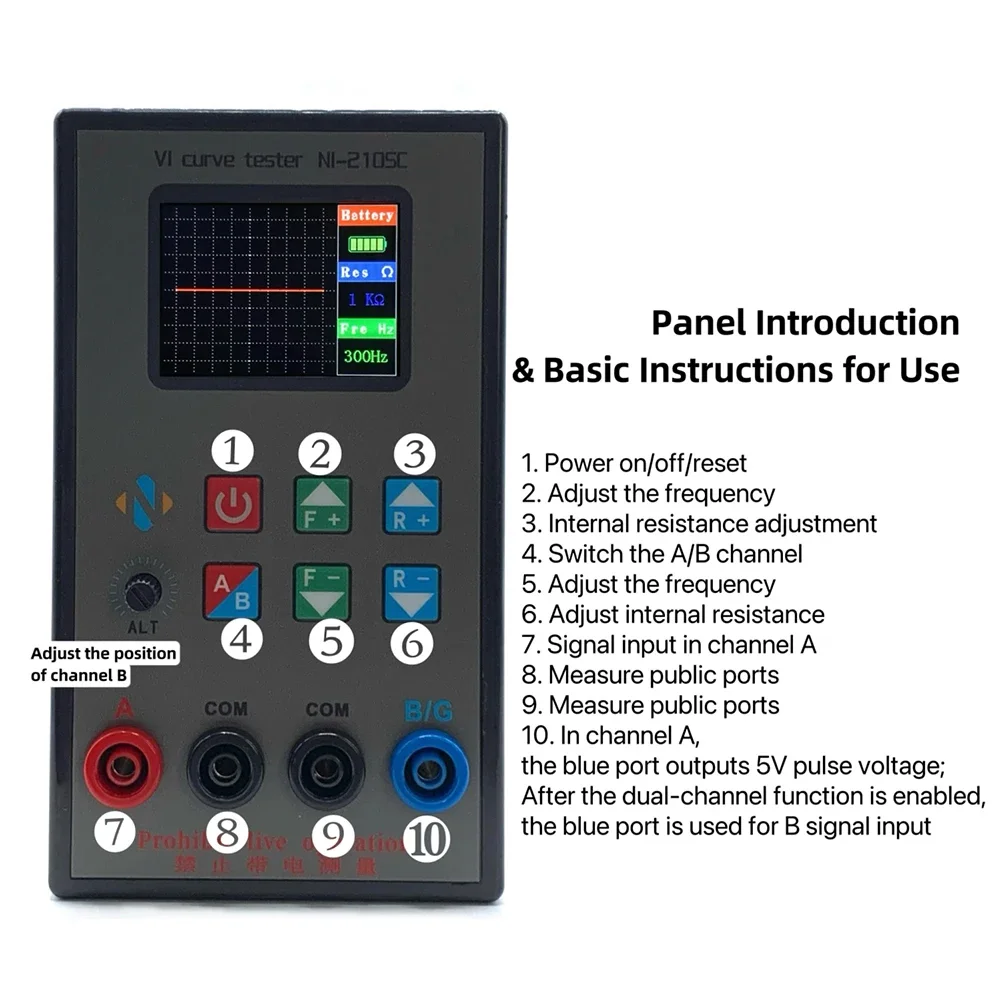

- The blue terminal is the multiplexing port. By default, when using channel A, the blue terminal outputs a 5V pulse voltage with an interval of 1 second.
- After activating the A+B channel, the blue terminal is the signal input port for the B channel.
- Prohibit live operation. Please use a 5V2A or higher charging adapter.
Package Included:
- 1 x VI Curve Tester
- 1 x Testing Pen
- 1 x Testing Clip
- 1 x Type-C Charging Cable
Description
Description
Features:
- Dual signal input, adjustable B position, 18 frequency levels, 9 internal resistance levels.
- Supports A or A+B display, trigger signal output (5V).
- Type-C charging, built-in 3000mAh lithium battery, can work continuously for 5-6 hours.
- 2.0-inch TFT screen display, if there is no button operation for 15 minutes, it will automatically shutdown.
Specification:
- Voltage: 4V
- Internal resistance: 50R, 500R, 1K, 2K, 3K, 4K, 5K, 6K, 7K.
- Frequency: 20Hz, 100Hz, 500Hz, 1kHz, 2kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7kHz, 8kHz, 9kHz, 10kHz, 11kHz, 12kHz, 13kHz, 14kHz, 15kHz.
- Size: 140 x 80 x 40mm
- Net weight: 270g for host; 120g for accessory
Note:
- The blue terminal is the multiplexing port. By default, when using channel A, the blue terminal outputs a 5V pulse voltage with an interval of 1 second.
- After activating the A+B channel, the blue terminal is the signal input port for the B channel.
- Prohibit live operation. Please use a 5V2A or higher charging adapter.
Package Included:
- 1 x VI Curve Tester
- 1 x Testing Pen
- 1 x Testing Clip
- 1 x Type-C Charging Cable
