Description
BLU9xx is an easy-to-use current measurement and power optimization tool for embedded solutions.It can not only supply power, but also measure the current of the equipment under test, with on-board voltage regulator.Advanced analog measuring unit with high dynamic and wide range, from off state to nA Or μ A to active milliampere (mA) or ampere (A) for accurate power consumption measurement,The time resolution is high enough to detect the peak value.
Range:
BLU915:1uA ~3A
BLU926:100nA~4A
BLU939:100nA~6A
Measuring range mode:
Seamless automatic measuring range
Bottom noise:
BLU915 ≤ 0.2uA, BLU926 BLU939<80nA
Current resolution: up to 100nA
Voltage output range: 0.5V - 5V
Voltage output mode:
adjustable regulated output
Step voltage voltage precision: 0.001V
Output voltage ripple: <1mV
Sampling rate: 100Ksps
Transient response time: <3uS
Load adjustment rate: <1%

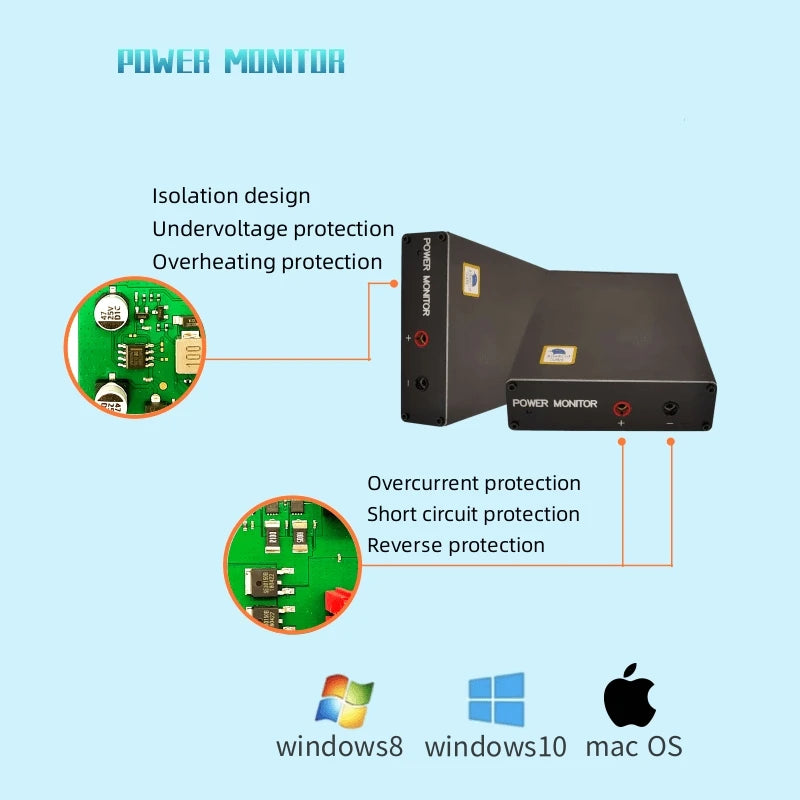

Short circuit protection: support
Overvoltage protection: support
Isolation design: support
Overcurrent protection: support
Overheating protection: support
Reverse connection protection: support
Undervoltage protection: support
Surge protection: support
Secondary development interface: support
Size:163x115x33mm

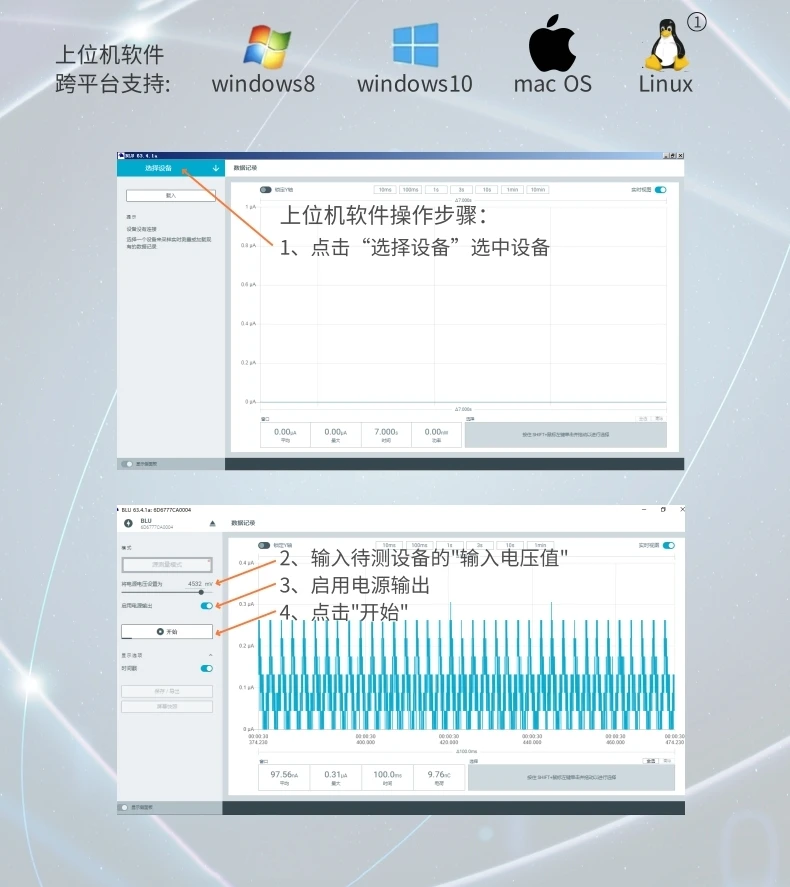

Software interface:

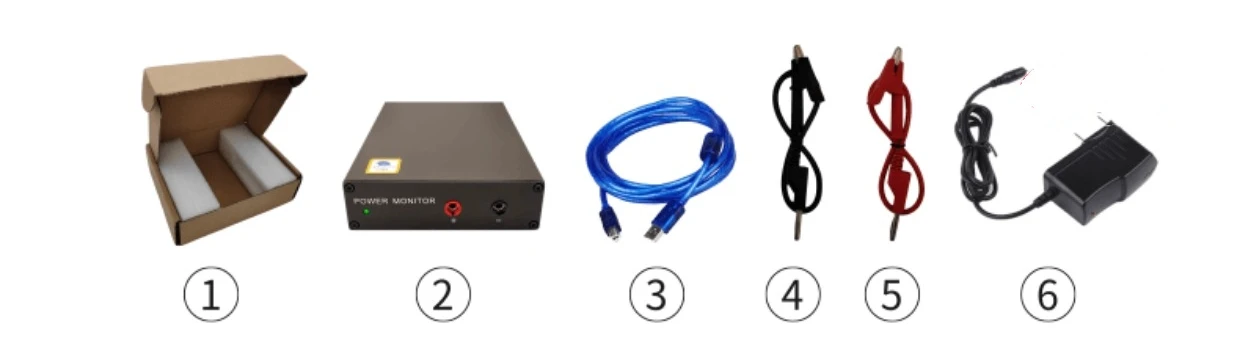

Package include
