New LiteVNA-64 50KHz ~ 6.3GHz LiteVNA 3.95" Touch Screen Vector Network Analyzer HF VHF UHF Antenna Analyzer Update of NanoVNA
New LiteVNA-64 50KHz ~ 6.3GHz LiteVNA 3.95" Touch Screen Vector Network Analyzer HF VHF UHF Antenna Analyzer Update of NanoVNA
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout

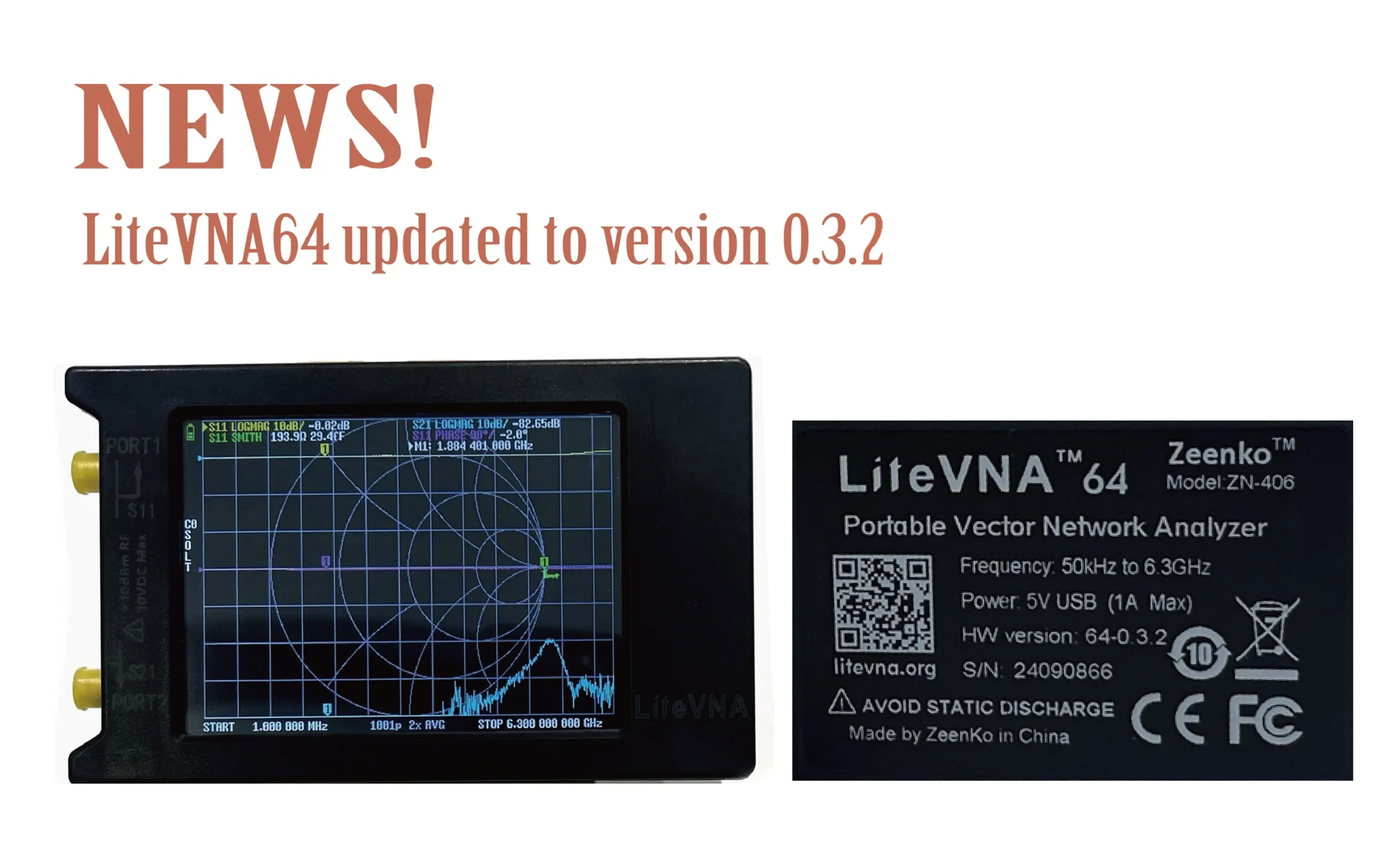

We have updated tinyVNA- liteVNA 64 to version 0.3.2. The power supply and if circuit are redesigned to greatly reduce the background noise and completely solve the interference problem when connecting external power supply. At frequencies below 1mhz-3ghz, the effective dynamic performance can be better than 90dB when 20avg is used. When the frequency is higher than 3GHz, the limited isolation is reduced, and when the frequency is 6.3ghz, the effective dynamic performance is reduced to 50dB. Compared with similar products, litevna has a wider frequency measurement range and effective dynamic range, and is more portable and reliable!
Description

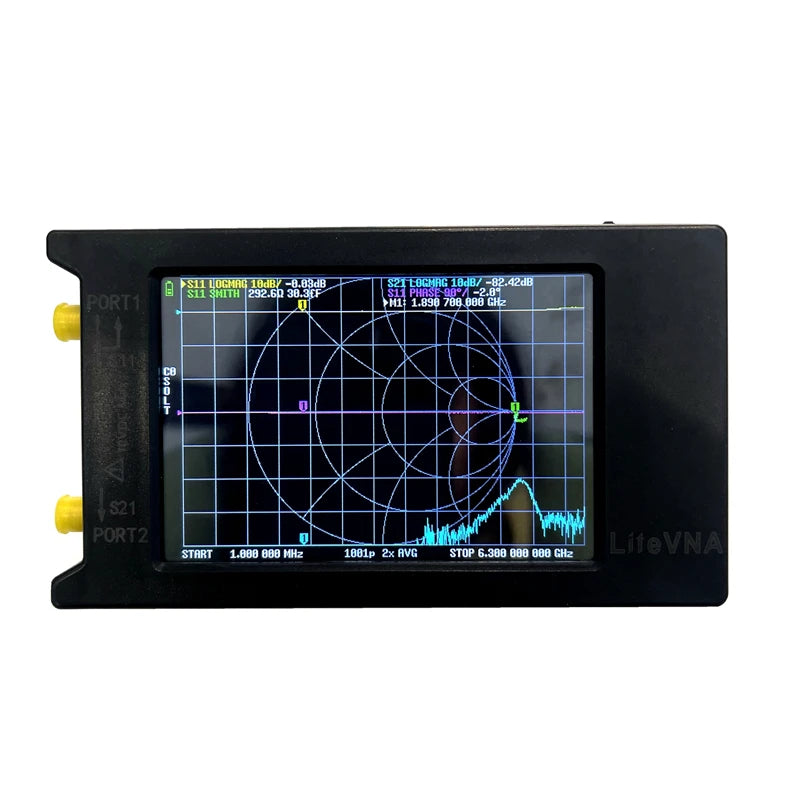

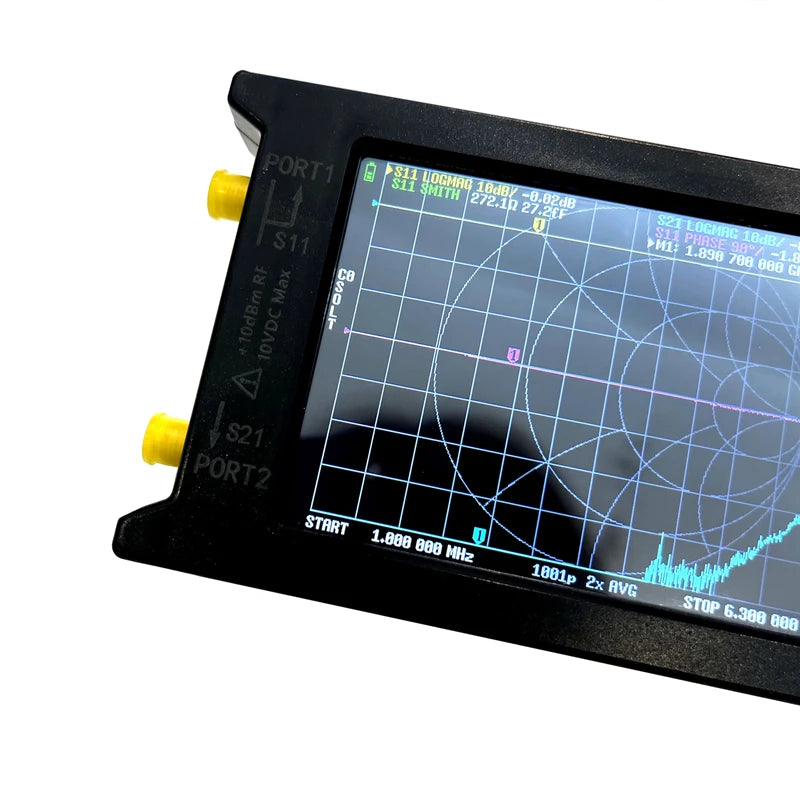

LiteVNA as small as NanoVNA and has an ultra-wide measurement range of 50kHz-6.3GHz, a portable vector network analyzer (VNA).
In order to reduce power consumption and volume, LiteVNA uses only one mixer, through the internal RF switch, can perform S11, S21 measurement, and can perform TDR and DTF measurement after IFFT calculation.
In addition to a wider measurement range, LiteVNA also has faster scanning speed and more scanning points. The operation interface consistent with NanoVNA makes it easy to use LiteVNA as a tool for field testing.
LiteVNA has a MicroSD slot, you can save the field test data or screen to the MicroSD card at any time
The 6.3GHz measurement range, in addition to meeting common amateur radio and Internet of Things applications, can also handle 5GHz testing, 5.8GHz wifi and 5.8GHz image transmission.
Manual:https://www.adrive.com/public/cDp77E/0508058%20LiteVNA_User-Guide.pdf
Parameters

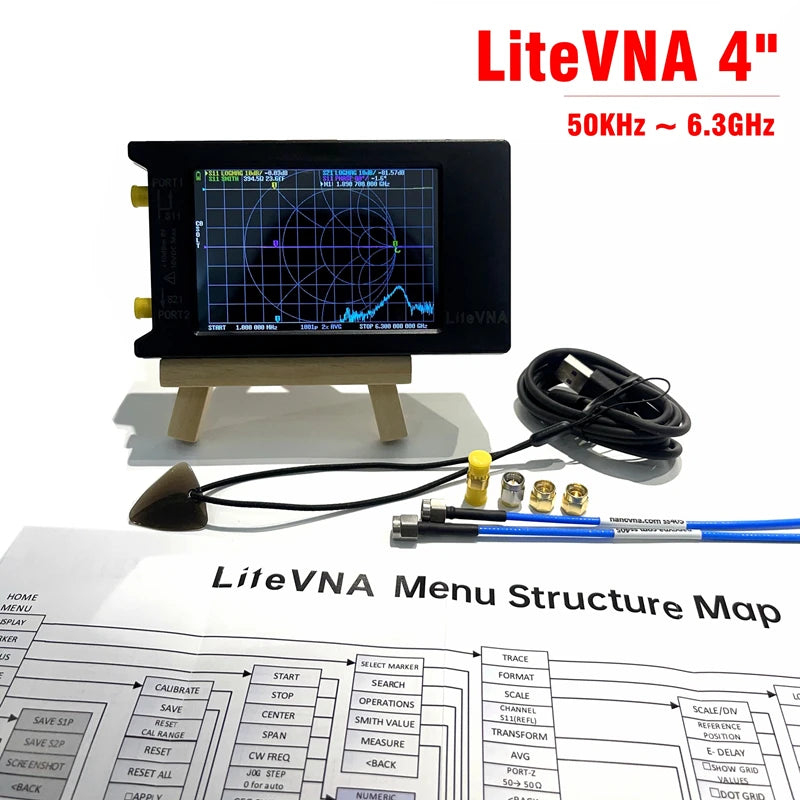

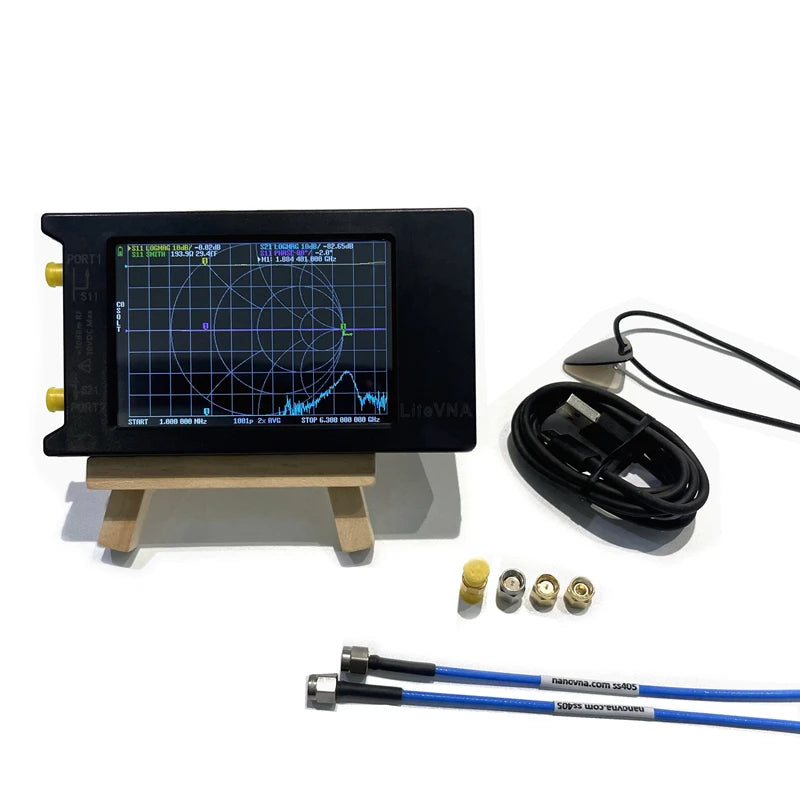

Package include
LiteVNA-64 x 1
USB Type-C data cable x1
30cm SMA male to male SS405 RF cable x2
SMA male calibration kit - OPEN x1
SMA male calibration kit - SHORT x1
SMA male calibration kit - LOAD x1
SMA female to female connector x1
Description
Description
We have updated tinyVNA- liteVNA 64 to version 0.3.2. The power supply and if circuit are redesigned to greatly reduce the background noise and completely solve the interference problem when connecting external power supply. At frequencies below 1mhz-3ghz, the effective dynamic performance can be better than 90dB when 20avg is used. When the frequency is higher than 3GHz, the limited isolation is reduced, and when the frequency is 6.3ghz, the effective dynamic performance is reduced to 50dB. Compared with similar products, litevna has a wider frequency measurement range and effective dynamic range, and is more portable and reliable!
Description
LiteVNA as small as NanoVNA and has an ultra-wide measurement range of 50kHz-6.3GHz, a portable vector network analyzer (VNA).
In order to reduce power consumption and volume, LiteVNA uses only one mixer, through the internal RF switch, can perform S11, S21 measurement, and can perform TDR and DTF measurement after IFFT calculation.
In addition to a wider measurement range, LiteVNA also has faster scanning speed and more scanning points. The operation interface consistent with NanoVNA makes it easy to use LiteVNA as a tool for field testing.
LiteVNA has a MicroSD slot, you can save the field test data or screen to the MicroSD card at any time
The 6.3GHz measurement range, in addition to meeting common amateur radio and Internet of Things applications, can also handle 5GHz testing, 5.8GHz wifi and 5.8GHz image transmission.
Manual:https://www.adrive.com/public/cDp77E/0508058%20LiteVNA_User-Guide.pdf
Parameters
Package include
LiteVNA-64 x 1
USB Type-C data cable x1
30cm SMA male to male SS405 RF cable x2
SMA male calibration kit - OPEN x1
SMA male calibration kit - SHORT x1
SMA male calibration kit - LOAD x1
SMA female to female connector x1
