New LC-200A Digital LCD Capacitance Inductance Meter LC Meter 1pF-100mF 1uH-100H
New LC-200A Digital LCD Capacitance Inductance Meter LC Meter 1pF-100mF 1uH-100H
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Instruction
LC200A handheld inductor and capacitor meter is an LC tester built by the department to open the mold. It has a wide range and is easy to use. With a blue plastic case, the internal use of surface mount high-quality components to ensure excellent quality; can measure 1pF-100mF capacitance and 1uH-100H inductance, capacitance resolution up to 0.01pF, inductor resolution 0.001uH.
The instrument is based on the principle of LC resonance and can measure inductance below 1uH and small capacitance less than 1pF. This is also the characteristic of this instrument, especially suitable for microwave production and measurement of switching power supply transformers, filter inductors, etc.; and it has flexible online calibration at any time Maintain measurement accuracy; instrument does not use any potentiometer adjustment, calibration parameters are completely stored in the microcontroller's FLASH, power loss will not be lost, compared to other potentiometer calibration method to be accurate and convenient.Describe the details of the selling point above, attracting and providing trust to your potential users.
Parameters
• C range : Capacitance (1pF-10uF)
• Capacitance accuracy : 1%(1pF~1uF), 5%(1uF~10uF)
• Measurement resolution of capacitance （C Range）: 0.01pF
• Hi.C range : Large capacitance ,1uF-100mF
• Large capacitance accuracy: 5%(1uF-100mF)
• Measurement resolution of large capacitance（Hi.C Range）: 0.01uF
• L range : Inductance (1uH-100mH)
• Inductance accuracy ：1%(1uH~100mH)
• Measurement resolution of inductance（L Range）: 0.001uH
• Hi.L range : Large inductance (0.001mH-100H)
• Large inductance accuracy: 1%(100mH~1H),5%(1H~100H)
• Measurement resolution of large inductance（Hi.L Range）: 0.001mH
• Test Frequency: L Range、C Range,500kHz; Hi.L Range,500Hz~50KHz
• Measurement method of capacitance、Inductance and Large Inductance: LC Resonance
• Measurement method of large capacitance:Charge-discharge
• Display:1602 LCD
• Effective display digits: 4 digits
• Interface to power supply:Mini USB &Φ5.5DC Socket,4 of AA Batteries
• Supply Voltage:5V
• Dimensions (L * W * H):150*89*29mm
• Weight:198g
• Package Size:200*160*60mm
• Package weight: 280g

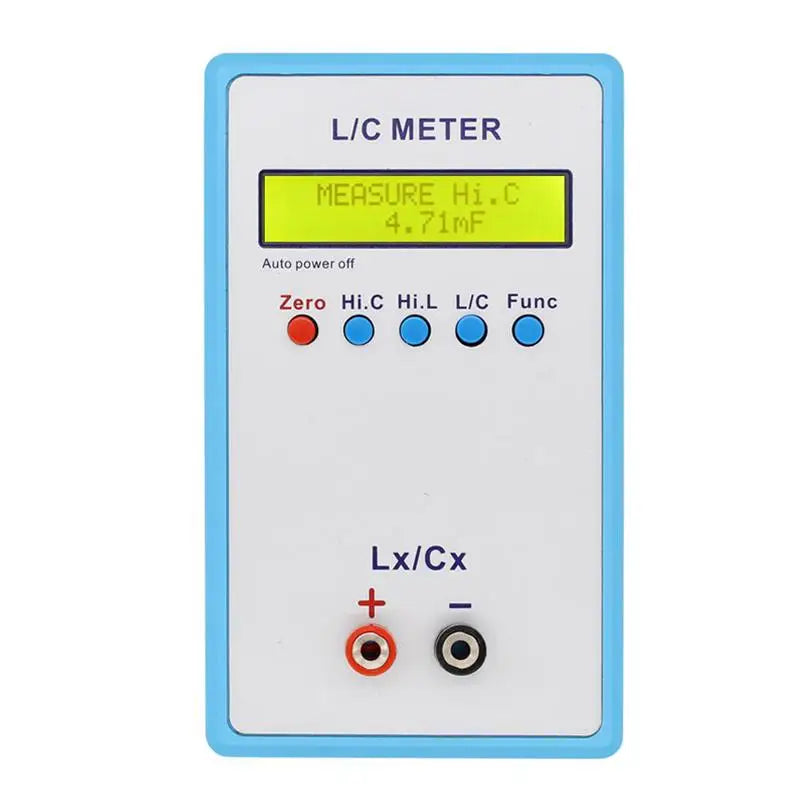

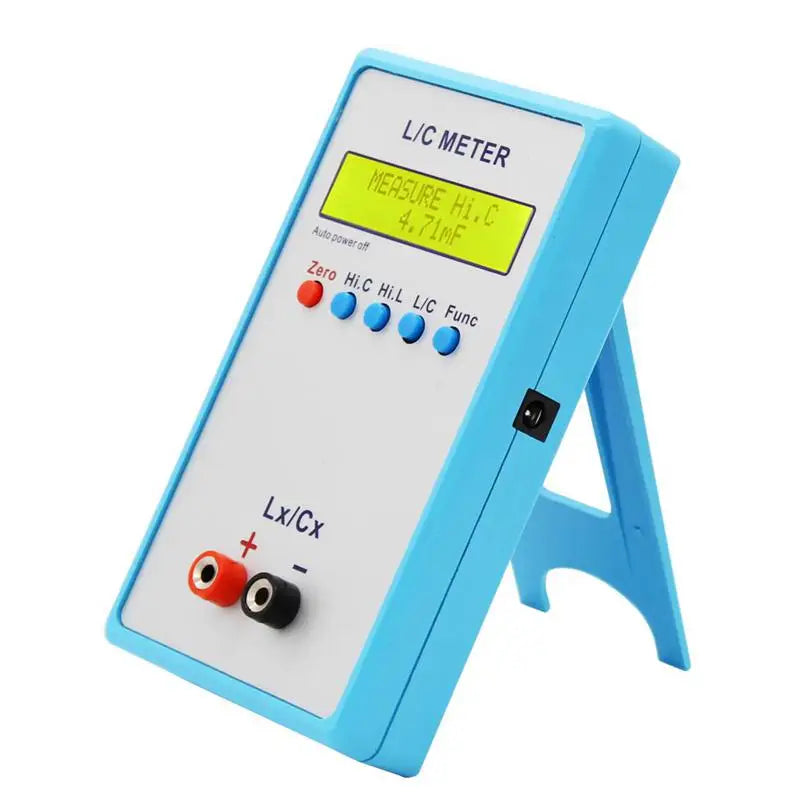

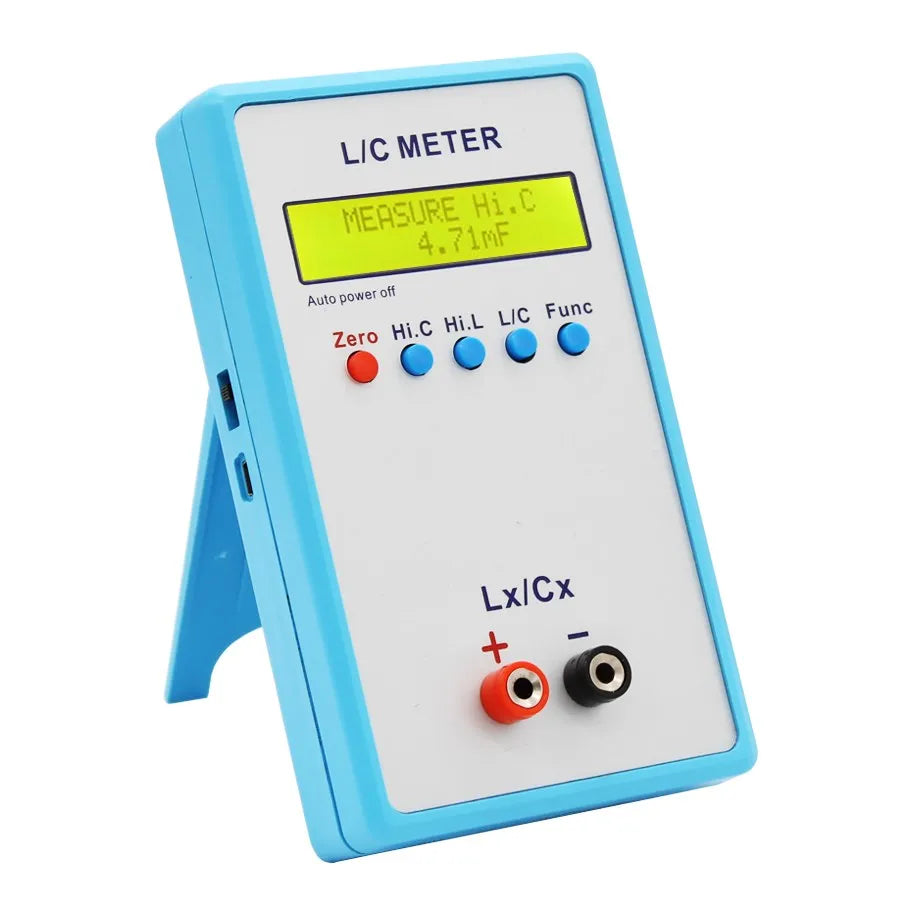

Product display

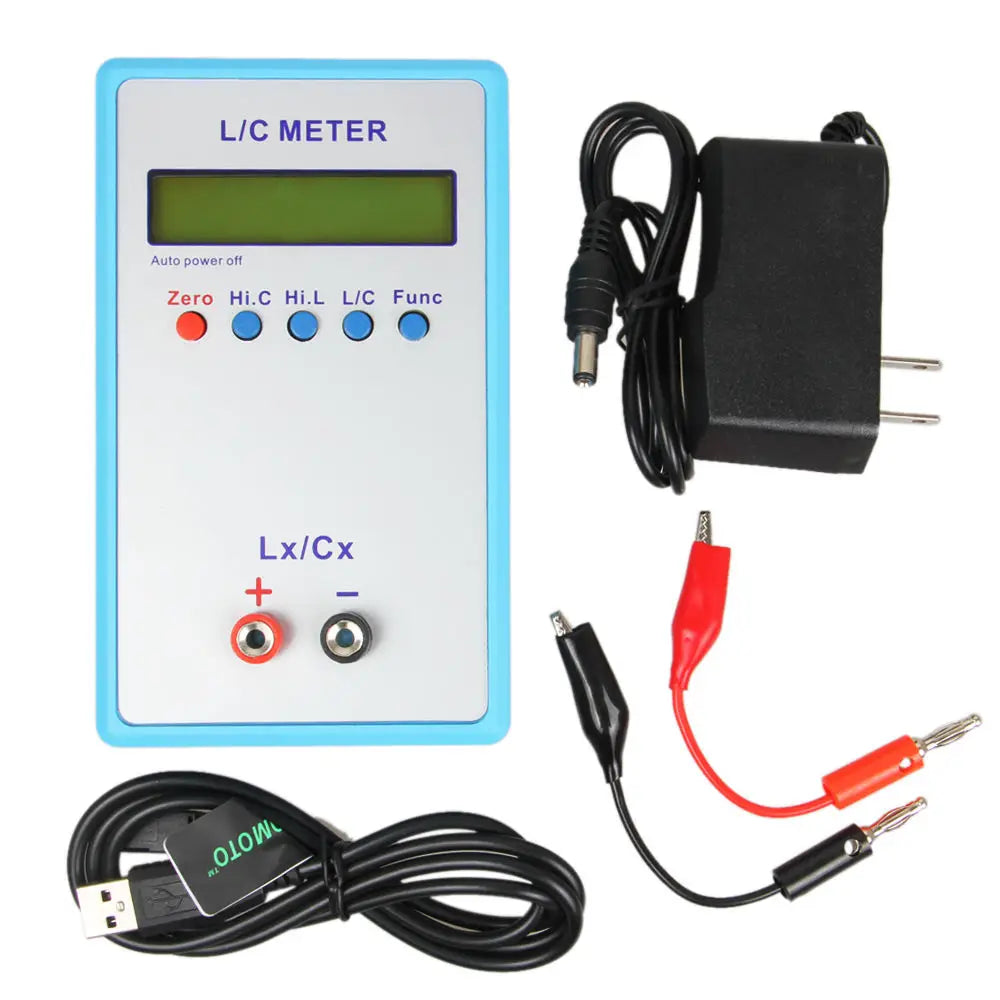

What in the package

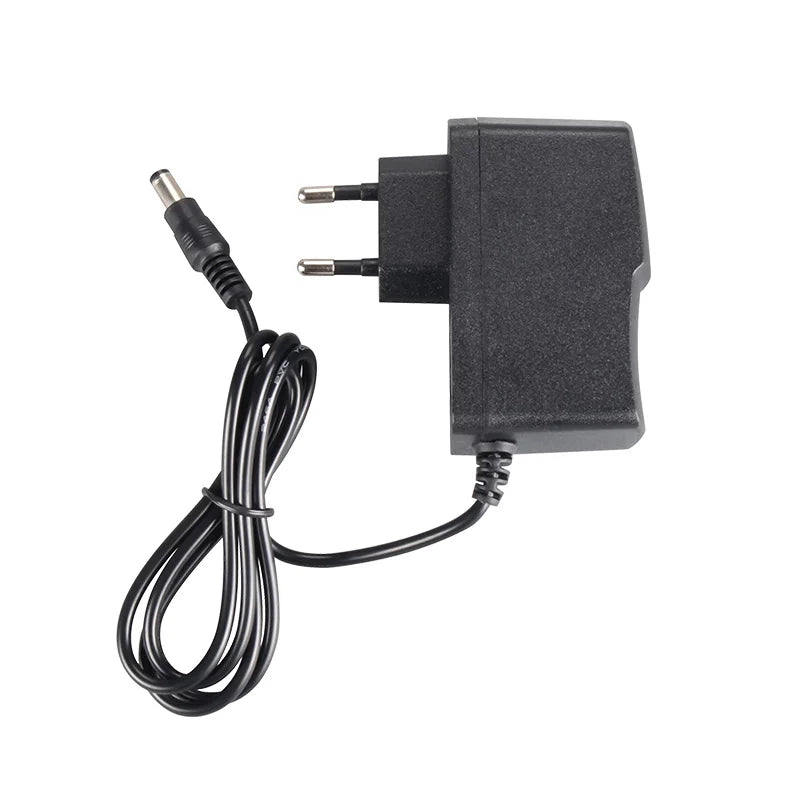

The power adapter is EU plug in default, if you need US,UK or AU plug, tell us,thanks.
LC-200A:
1 x LC-200A
1 x Power adapter
1 x USB cable
2 x Test clip
With SMT Clip:
LC-200A:
1 x LC-200A
1 x Power adapter
1 x USB cable
2 x Test clip

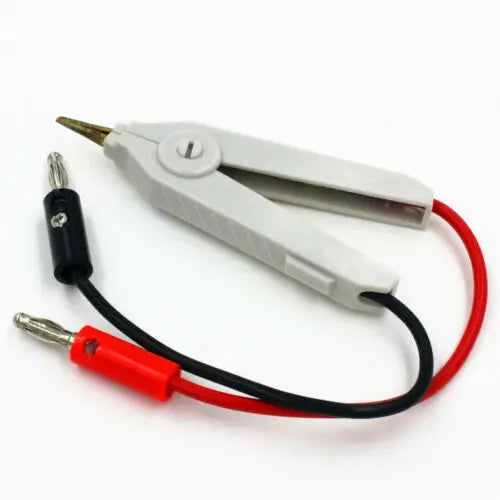

1 x SMT clip
