New LB06 Hart Modbus 4~20mA/0~10V Process Calibrator Current Signal Generator Source
New LB06 Hart Modbus 4~20mA/0~10V Process Calibrator Current Signal Generator Source
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Features
● Pocket portable size: 120x76x30mm, put it into your pocket, save energy, save cost, easy to carry.
● High accuracy 0.025%+1/2 digits, high reliability and stability.

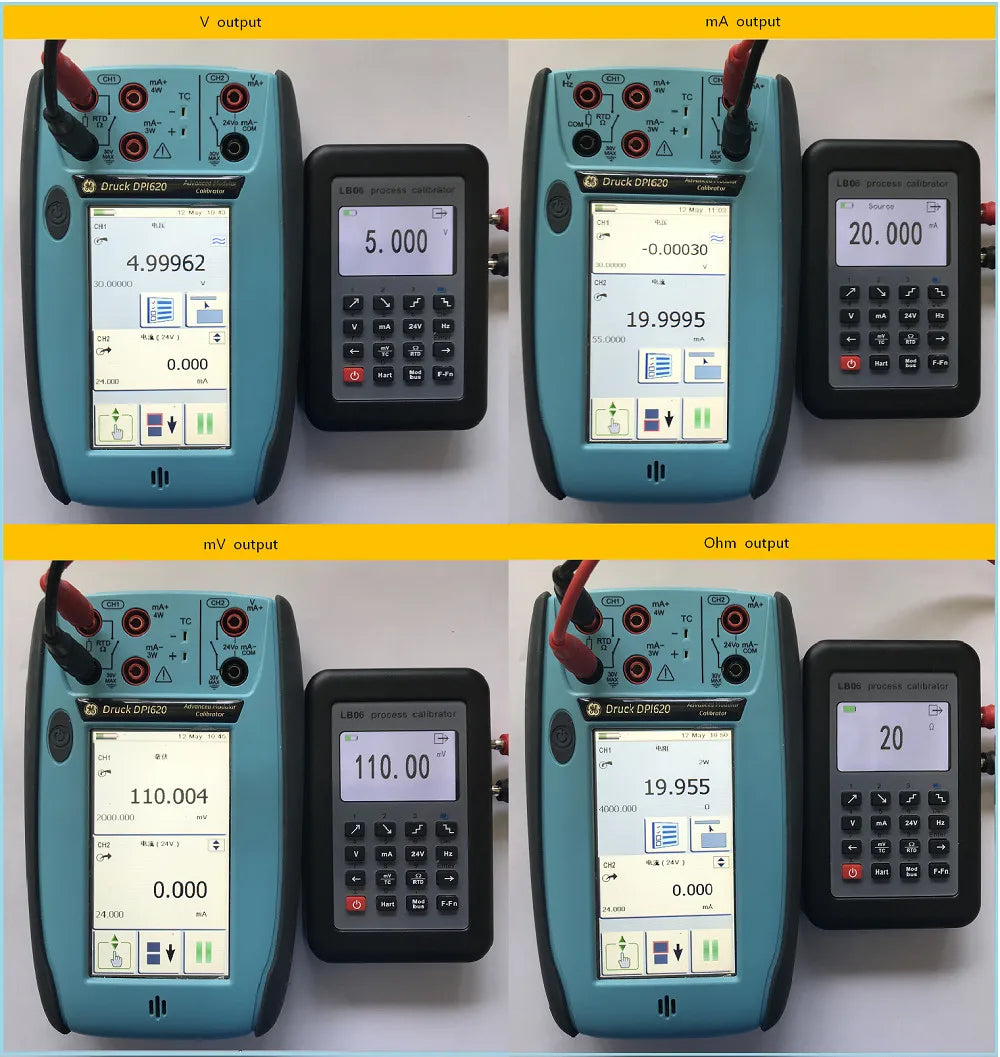

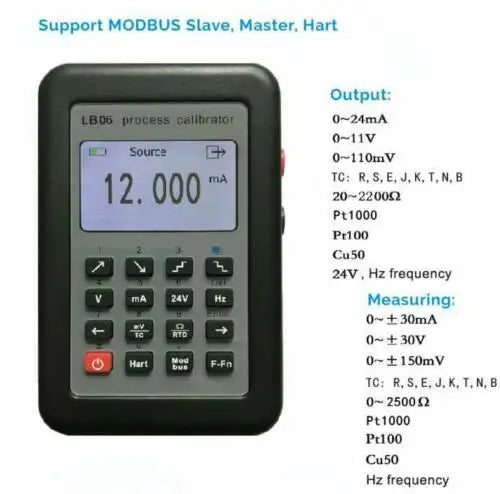

● Signal output & simulation: 0/4-20mA source or passive, 0-11V, 0-110mV, 20-400Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V outputs, frequency, etc.

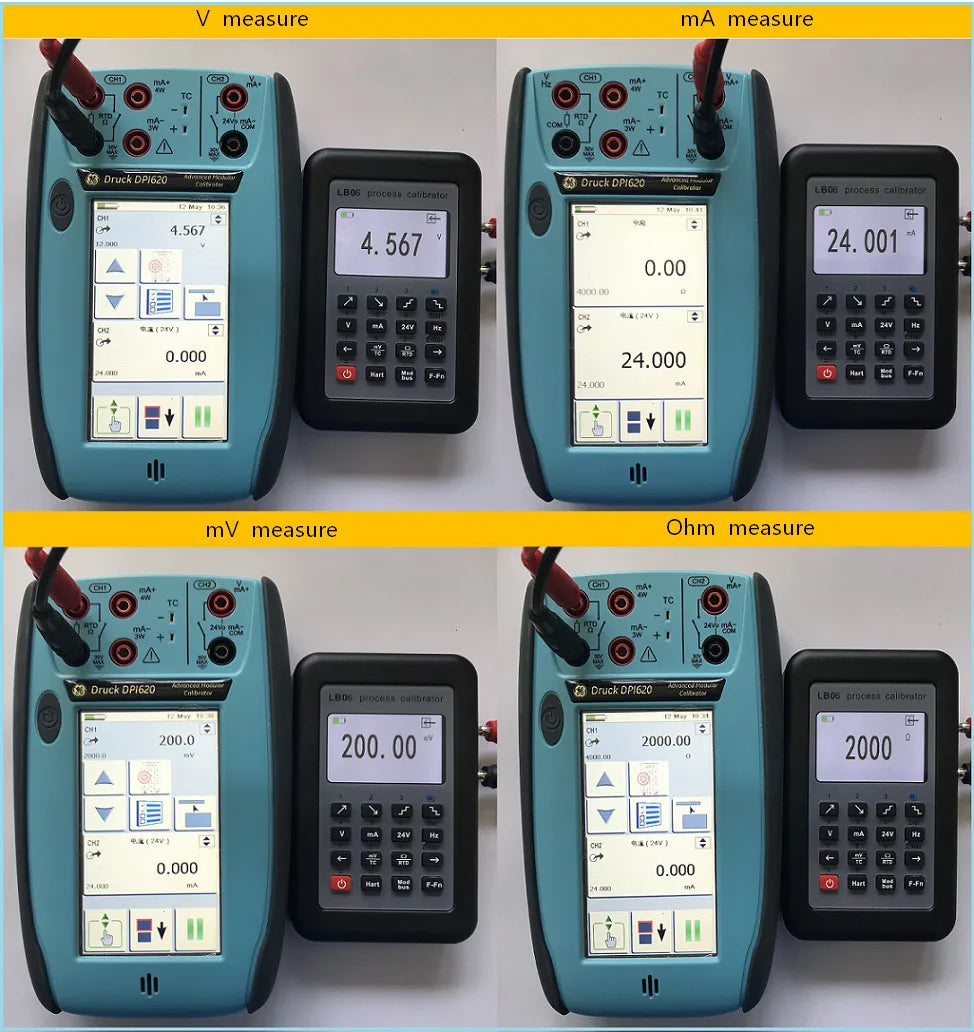

● Measurement: 0-30V, 0-150mV, 0-999.9Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V, 0-24mA, Ohm, frequency etc.
● Support standard MODBUS Master, MODBUS Slave, Hart communicator/operator.
● High resolution LCD display, have back light for different lighting conditions, large screen clear display.
● Fast response, no delay in signal source simulation and signal testing or measurement.
● Have charging and status indicator to check the battery status easily.
● Can be used as signal generator, multifunction process calibrator and digital multimeter.
● Have description in V, mV, mA, RTD, TC, Step, Ω, Hz, MODBUS, Hart keys, it enables user to operate it easily.
● DC voltage, mV small signal, resistance signal, dc current, thermocouple, RTD thermal resistance signal output and measurement, it equals to a process calibrator and digital multimeter.
● AD, DA, reference voltage, OP circuits are used to ensure all high accuracy, high performance and high stability
● Using 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage.
Parameters
Instruction of the display

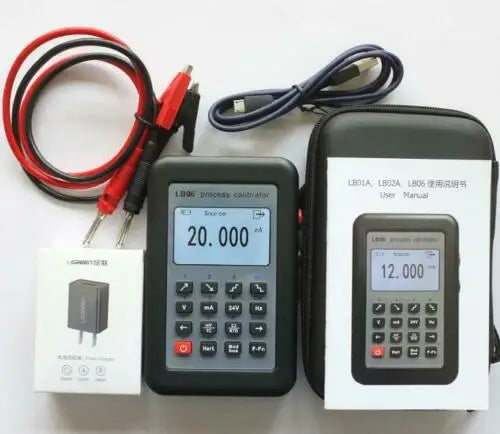

What's in the package
1 x LB06 Generator
1 x Test lead
1 x USB cable
1 x Bag
1 x Manual
Description
Description
Features
● Pocket portable size: 120x76x30mm, put it into your pocket, save energy, save cost, easy to carry.
● High accuracy 0.025%+1/2 digits, high reliability and stability.
● Signal output & simulation: 0/4-20mA source or passive, 0-11V, 0-110mV, 20-400Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V outputs, frequency, etc.
● Measurement: 0-30V, 0-150mV, 0-999.9Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V, 0-24mA, Ohm, frequency etc.
● Support standard MODBUS Master, MODBUS Slave, Hart communicator/operator.
● High resolution LCD display, have back light for different lighting conditions, large screen clear display.
● Fast response, no delay in signal source simulation and signal testing or measurement.
● Have charging and status indicator to check the battery status easily.
● Can be used as signal generator, multifunction process calibrator and digital multimeter.
● Have description in V, mV, mA, RTD, TC, Step, Ω, Hz, MODBUS, Hart keys, it enables user to operate it easily.
● DC voltage, mV small signal, resistance signal, dc current, thermocouple, RTD thermal resistance signal output and measurement, it equals to a process calibrator and digital multimeter.
● AD, DA, reference voltage, OP circuits are used to ensure all high accuracy, high performance and high stability
● Using 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage.
Parameters
Instruction of the display
What's in the package
1 x LB06 Generator
1 x Test lead
1 x USB cable
1 x Bag
1 x Manual
