New Handheld 10MHz~2.7GHz Spectrum Analyzer 5.0 inch LCD Display Signal Frequency Measuring Instrument XT-127

Name: New Handheld 10MHz~2.7GHz Spectrum Analyzer 5.0 inch LCD Display Signal Frequency Measuring Instrument XT-127
Brand: Cartoolshop
Price: 527.80 USD
Availability: InStock

New Handheld 10MHz~2.7GHz Spectrum Analyzer 5.0 inch LCD Display Signal Frequency Measuring Instrument XT-127

Sale Sold out Pre-order

$527.80 USD

~~$812.00 USD~~ $527.80 USD

Tax included. Shipping calculated at checkout.

In stock

Ask a question

All orders are dispatched the next 3 business days!
We will beat any price. We back all products with a 1 year guarantee.

Add $299.99 more to get FREE SHIPPING!

$0.00

Order in the next 0 hours 0 minutes to get it by /06/2026

Guaranteed Safe Checkout

Description

Item Specifics

1.1 PRODUCT FEATURES

Real-time spectrum analysis functions: real-time spectrum scan SPAN/RBW/CENT/MARKER function，MAXHLOD function，Maximum power automatic detection。

Frequency chromatogram function: show a period of time the whole time and frequency spectrum characteristics of recycled record all spectrum distribution within 5 minutes, facilitate the frequency interference to or launch leakage and other problems

Heat map function: l spectrum shows that over a period of time spectrum overlap density contour, repetitions show tend to be more red, more facilitate spectrum statistical characteristics of analysis for a period of time.

1.2 PORTABLE SPECTRUM ANALYZER

PROJECT	PARAMETER
model	XT-127
S11 （typical value)	-20dB
Frequency range	10MHz~2.7GHz
In-band flatness	1dB
RBW	3、5、10、20、30、50、100、200、300 and 500kHz
DANL	-100dBm（typical value）
Amplitude precision	+-1dBm
Sweep time	200ms
MAXHOLD function	Support
Reference level is ADJ	Support
Display refresh rate	5Hz
LCD resolution	TFT 800×480
LCD size	5 inch
RF interface[	SMA-K
Spectrogram mode	Support
Thermal spectrum mode	Support
Built-in RTC clock	Support
Battery capacity	3300mAh（typical）
Battery type	Panasonic 18650 lithium batteries
Charging time	4～5 h
Charging interface	Micro USB interface
Battery life	9 h
Overall dimensions	135mm101mm30mm（Do not include the knob and the antenna height）
Working temperature	-20～45°
Storage temperature	-20～70°
Signal measurement range	-100 ~ -15dBm （Large signal attenuator to enter）

INTRODUCTION TO THE BUTTONS, PORTS, AND FUNCTION

2.1 INTRODUCTION TO THE PORT AND INDICATOR LIGHTS

Light blue light in the normal boot, bright red when charging, the charging light green.

USB interface for Micro USB, the use of power is 5V / 1 A.

Antenna interface is the instrument for the standard SMA female head (SMA - K outside screw hole) should be with standard male head (SMA) - J internal screw needle. Note that SMA interface normal service life of about 1000 times (more than life, signal loss bigger or contact unstable), frequent replacement of antenna or using radio frequency cable, SMA connector should be used the original life of interface.

2.2 FUNCTION AND USE

KEYS FUNCTION GENERAL INTRODUCTION：

F1~F6 function keys (F1) with the LCD menu label one-to-one correspondence, select it and press respectively into the corresponding function;

POWER (F6) key is on/off key, long press the POWER (F6) key to turn it off. (note: shutdown operation under the return to the main interface is effective, other interface to return to the main interface operation).

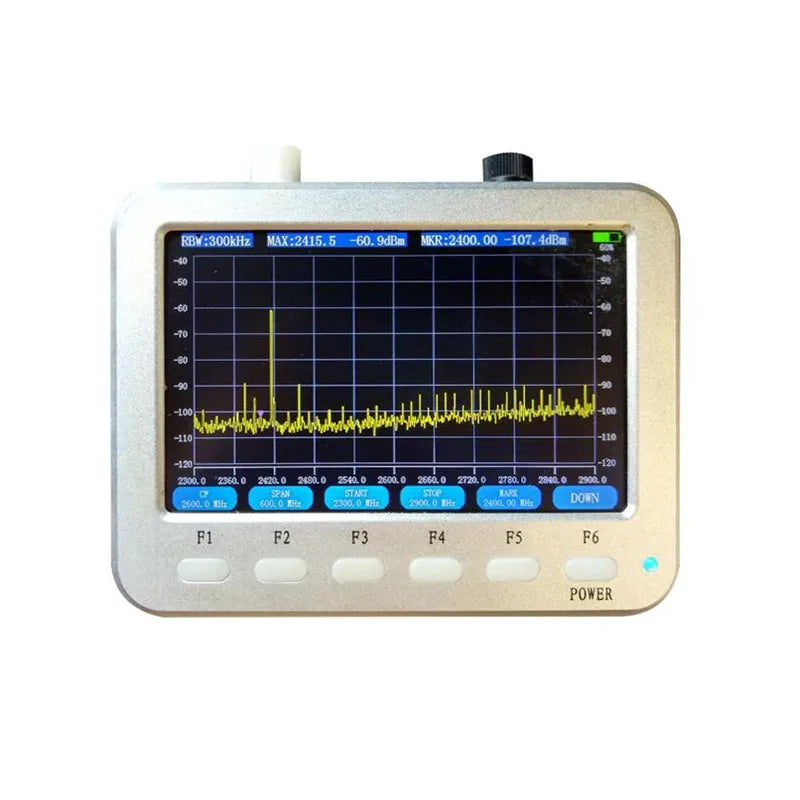

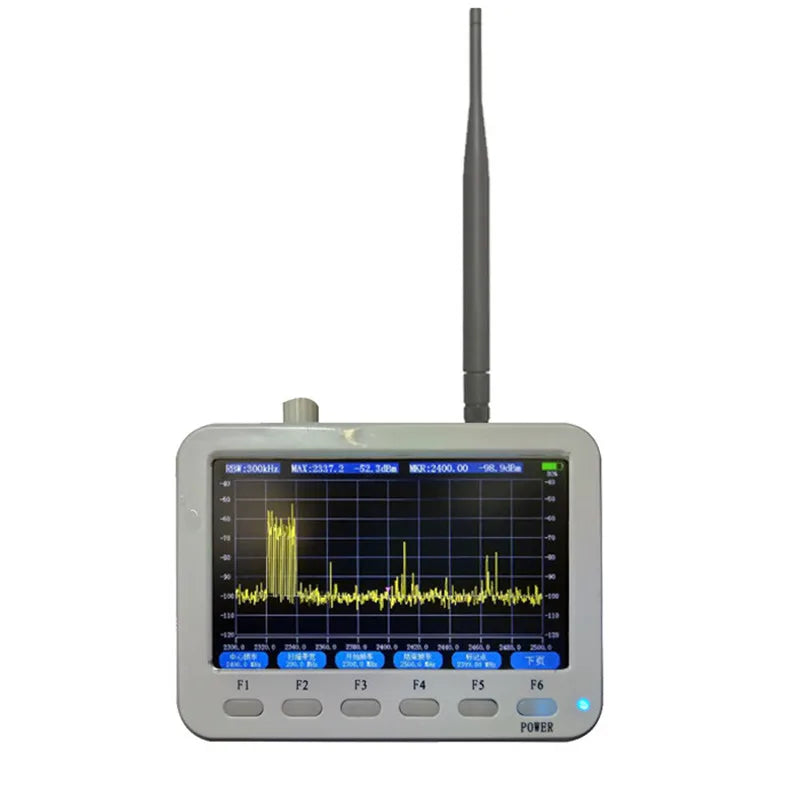

2.2.1 REAL-TIME SPECTRUM FUNCTION

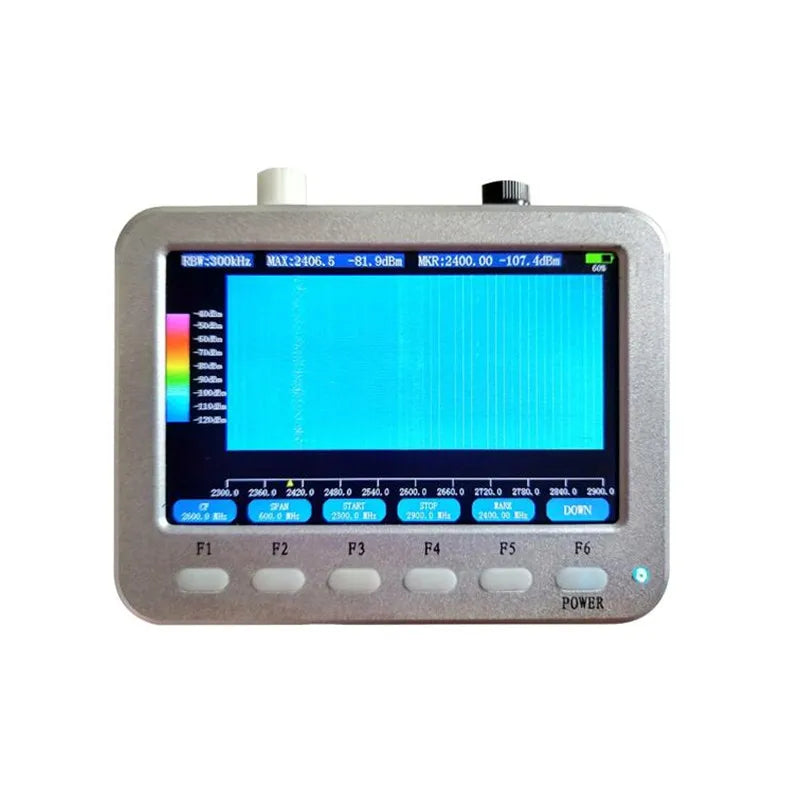

2.2.2 SPECTROGAM FUNCTION

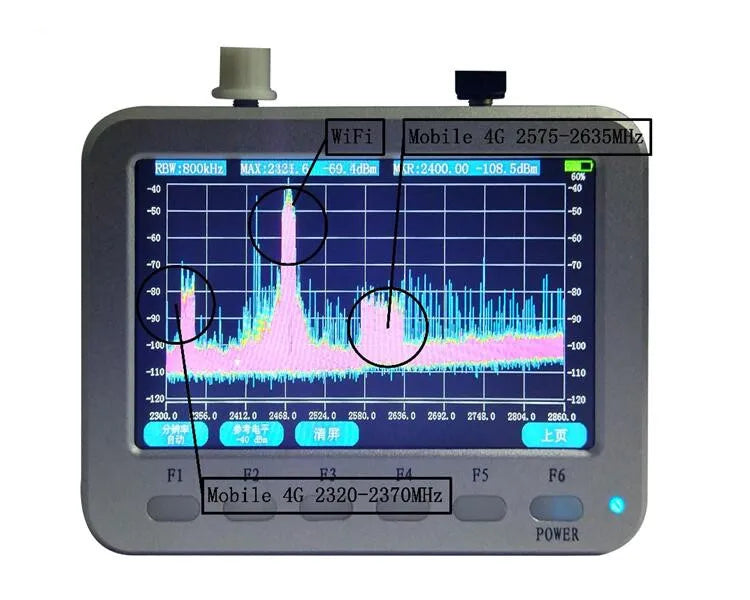

2.2.3 THERMAL SPECTRUM FUNCTION

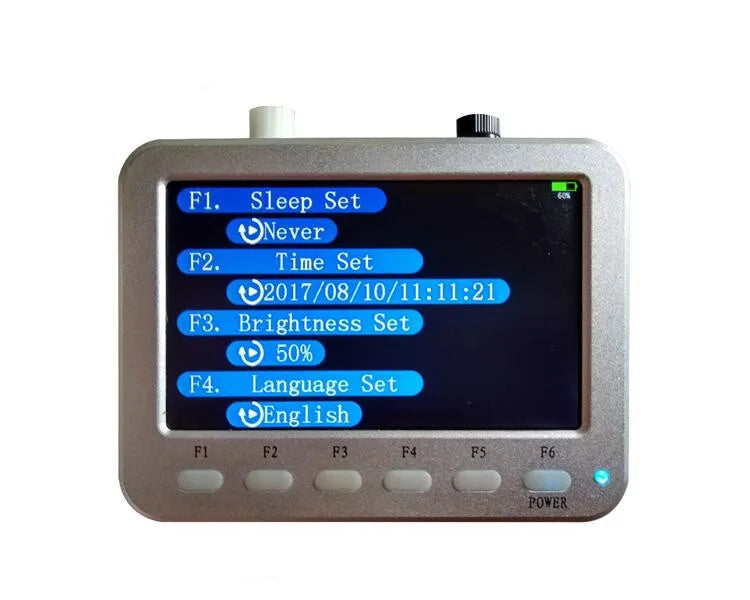

2.2.4 SET THE INTERFACE

3. TYPICAL APPLICATIONS

Can be used to test the single carrier, mobile, unicom 4 g 4 g signal, telecommunications, 4 g signals, WiFi, 2.5 ~ 2.7 GHz unmanned aerial vehicle (UAV), etc.

Package include:

1 x New Handheld 10MHz~2.7GHz Spectrum Analyzer
