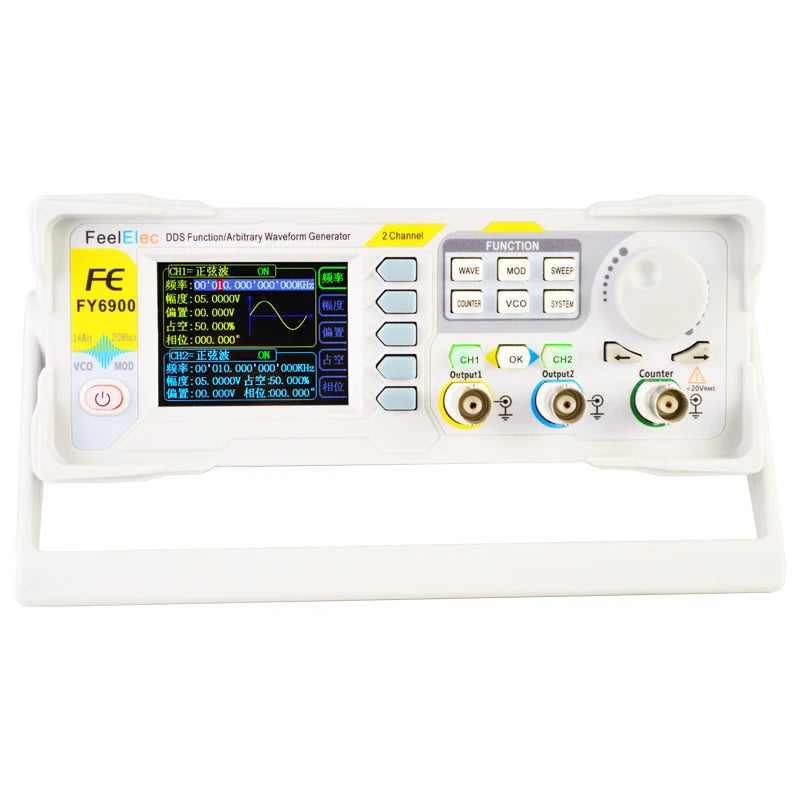

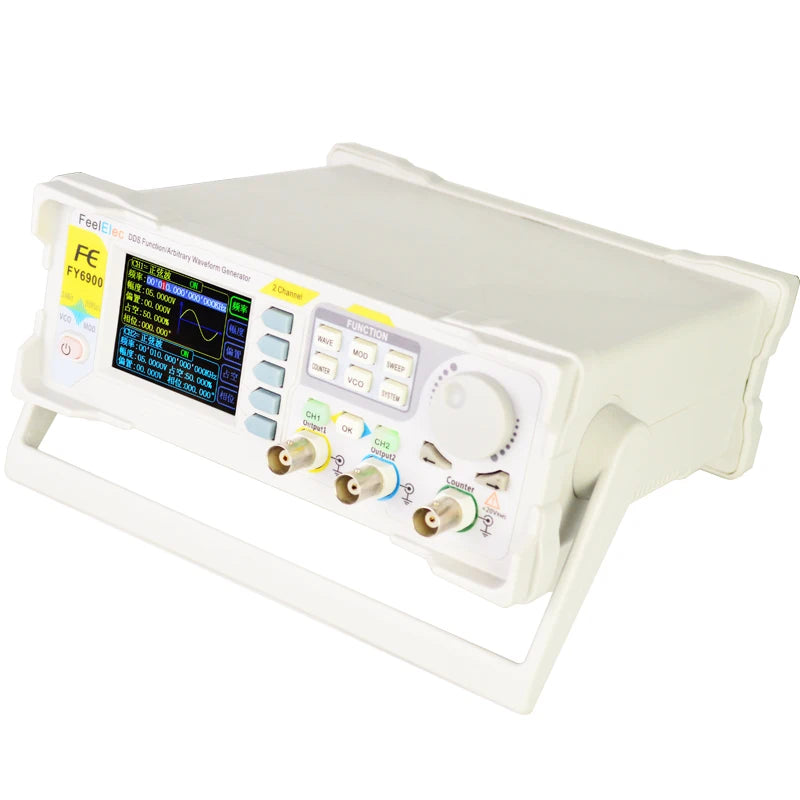

New FY6900 60MHz Dual Channel DDS Function Arbitrary Waveform Pluse Signal Generator VCO Frequency Sweeper Counter

Main Features:

◆ DDS direct digital synthesis technology, producing accurate, stable, low distortion output signals;

◆ ABS plastic case desktop design, AC 100 ~ 240VAC wide voltage supply;

◆ 2.4 inch (320*240) color display, showing dual channel waveform parameters at the same time;

◆ The highest output frequency is 60MHz (sine wave), 250MSa/s sampling rate, 14bits vertical resolution;

◆ Press and hold the OK button during use to quickly save the parameter information currently output by the instrument. The saved parameters can be automatically loaded the next time you turn it on.

◆ Fully independent dual channel output (equivalent to two independent signal sources), can work synchronously, and the phase difference is precisely adjustable;

◆ Channel tracking function, when tracking is turned on, all parameters of both channels can be updated according to the user's configuration at the same time;

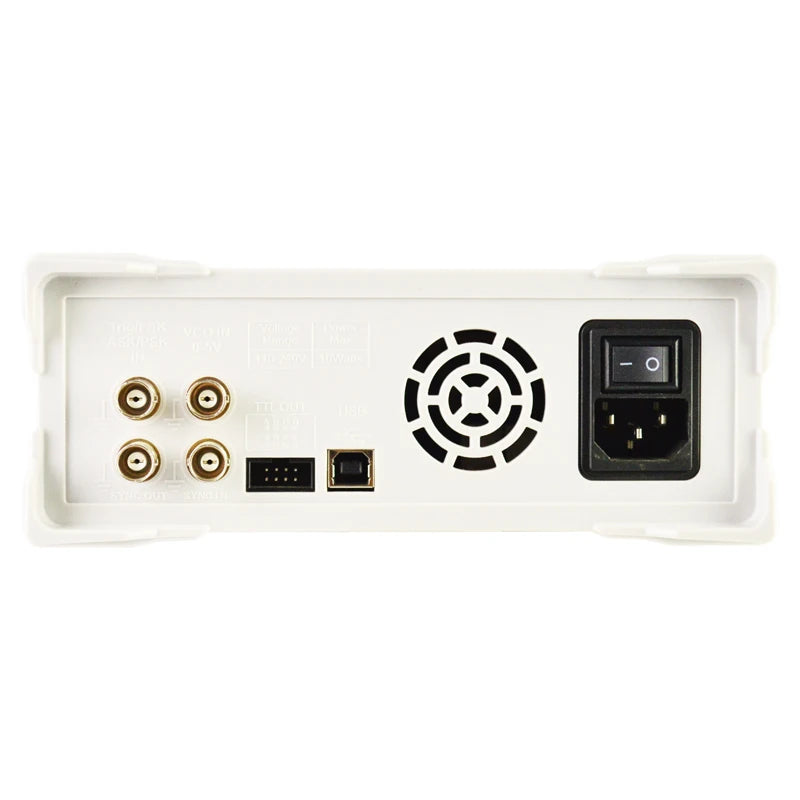

◆ Two or more machines can synchronize multiple machines through the SYNC port;

◆ It can output up to 98 sets of functions/arbitrary waveforms, including 34 sets of preset waveforms and 64 sets of user-defined waveforms (any waveform can be edited and downloaded to the instrument output through the arbitrary waveform editing software provided with the instrument). Preset waveforms include: sine wave, square wave, rectangular wave (duty cycle adjustable), trapezoidal wave (both rising edge time and falling edge time can be accurately set), triangle wave, pulse wave (pulse width and frequency can be accurately set) Fixed), sawtooth, sawtooth, staircase, trapezoidal, spiral, narrow pulse, noise, exponential, exponential, electrocardiogram, Lorentz pulse, multi-audio, CMOS ~12V), four-channel TTL level and DC voltage;

◆ With 64 sets of arbitrary wave storage bits, each group has a storage depth of 8192*14bits;

◆ High frequency accuracy: frequency accuracy can reach 10-6 orders of magnitude;

◆ High frequency resolution: full range frequency resolution 1uHz (0.000001Hz);

◆ Output amplitude up to 24Vpp, amplitude resolution up to 1mV (0.001V);

◆ DC offset function (<20MHz) with -12V~+12V, resolution up to 1mV;

◆ The duty ratio of both channels can be adjusted independently, and the adjustment accuracy can reach 0.01%;

◆ Pulse wave pulse width and pulse frequency are continuously adjustable, and the adjustment range is 20ns-1S. The pulse amplitude can be continuously adjusted between 0-12V, and the adjustment precision is 0.001V;

◆ The phase adjustment range of the two channels is 0~359.99°, and the adjustment precision is 0.01°.

◆ No range limitation: the whole range frequency is not divided, and the direct digital setting;

◆ With digital signal output function, it can realize any CMOS level with amplitude from 0~12V;

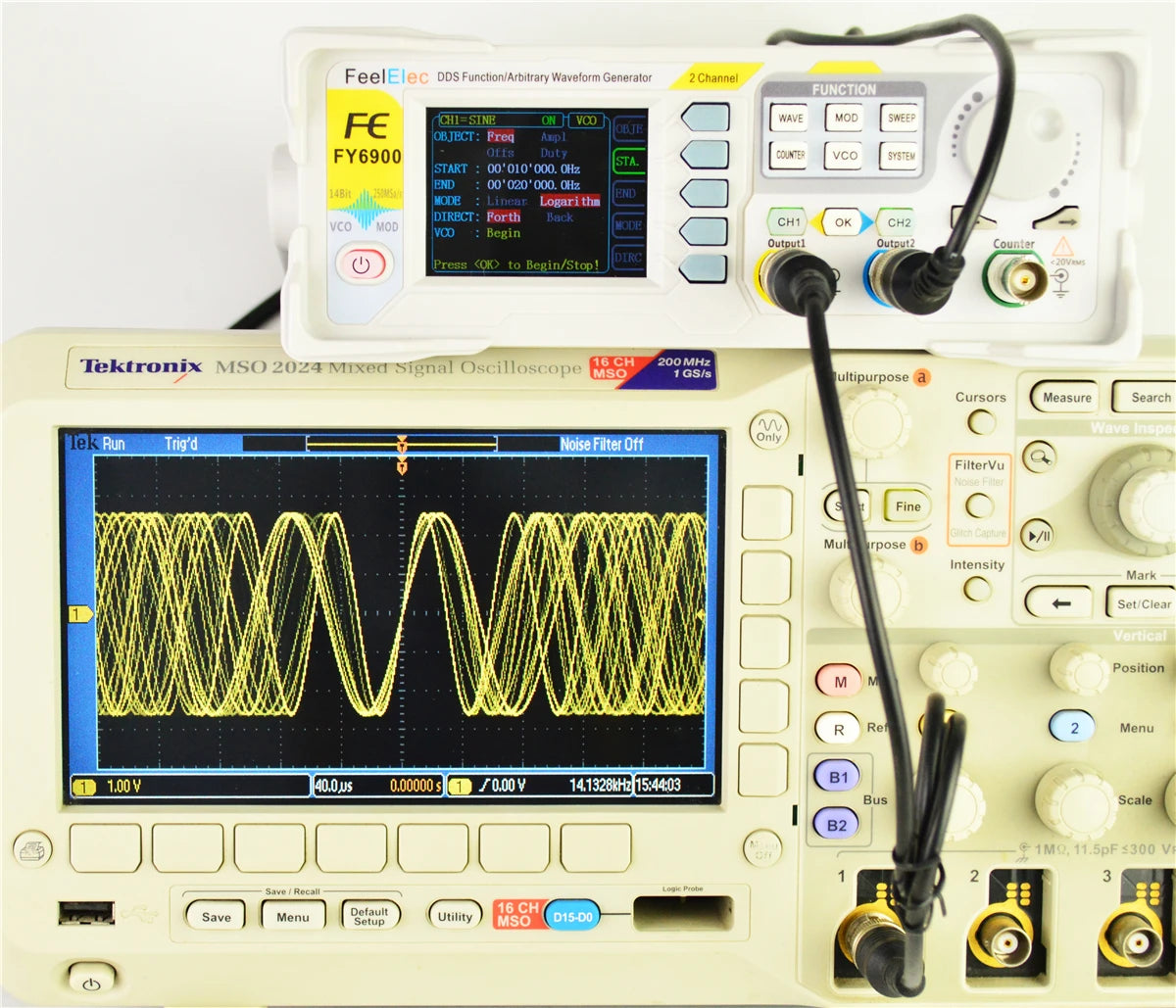

◆ Scanning function: It can scan the four properties of the signal: frequency, amplitude, offset and duty cycle respectively. It has two scanning modes: linear scanning and logarithmic scanning. The scanning time can reach 999.99S, and the scanning start and end points can be arbitrarily selected. Setting

◆ Burst burst output function: optional manual trigger, internal CH2 trigger and external trigger three trigger modes, which can make the machine output 1~1048575 arbitrary bursts;

◆ VCO function: Supports the output function of each parameter of VCO voltage control signal (such as voltage controlled oscillator).

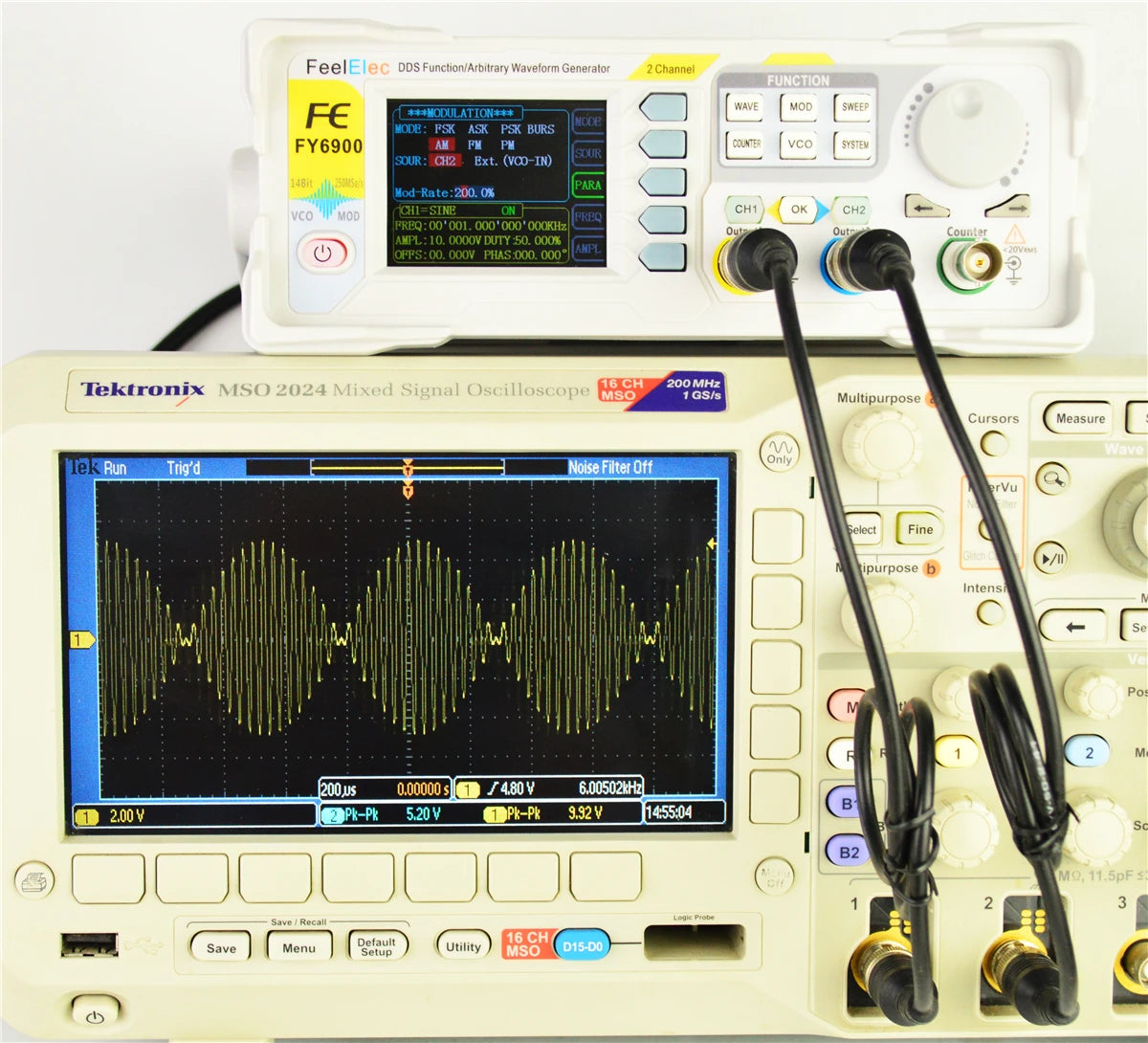

◆ Rich modulation types: AM, FM, PM, ASK, FSK and PSK modulation;

◆ Storage characteristics: It can store 20 sets of instrument state parameters set by the user, and can be recalled at any time;

◆ 100M frequency meter function: It has four measurement methods: frequency measurement, period measurement, positive and negative pulse width measurement, and duty cycle measurement. The maximum measurement frequency of the instrument can reach 100MHz, and the lowest measurement frequency is 0.01Hz;

◆ Counter function: It has two kinds of coupling measurement methods, DC and AC, which effectively solve the problem of inaccurate AC coupling count.

◆ All parameters can be calibrated by internal procedures;

◆ Arbitrary waveform editing function, which can edit the arbitrary waveform on the PC and download it to the instrument output waveform;

◆ Communication function, which can be controlled by PC. The communication protocol is open, making secondary development very simple;

◆ High reliability: large-scale integrated circuit, surface mount technology, high reliability and long service life;

◆ Output short circuit protection: all signal output terminals can work for more than 60S under load short circuit condition;

FY6900 can output Function/Arbitrary Waveform including:

>Sine
>Square
>Rectangle
>Triangle/Ramp
>Rise Sawtooth
>Fall Sawtooth
>Lorenz Pulses
>Multitone
>Noise
>Electrocardiogram (ECG)
>Trapezoidal Pulses
>Sinc Pulses
>Narrow Pulses
>Gauss White Noise
>Step Triangle
>Positive Step
>Inverse Step
>Positive Exponent

>Inverse Exponent
>Positive Falling Exponent
>Inverse Falling Exponent
>Positive Logarithm
>Inverse Logarithm
>Positive Falling Logarithm
>Inverse Falling Logarithm
>Linear FM
>AM
>FM
>Positive Half Wave
>Negative Half Wave
>Positive Half Wave Rectification
>Negative Half Wave Rectification
>User-defined waveform

Parameters

This list is 60MHz, model number is FY6960

Instruction of the keys

Package list

1 x FY6960 60MHZ Generator
1 x Power Cable
1 x USB Data Cable
2 x BNC-Clip Cables
1 x BNC-BNC Cable

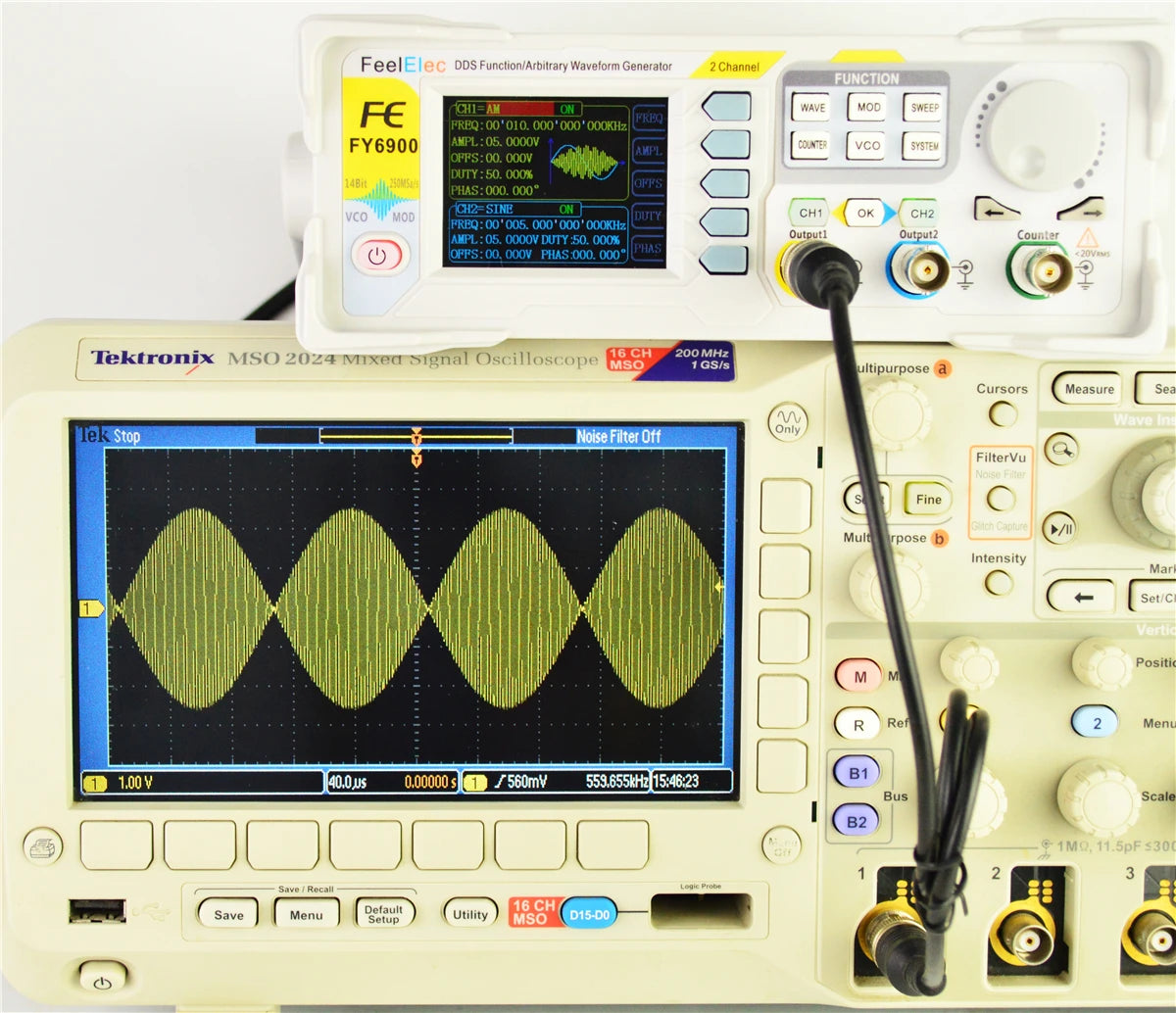

Different waveforms
