New ESR Capacitance Ohm Meter Capacitor Transistor Diode Triode Tester Resistance Measuring With SMD Test Clip
New ESR Capacitance Ohm Meter Capacitor Transistor Diode Triode Tester Resistance Measuring With SMD Test Clip
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Features

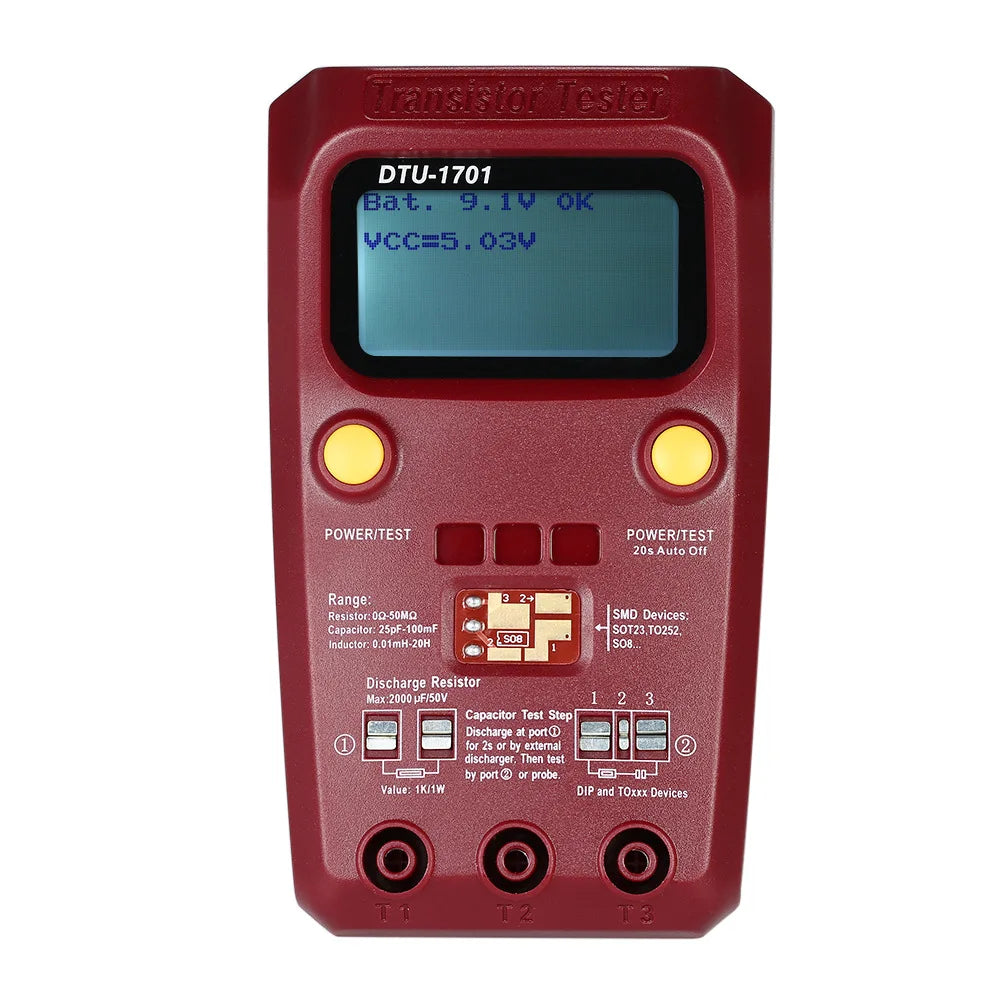

LCD display with backlight for easy reading.
Handheld design for easy operation.

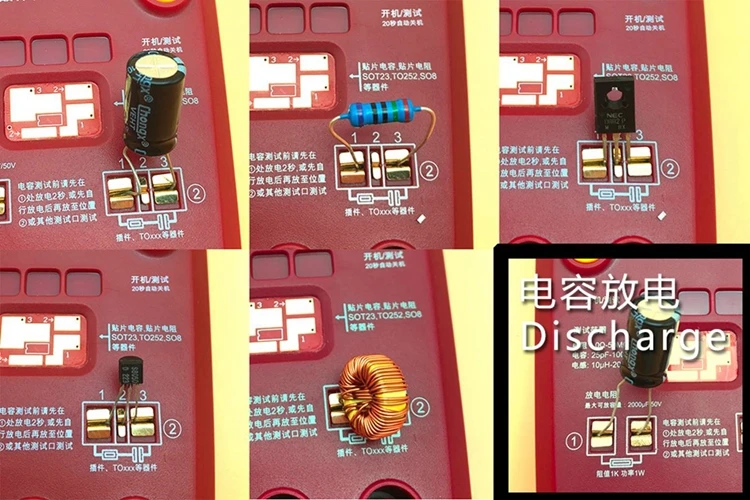

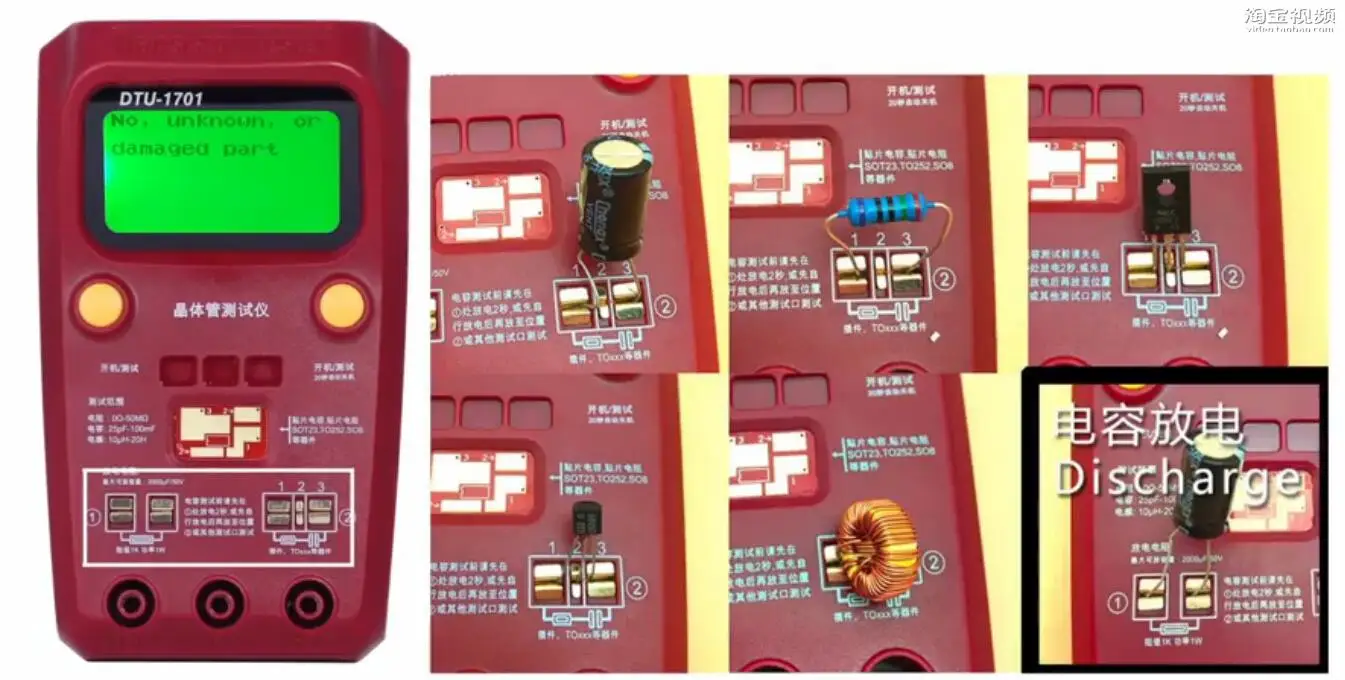

Automatic detection of NPN and PNP bipolar transistors, N-Channel and P-Channel MOSFETs, JFETs, diodes, double diodes, Thyristors and bidirectional thyristor.
Measure of current amplification factor and base-emitter threshold voltage of bipolar transistors.
With a typical ESR value, convenient to judge the detected capacitor's quality.

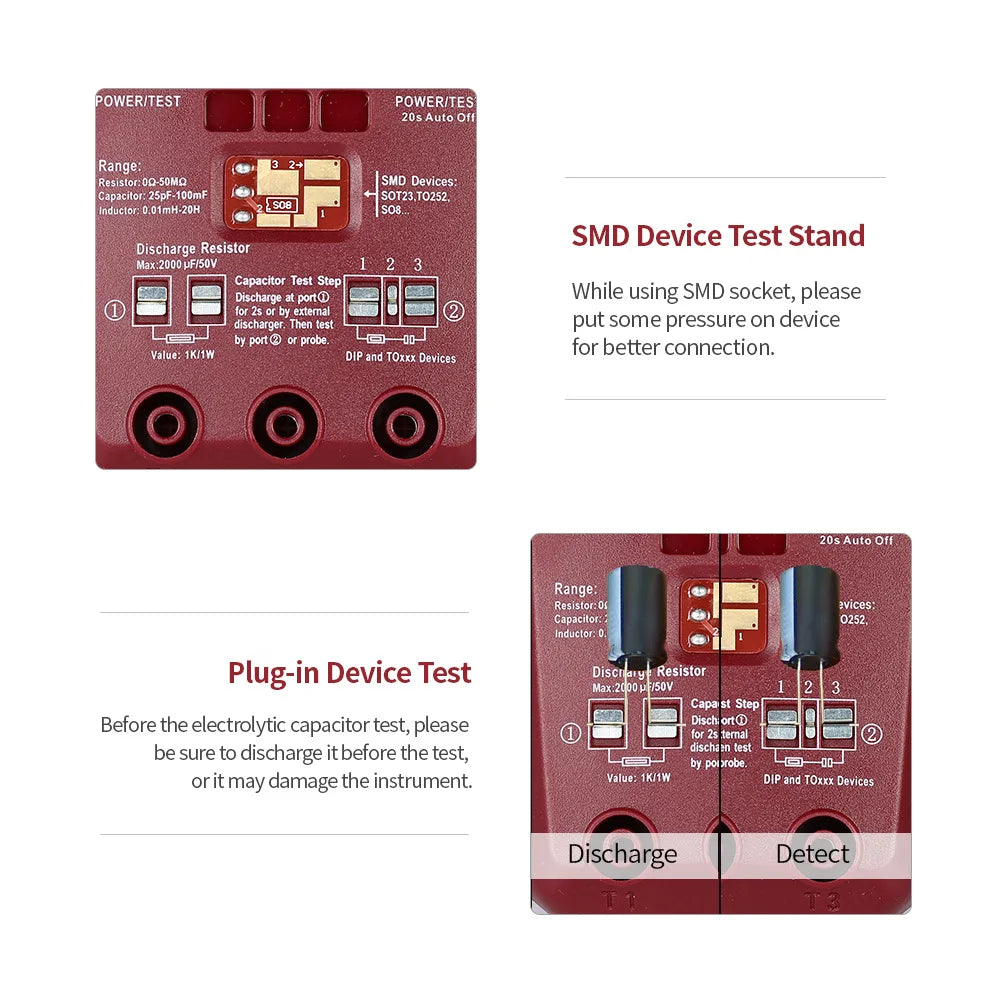

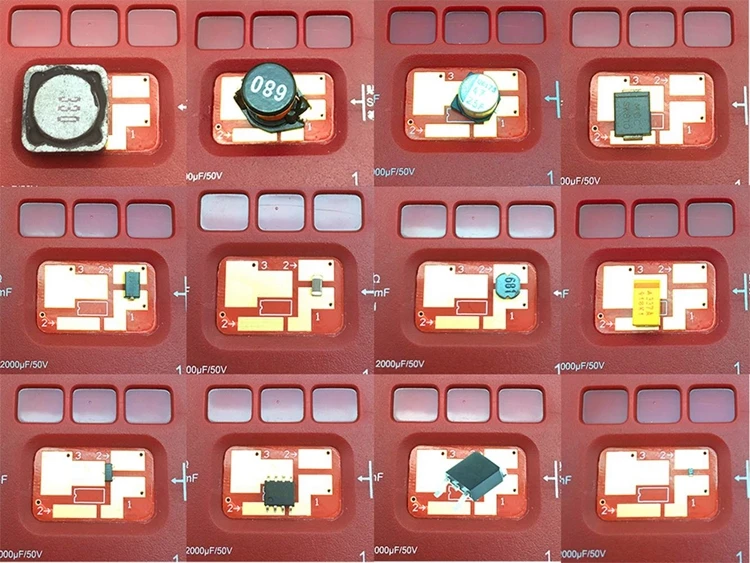

It can detect SMD, bipolar transistors and MOS transistors protection diodes.
Can measure the gate threshold voltage and the gate capacity value of MOSFET.
Resistance measurement resolution is 0.01 ohms, 50M ohms can be measured.
It can measure capacitance of 25pF~100mF, resolution 1pF.
Includes auto power off function to extend the service life.
Parameters
Material: ABS

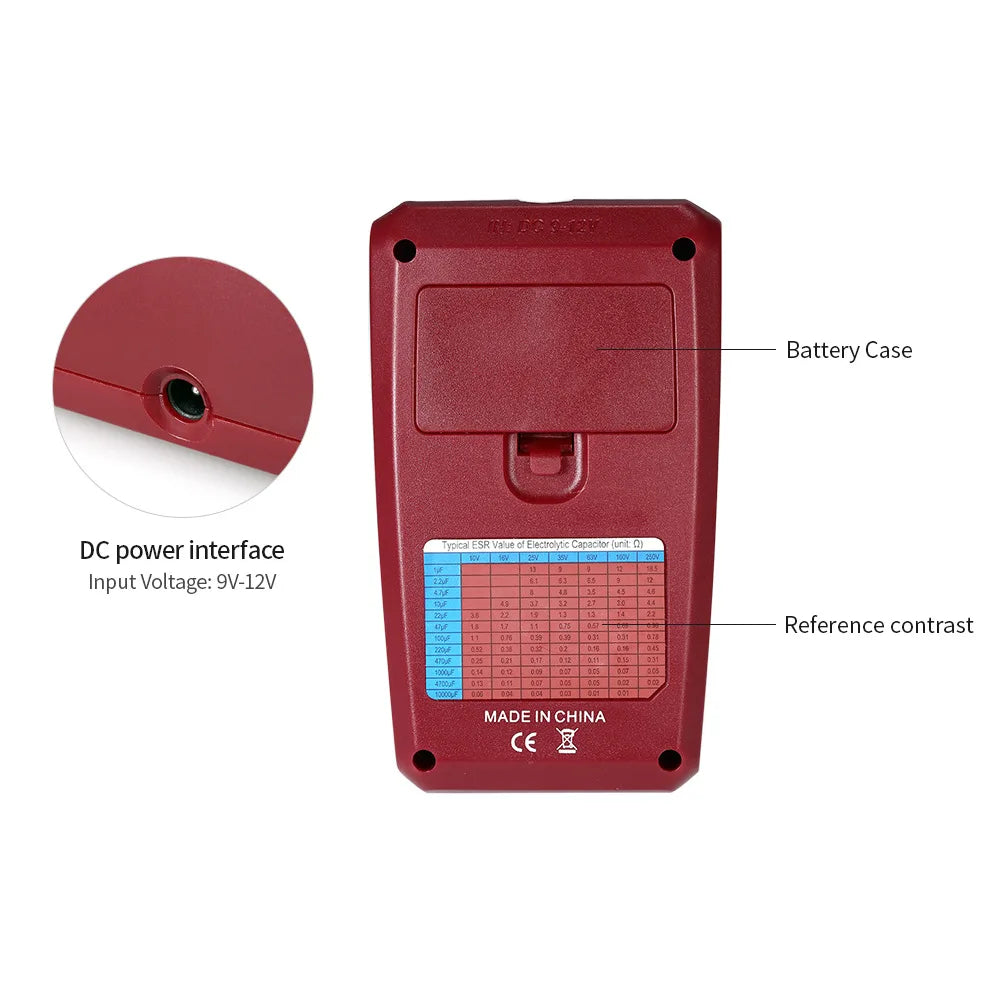

Input Voltage: 9V-12V
Current: Approx. 20mA
Resistance Measurement: 0MΩ~50MΩ
Resistance Resolution: 0.01Ω
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
Inductance Measurement: 0.01mH-20H
Inductance Resolution: 0.01mH
ESR Resolution: 0.01Ω
Power Supply: 1 * 9V Battery(Not Included)

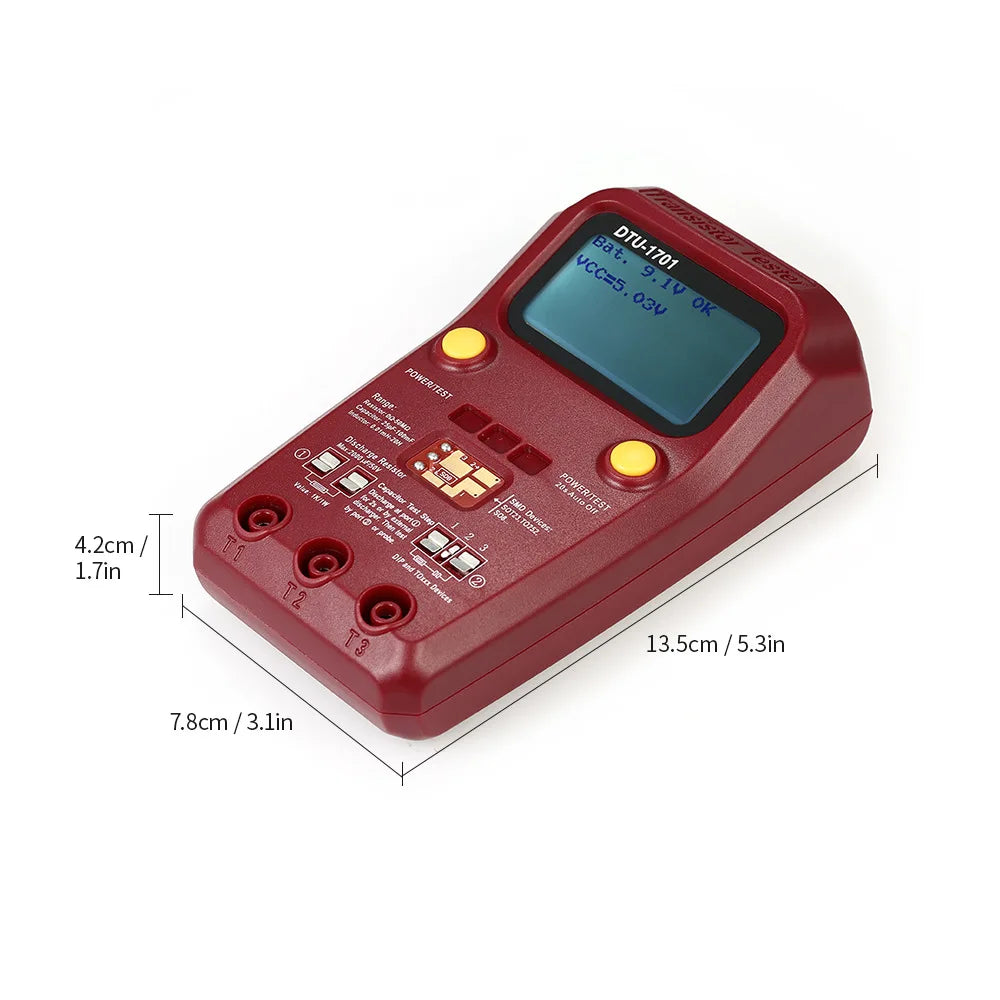

Item Size: 13.5 * 7.8 * 4.2cm / 5.3 * 3.1 * 1.7in
Item Weight: 138g / 4.9oz
Package Size: 17.3 * 10 * 6cm / 6.8 * 3.9 * 2.4in
Package Weight: 220g / 7.8oz

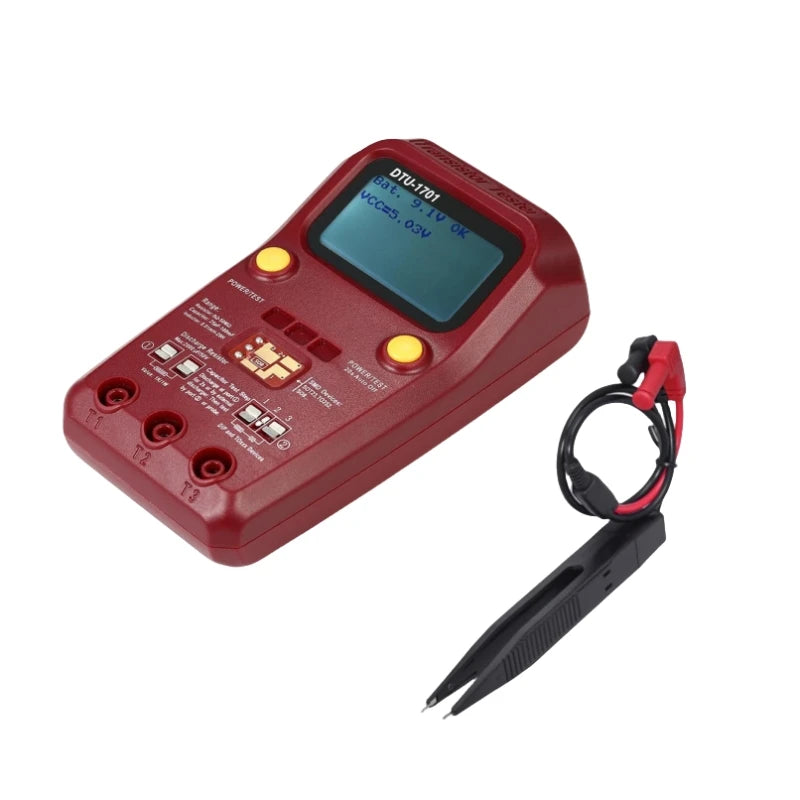

Package include
1 x ESR meter
1 x Test clip
Description
Description
Features
LCD display with backlight for easy reading.
Handheld design for easy operation.
Automatic detection of NPN and PNP bipolar transistors, N-Channel and P-Channel MOSFETs, JFETs, diodes, double diodes, Thyristors and bidirectional thyristor.
Measure of current amplification factor and base-emitter threshold voltage of bipolar transistors.
With a typical ESR value, convenient to judge the detected capacitor's quality.
It can detect SMD, bipolar transistors and MOS transistors protection diodes.
Can measure the gate threshold voltage and the gate capacity value of MOSFET.
Resistance measurement resolution is 0.01 ohms, 50M ohms can be measured.
It can measure capacitance of 25pF~100mF, resolution 1pF.
Includes auto power off function to extend the service life.
Parameters
Material: ABS
Input Voltage: 9V-12V
Current: Approx. 20mA
Resistance Measurement: 0MΩ~50MΩ
Resistance Resolution: 0.01Ω
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
Inductance Measurement: 0.01mH-20H
Inductance Resolution: 0.01mH
ESR Resolution: 0.01Ω
Power Supply: 1 * 9V Battery(Not Included)
Item Size: 13.5 * 7.8 * 4.2cm / 5.3 * 3.1 * 1.7in
Item Weight: 138g / 4.9oz
Package Size: 17.3 * 10 * 6cm / 6.8 * 3.9 * 2.4in
Package Weight: 220g / 7.8oz
Package include
1 x ESR meter
1 x Test clip
