Description：
1. Frequency range: 50-54MHz

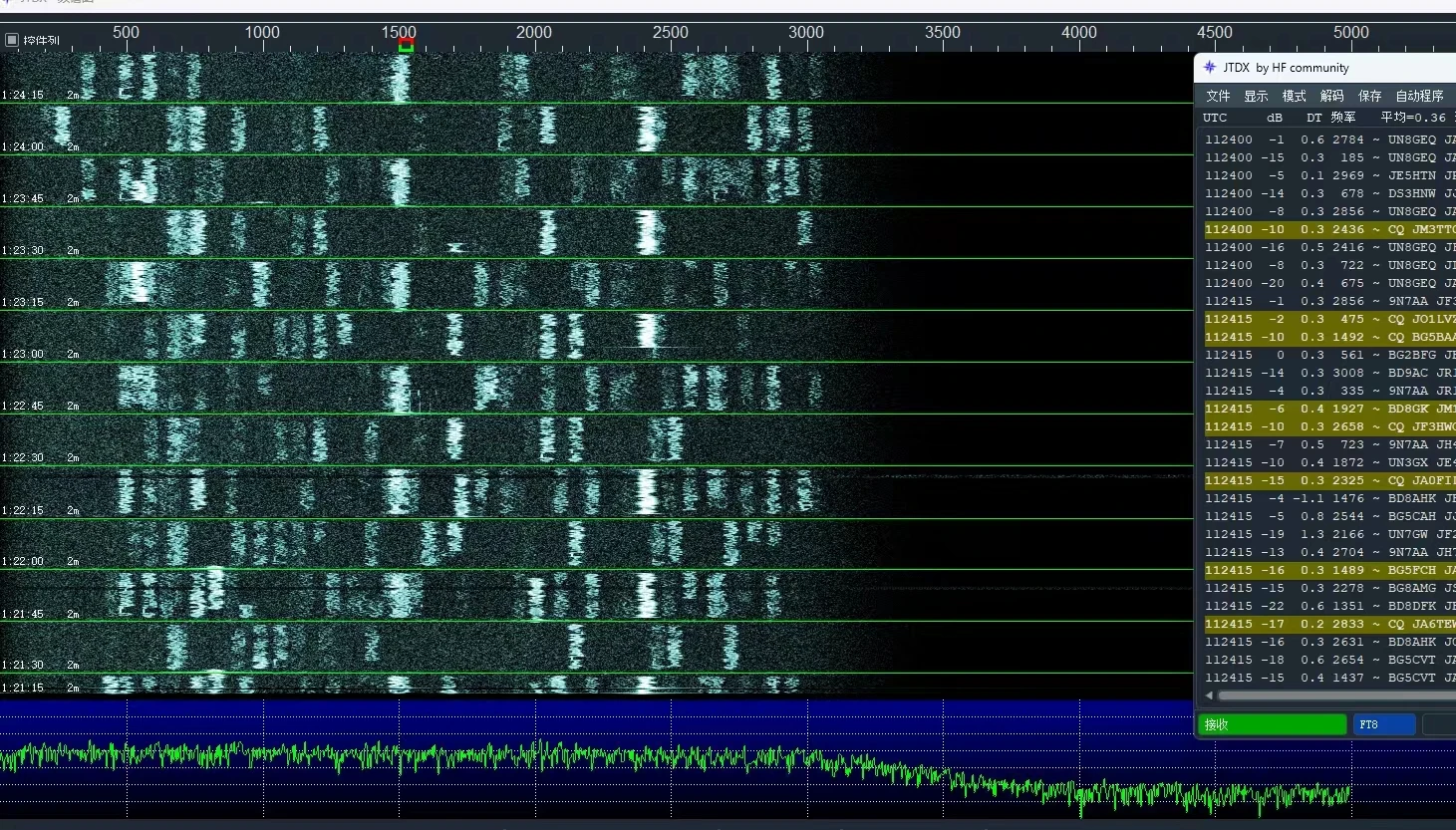

2. Mode: Receive in USB mode, with a bandwidth of approximately 3KHZ at -3dB. The transmission only supports ft8 jt9 jt10 jt65 wspr and does not support pure voice transmission.
3. Transmission power: Approximately 1-8W (should be able to reach up to 12W) continuously adjustable (requires adjusting the adjustable resistor on the motherboard), amplifier efficiency is about 60% -71% (calculated at maximum power), and additional heat dissipation is required for high-power use.
4. Frequency synthesis clock: Adopting ± 2ppm TCXO, it has high frequency stability and does not require excessive adjustment.
5. Channels: 2 channels, supporting channel programming, and the written frequency information takes effect immediately without restarting the device. (Need to connect the serial port on the motherboard, excluding TTL module and serial port debugging software)
6. Single button operation: Short press to switch channels. Long press to transmit a single tone signal with the current channel frequency of+1KHZ for antenna feedback tuning.
7. Compact size: Excluding protrusions, the volume is approximately 10cm * 7.6cm * 3.5cm.

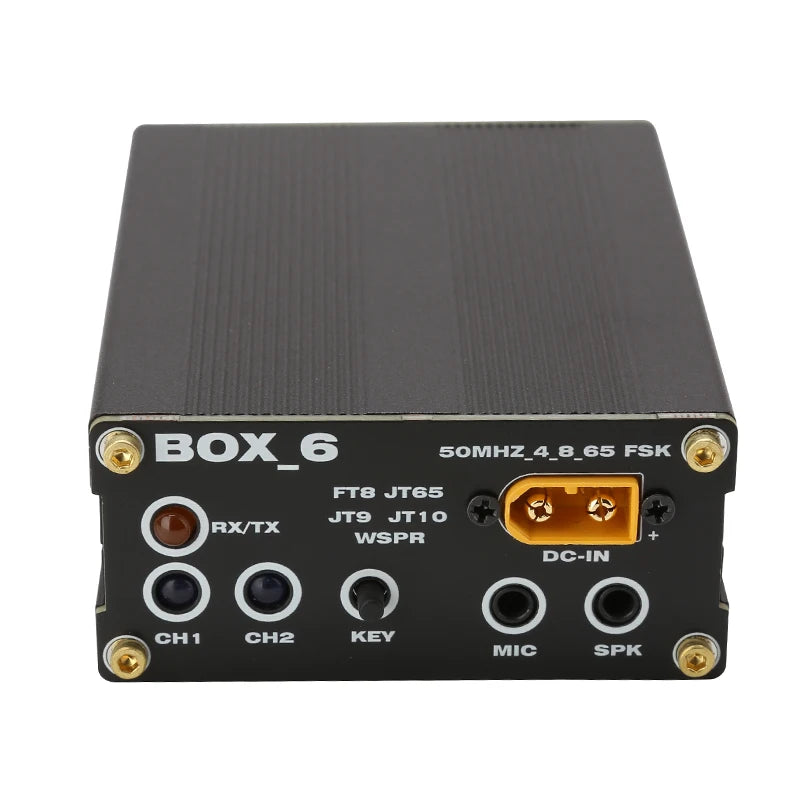

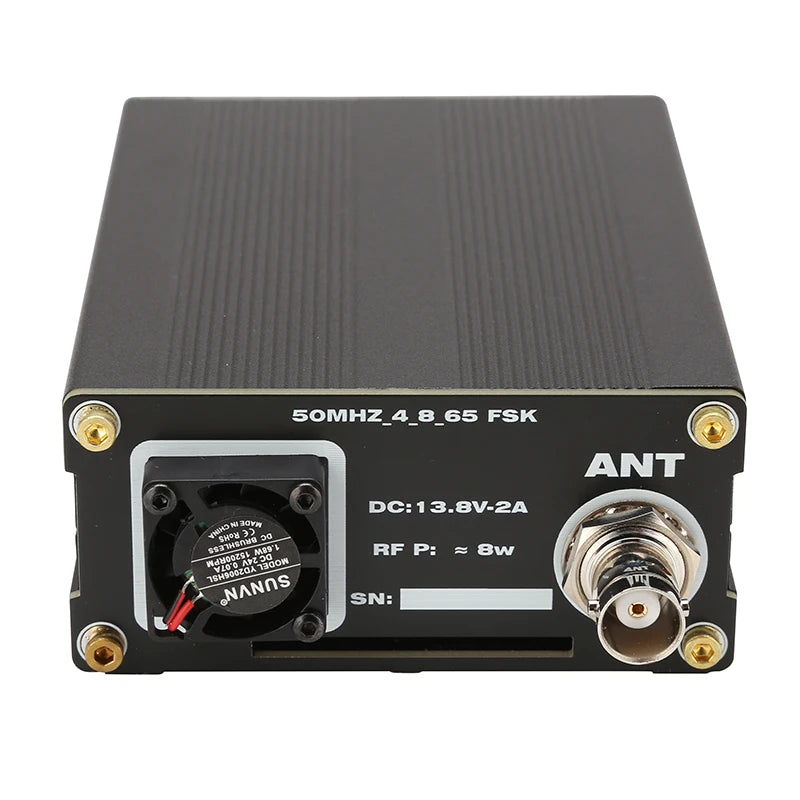

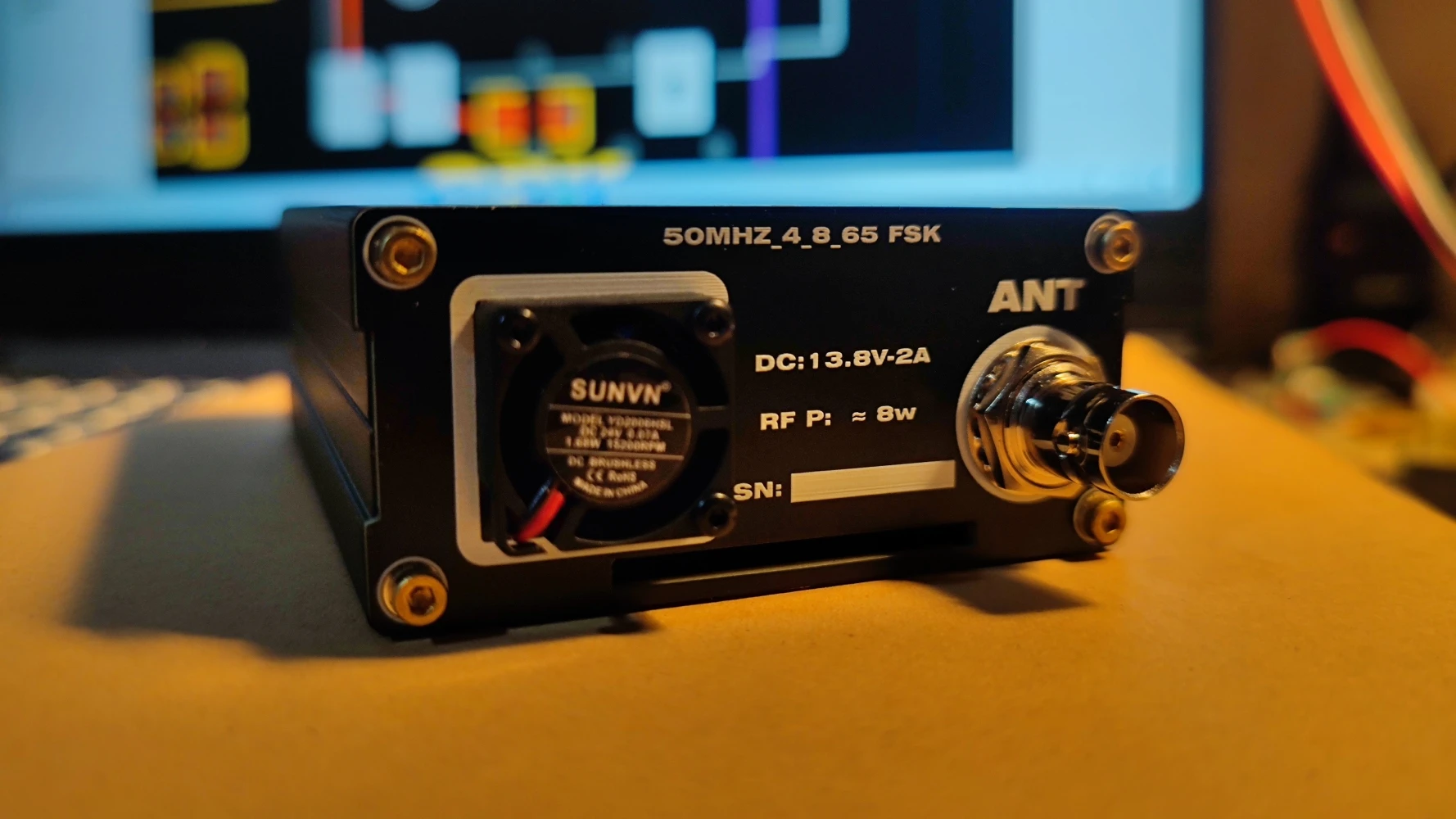

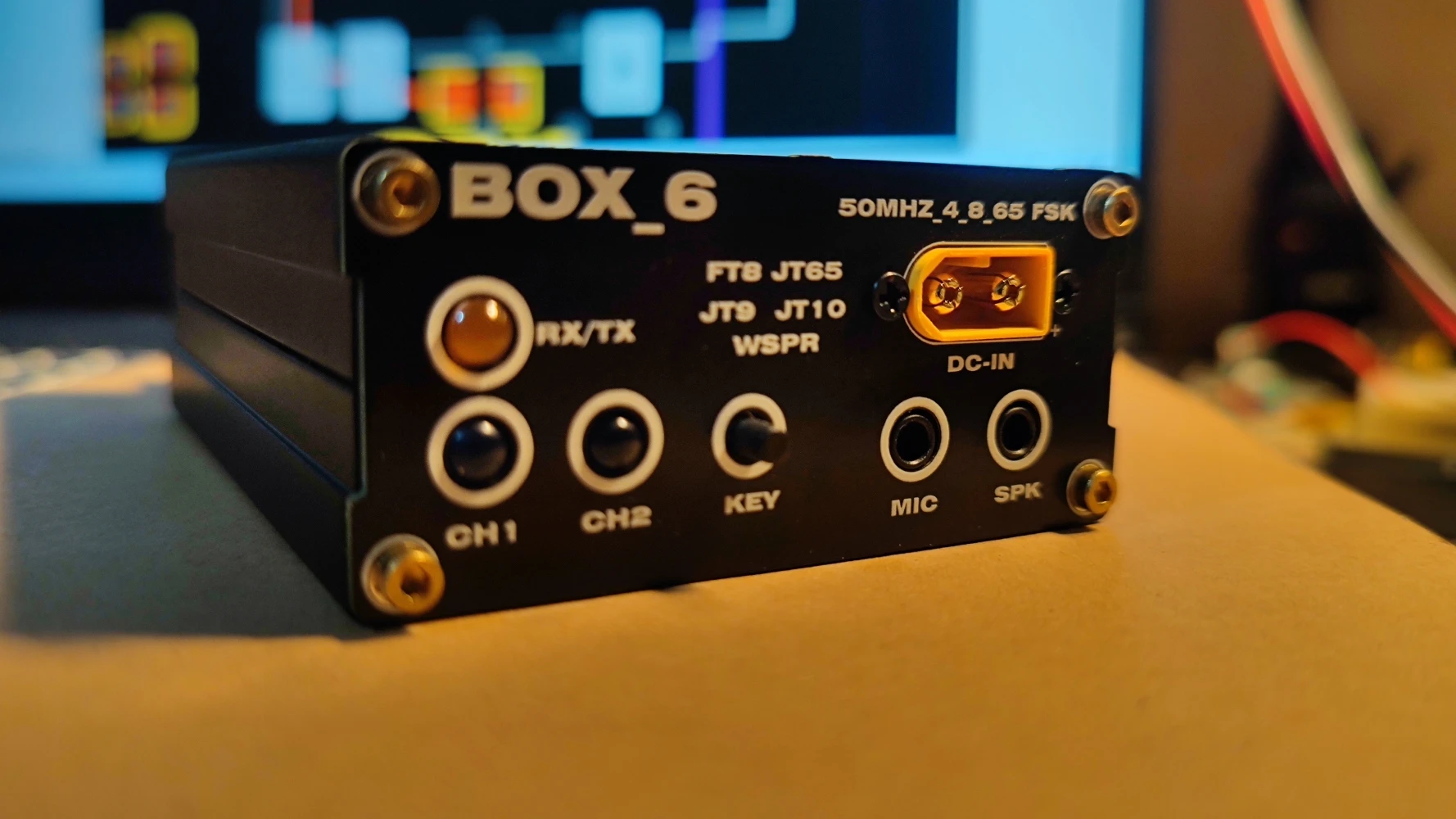

8. Interface information: Power interface xt60, antenna interface bnc (port impedance 50 ohms), audio interface 3.5mm, serial port 3-pin pin (inside the machine).
9. Power supply voltage and current: 10-15.5V (radio frequency power may reach 12W at 15.5V), recommended at 13.8V. At 13.8V, the transmitting current is 0.4-1.45A (load impedance has a certain impact on it), and the receiving standby current is about 0.130A.
10. Trigger method: VOX

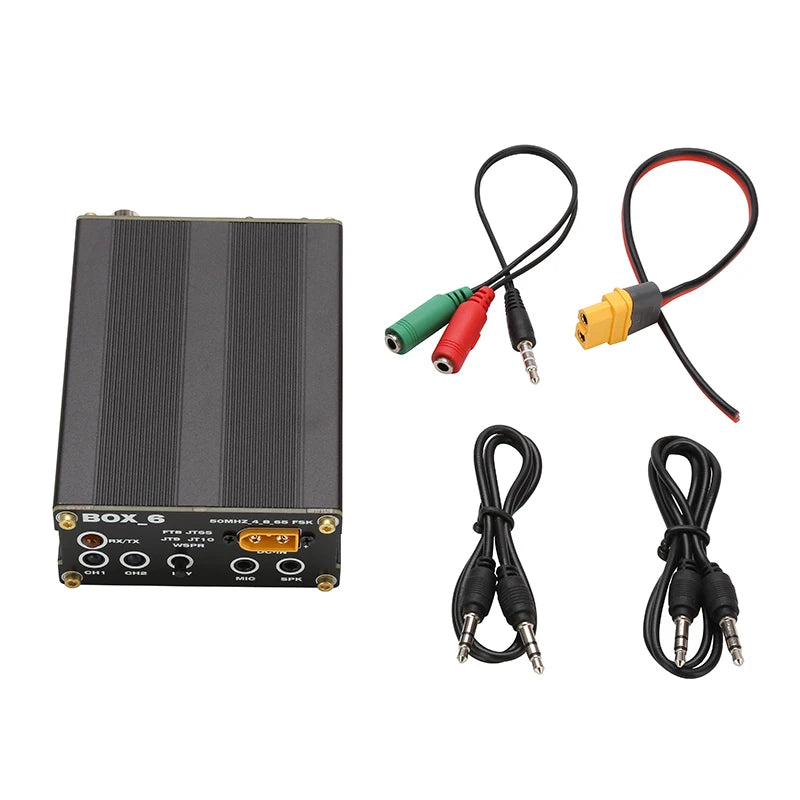

Package include
Description
Description
Description：
1. Frequency range: 50-54MHz
2. Mode: Receive in USB mode, with a bandwidth of approximately 3KHZ at -3dB. The transmission only supports ft8 jt9 jt10 jt65 wspr and does not support pure voice transmission.
3. Transmission power: Approximately 1-8W (should be able to reach up to 12W) continuously adjustable (requires adjusting the adjustable resistor on the motherboard), amplifier efficiency is about 60% -71% (calculated at maximum power), and additional heat dissipation is required for high-power use.
4. Frequency synthesis clock: Adopting ± 2ppm TCXO, it has high frequency stability and does not require excessive adjustment.
5. Channels: 2 channels, supporting channel programming, and the written frequency information takes effect immediately without restarting the device. (Need to connect the serial port on the motherboard, excluding TTL module and serial port debugging software)
6. Single button operation: Short press to switch channels. Long press to transmit a single tone signal with the current channel frequency of+1KHZ for antenna feedback tuning.
7. Compact size: Excluding protrusions, the volume is approximately 10cm * 7.6cm * 3.5cm.
8. Interface information: Power interface xt60, antenna interface bnc (port impedance 50 ohms), audio interface 3.5mm, serial port 3-pin pin (inside the machine).
9. Power supply voltage and current: 10-15.5V (radio frequency power may reach 12W at 15.5V), recommended at 13.8V. At 13.8V, the transmitting current is 0.4-1.45A (load impedance has a certain impact on it), and the receiving standby current is about 0.130A.
10. Trigger method: VOX
