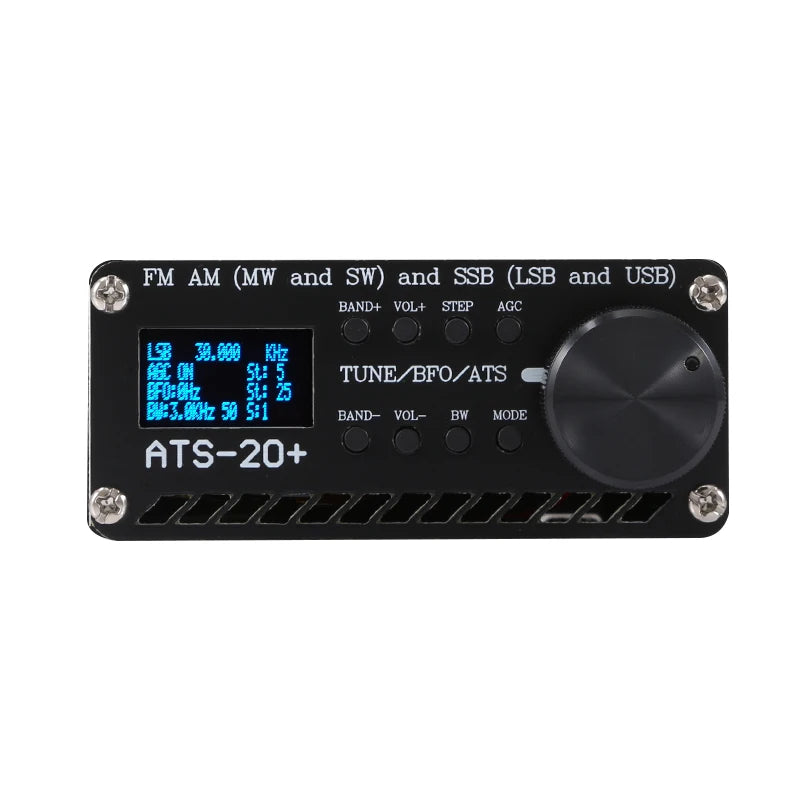

New ATS-20+ Plus ATS20 V2 SI4732 Radio Receiver DSP SDR Receiver FM AM (MW and SW) and SSB (LSB and USB)

With 0.96" OLED display, it is a quality full-band radio receiver, supporting auto-hold setting function after power failure. Equipped with audio output, it supports 3.5mm earphone. Also, it supports 4ohm speaker 2W output. With 22 commercial and ham radio bands pre-configured, you can use it freely.

Features:

- With a 0.96" OLED display, you can see the FM band, AGC on/off, MONO according to your demands

- Support auto-hold setting function after power failure

- Internal 3.6V 800mAh polymer lithium battery for stable and sustainable power supply

- Support USB recharging

- Equipped with audio output to support 3.5mm earphone

- Also support 8ohm speaker 1.5W output

- Antenna interface uses SMA interface and the printed circuit board retains the SI4732 package, you can replace the chip by yourselves, and the software is compatible

- With 22 commercial and ham radio bands pre-configured, you can use it freely

- Support band: FM, AM (MW and SW) and SSB (LSB and USB)

- Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz

- BFO Control

- Frequency step switch (1, 5 and 10KHz)

Specifications:

- Name: Radio Receiver

- Material: printed circuit board

- Item size: 89 * 107 * 41mm / 3.50 * 4.21 * 1.61in

- Item weight: 205g / 7.23ounce

Band:

{FM_BAND_TYPE, 8400, 10800, 10430, 10},

{LW_BAND_TYPE, 100, 510, 300, 1},

{MW_BAND_TYPE, 520, 1720, 810, 10},

{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters

{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters

{SW_BAND_TYPE, 4500, 5500, 4850, 5},

{SW_BAND_TYPE, 5500, 6300, 6000, 5},

{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters

{SW_BAND_TYPE, 7800, 10000, 9600, 5},

{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters

{SW_BAND_TYPE, 11000, 12500, 11940, 5},

{SW_BAND_TYPE, 12500, 13900, 13600, 5},

{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters

{SW_BAND_TYPE, 14500, 15900, 15300, 5},

{SW_BAND_TYPE, 15900, 17900, 17600, 5},

{SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters

{SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 meters

{SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters

{SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB band (11 meters)

{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters

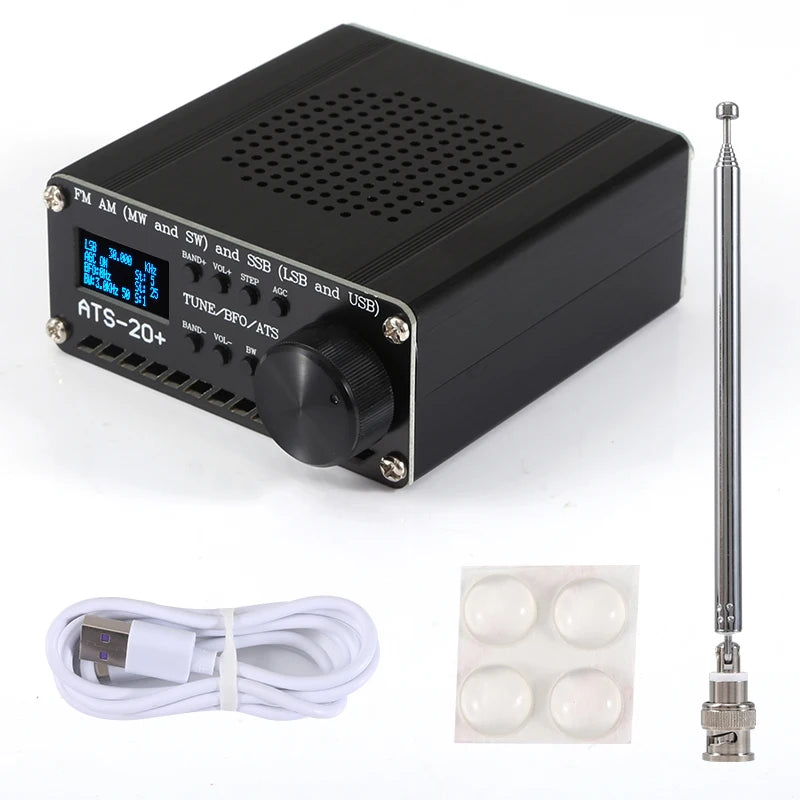

Package Included:

- 1 x Radio Receiver

- 1 x Antenna
