New ATS-20+ ATS-20 Plus SI4732 All Band Radio Receiver FM AM (MW & SW) SSB (LSB & USB) Build in Battery

Band:

{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
{SW_BAND_TYPE, 4500, 5500, 4850, 5},
{SW_BAND_TYPE, 5500, 6300, 6000, 5},
{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters
{SW_BAND_TYPE, 7800, 10000, 9600, 5},
{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters
{SW_BAND_TYPE, 11000, 12500, 11940, 5},
{SW_BAND_TYPE, 12500, 13900, 13600, 5},
{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters
{SW_BAND_TYPE, 14500, 15900, 15300, 5},
{SW_BAND_TYPE, 15900, 17900, 17600, 5},
{SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters
{SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 meters
{SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters
{SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB band (11 meters)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters

Features

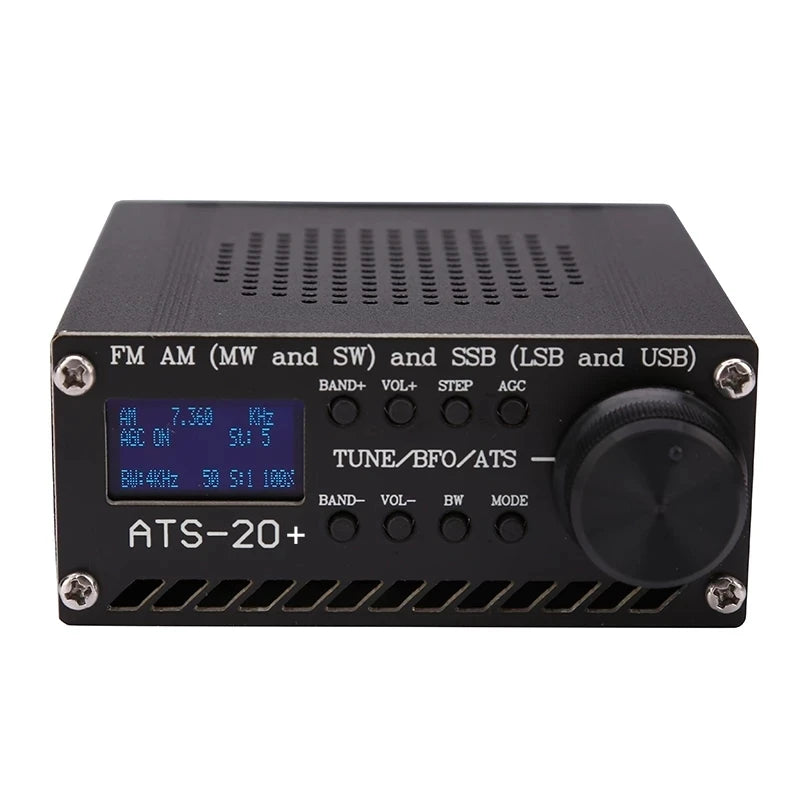

0.96 inch OLED display, you can see the FM band, AGC on/off, MONO according to your demands.

Support auto-hold setting function after power failure.

With the built in 3.6V, 800mAH polymer lithium battery for stable and sustainable power supplys.

Support USB recharging, delivering with type-c recharging cable.

Equipped with audio output function, support 3.5mm earphone.

Also support the 8ohm speaker 1.5W output.

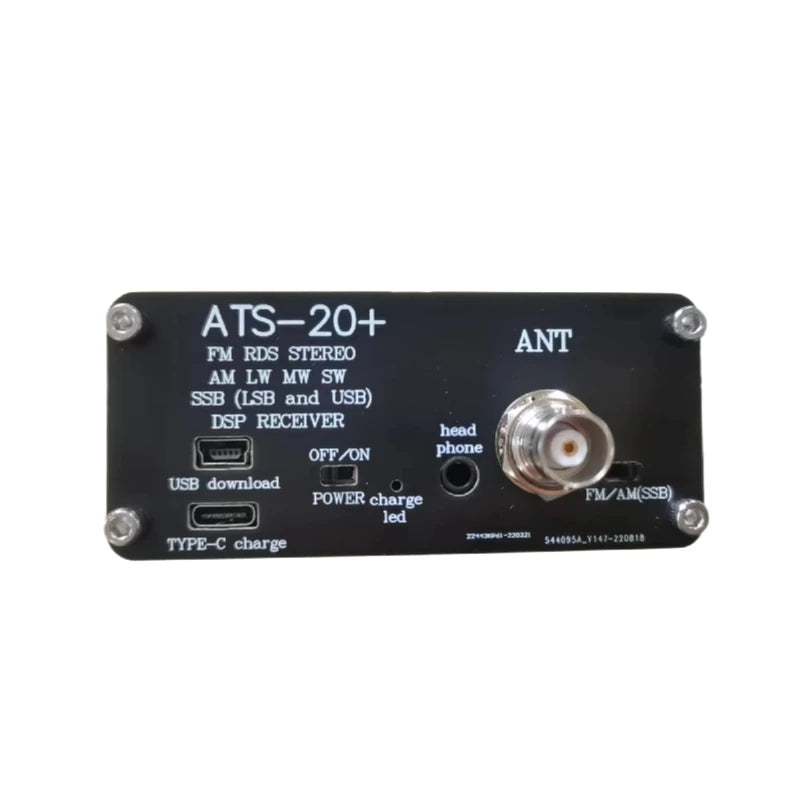

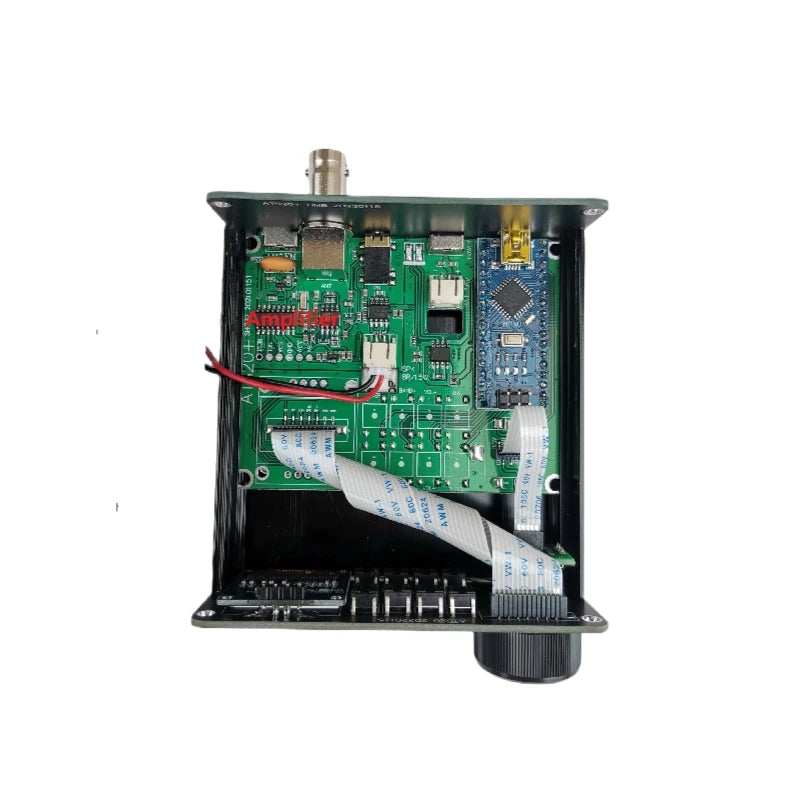

Antenna interface uses SMA interface and the printed circuit board retains the SI4732 package, you can replace the chip by yourselves, and the software is compatible.

With 22 commercial and ham radio bands pre configured, you can use it freely.

Support band: FM, AM (MW and SW) and SSB (LSB and USB).

Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz.

BFO Control.

Frequency step switch (1, 5 and 10KHz).

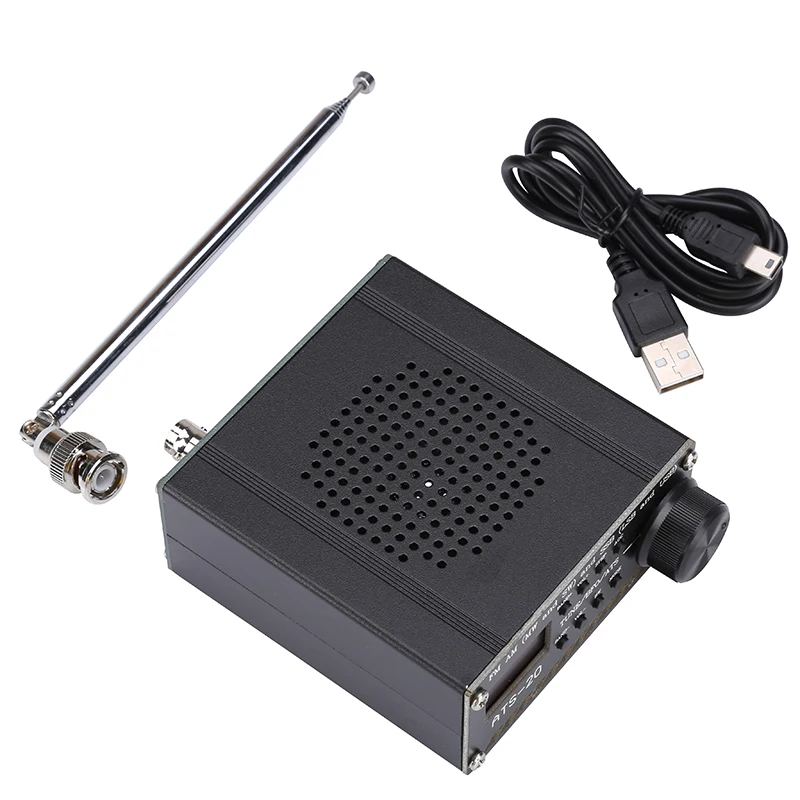

What's in the package

1 x ATS-20+ receiver
1 x Antenna
1 x USB cable
