New Assembled DSO150 Digital Oscilloscope DSO Shell With P6020 Probe 9V 1A Power Adapter
New Assembled DSO150 Digital Oscilloscope DSO Shell With P6020 Probe 9V 1A Power Adapter
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /03/2026
Couldn't load pickup availability
Guaranteed Safe Checkout

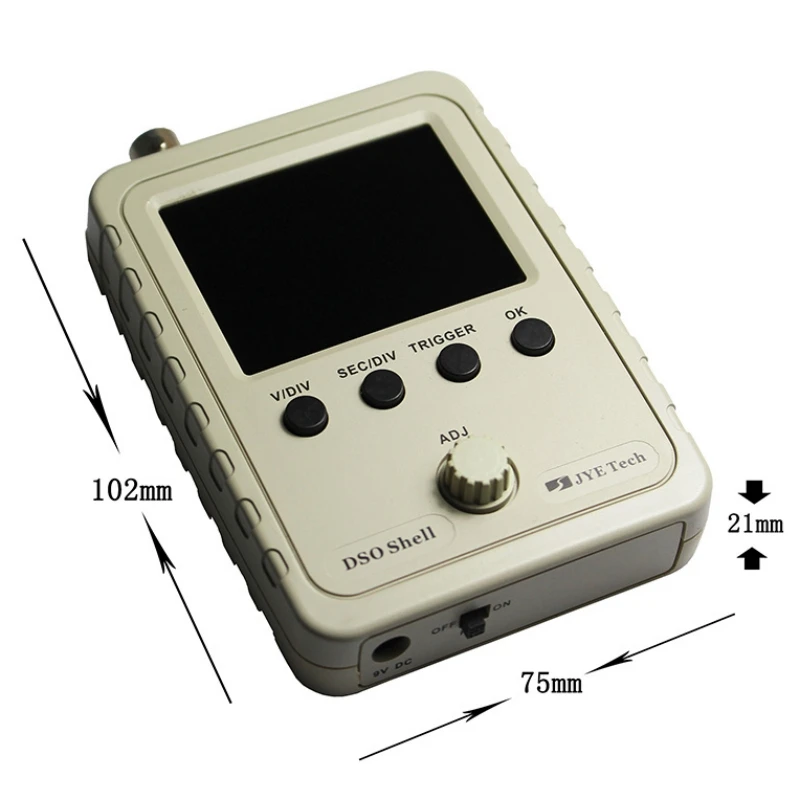

New original DSO150 from JYETech, fully assembled product with latest firmware, come with 9V 1A power adapter and P6020 probe, just buy it confident.
Parameters:
Real time sampling rate: 1Msps
Precision: 12Bit
Sampling buffer depth: 1024 bytes
Analog frequency band width: 0 - 200KHz
Vertical sensitivity: 5mV/Div – 20V/Div (progressive in 1-2-5)
Vertical displacement adjustable with indication
Input impedance: 1M Ω
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling mode includes DC/AC/GND
Horizontal time base range: 10 μ S/Div – 50s/Div (progressive as 1-2-5)
With automatic, conventional and single trigger mode, it is convenient to capture instantaneous waveform
Can be triggered by the rising or falling edge
The trigger level position is adjustable with indication
Waveform before observable trigger (negative delay)
Waveform display can be frozen at any time (HOLD function)

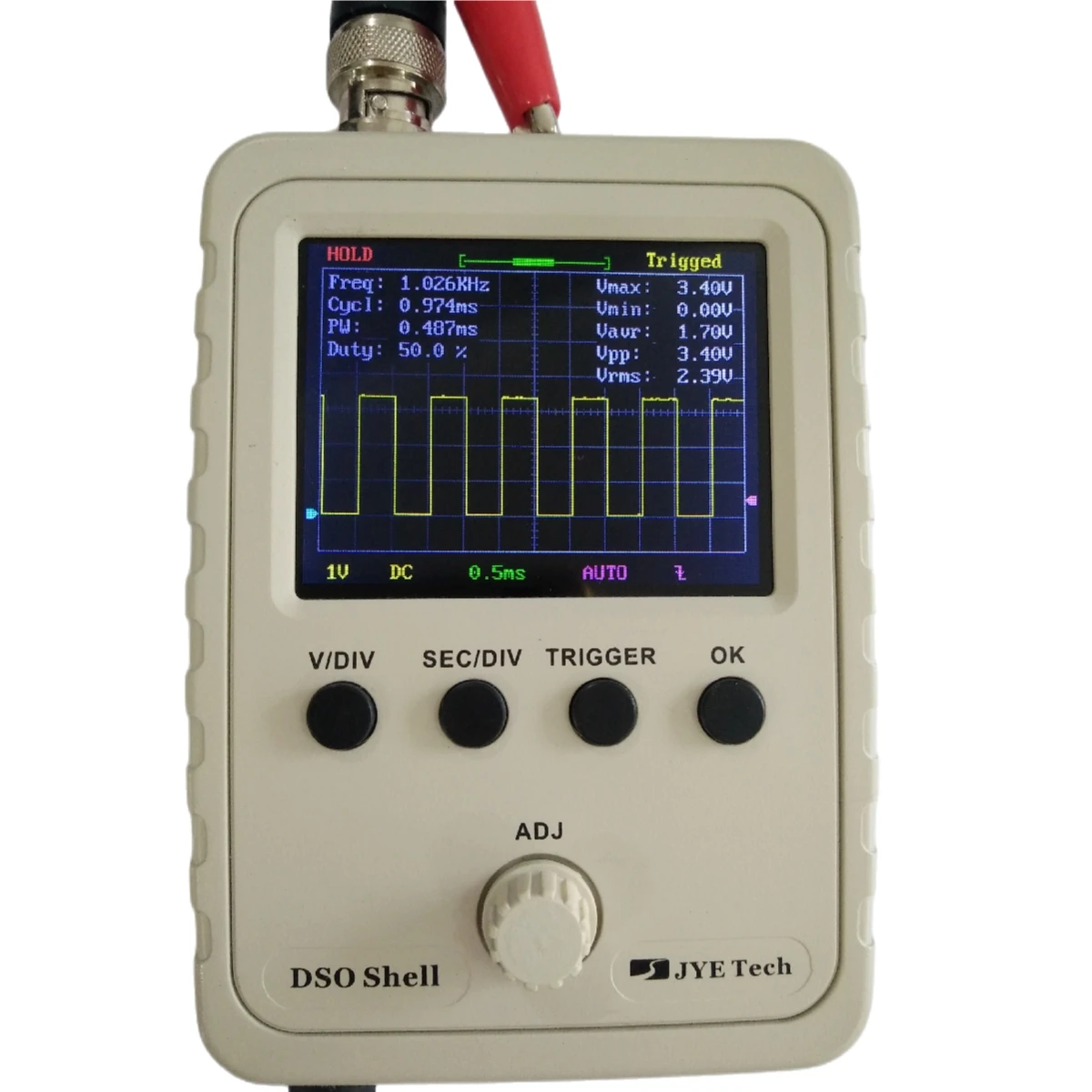

With 1KHz/3.3V square wave test signal source
With waveform parameter digital display, the parameters that can be displayed include: frequency, cycle, pulse width, duty cycle, maximum da value, minimum value, average value, peak to peak value, and effective value
Save/call out the waveform, and the shutdown waveform will not disappear

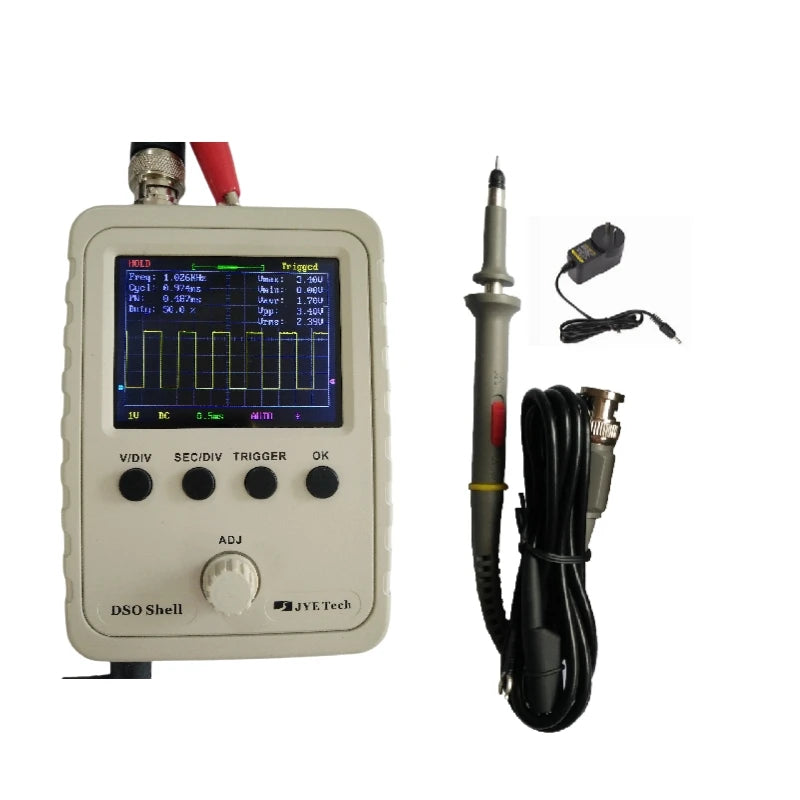

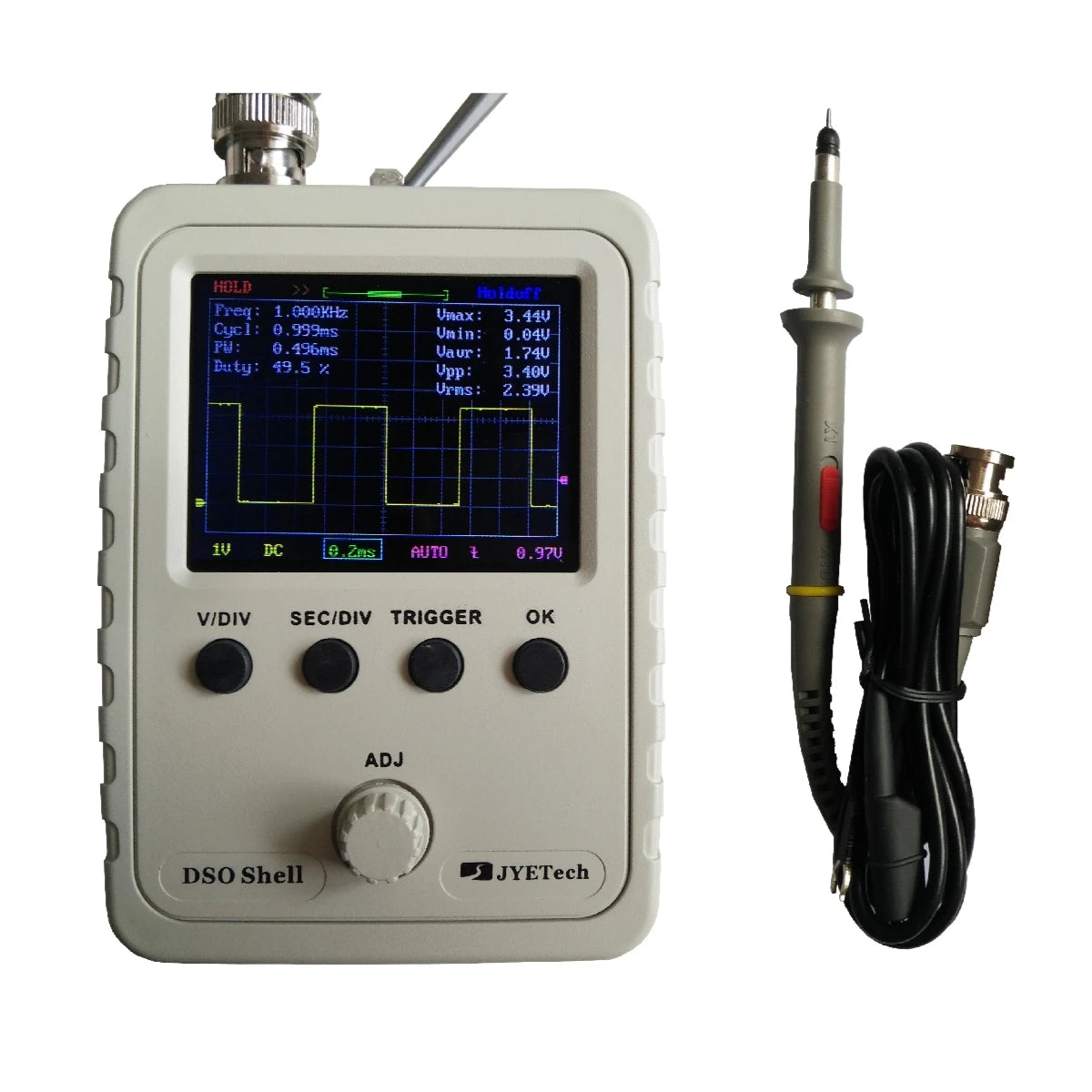

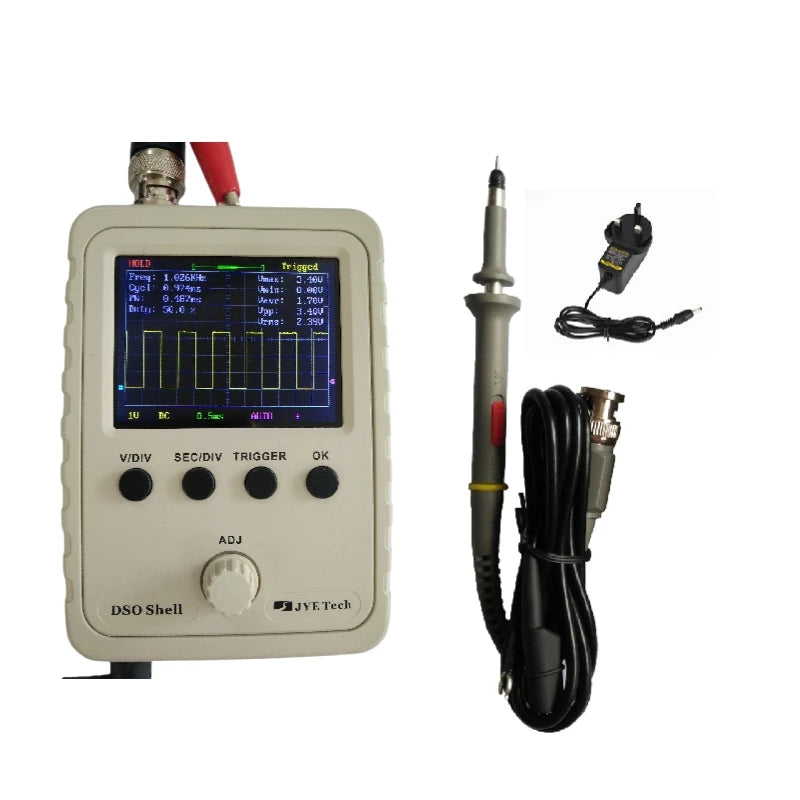

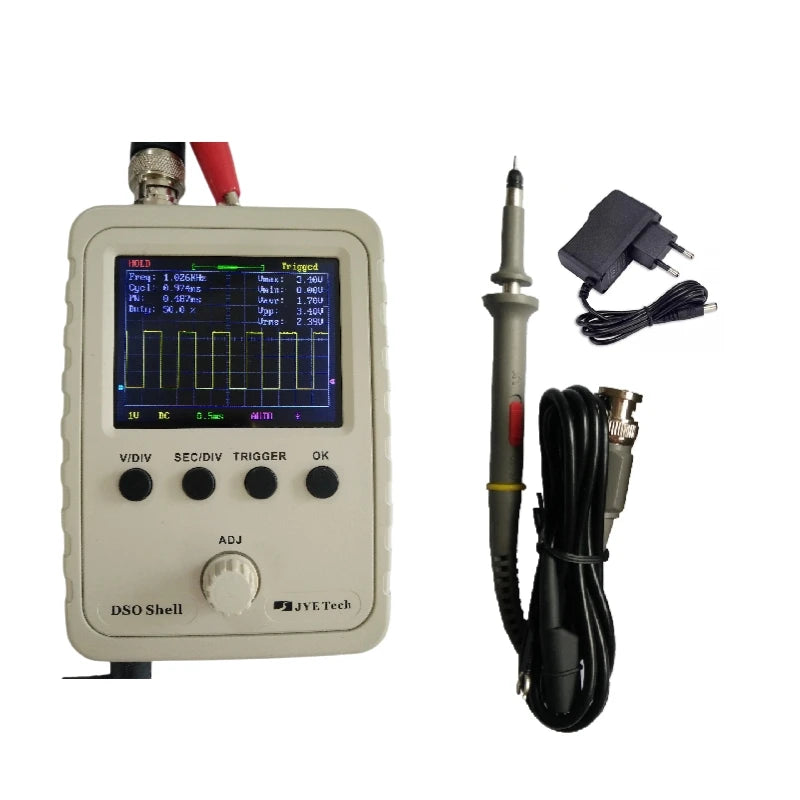

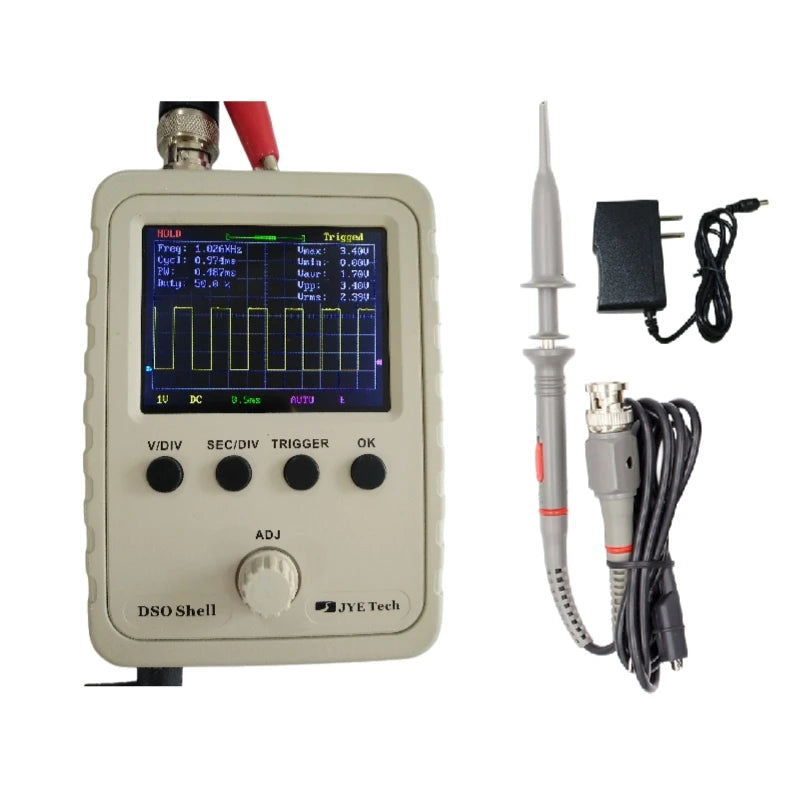

Package include:
1 x DSO150 oscilloscope
1 x P6020 probe
1 x BNC clip
1 x Power adapter
Description
Description
New original DSO150 from JYETech, fully assembled product with latest firmware, come with 9V 1A power adapter and P6020 probe, just buy it confident.
Parameters:
Real time sampling rate: 1Msps
Precision: 12Bit
Sampling buffer depth: 1024 bytes
Analog frequency band width: 0 - 200KHz
Vertical sensitivity: 5mV/Div – 20V/Div (progressive in 1-2-5)
Vertical displacement adjustable with indication
Input impedance: 1M Ω
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling mode includes DC/AC/GND
Horizontal time base range: 10 μ S/Div – 50s/Div (progressive as 1-2-5)
With automatic, conventional and single trigger mode, it is convenient to capture instantaneous waveform
Can be triggered by the rising or falling edge
The trigger level position is adjustable with indication
Waveform before observable trigger (negative delay)
Waveform display can be frozen at any time (HOLD function)
With 1KHz/3.3V square wave test signal source
With waveform parameter digital display, the parameters that can be displayed include: frequency, cycle, pulse width, duty cycle, maximum da value, minimum value, average value, peak to peak value, and effective value
Save/call out the waveform, and the shutdown waveform will not disappear
Package include:
1 x DSO150 oscilloscope
1 x P6020 probe
1 x BNC clip
1 x Power adapter
