New Aluminum Case IO Analog Board USB Hub 128M SDRAM RTC Module For Terasic DE10-Nano Mister FPGA
New Aluminum Case IO Analog Board USB Hub 128M SDRAM RTC Module For Terasic DE10-Nano Mister FPGA
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Note
This listing not include Terasic DE10-Nano

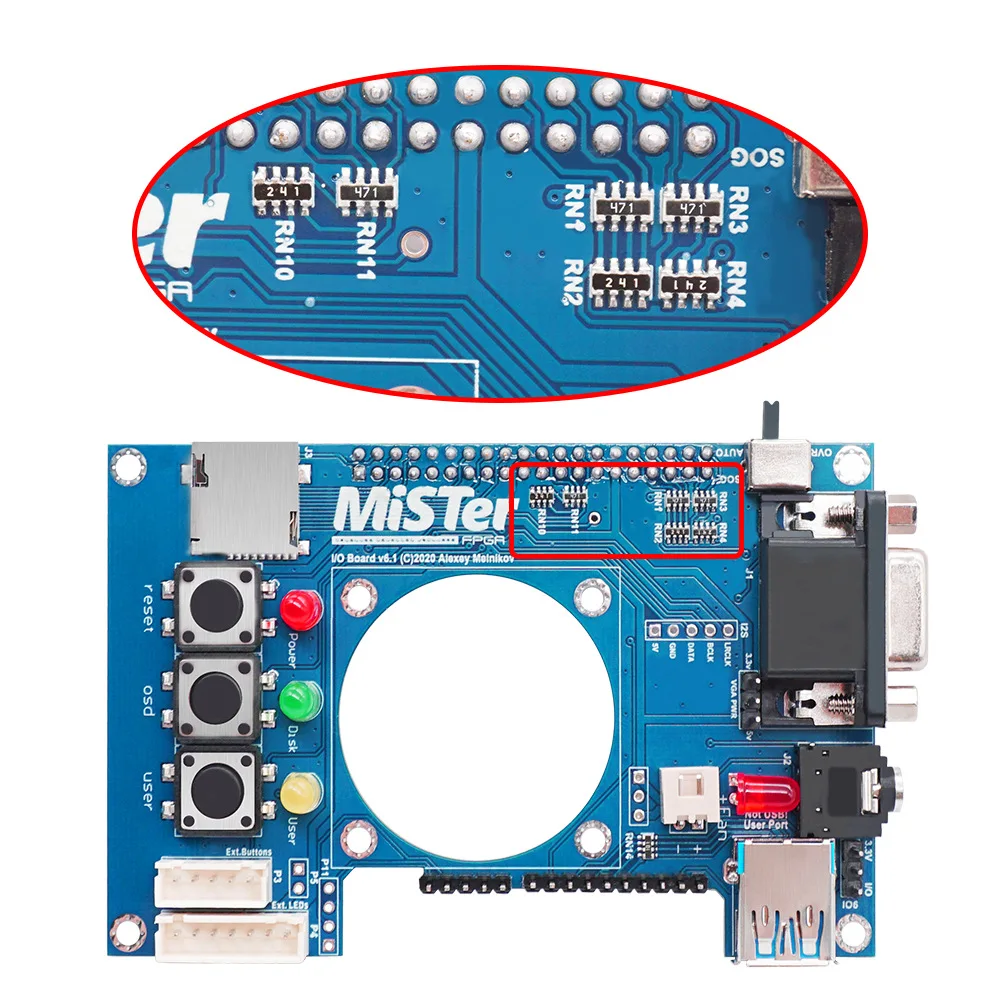

IO board
An optional expansion that plugs on top of the for Terasic DE10-Nano SoC.
It adds the following features to the for MiSTer:
VGA Connector.
Additional connectors to integrate the for MiSTer into cases.
Check Analog video output compatibility
3.5mm Audio Jack with TOSLink
3 Buttons
3 Status LEDs
Secondary SD card (for some cores)
FAN for cooling the FPGA
Expansion connector (in the form of USB 3.0 connector, but it's not USB!)

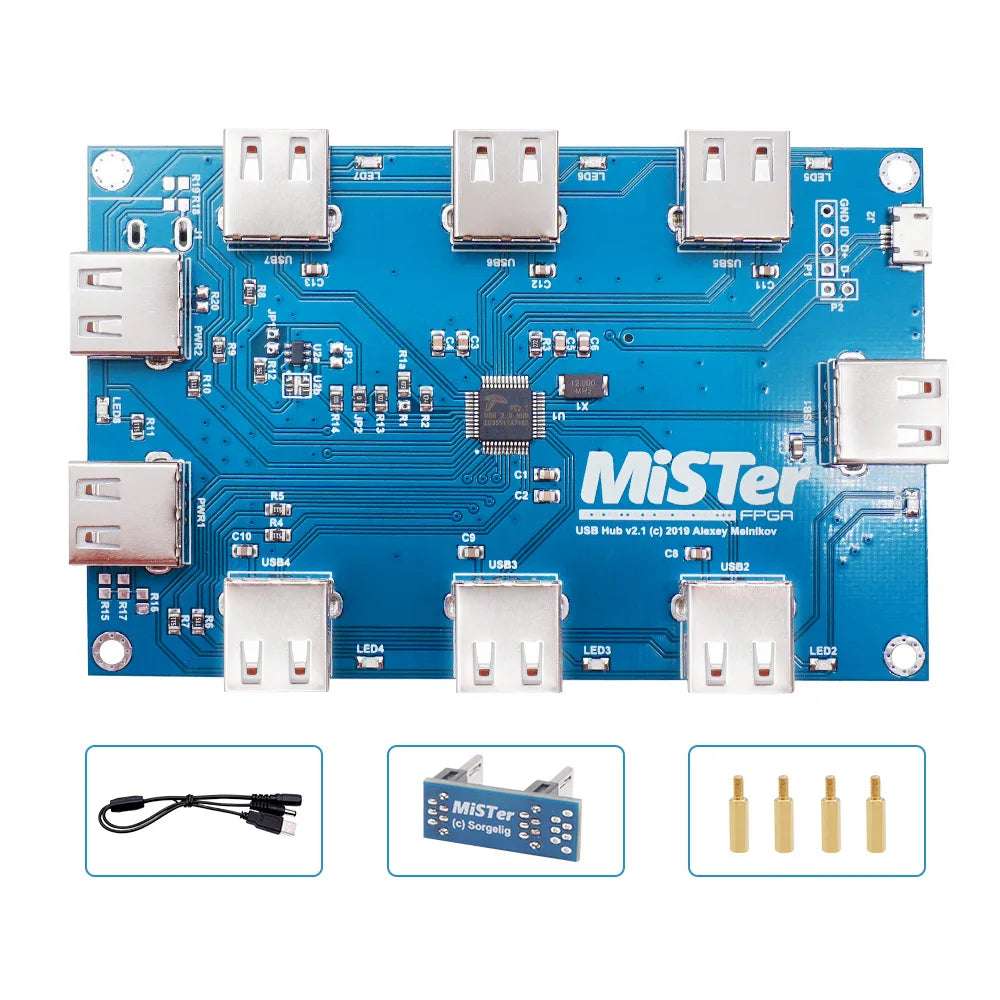

USB hub
This is an optional add-on USB Hub for convenient USB device connections. With this board the MiSTer has an extra seven USB ports that fit snugly under the existing chassis. The USB Bridge seamlessly connects to the DE10-Nano SoC board without any additional wires.
Features:
7 USB A interfaces (Slave)
2 USB A interfaces (Power)
1 USB micro interface (Host)
Have the VBUS control
Support the Official Mister FPGA metal case

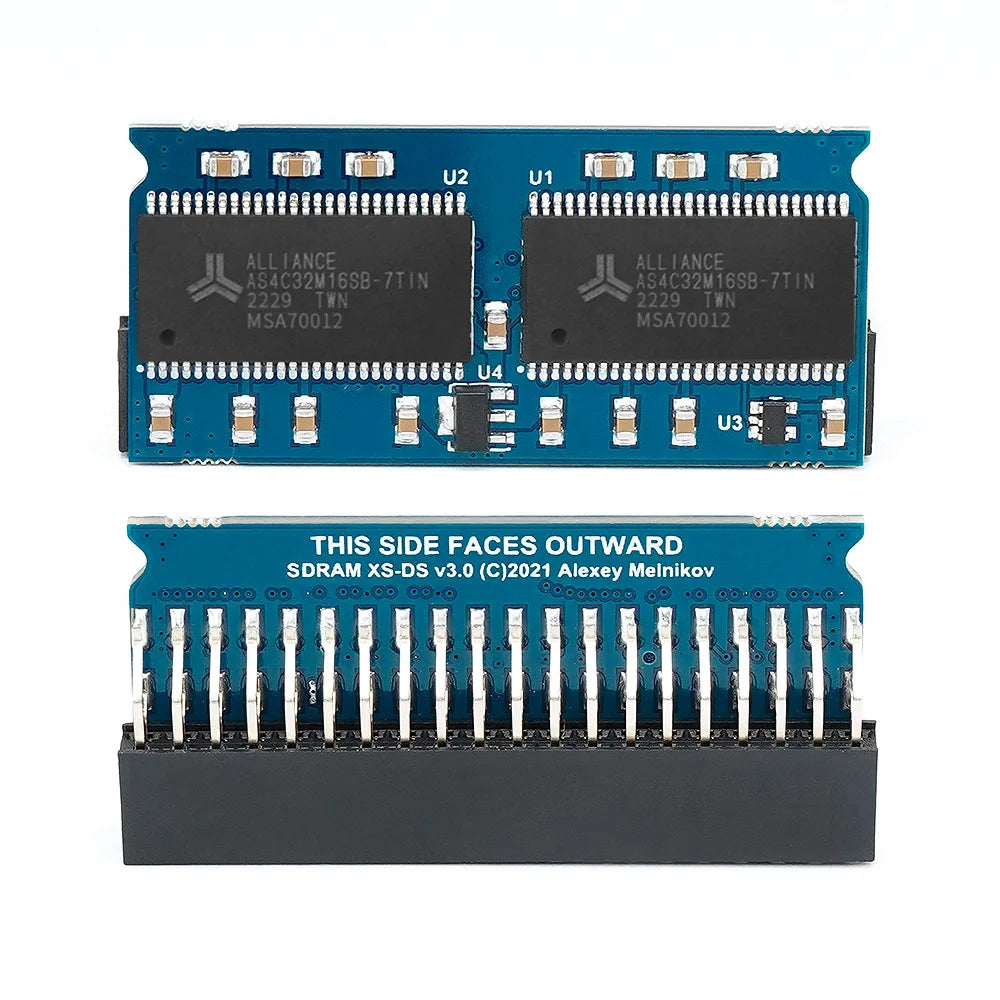

128M SDRAM
~Suitable For Terasic DE10-Nano FPGA Board
~128MB SDRAM Capacity
~100% Of The Neo Geo ROM Library Playable
~Alliance Memory AS4C32M16SB-7TIN Chips
~MiSTer IO Board Compatible
~Fully Assembled & Tested

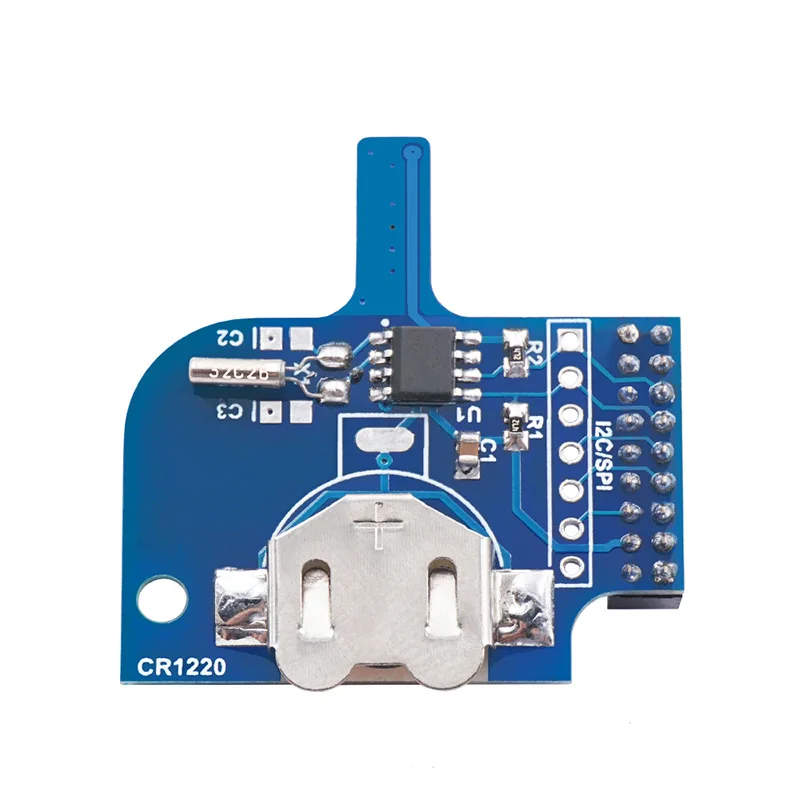

RTC module
Suitable For Terasic DE10-Nano FPGA Board
MiSTer IO Board Compatible
Includes CR1220 Backup
BatteryGenuine STMicroelectronics M41T81
Fully Assembled & Teste

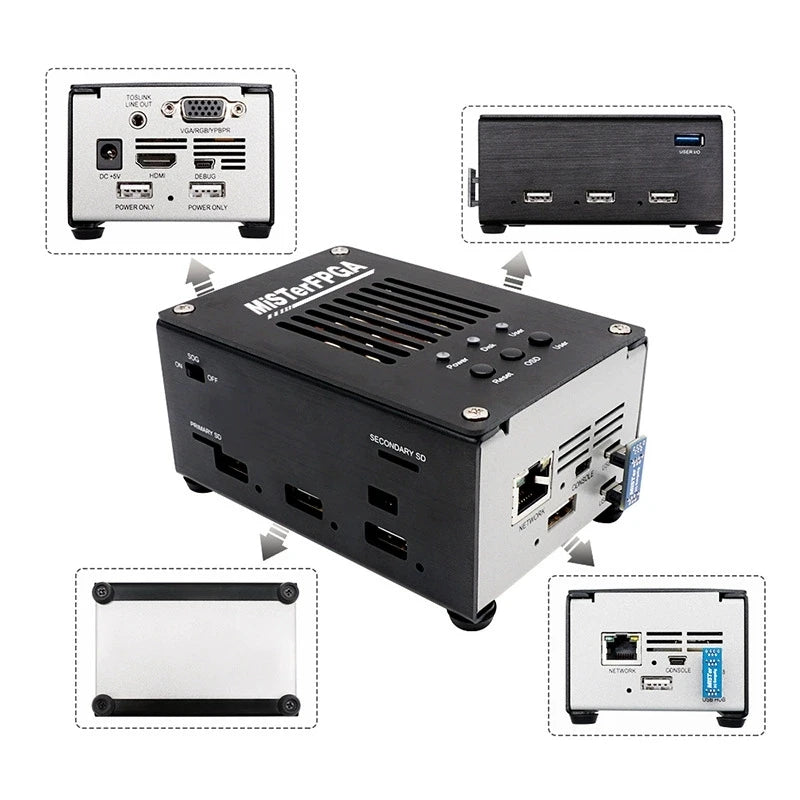

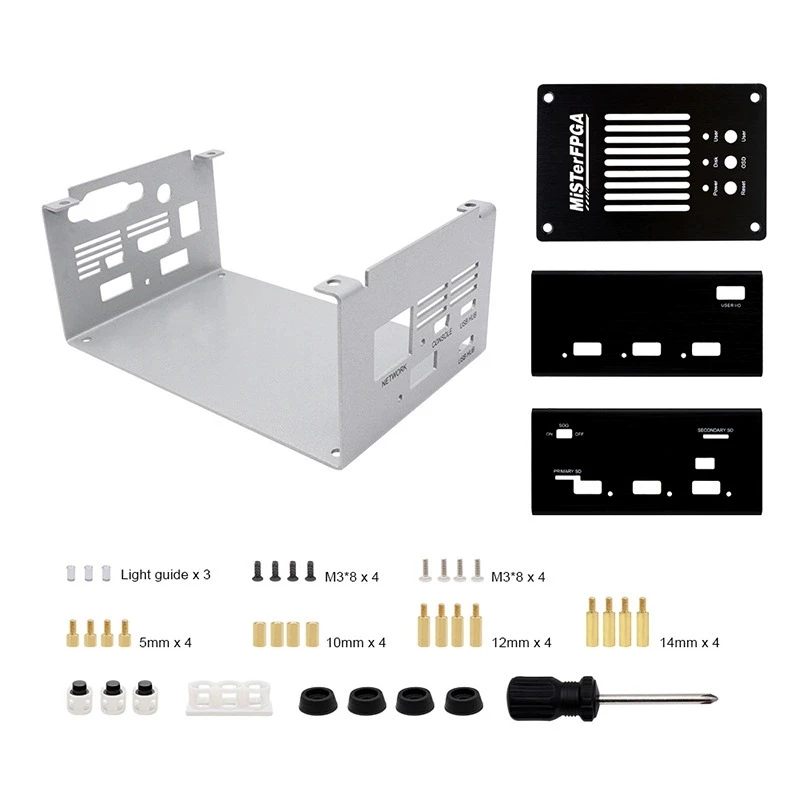

Case
