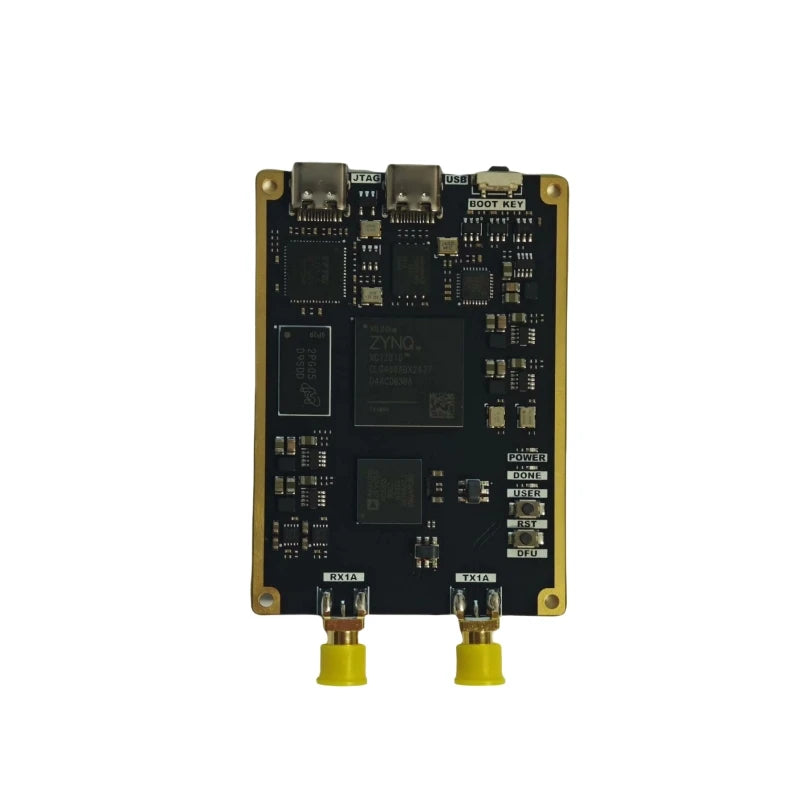

New AD9363 + ZYNQ7010 Development Board Pluto SDR Software Defined Radio Compatible with ADALM-PLUTO Pluto Openwifi Zynqsdr
New AD9363 + ZYNQ7010 Development Board Pluto SDR Software Defined Radio Compatible with ADALM-PLUTO Pluto Openwifi Zynqsdr
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Features
1. On board downloader, which can perform bare metal program debugging, firmware burning, etc. through JTAG port.
2. Supports FLASH boot mode and JTAG boot mode. The default FLASH boot mode is when powered on, and the JTAG boot mode is entered after pressing the BOOT-KEY button.
3. Equipped with DFU button, USB 2.0 interface, 0.5ppm TCXO, 1T1R interface.
4.Both USBs can provide power to the board.
5. The board comes pre installed with Pluto firmware and can be used immediately upon receipt.

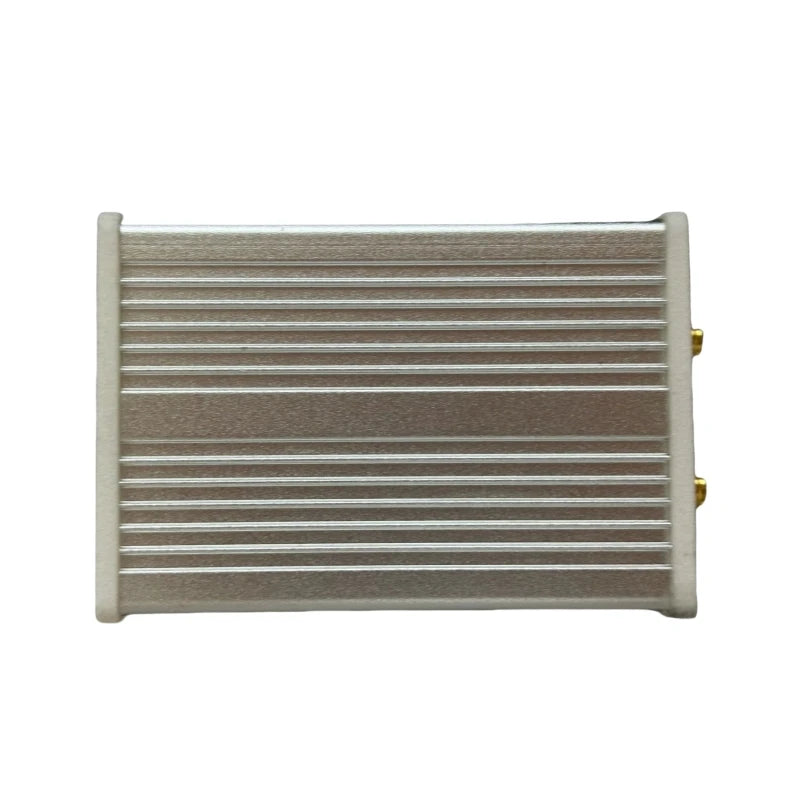

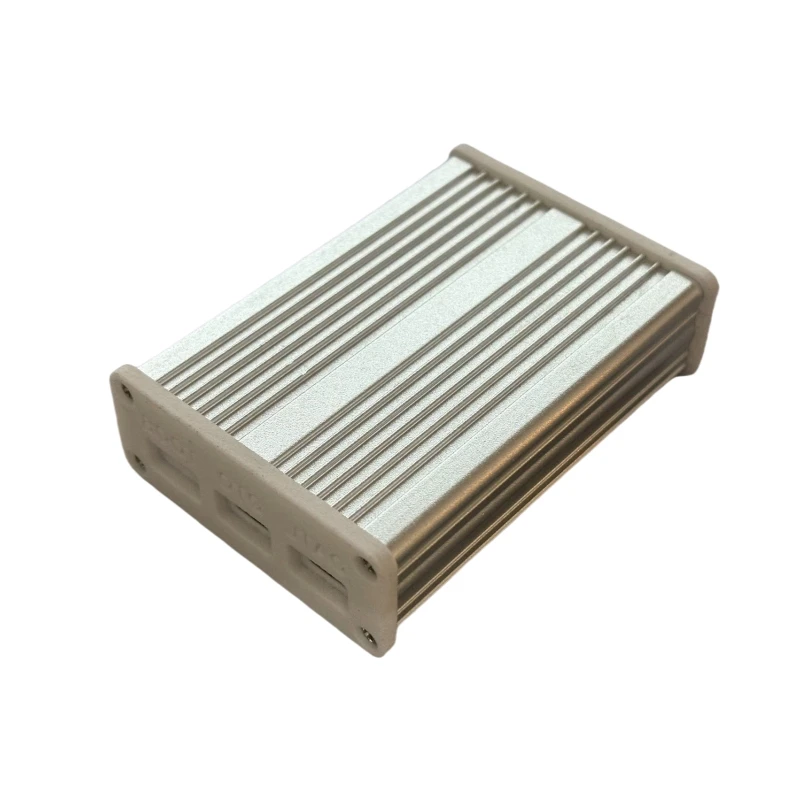

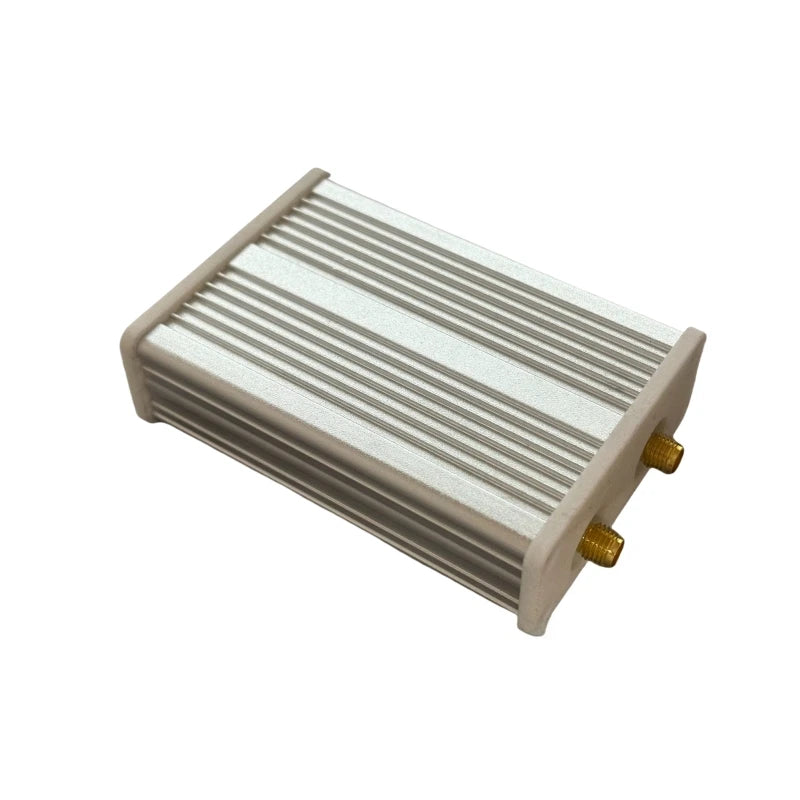

6.With aluminum case
Main difference
1. Remove the ADM1177 power detection chip.
2. Add FT2232 JTAG+serial port 2-in-1 chip.
3. Replace the main control chip model with XC7Z010-CLG400.
Pluto's functionality is fully compatible with official software, and it is compatible with official software. An onboard debugger has been added to make debugging bare metal programs more convenient.
Description
Description
Features
1. On board downloader, which can perform bare metal program debugging, firmware burning, etc. through JTAG port.
2. Supports FLASH boot mode and JTAG boot mode. The default FLASH boot mode is when powered on, and the JTAG boot mode is entered after pressing the BOOT-KEY button.
3. Equipped with DFU button, USB 2.0 interface, 0.5ppm TCXO, 1T1R interface.
4.Both USBs can provide power to the board.
5. The board comes pre installed with Pluto firmware and can be used immediately upon receipt.
6.With aluminum case
Main difference
1. Remove the ADM1177 power detection chip.
2. Add FT2232 JTAG+serial port 2-in-1 chip.
3. Replace the main control chip model with XC7Z010-CLG400.
Pluto's functionality is fully compatible with official software, and it is compatible with official software. An onboard debugger has been added to make debugging bare metal programs more convenient.
