New 70MHz-6GHz SDR Software Defined Radio E310 AD9361 + ZYNQ7020 for ADI Pluto Openwifi GNURadio
New 70MHz-6GHz SDR Software Defined Radio E310 AD9361 + ZYNQ7020 for ADI Pluto Openwifi GNURadio
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
AD9361 for ADI is used as its radio frequency (RF) transceiver chip, supporting the RF frequency range from 70 MHz to 6 GHz. The AD9361 has configurable RF bandwidth up to 56 MHz. And the SDR supports synchronization of multiple AD9361 RF transceiver chips.
Software defined radio supports many open source SDR software. For example, it can be used for Openwifi, GUNRadio, SDR#, SDRangel, Matlab Simulink, Gqrx SDR, STASAGEN, DragonOS and SigDigger.
It supports 2T2R. Thus, can be applied to various scenarios such as remote sensing, radar detection, digital broadcasting, digital front-end, Zigbee and Wifi.
Specifications:
- RFIC: AD9361 for ADI. Frequency 70M~6G (A9361). Up to 56M instantaneous bandwidth (AD9361)

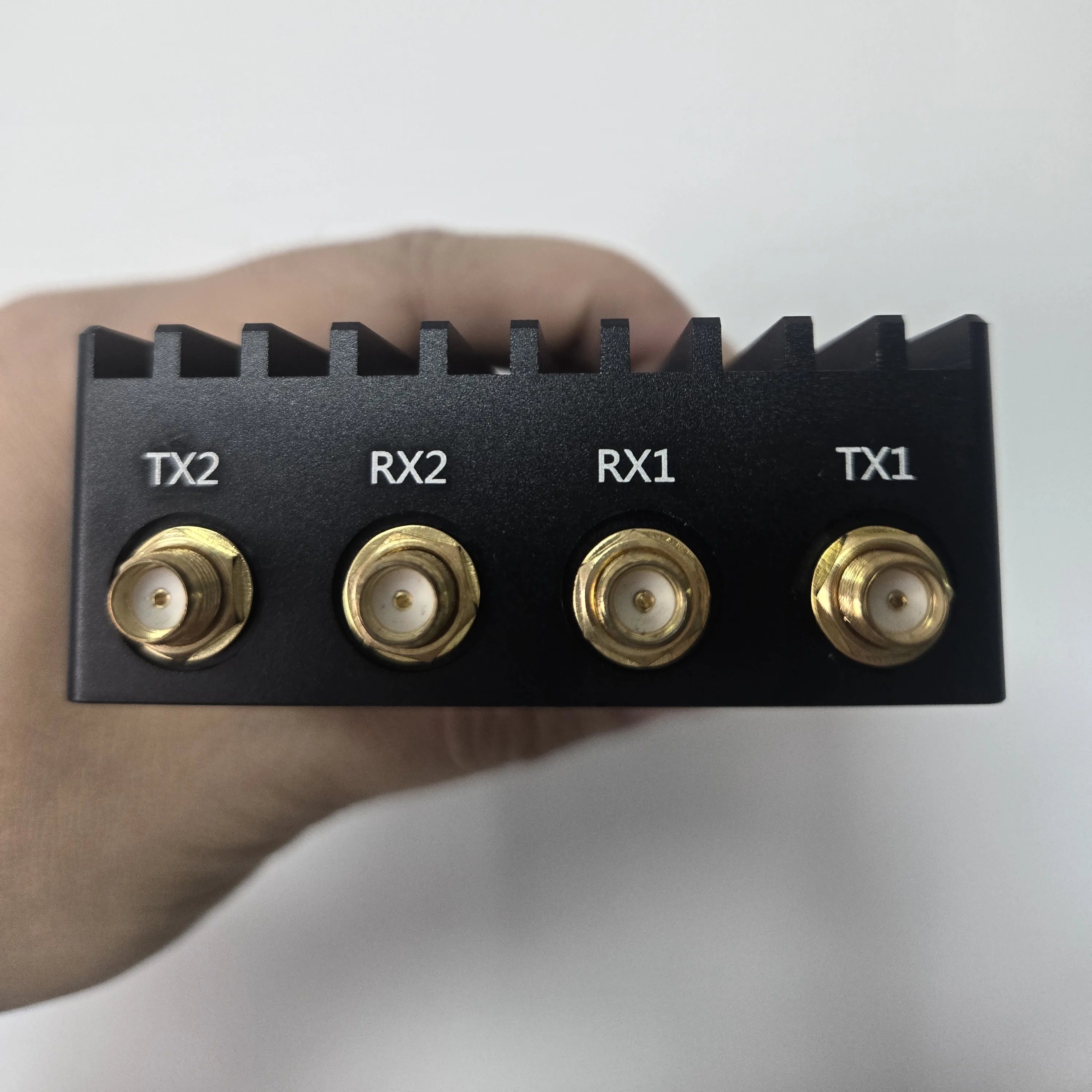

- Number of channels: 2T2R MIMO
- Baseband processing: ZYNQ7020, dual core for ARM, Cortex-A9 1G Byte DDR3 RAM. 256Mbit QSPI
- Baseband processor: ZYNQ XC7Z020

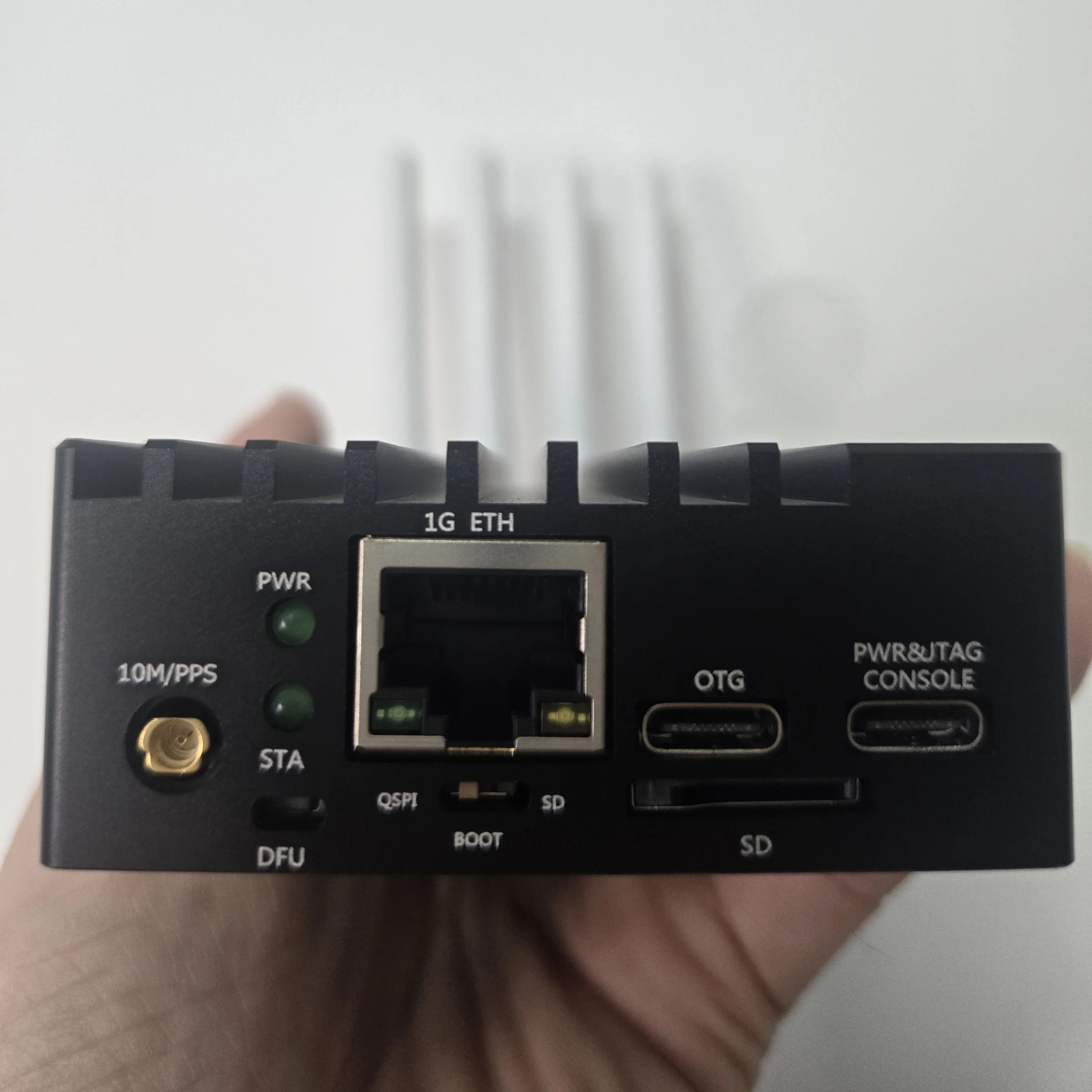

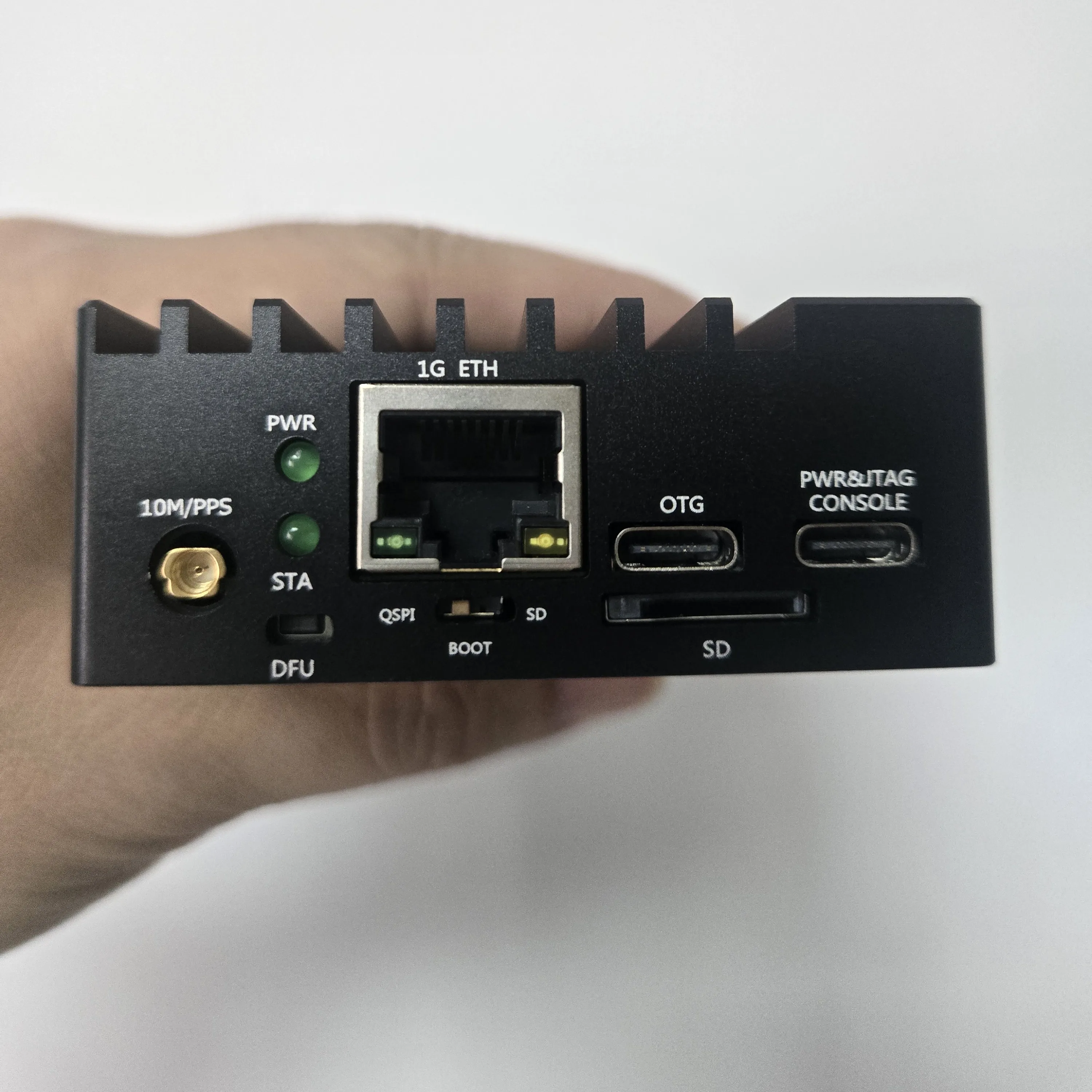

- Interfaces: one Giga ETH, one USB 2.0, Type C USB-JTAG and USB-UART, and GPIO expansion
- Synchronization: External 10M, PPS inputs
- Clock: VCTCXO with an initial accuracy of 0.5ppm. Dynamically adjusted clock via digital PLL. The accuracy can be better than +/-5ppb
- API: For ADI IO (pre-installed), C/C++, and Python

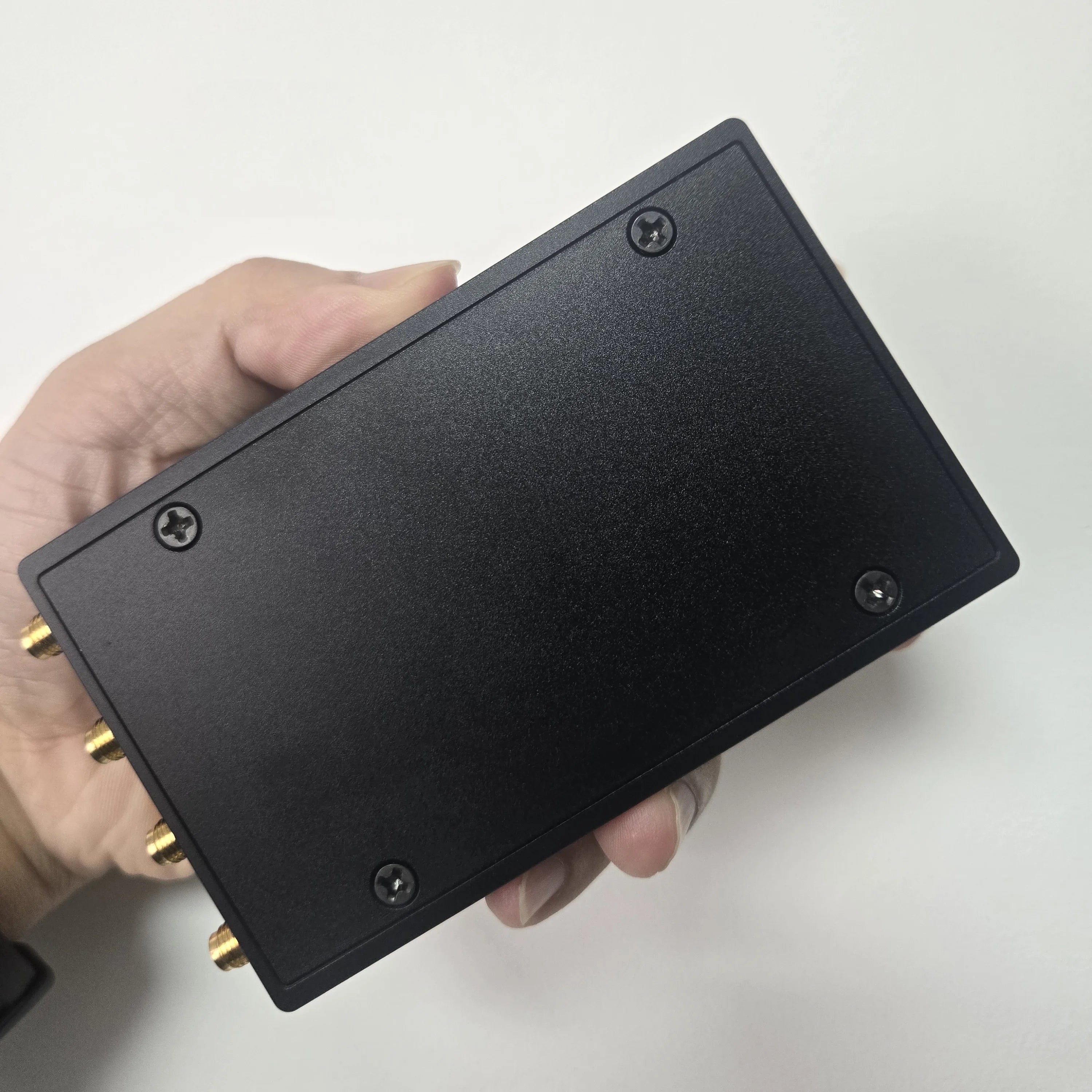

- Dimensions: Board: 100mm x 60mm/3.9" x 2.4"; case: 107.5mm x 64.5mm x 23mm / 4.2" x 2.5" x 0.9"
- Power supply: USB TYPE-C powered
- Transmit power: 3dBm (depends on frequency)
- ADC: 12bit 61.44MS/s
- DAC: 12bit 61.44MS/s
- Noise figure: < 8db
- Power consumption: 2~6W
- Transmit IQ bandwidth: 10MSPS
- Host interface: 1G ETH
- GPS: None
- External synchronized clock: 10M/PPS
- Features: Hobbyist development, DIY, and open source code
Applications:
Firmware Porting:
1. For PlutoSDR and ZED+FMCCOMMS
Supported Open Source Projects:
1. For Openwifi
2. For srsRAN
3. For Open5G-PHY
4. For gps_sdr_sim
Supported Software:
1. For GNURadio
2. For SDR#
3. For SDRangel
4. For Matlab Simulink
5. For Gqrx SDR
6. For STASAGEN
7. For DragonOS
8. For SigDigger

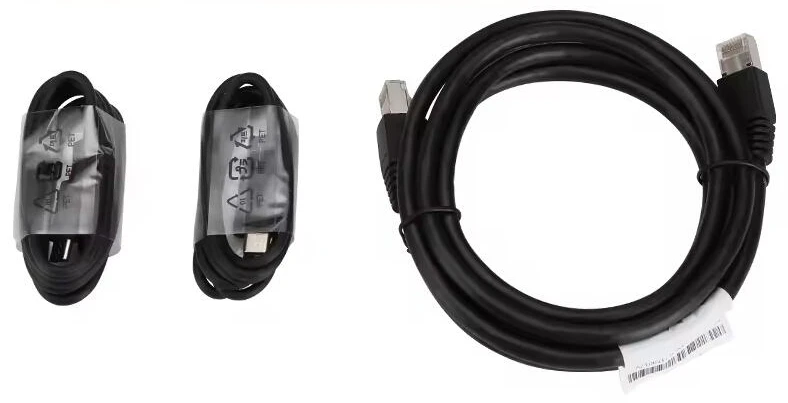

Package Included:
- 1 x SDR Transceiver
- 1 x Network Cable
- 2 x USB Cables

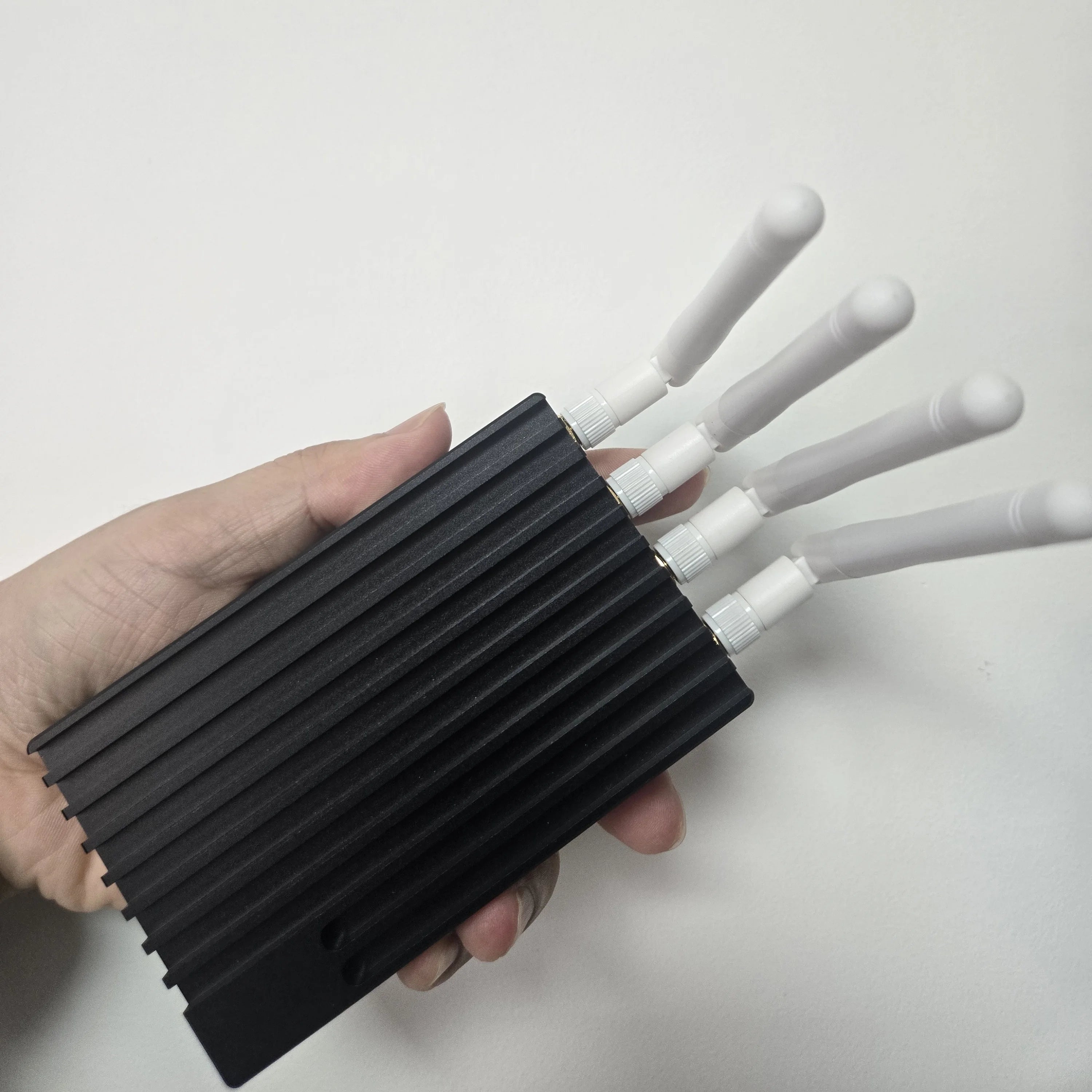

- 4 x Antennas
Description
Description
AD9361 for ADI is used as its radio frequency (RF) transceiver chip, supporting the RF frequency range from 70 MHz to 6 GHz. The AD9361 has configurable RF bandwidth up to 56 MHz. And the SDR supports synchronization of multiple AD9361 RF transceiver chips.
Software defined radio supports many open source SDR software. For example, it can be used for Openwifi, GUNRadio, SDR#, SDRangel, Matlab Simulink, Gqrx SDR, STASAGEN, DragonOS and SigDigger.
It supports 2T2R. Thus, can be applied to various scenarios such as remote sensing, radar detection, digital broadcasting, digital front-end, Zigbee and Wifi.
Specifications:
- RFIC: AD9361 for ADI. Frequency 70M~6G (A9361). Up to 56M instantaneous bandwidth (AD9361)
- Number of channels: 2T2R MIMO
- Baseband processing: ZYNQ7020, dual core for ARM, Cortex-A9 1G Byte DDR3 RAM. 256Mbit QSPI
- Baseband processor: ZYNQ XC7Z020
- Interfaces: one Giga ETH, one USB 2.0, Type C USB-JTAG and USB-UART, and GPIO expansion
- Synchronization: External 10M, PPS inputs
- Clock: VCTCXO with an initial accuracy of 0.5ppm. Dynamically adjusted clock via digital PLL. The accuracy can be better than +/-5ppb
- API: For ADI IO (pre-installed), C/C++, and Python
- Dimensions: Board: 100mm x 60mm/3.9" x 2.4"; case: 107.5mm x 64.5mm x 23mm / 4.2" x 2.5" x 0.9"
- Power supply: USB TYPE-C powered
- Transmit power: 3dBm (depends on frequency)
- ADC: 12bit 61.44MS/s
- DAC: 12bit 61.44MS/s
- Noise figure: < 8db
- Power consumption: 2~6W
- Transmit IQ bandwidth: 10MSPS
- Host interface: 1G ETH
- GPS: None
- External synchronized clock: 10M/PPS
- Features: Hobbyist development, DIY, and open source code
Applications:
Firmware Porting:
1. For PlutoSDR and ZED+FMCCOMMS
Supported Open Source Projects:
1. For Openwifi
2. For srsRAN
3. For Open5G-PHY
4. For gps_sdr_sim
Supported Software:
1. For GNURadio
2. For SDR#
3. For SDRangel
4. For Matlab Simulink
5. For Gqrx SDR
6. For STASAGEN
7. For DragonOS
8. For SigDigger
Package Included:
- 1 x SDR Transceiver
- 1 x Network Cable
- 2 x USB Cables
- 4 x Antennas
