New 70MHz-6GHz LibreSDR B210mini Software Defined Radio SDR XC7A200T+AD9361 XC7A100T+AD9363 Support UHD Pluto OAI B210
New 70MHz-6GHz LibreSDR B210mini Software Defined Radio SDR XC7A200T+AD9361 XC7A100T+AD9363 Support UHD Pluto OAI B210
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
1. Full compatibility with B210 on Windows and Linux(simply replace a bin file, provide automatic replacement script on Linux, and provide replacement directories for various tools on Windows)
2. Matlab, Gnuridio, SDAngel, OAI testing are fully compatible

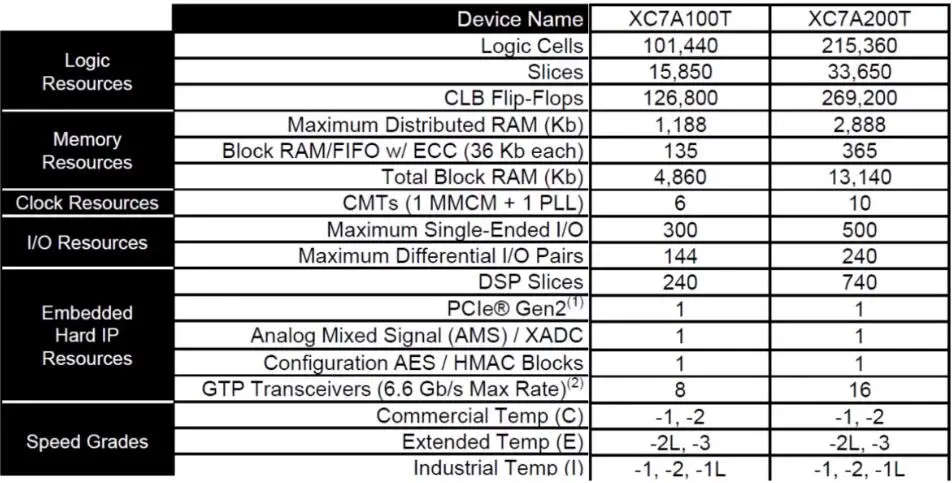

3.The functions of B210mini and B220mini are the same, the diffierent is the chipset.
B210mini XC7A100T+AD9363
B220mini XC7A200T+AD9361
Features
B210mini supports dual channel simultaneous reception and transmission, i.e. 2X2MIMO support.
MIMO (Multiple Input, Multiple Output) is a wireless communication technology that uses multiple antennas to simultaneously transmit and receive data, improve data rate, system capacity, resist interference and fading, expand coverage, and achieve spatial multiplexing. It is suitable for mobile communication fields such as LTE, WiFi, 5G, etc.
The integration of 0.5PPM VCTCXO on the board can achieve GPS signal simulation and 4G/5G base station experiments without the need for expensive GPSDO clock sources.
Equipped with a built-in clock PLL, it facilitates the input of external 10MHz and 1PPS synchronization signals.
Tune within the frequency range of 50MHz to 6GHz, with a maximum real-time processing bandwidth of 56MHz signal.
USB 3.0 high-speed interface.

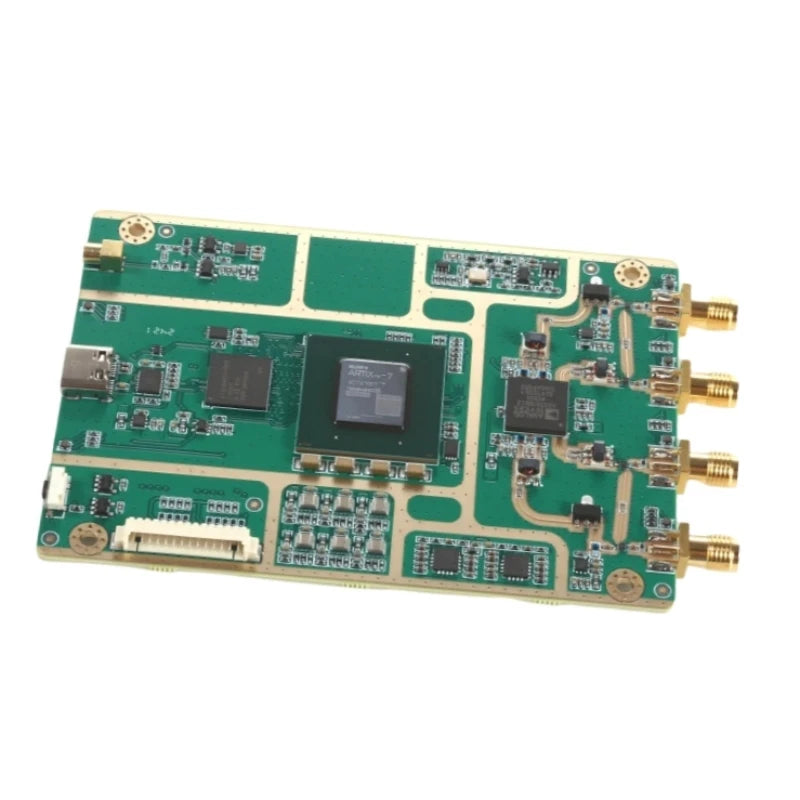

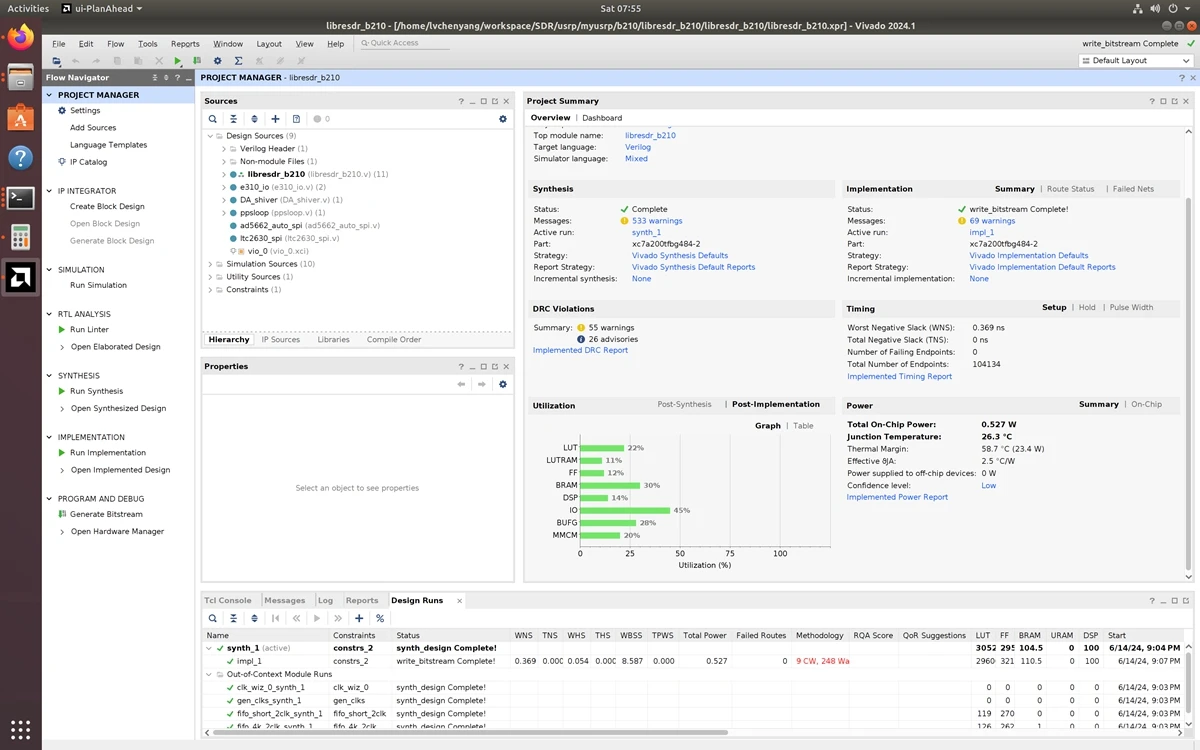

The onboard Artix-7 100T FPGA 100000 Logic Cells support personalized development.
Specifications
Base Band Performance:
ADC sampling rate (maximum): 61.44MS/s
ADC resolution: 12bits
ADC SFDR: 78dBc
DAC sampling rate (maximum): 61.44MS/s
DAC resolution: 12bits
Clock Performance:
Clock frequency precision: +/-0.5ppm
External clock interface (1th IPEX): 1
1PPS interface (1th IPEX): 1
RF Performance:
Output power: >10dBm
IIP3 (at typ NF): -20dBm
Receive Noise Figure: <8dB
Other Specification:
Power consumption (maximum): 2800mW
USB3.0 Micro-B: 1
Product size: 89.5 x 63mm
Motherboard net weight: 50g
For Linux System Apps:
For GNU Radio is an open-source software toolkit that focuses on the design and implementation of Software Defined Radio (SDR) systems. Through graphical interfaces or Python programming, users can build flexible communication systems covering a wide range of application areas, such as broadcasting, satellite communication, and radar. GNU Radio supports various SDR hardware platforms, including B210mini and HackRF. Providing rich signal processing modules, it is a powerful tool for researchers, students, and radio enthusiasts. As an open source project, GNU Radio encourages community collaboration and innovation, providing support for experimentation and development in the field of wireless communication.
For MATLAB is a powerful scientific computing software widely used in wireless communication research. Its SDR toolbox provides functions and tools for designing and simulating software defined radio systems, supporting various communication standards and hardware platforms.
For Open5GS is an open-source 5G core network implementation that supports 4G/5G NSA and 5G SA core network functionality.
For SDRangel (Software Defined Radio Angel) is an open-source software defined radio (SDR) application designed to provide a wide range of radio signal processing capabilities. This software allows users to use general-purpose hardware such as RTL-SDR, HackRF, B210mini, etc. to transform computers into powerful software defined radio receivers and transmitters.
For Windows System Apps:
For SoapySDR is an open-source software defined radio (SDR) device support library developed by Pothosware, providing a unified API that allows developers to easily interact with SDR hardware from different vendors. Supporting multiple devices, running across platforms, with plugin architecture and multi-channel support. Simplified the development and maintenance of SDR applications, allowing for dynamic loading of new device plugins, and providing real-time spectrum analysis and management tools.
For LabVIEW is a powerful graphical programming tool that can be used for Software Defined Radio (SDR) applications. Its intuitive interface and modular design enable engineers to easily develop and integrate SDR applications, thereby processing radio signals more flexibly.
For Matlab and SDRangel can both run on Windows systems.
Good helper for learning and scientific research
1. Combining Matlab for algorithm validation
2. Use SDAngel, SDR #, etc. to listen to radios, receive ADS-B, AIS DVB-T, and increase interest
3. Using Gnuraido for spectrum detection or vector signal generation
4. Using UHD programming interface to complete the development of product functions
5. Conduct mobile communication experiments using OAI and SRSRAN
Package inlcude
1 x B210mini or B220mini
4 x Antanna
1 x USB cable
1 x SMA cable
