New 70MHz~6GHz AD9363 ZYNQ7020 Software Defined Radio SDR ADI Pluto Communication Openwifi ZYNQSDR With Aluminum Case
New 70MHz~6GHz AD9363 ZYNQ7020 Software Defined Radio SDR ADI Pluto Communication Openwifi ZYNQSDR With Aluminum Case
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Descriptions
If you plan to use zedboard+fmcomms3 for learning or project development, this board is your ideal choice.
1. XC7Z020-2CLG400I chip
2. AD9363 frequency range 70MHz~6GHz, maximum sampling rate 61.44MHz
3. PS 1GB DDR3 32bit bit width, frequency 1066M;
4.32MB QSPI Flash, supporting TF card;
5. On board JTAG circuit and USB serial port, power supply and commissioning shall be completed by one line;
6. It supports USB OTG, and can be used to
7. VCTCXO is adopted, with initial frequency accuracy of 0.5PPM, and supports PPS or 10MHz external training;
8. Gigabit Ethernet interface;
9. The design current of all power rails in the digital part is 4A, and AD936x uses ADP1755 high-performance LDO to supply power to improve RF performance;
10. 10 layer PCB wiring, impedance matching, signal integrity design;

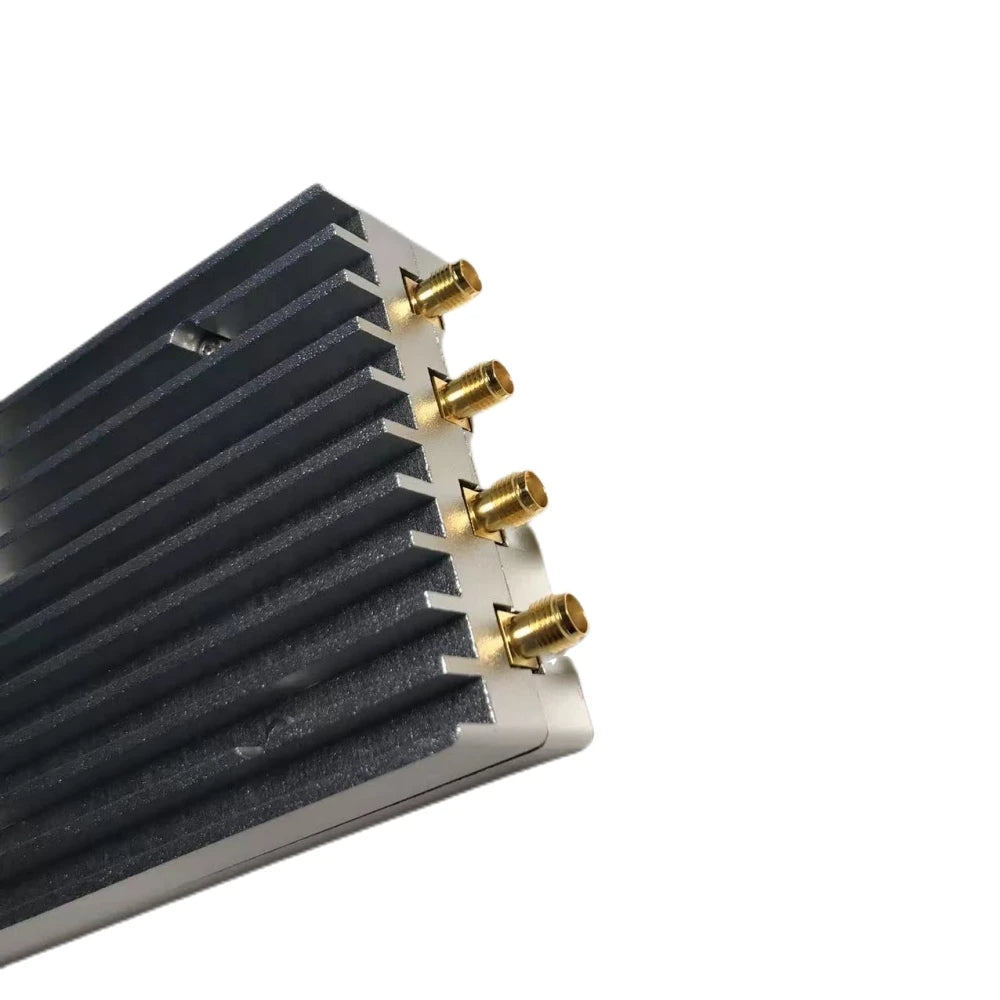

11. The product adopts CNC shell to enhance heat dissipation and ensure strength;

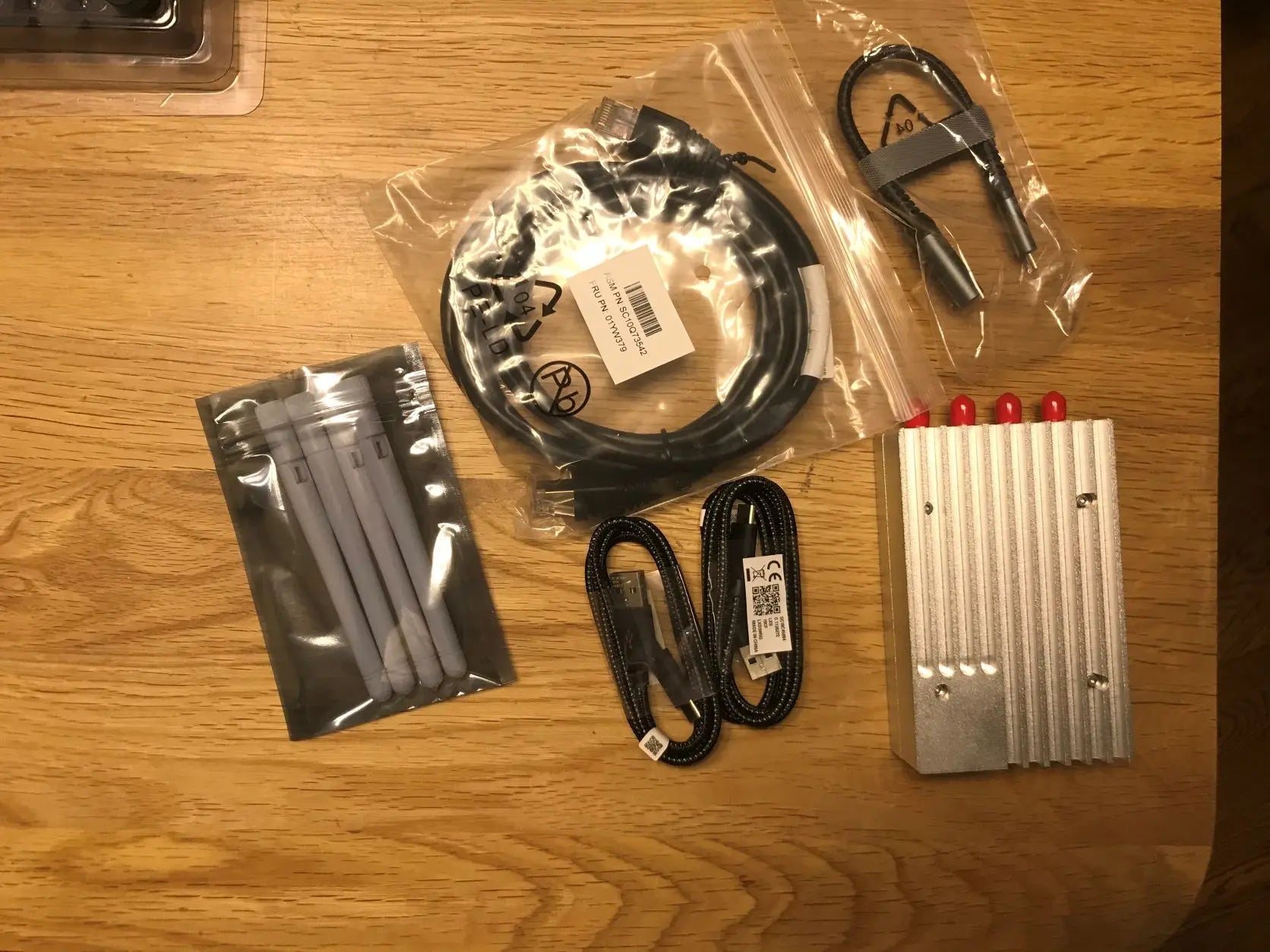

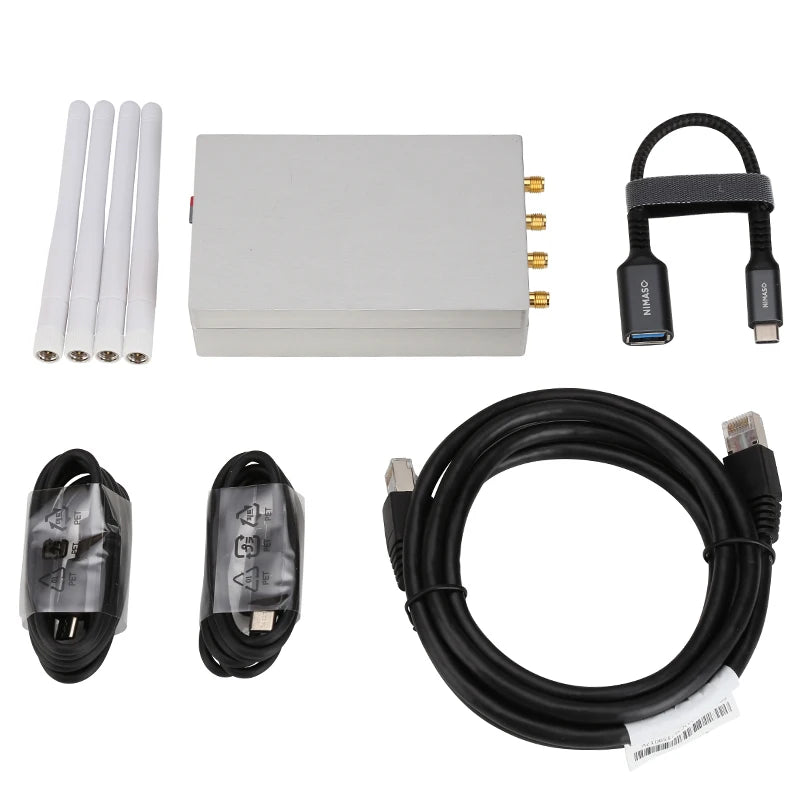

Package include
Include a new 16G TF card
Description
Description
Descriptions
If you plan to use zedboard+fmcomms3 for learning or project development, this board is your ideal choice.
1. XC7Z020-2CLG400I chip
2. AD9363 frequency range 70MHz~6GHz, maximum sampling rate 61.44MHz
3. PS 1GB DDR3 32bit bit width, frequency 1066M;
4.32MB QSPI Flash, supporting TF card;
5. On board JTAG circuit and USB serial port, power supply and commissioning shall be completed by one line;
6. It supports USB OTG, and can be used to
7. VCTCXO is adopted, with initial frequency accuracy of 0.5PPM, and supports PPS or 10MHz external training;
8. Gigabit Ethernet interface;
9. The design current of all power rails in the digital part is 4A, and AD936x uses ADP1755 high-performance LDO to supply power to improve RF performance;
10. 10 layer PCB wiring, impedance matching, signal integrity design;
11. The product adopts CNC shell to enhance heat dissipation and ensure strength;
Package include
Include a new 16G TF card
