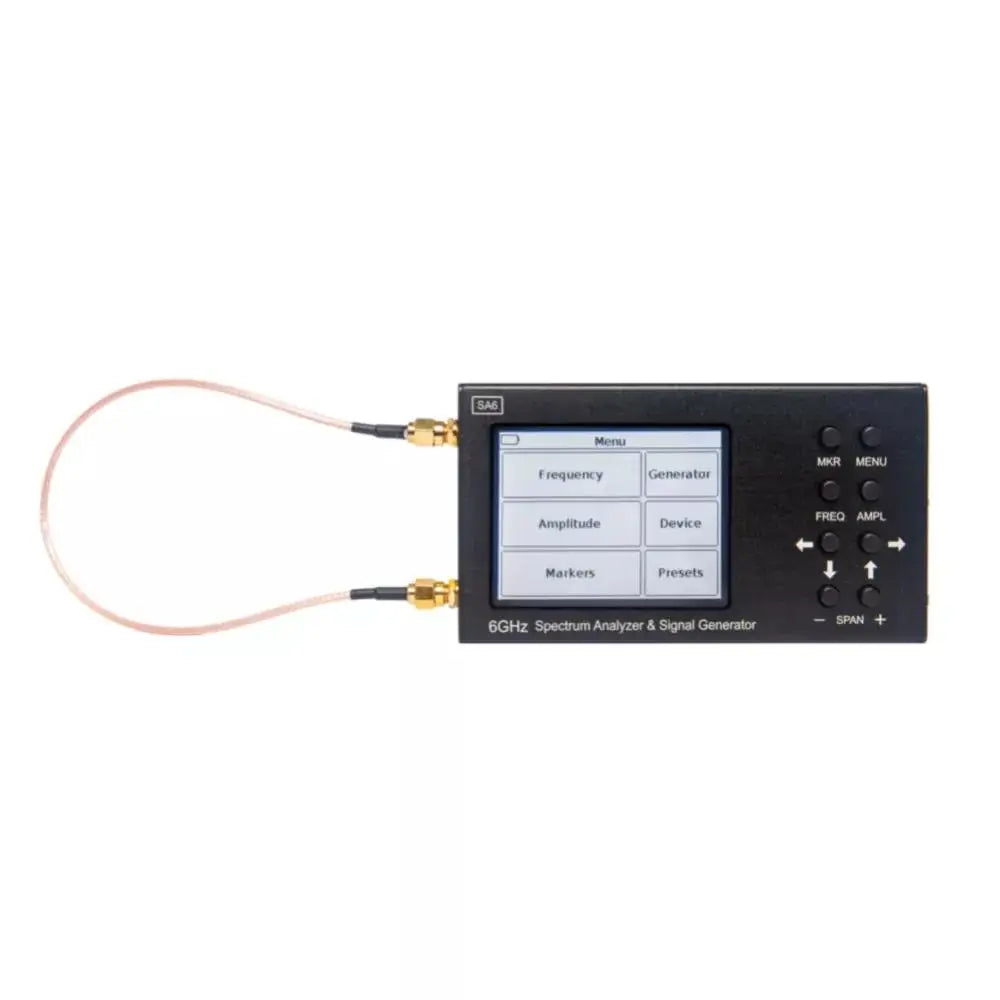

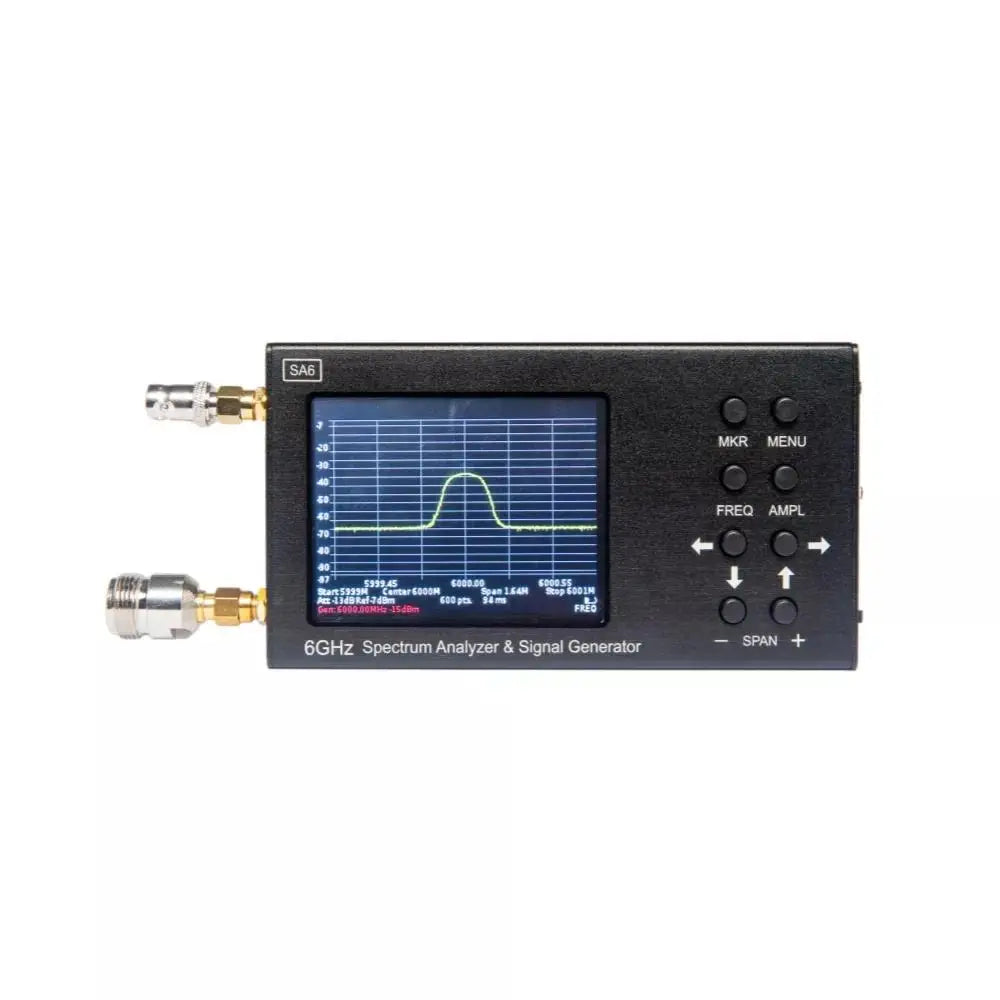

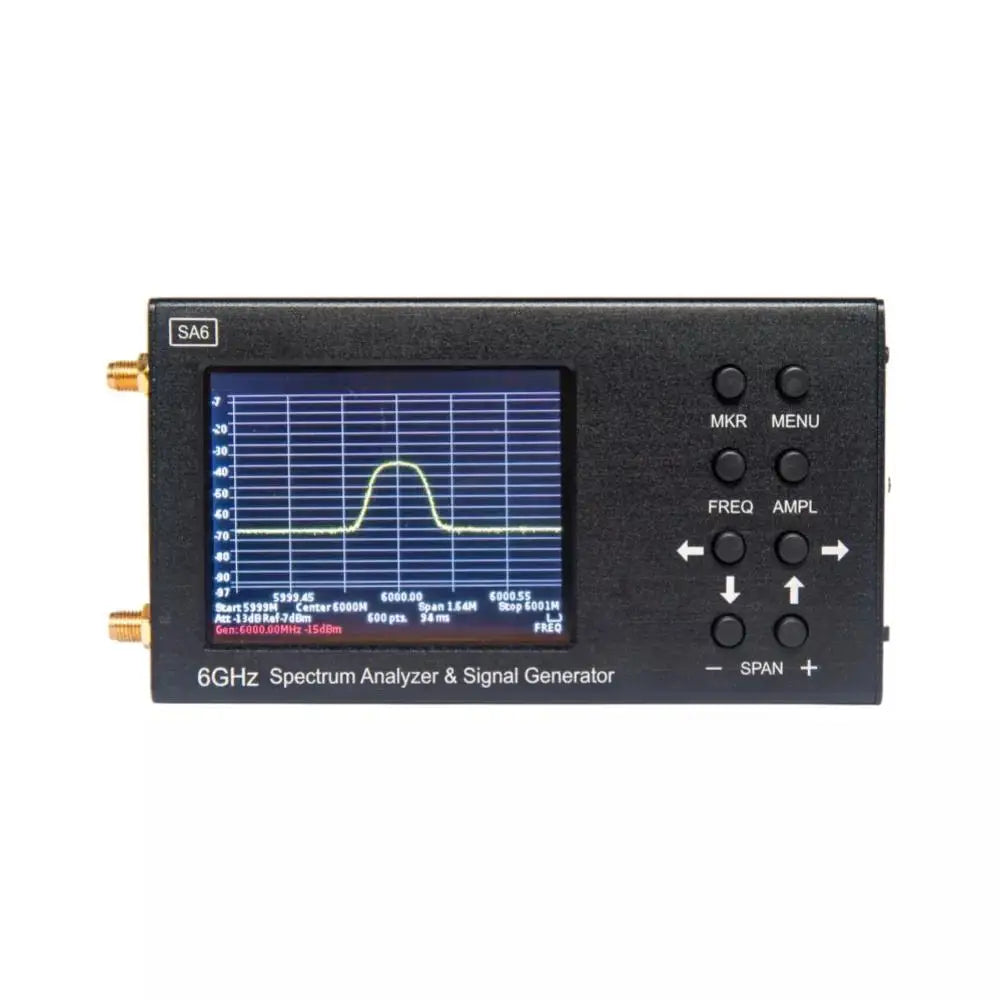

New 6GHz SA6 RF Spectrum Analyzer Spectrum Explorer Signal Genertor With Tracking Generator 3.2 inch Touch Screen 35MHz~6.2GHz
New 6GHz SA6 RF Spectrum Analyzer Spectrum Explorer Signal Genertor With Tracking Generator 3.2 inch Touch Screen 35MHz~6.2GHz
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
SA6 is a simple portable spectrum analyzer and signal range, designed to display the signal spectrum in the frequency range of 35 to 6200 MHz.
The analyzer finds the amplitude and frequency of the spectral components of the analyzed process. The spectrum analyzer can process signals from all widely used technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.
Another important feature is the additional function of the tracking generator, which makes it possible to measure the frequency response of passive or active devices (such as filters or amplifiers). The software allows measurement of SWR and return loss modules. This requires an external directional coupler and a set of calibration measures.
SA6 is mainly used for on-site operation. The equipment is durable, light in weight and low in energy consumption. It enables service centers and maintenance teams to perform on-site HF analysis for commissioning and repair work. In addition, the spectrum analyzer is the perfect solution for repair shops and radio enthusiasts.
Features:
3.2 inch color resistive touch screen
Wide frequency range: 35 to 6200 MHz
Fast scanning of frequency range: 500 points per point
High measurement accuracy: 2dB within 70-75dB dynamic range
Compatibility of Windows-based computers
The device can be used with the help of a PC
It is particularly convenient to use on site: the weight is as low as 380 grams, the size is 150х75х23 mm, the independent power supply can run continuously for up to 4 hours, and the wired data transmission to the PC
Specification:
Display frequency range: 35 — 6200 MHz
Measuring frequency range: 35 — 4500 MHz
Dynamic range of 35-3000 MHz frequency band: 75 dB
Dynamic range of 3000-4500 MHz frequency band: 70 dB
Maximum span: 6165 MHz
Bandwidth: 200 kHz, fixed
View the scanning speed of the frequency band above 100MHz: 700MHz/sec
Sweep 100 MHz: <0.25 seconds
Noise floor up to 3000 MHz: <-90 dBm
Noise floor 3000-4500 MHz: <-85 dBm
Noise floor 4500-6200 MHz: <-80 dBm
Wave impedance: 50 ohms
Standing wave ratio in the working frequency range: <1,5
Internal attenuator: 0-30 dB
Error at attenuation up to 10 dB: 2 dB
10 to 20 dB attenuation error: 5 dB
20 to 30 dB attenuation error: 8 dB
Tracking generator output power: -15...-25 dBm
Accuracy in dynamic range: 2,0 dB
The maximum input power of the attenuator at 0 dB: 10 dBm
Maximum input power when attenuation is greater than 20dB: +20dBm
Maximum input measurement signal: +10 dBm
Maximum input DC voltage: 25 volts
Maximum current consumption when running on battery: 450 mA
Maximum current consumption when running from USB: 500 mA (when charging)
Battery: 2500 mAh

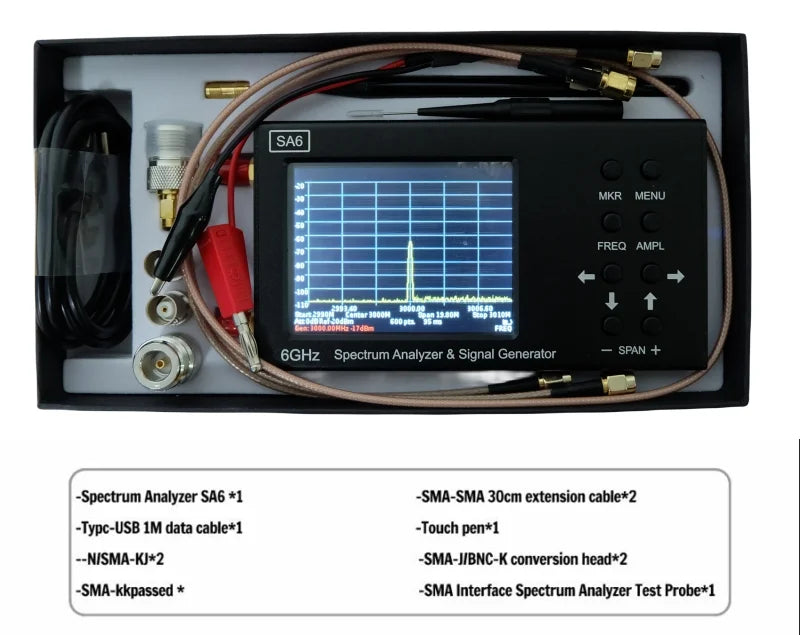

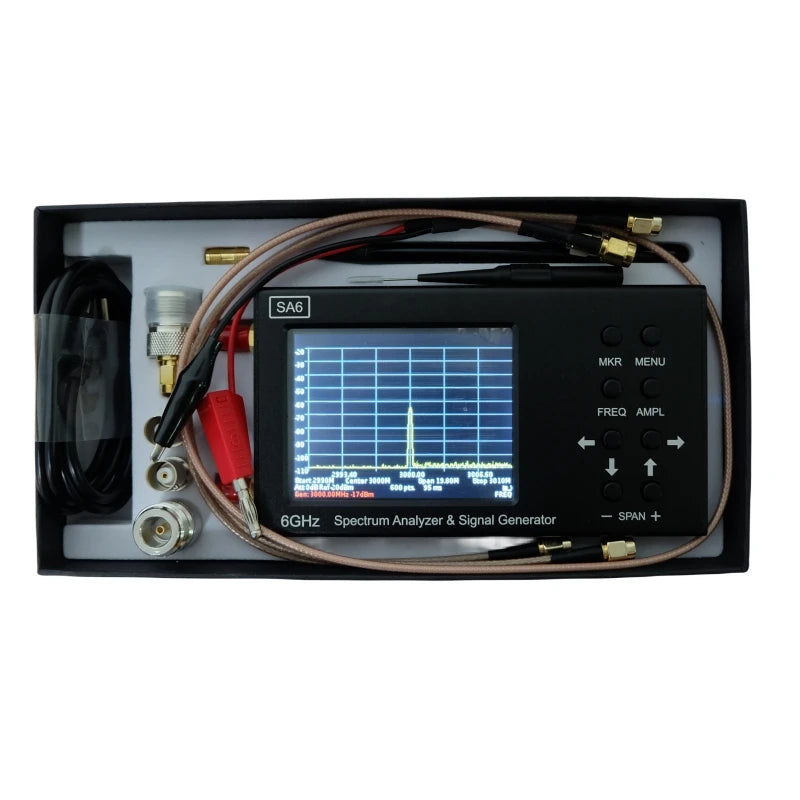

Package include:
