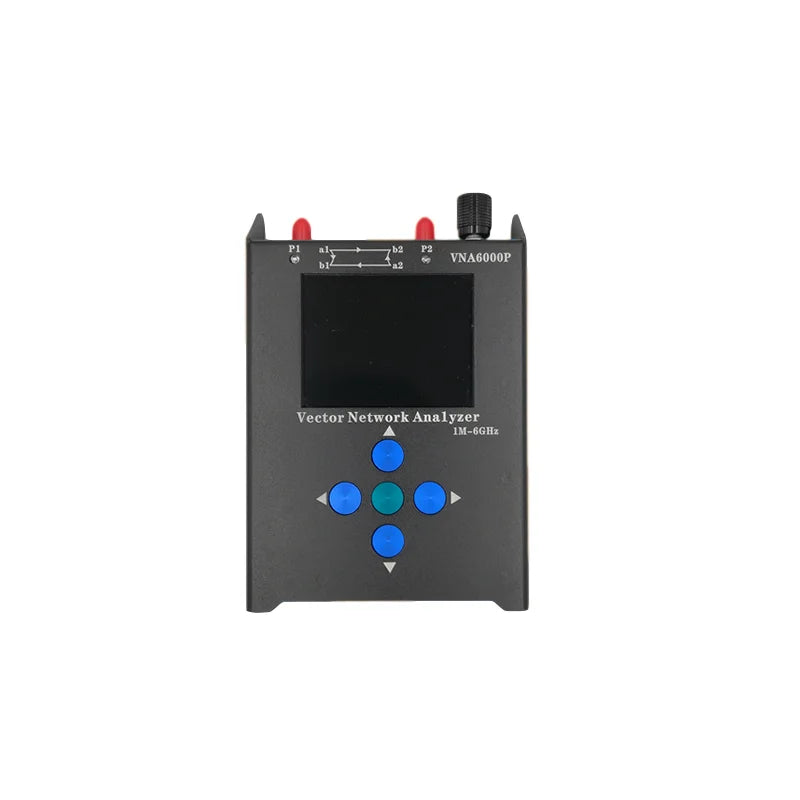

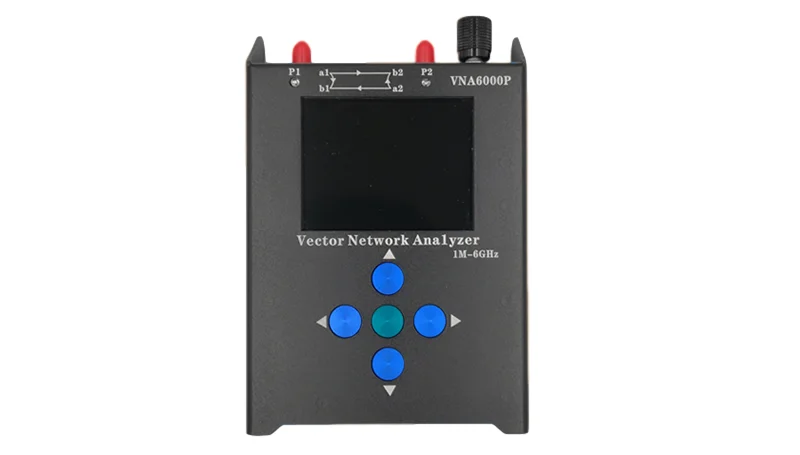

New 6GHz Handheld Vector Network Analyzer VNA6000P 1MHz-6000MHz VNA Analyzer With Battery

Description

NA6000P is a 1MHz-6GHz portable dual-port vector network analyzer with built-in display. It is especially suitable for RF circuit matching and debugging of Bluetooth, wifi, 2.4G, 5.8G, GPS, Beidou, IoT devices in various frequency bands, and security products in various frequency bands.

Specification

- Working Frequency: 1MHz-6000MHz
- Frequency Resolution: 3Hz
- Max. Scanning Points: 320
- Scanning Speed: <320 points/s
- Bridge Directivity (before calibration): > 12dB
- Effective Directivity (after single-port calibration): > 50dB
- Input SWR: <2
- Phase Measurement Accuracy: <1.5°
- Amplitude Measurement Accuracy: <0.25dB
- Display Size: 3.2-Inch
- Display Resolution: 320x240
- Max. Working Current:
For charging battery: 500mA;
Powered by battery: 700mA;
Powered by an external power supply and charge battery: 1200mA
- Min. DC Input Voltage: 4.5V
- Max. DC Input Voltage: 5.5V
- Charging Time: 6-8H
- N.W.: 0.45kg

Package include

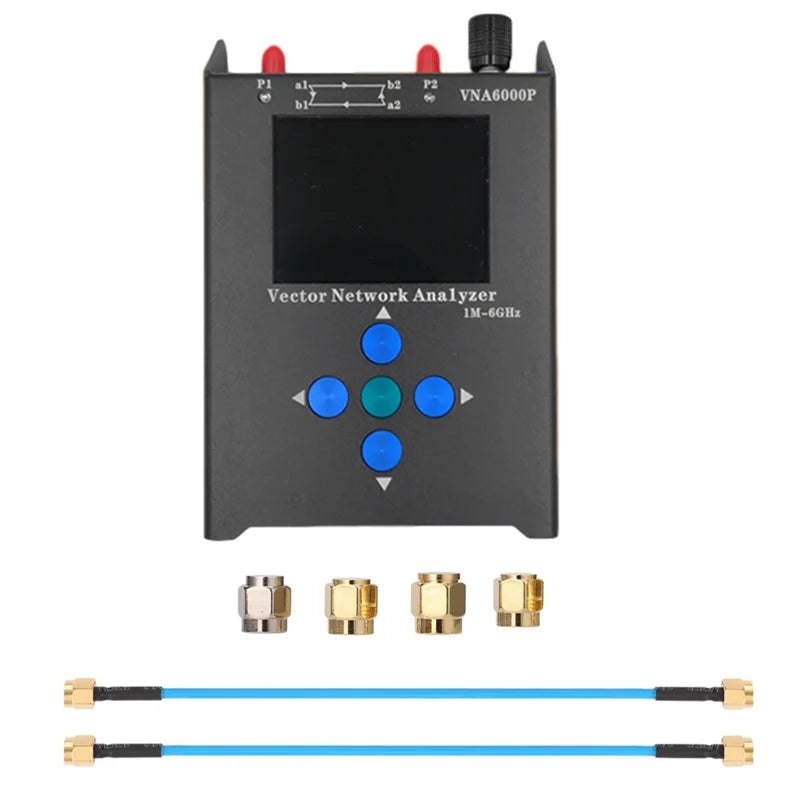

- 1 x VNA6000P Vector Network Analyzer
- 1 x Calibration Kit
- 2 x SMA cable
- 1 x USB Charging Cable


Based on this open source dual port vector network analyzer developed by YL3AKB

http://www.yl3akb.lv/content/vna_v2/vna_v2.php

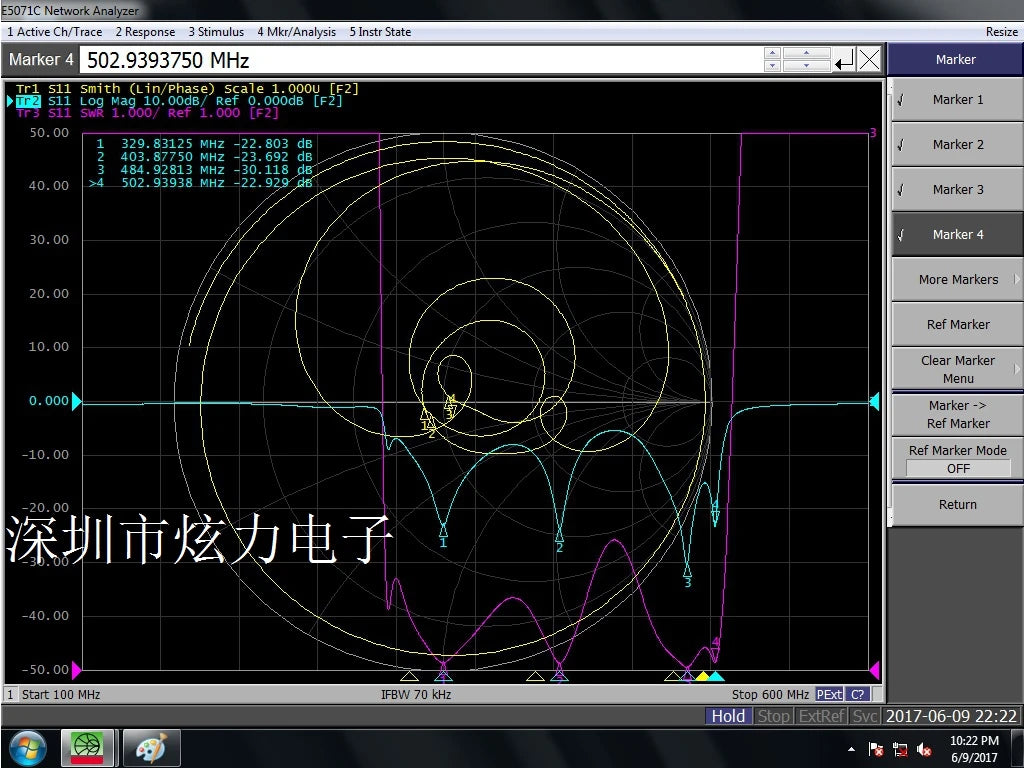

E5071C test device 1 (S11 forward reflection)

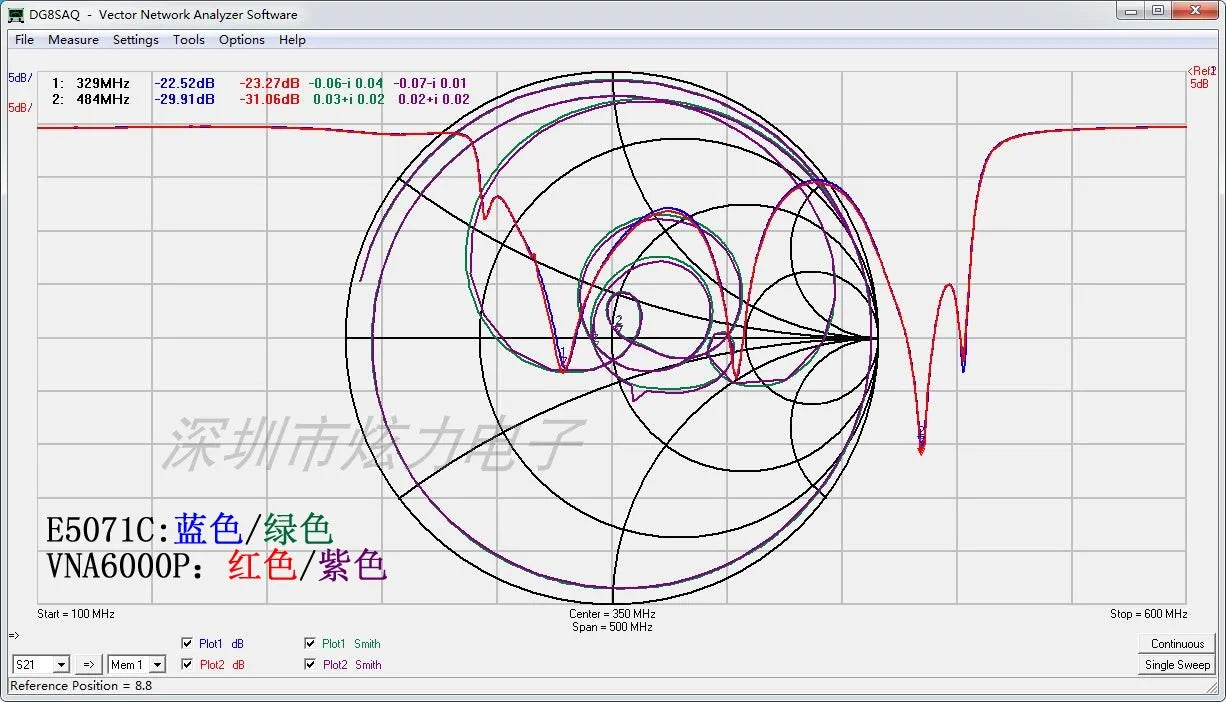

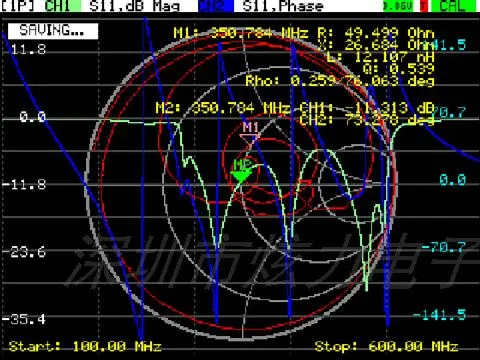

VNA6000P and E5071C test device 1 result comparison (S11 forward reflection)
E5071C blue/green
VNA6000P red/purple
