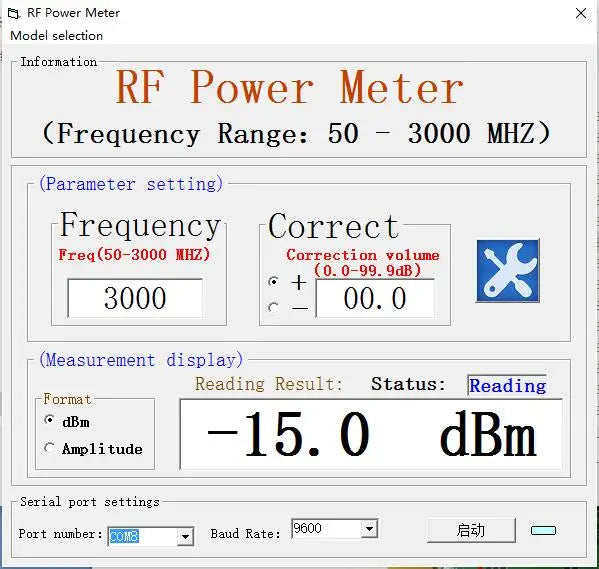

The RF series is a high-performance portable RF power meter with a 0.96 inch 128x64 pixel OLED display screen that provides 5V power supply through micro-USB. Easy to use, compact in size, convenient to carry, stable in performance, high in accuracy, preset bias, wide dynamic range, and fast in measurement speed. The software accompanying this power meter allows users to configure the power meter on the PC, making data recording and sharing easier.

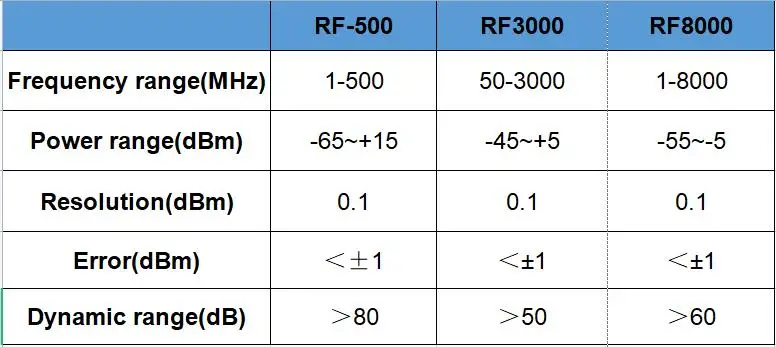

Parameters:
1. Measurement power range:
RF500 -65~+15dBm
RF3000 -45~+5dBm
RF8000 -55~-5dBM
(External RF attenuator can extended to
100dBm)
2. Measurement frequency range:
RF500 1～500 MHz
RF3000 50-3000MHz
RF8000 1-8000MHz
3 .Measurement power resolution 0.1 dBm
4. Input impedance 50ohm
5. Dynamic range>80dB
6. Working voltage 5VDC (powered by micro USB)
7. Working current<50 mA
8. Working temperature -10 ℃~65 ℃ Celsius
9. Storage temperature -40 ℃~65 ℃ Celsius
10. Size 50 * 50 * 25 mm （LxWxH）
Download link of software
https://www.adrive.com/public/enKpZa/0120023.zip
Package include:
1 x RF Power Meter
1 x USB cable
