New 4.3 inch Display 35MHz~4.4GHz Handheld Spectrum Analyzer Signal Generator With Tracking Source
New 4.3 inch Display 35MHz~4.4GHz Handheld Spectrum Analyzer Signal Generator With Tracking Source
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Introduction
1. The main chip STM32F407 (clocked at 168M)

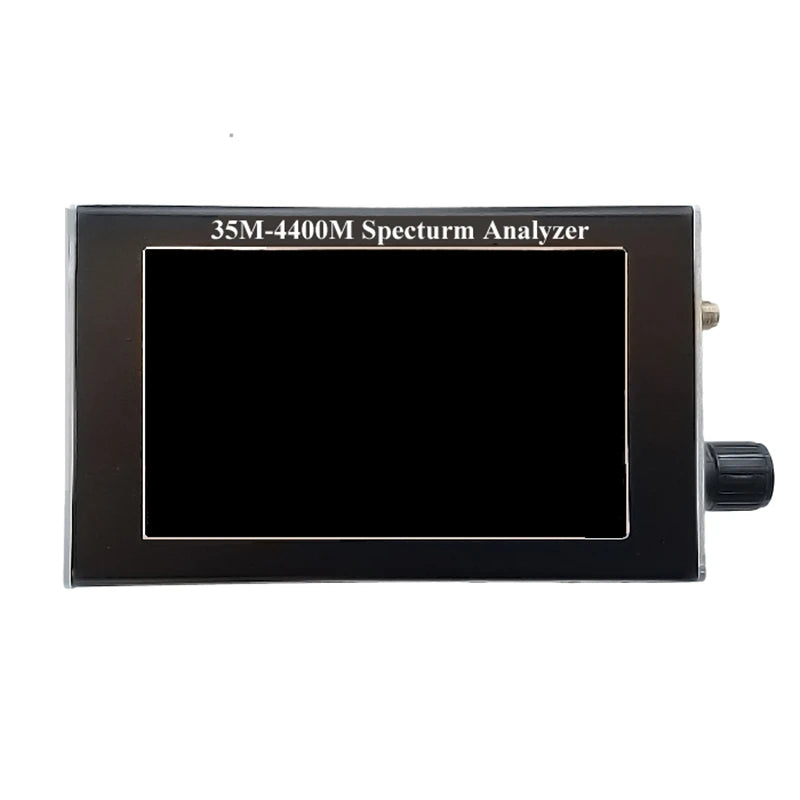

2, 4.3 inch TFTLCD (480 * 800) display

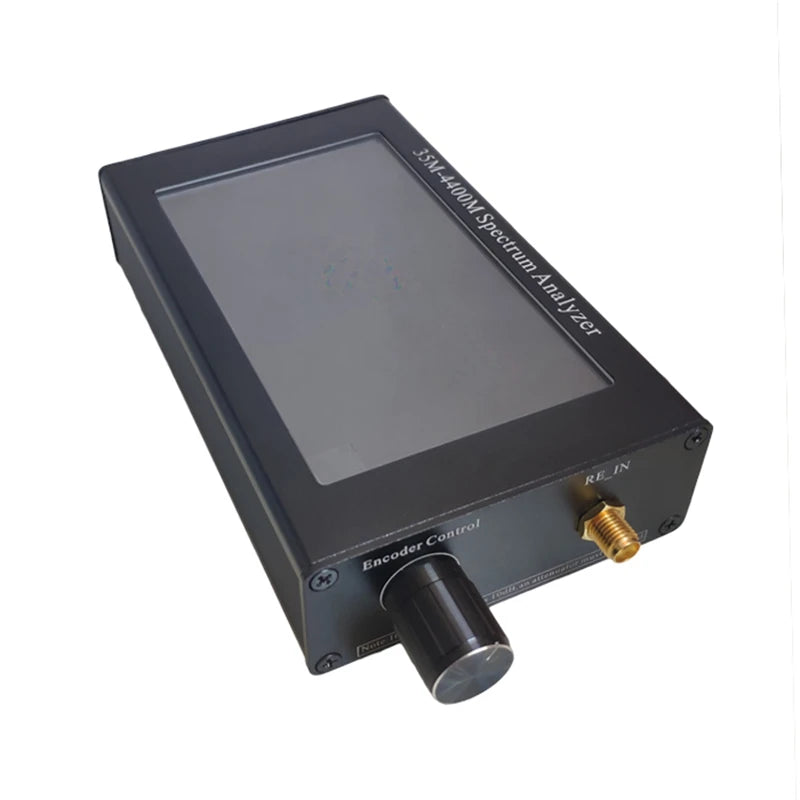

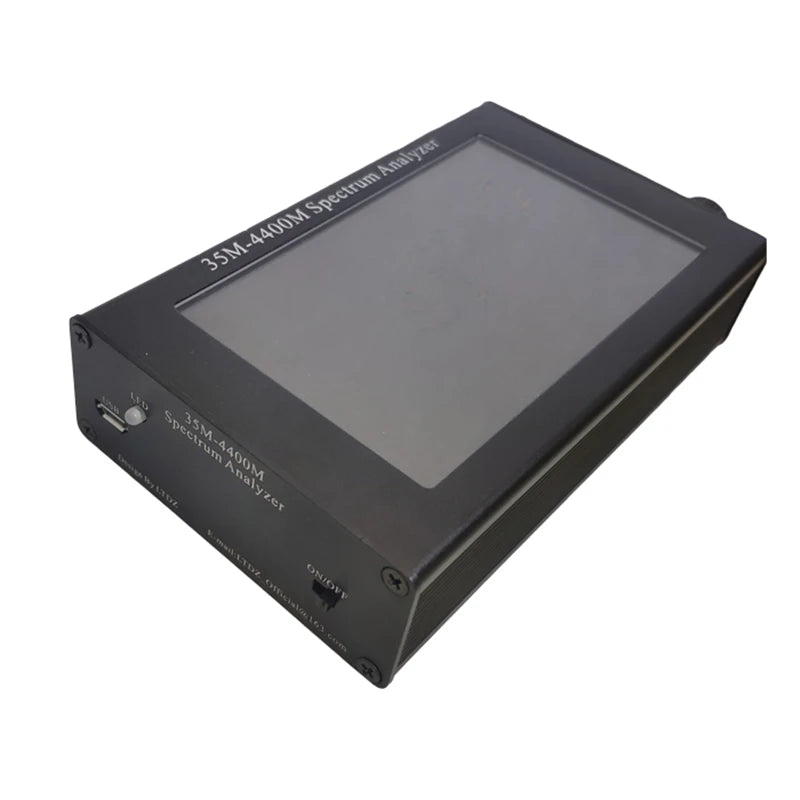

3. All aluminum alloy shell + rotary encoder control.
4, USB power supply, English interface.
5. Spectrum display range: 35M-4400Mhz; input impedance: 50 ohms.
6.RBW: 5 gears adjustable 10khz, 50khz, 100khz, 200khz, 500khz
7, screen scanning points: 700 points.
8. Scanning span: 7M (10Khz), 35M (50khz), 70M (100Khz), 140M (200Khz), 350M (500Khz).
9. dBm range: -80dB ----- 10dB (supports manual adjustment of the calibration range). There is no amplifier circuit inside. If you need to measure small signals, you need an external amplifier.
10. Maximum access signal: 10dB.
11. Working mode: Super heterodyne scanning spectrum analyzer, single scanning time 800ms.
12.Built-in lithium battery
13. Product specifications: 145mm * 70mm * 30mm. Weight: 200g.

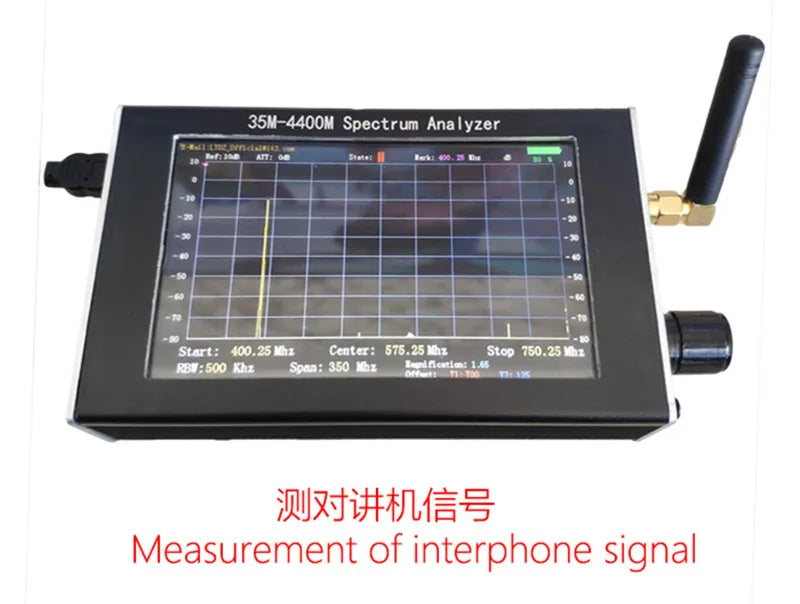

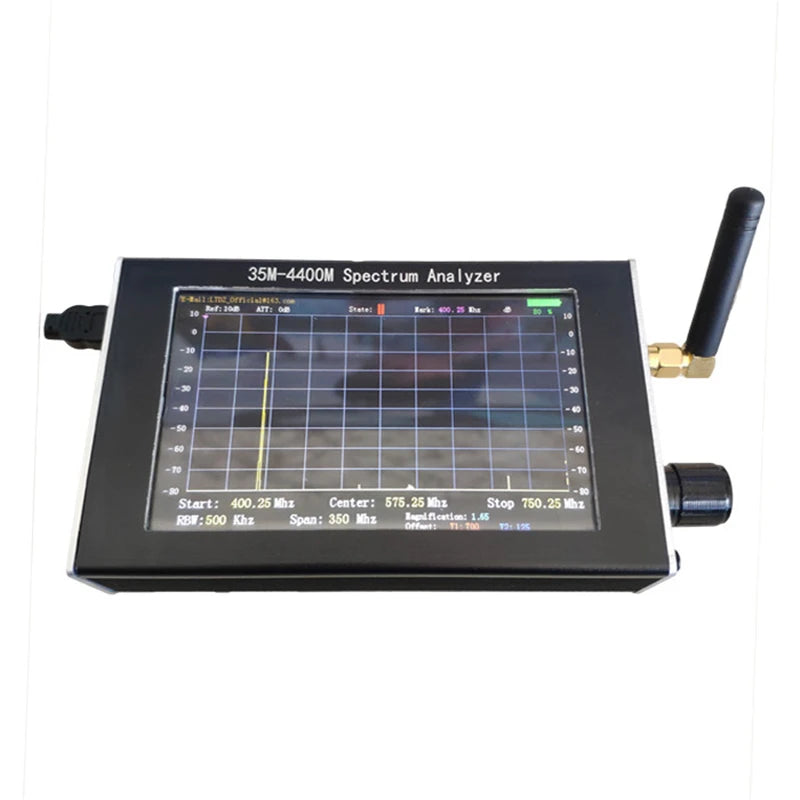

14. Scope of application: walkie-talkie, toy remote control, 2.4Gwifi.
15. Mix the local oscillator signal and the external test signal to obtain the difference frequency signal, and calculate the external test signal amplitude through the detector. Using a high-precision VCO signal source, the heterodyne signal frequency can be measured very accurately. Because the scanning range is very large (35M-4400M), due to cost reasons, there is no dedicated detection circuit for the external test signal. There may be errors in the measurement amplitude. Therefore, the product has increased the magnification and displacement parameters. The display is adjusted and calibrated.
What's in the package
1 x Spectrum Analyzer
1 x USB cable
