New 3 in 1 Backpacks Module 5G Sub-GHz + CC1101 + NRF24 For Flipper Zero
New 3 in 1 Backpacks Module 5G Sub-GHz + CC1101 + NRF24 For Flipper Zero
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Description

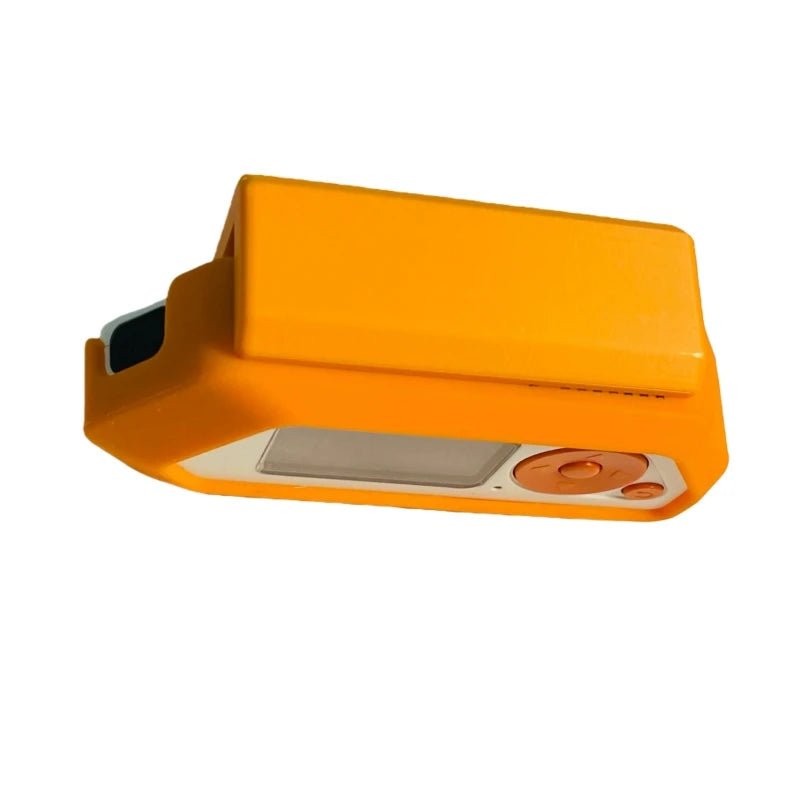

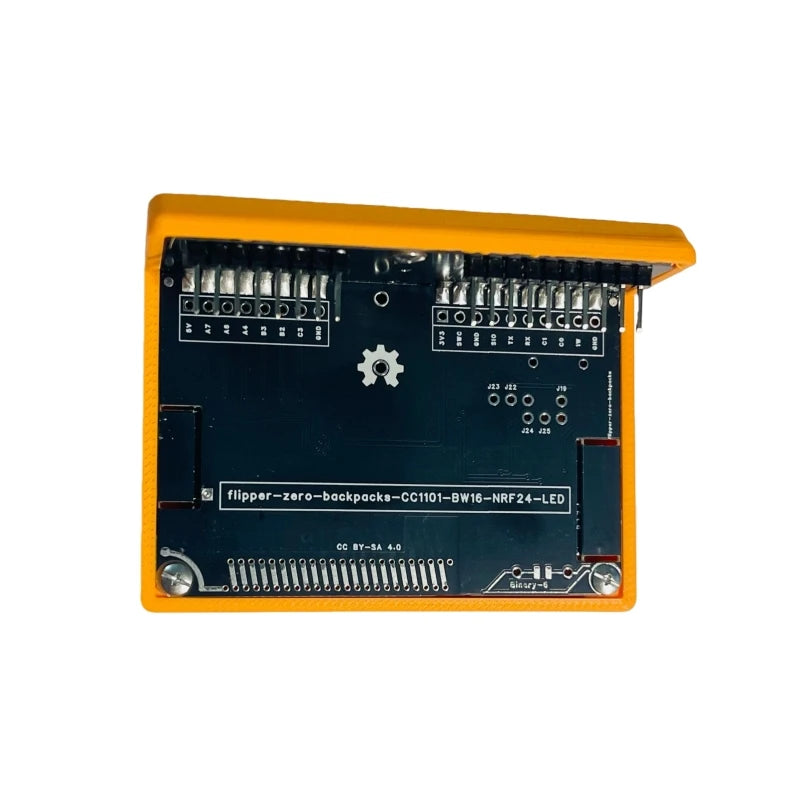

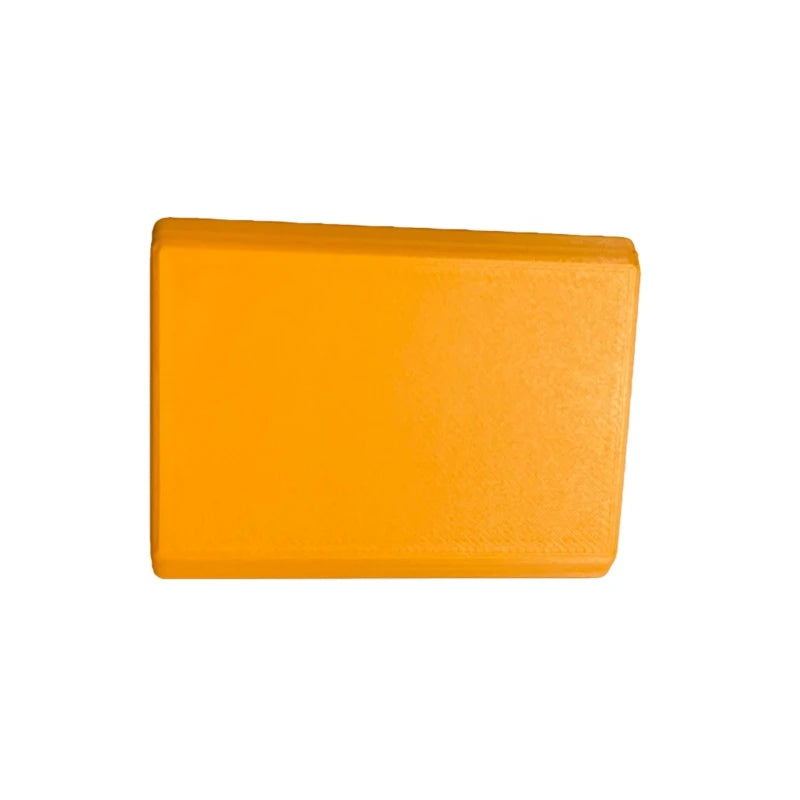

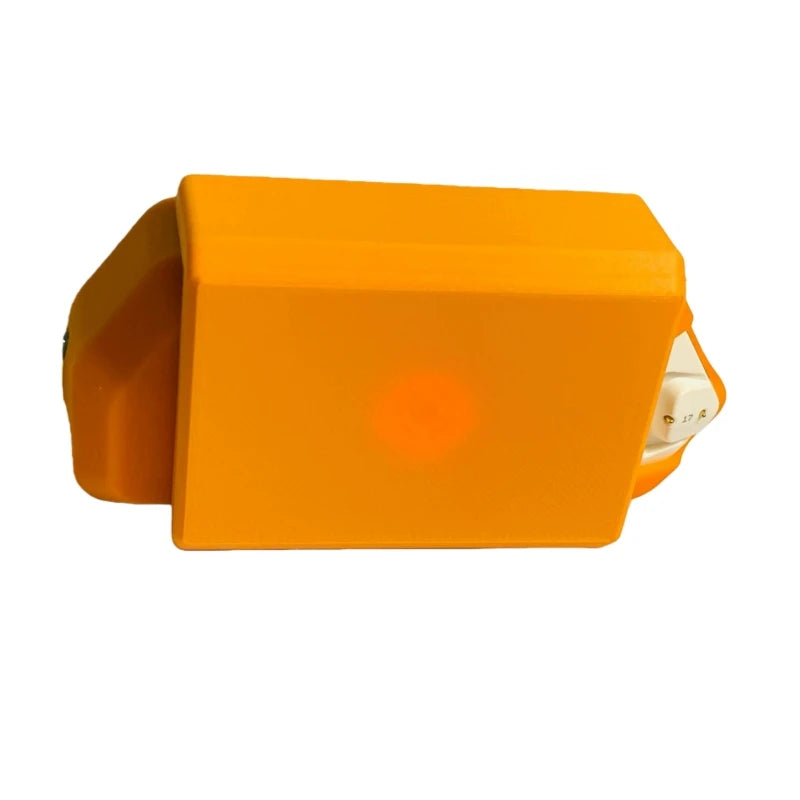

3 in 1 backpacks module for flipper zero, 5g sub ghz + cc1101 + nrf24, with 3d printed shell, please note, this listing not include the flipper zero, the color of the 3d printed shell not 100% match the color of the flipper zero.
5G Sub GHz module: BW16 module (RTL8720DN, supports 5G, 2.4G), has been flashed with 5G for Lipper zero firmware, supports 5Gwifi. fab, see GITHUB for details.
CC1101: Built in antenna, high-performance Sub GHz RF chip, covering 300-928MHz frequency band, supporting multiple modulation modes (ASK/OOK/FSK), suitable for IoT device interaction.
NRF24:2.4GHz RF module, upgraded PA+LNA.
Features
Three in one design: saves hardware space and avoids frequent module replacement.
Open source support: The Flipper Zero community provides firmware extensions (such as custom frequency band configuration).
GPIO: RTL modules use GPIO TX and GPIO RX,
CC1101 and NRF24 can be independently enabled, and GPIO interfaces can be allocated as needed. Refer to the mntm firmware, CC1101 uses GPIO A4, and NRF24 uses GPIO A7.
Application
Security testing, research on the Internet of Things, interaction with smart home devices such as light bulbs and sensors, educational experiments, learning wireless communication protocols (5.8G, 2.4G, BLE).
Note
Some open-source apps support it, and basic RF knowledge (such as code writing, signal decoding, frequency band selection, firmware compilation) is required to customize features. If you want to rewrite the RTL module, please hold down the boot button before powering on the module and flash it through TX RX 3.3 GND.
Package include
1 x 3 in 1 backpacks module
Description
Description
Description
3 in 1 backpacks module for flipper zero, 5g sub ghz + cc1101 + nrf24, with 3d printed shell, please note, this listing not include the flipper zero, the color of the 3d printed shell not 100% match the color of the flipper zero.
5G Sub GHz module: BW16 module (RTL8720DN, supports 5G, 2.4G), has been flashed with 5G for Lipper zero firmware, supports 5Gwifi. fab, see GITHUB for details.
CC1101: Built in antenna, high-performance Sub GHz RF chip, covering 300-928MHz frequency band, supporting multiple modulation modes (ASK/OOK/FSK), suitable for IoT device interaction.
NRF24:2.4GHz RF module, upgraded PA+LNA.
Features
Three in one design: saves hardware space and avoids frequent module replacement.
Open source support: The Flipper Zero community provides firmware extensions (such as custom frequency band configuration).
GPIO: RTL modules use GPIO TX and GPIO RX,
CC1101 and NRF24 can be independently enabled, and GPIO interfaces can be allocated as needed. Refer to the mntm firmware, CC1101 uses GPIO A4, and NRF24 uses GPIO A7.
Application
Security testing, research on the Internet of Things, interaction with smart home devices such as light bulbs and sensors, educational experiments, learning wireless communication protocols (5.8G, 2.4G, BLE).
Note
Some open-source apps support it, and basic RF knowledge (such as code writing, signal decoding, frequency band selection, firmware compilation) is required to customize features. If you want to rewrite the RTL module, please hold down the boot button before powering on the module and flash it through TX RX 3.3 GND.
Package include
1 x 3 in 1 backpacks module
