New 20mW BPF 922.5MHz RFID special SAW bandpass filter, 920-925MHz, 1DB bandwidth 5MHz SMA-M/SMA-F
New 20mW BPF 922.5MHz RFID special SAW bandpass filter, 920-925MHz, 1DB bandwidth 5MHz SMA-M/SMA-F
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
This filter 1DB bandwidth is 5MHz, and the cutoff characteristics are steep. The performance optimization of the 922.5MHz RFID receiver can effectively filter out the band signal, reduce noise, and increase the dynamic range.

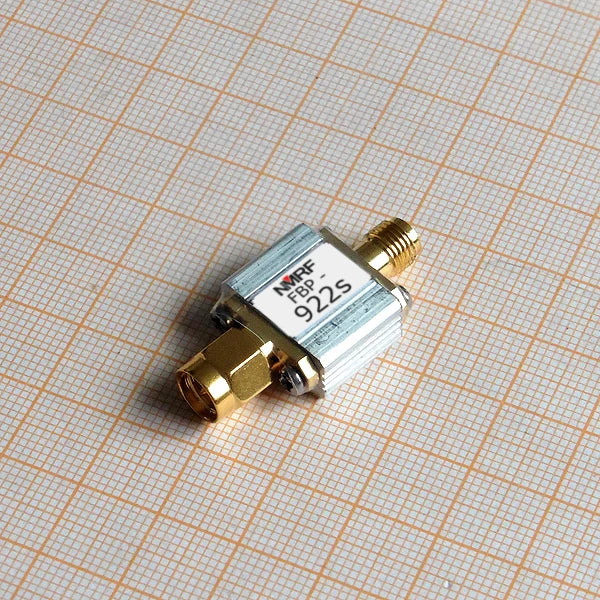

Model: FBP-922S
Impedance: 50 ohms
Center frequency: 922.5 MHz
Tong frequency band (1DB bandwidth): 920 ~ 925 MHz
With interpolation: <3.5 dB
Maximum load power: 20 mW (13 dBm)

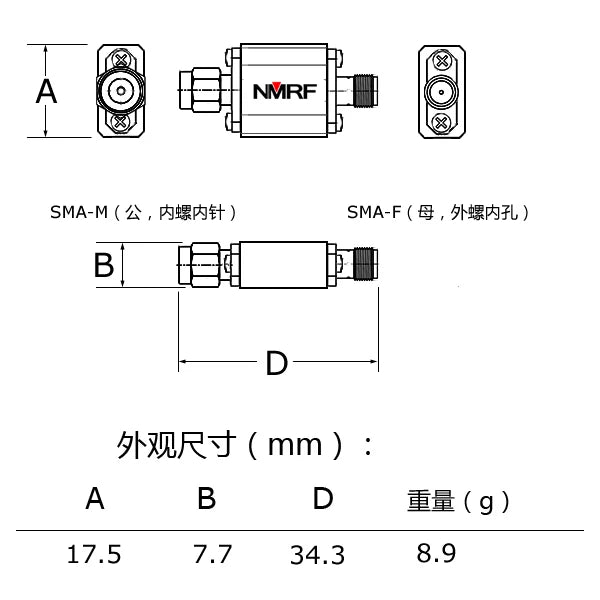

Interface: SMA-M, SMA-F

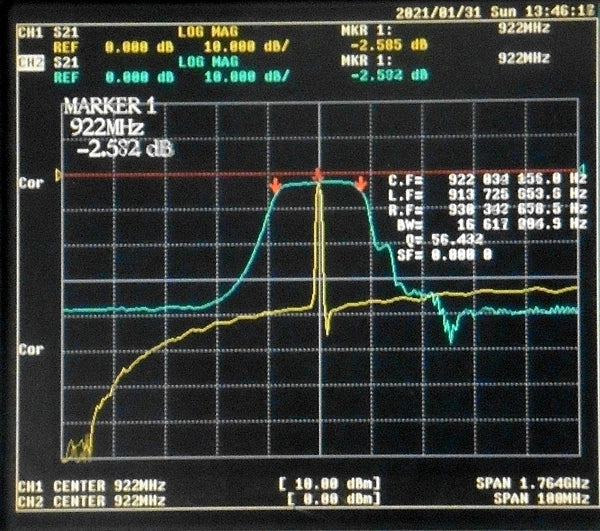

Audio map (the figure is marked as 3DB bandwidth, scan center frequency: 922MHz, blue wire width: 100MHz, yellow wire width: 1764MHz, vertical resolution: 10dB per grid):
Description
Description
This filter 1DB bandwidth is 5MHz, and the cutoff characteristics are steep. The performance optimization of the 922.5MHz RFID receiver can effectively filter out the band signal, reduce noise, and increase the dynamic range.
Model: FBP-922S
Impedance: 50 ohms
Center frequency: 922.5 MHz
Tong frequency band (1DB bandwidth): 920 ~ 925 MHz
With interpolation: <3.5 dB
Maximum load power: 20 mW (13 dBm)
Interface: SMA-M, SMA-F
Audio map (the figure is marked as 3DB bandwidth, scan center frequency: 922MHz, blue wire width: 100MHz, yellow wire width: 1764MHz, vertical resolution: 10dB per grid):
