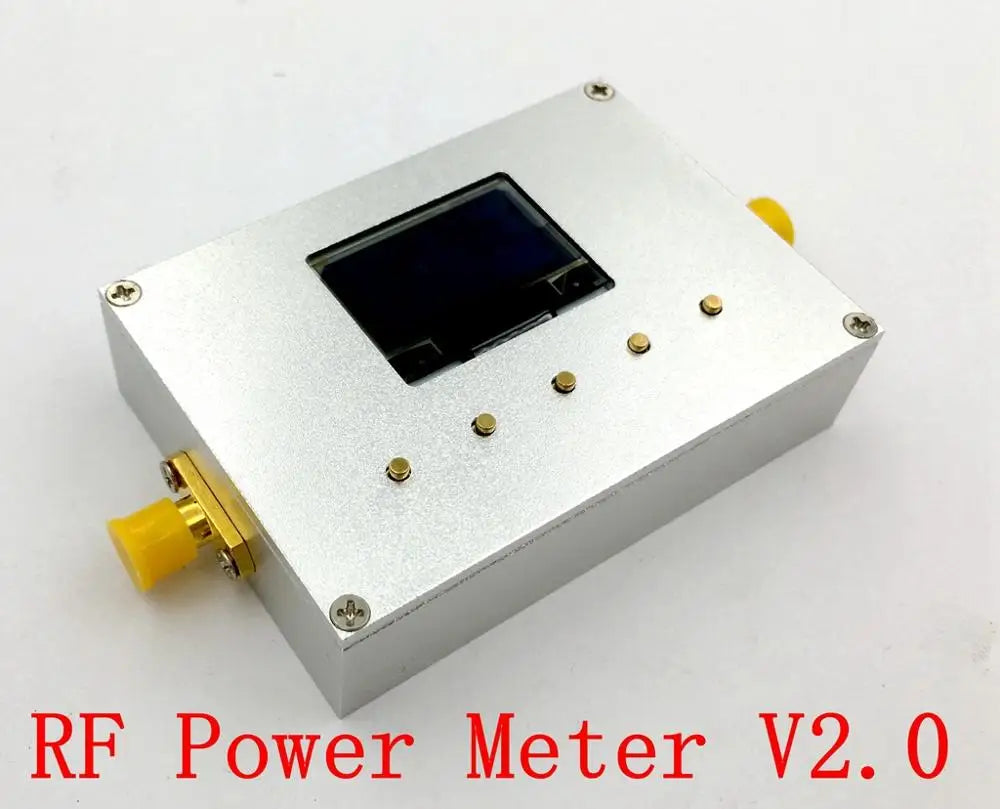

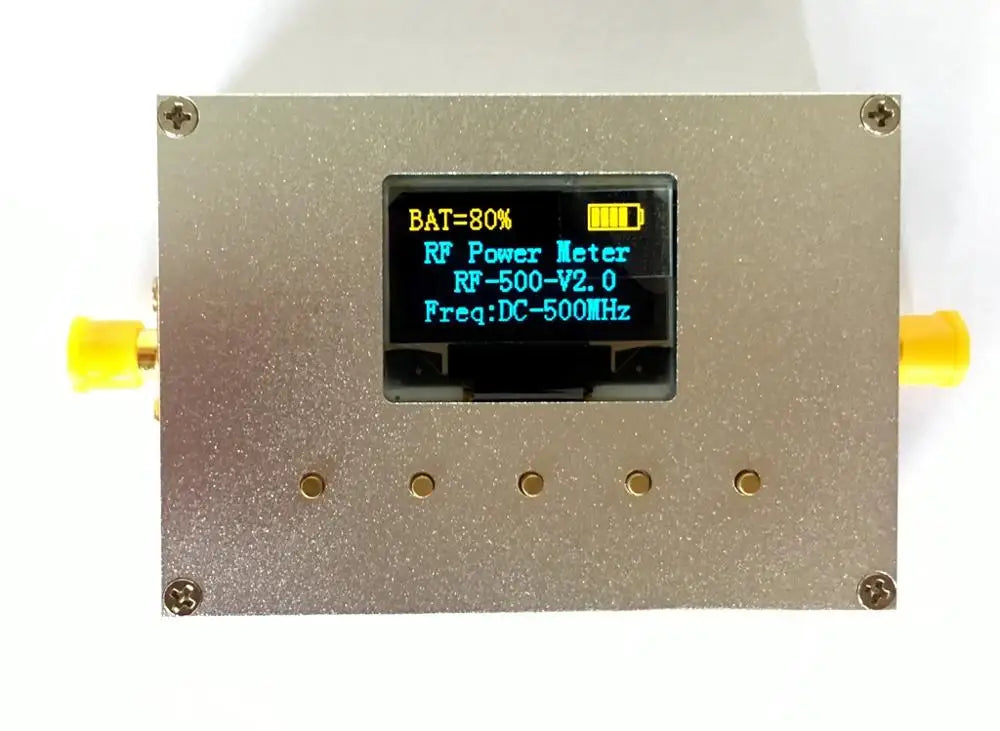

I. Product Overview:

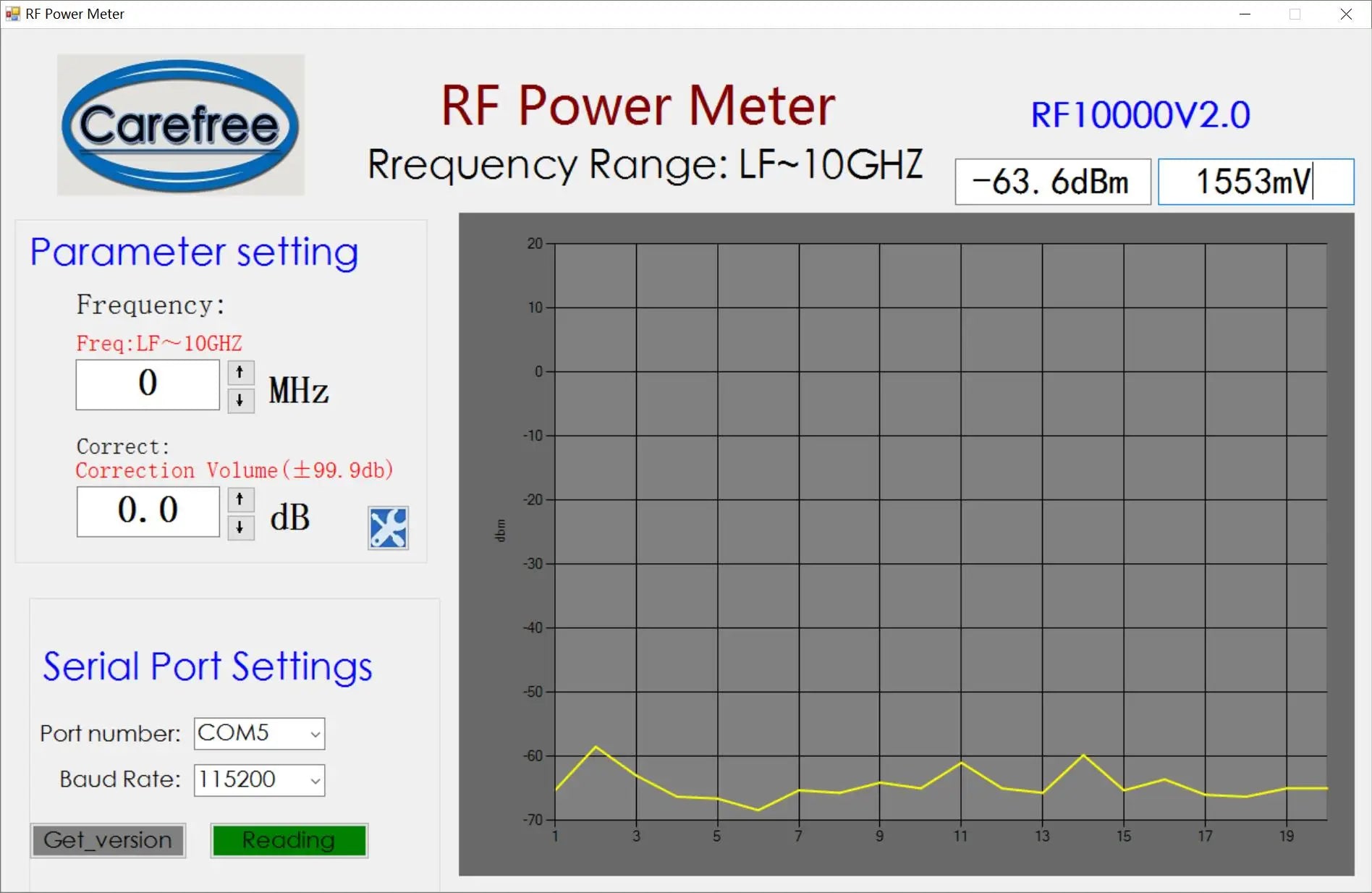

RF10000 (10GHz), 0.96 inch 128x64 pixel OLED display and 500mAh lithium battery, aluminum alloy housing, 5V power supply and charging through micro-USB. Easy to use, small size, easy to carry, stable performance, high accuracy, preset offset, wide dynamic range, fast measurement speed. With supporting software, users
2.Application:
● Calibration of RF instrumentation equipment;
● Testing and maintenance of radio frequency equipment;
● Measurement of standing wave ratio of RF circuit (adding feedback bridge);
● Measurement of return loss of RF circuits;
● Interference detection between wireless communication devices;
● RSSI (received signal strength indication) and transmit power level detection;
● Stepper attenuator performance evaluation;
● amplifier gain and network attenuation measurements;
● Measurement of forward power and reflected power in a directional coupler;
● Power measurement of GSM signals using GMSK modulation*;
3.Product technical indicators:
1、 Measuring power range -60～+0dBm
2. Measuring power resolution ±0.1 dBm
3, measuring frequency range 100K ~ 10000 MHz
4, input impedance 50Ω
5, dynamic range> 60dB
6, operating voltage 5VDC (powered by micro-USB)
7, working current <50 mA
8, Lithium battery capacity: 500mAh
9, charge current: 500mA
10, size 68*48*18 mm (length X width X height)
2. Measuring power resolution ±0.1 dBm
3, measuring frequency range 100K ~ 10000 MHz
4, input impedance 50Ω
5, dynamic range> 60dB
6, operating voltage 5VDC (powered by micro-USB)
7, working current <50 mA
8, Lithium battery capacity: 500mAh
9, charge current: 500mA
10, size 68*48*18 mm (length X width X height)

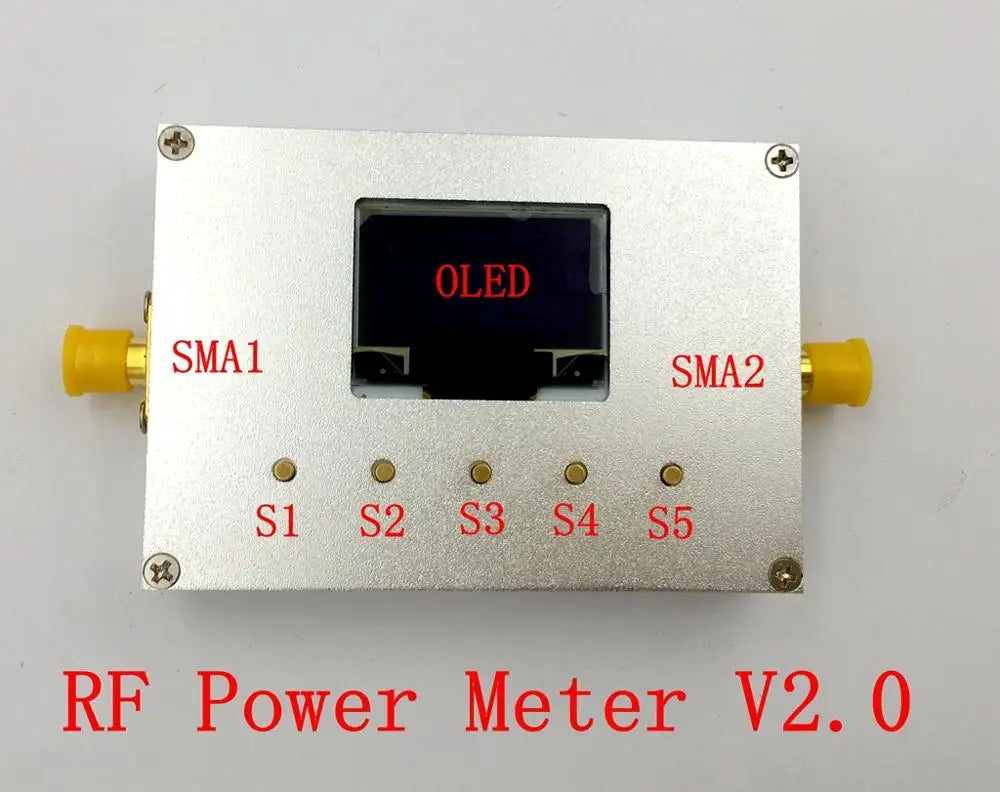

4. Instruction of the Keys
1. Power supply: Connect the power supply via micro-USB.
2, the power switch: next to the USB, the switch to the left to turn on the power, turn to the right to shut down.

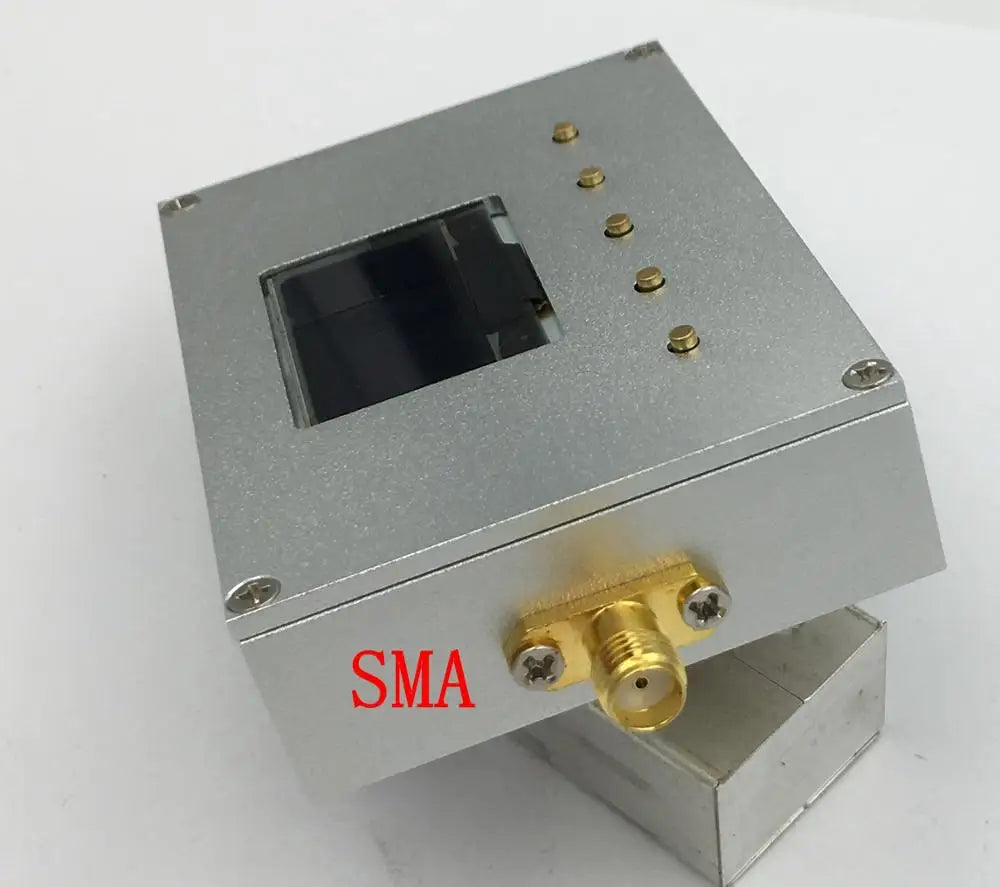

3. Input: SMA1 interface is connected to RF signal, SMA2 is detection voltage output for secondary development.
4. After powering on, press the “S3” button to initialize the power meter.
5. Press the button S1 to change the position of the cursor (shift left)
Press button S5 to change the position of the cursor (shift right)
Press S2 to change the data of the cursor position plus
Press S4 to change the data of the cursor bit minus
After entering the system, the cursor indicates the selected digit. At this time, the up and down buttons can modify the value of the selected digit. When the cursor is at the last digit (or first digit) of the selected item, press the right button (or left button) to toggle the selected item. When the parameters are set, press the S3 key to make the settings take effect.
Package include:
1 x 10GHz 100KHz-10000MHz OLED RF Power Meter -60～0dBm Sofware RF Attenuation Value
