This filter has a 1dB bandwidth of 26MHz and a steep cutoff characteristic. The performance optimization for 915MHz RFID receiver can effectively filter out-of-band signals, reduce noise, and increase dynamic range.
Model: FBP-915s
Impedance: 50 Ohms
Center frequency: 915 MHz
1dB passband: 902～928 MHz
Band interpolation loss: <= 2.0 dB
Maximum carrying power: 100 mW (20 dBm)
Interface: SMA-M, SMA-F

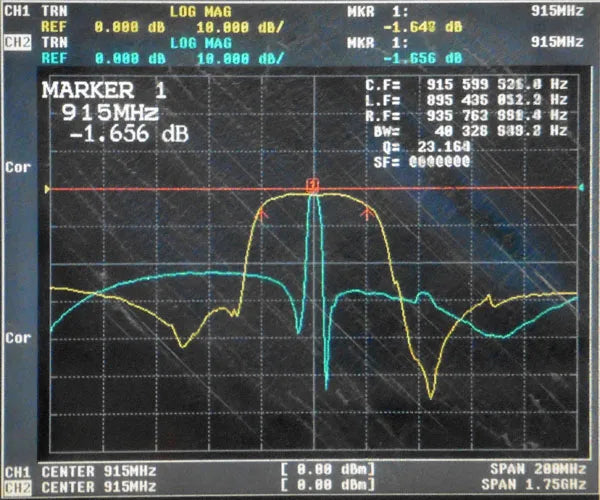

Frequency response graph (the yellow line in the figure has a span of 200MHz, the blue line has a span of 1750MHz, the marked point is a 3dB bandwidth, and the vertical scale is 10dB per division):
Description
Description
This filter has a 1dB bandwidth of 26MHz and a steep cutoff characteristic. The performance optimization for 915MHz RFID receiver can effectively filter out-of-band signals, reduce noise, and increase dynamic range.
Model: FBP-915s
Impedance: 50 Ohms
Center frequency: 915 MHz
1dB passband: 902～928 MHz
Band interpolation loss: <= 2.0 dB
Maximum carrying power: 100 mW (20 dBm)
Interface: SMA-M, SMA-F
Frequency response graph (the yellow line in the figure has a span of 200MHz, the blue line has a span of 1750MHz, the marked point is a 3dB bandwidth, and the vertical scale is 10dB per division):
