The filter has a 1dB bandwidth of 4MHz, and the cut-off characteristic is steep. The performance optimization of remote controller and RFID receiver for 868MHz can effectively eliminate out band signals, reduce noise and increase dynamic range.

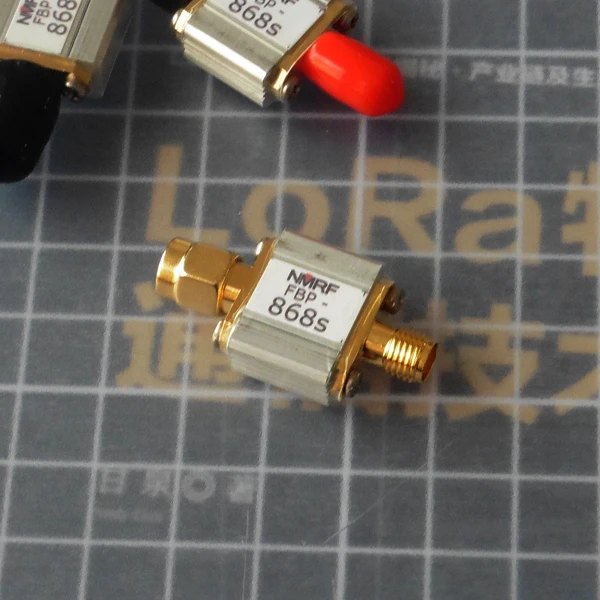

Model: FBP-868s
Impedance: 50 Ohms
Center frequency: 868 MHz
Passband (1dB bandwidth): 866~870 MHz
Internal insertion loss: < 3.5 dB
Maximum load power: 100 mW (20 dBm)
Interface: SMA-M, SMA-F

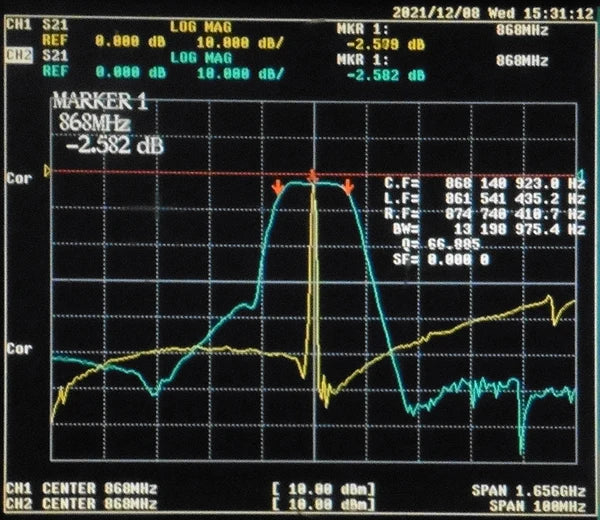

Frequency response map (marked as 3dB bandwidth):

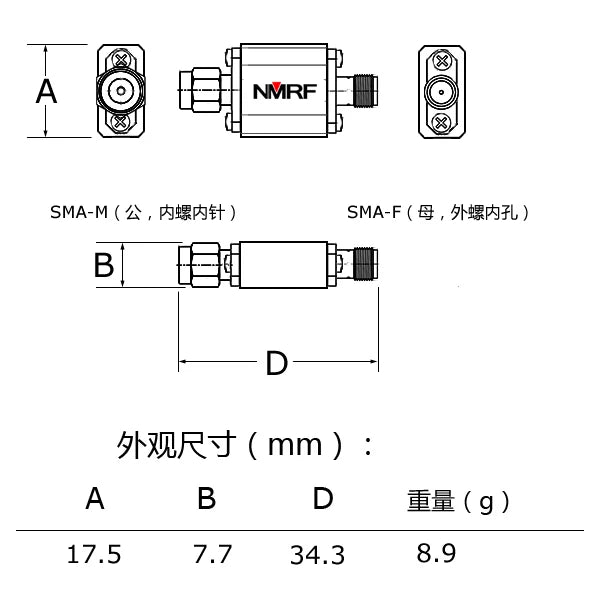

Outer size:
Description
Description
The filter has a 1dB bandwidth of 4MHz, and the cut-off characteristic is steep. The performance optimization of remote controller and RFID receiver for 868MHz can effectively eliminate out band signals, reduce noise and increase dynamic range.
Model: FBP-868s
Impedance: 50 Ohms
Center frequency: 868 MHz
Passband (1dB bandwidth): 866~870 MHz
Internal insertion loss: < 3.5 dB
Maximum load power: 100 mW (20 dBm)
Interface: SMA-M, SMA-F
Frequency response map (marked as 3dB bandwidth):
Outer size:
