1.8-52MHz HF RF Power Combiner Board and RF Power Splitter RF Power Divider Board
Product Parameters:
- PCB size: (combier) 100x83mm; (splitter) 52x48mm
- Port isolation: better than 30db
- Input Impedance: 50 ohms
- Output Impedance: 50 ohms
- Withstand power: 1.5kw
- Standing wave ratio: 1.1-1.25
- Frequency: 1.8-52MHz

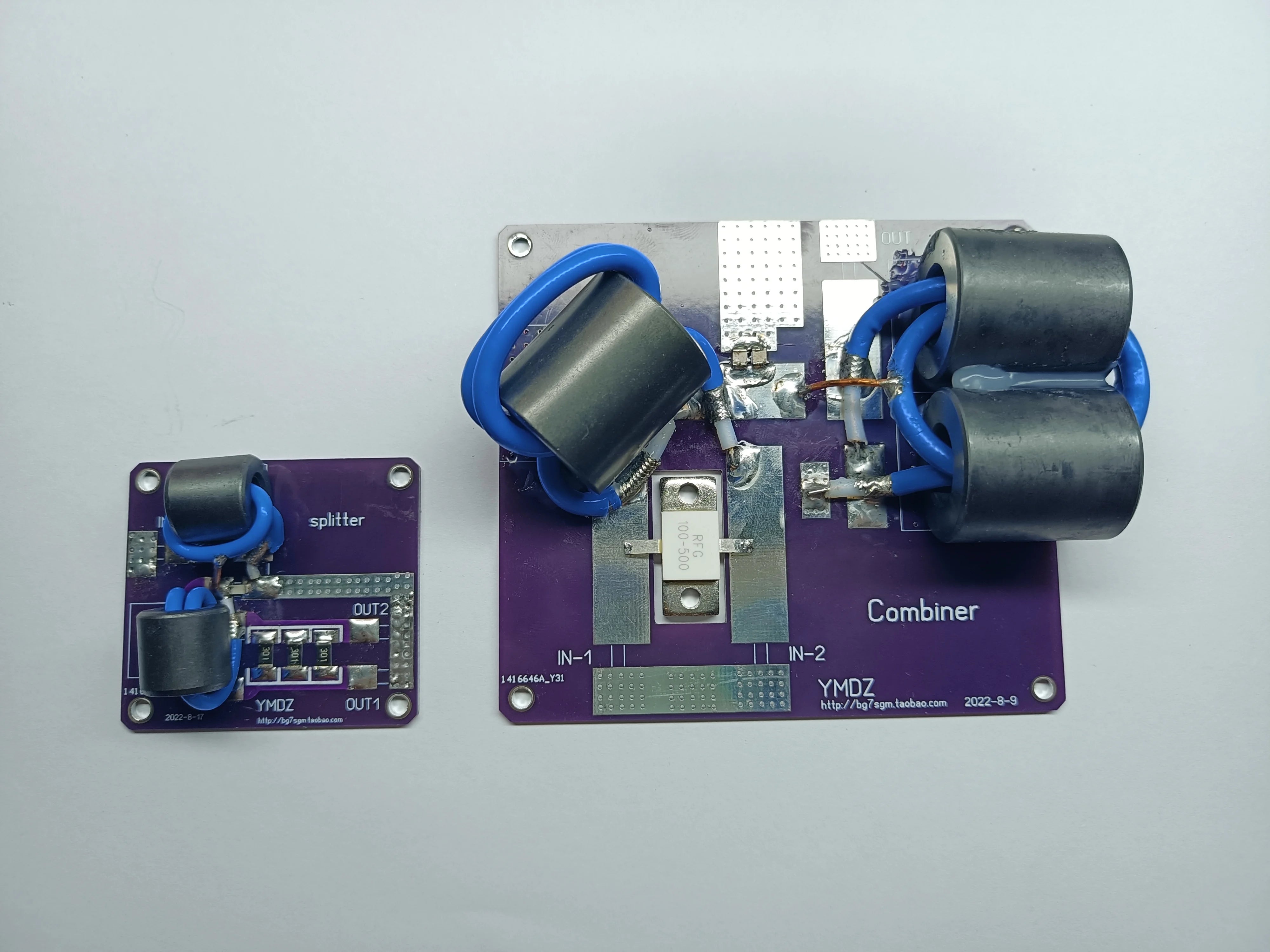

Package Included:

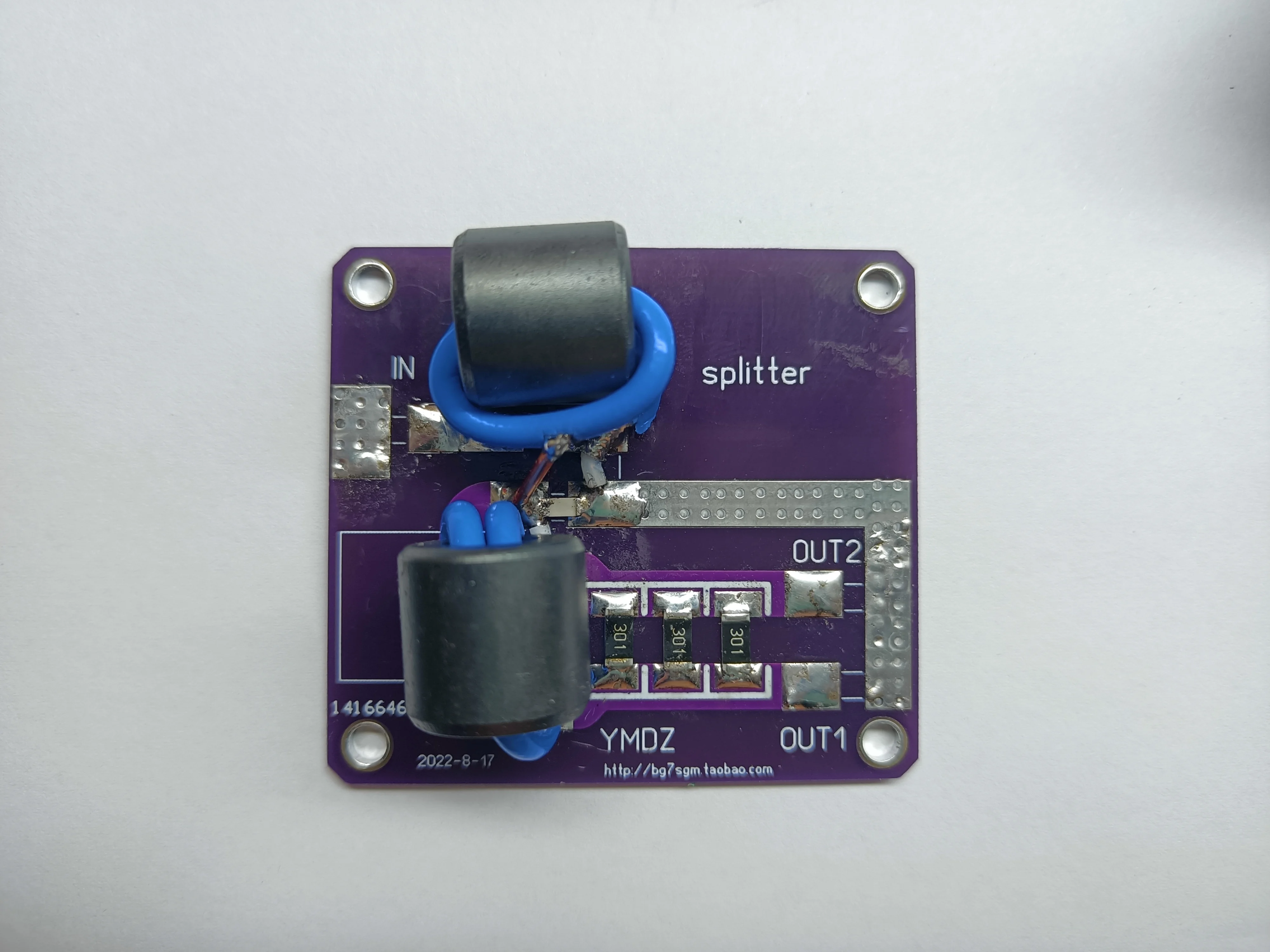

- 1 x Splitter Board

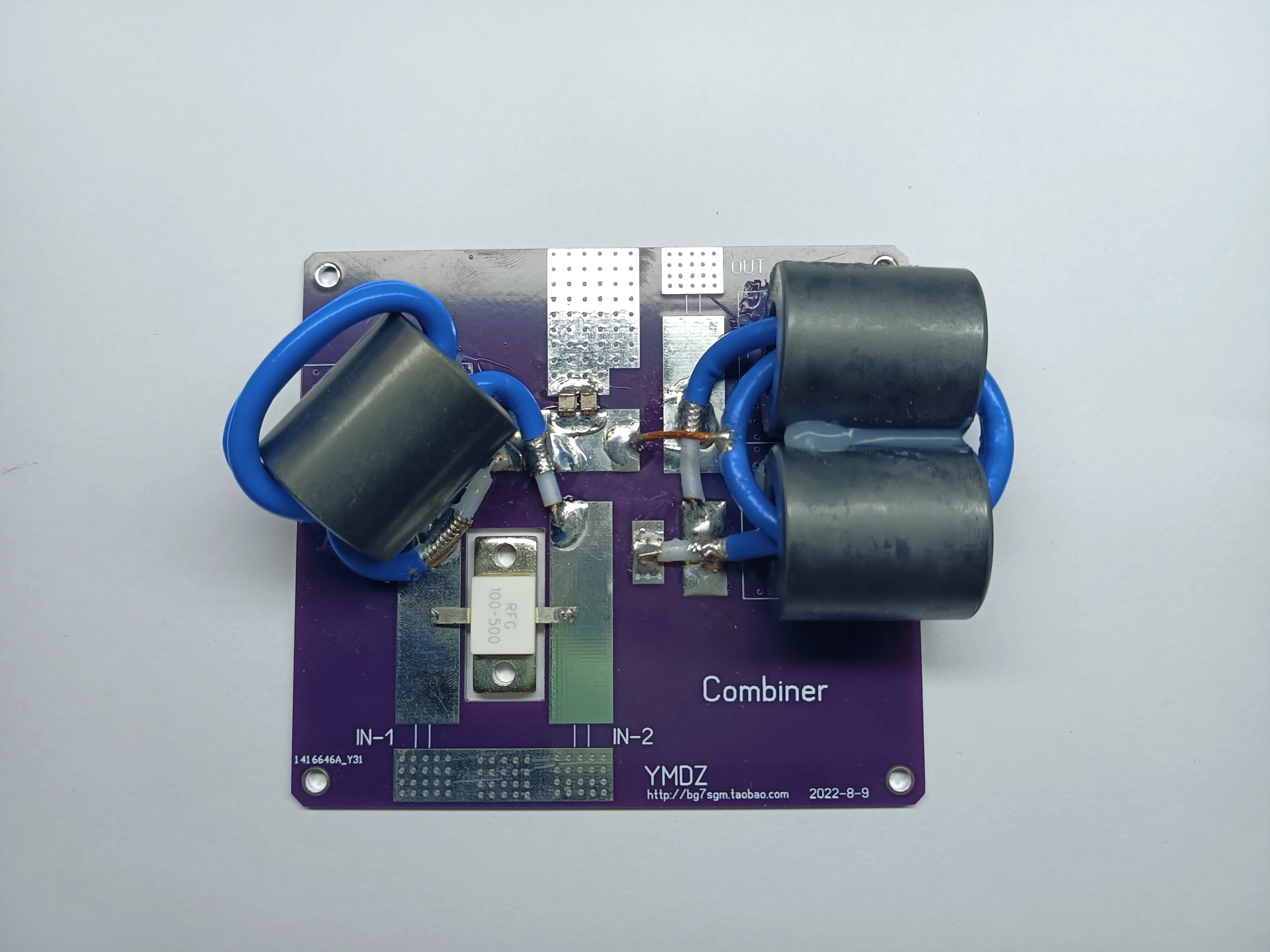

- 1 x Combiner Board
Description
Description
1.8-52MHz HF RF Power Combiner Board and RF Power Splitter RF Power Divider Board
Product Parameters:
- PCB size: (combier) 100x83mm; (splitter) 52x48mm
- Port isolation: better than 30db
- Input Impedance: 50 ohms
- Output Impedance: 50 ohms
- Withstand power: 1.5kw
- Standing wave ratio: 1.1-1.25
- Frequency: 1.8-52MHz
Package Included:
- 1 x Splitter Board
- 1 x Combiner Board
