NanoVNA V2 3G Vector Network Analyzer 4.3 inch NanoVNA-F V2 antenna analyzer + RF Demo Kit Board

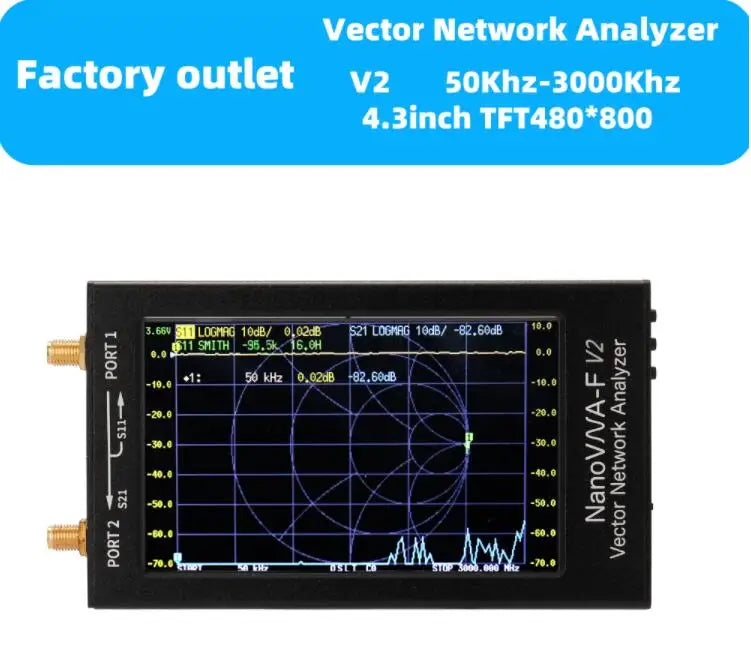

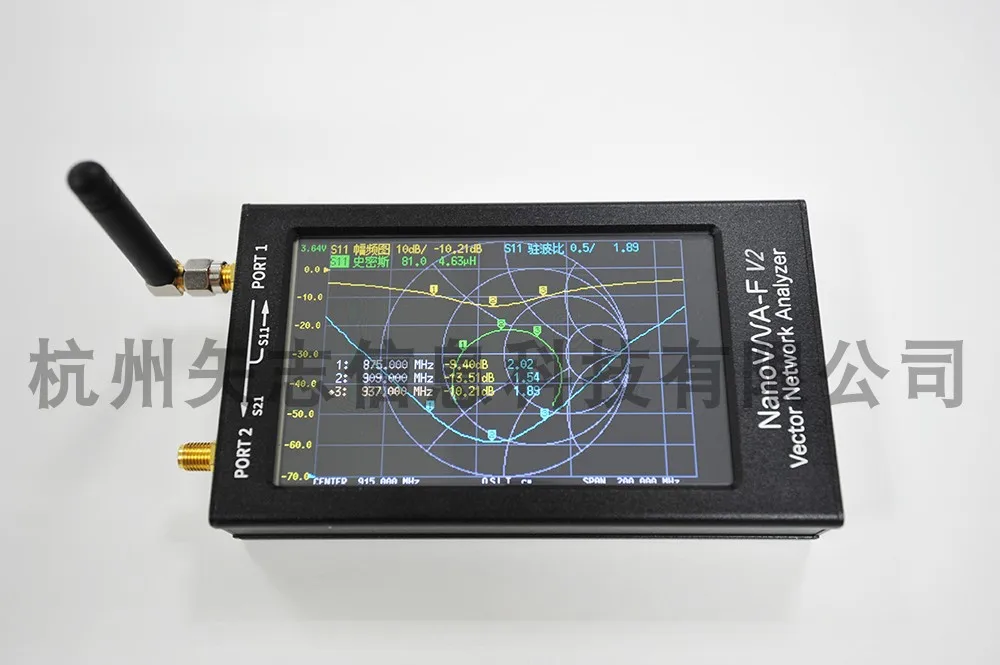

NanoVNA-F V2 portable vector network analyzer is a new generation product developed on the basis of NanoVNA-F. It uses a 4.3-inch IPS LCD display and an aluminum alloy case. It is equipped with a 5000mAh large-capacity lithium battery as standard. The battery life can reach 7 hours. , Support touch screen and side button operation, support Chinese and English interface. The design of this product is based on edy555’s NanoVNA and OwOcomm’s SAA V2, and deep optimization of the software is made on the basis of the previous generation product NanoVNA-F. The operation interface is compatible with NanoVNA-F, the measurement range is extended to 3GHz, and the dynamic range is larger. The measurement is more accurate and the operation is more convenient.

Features:

1. 4.3-inch IPS LCD display, resolution 800*480, ultra-wide viewing angle, long-term use does not hurt your eyes;

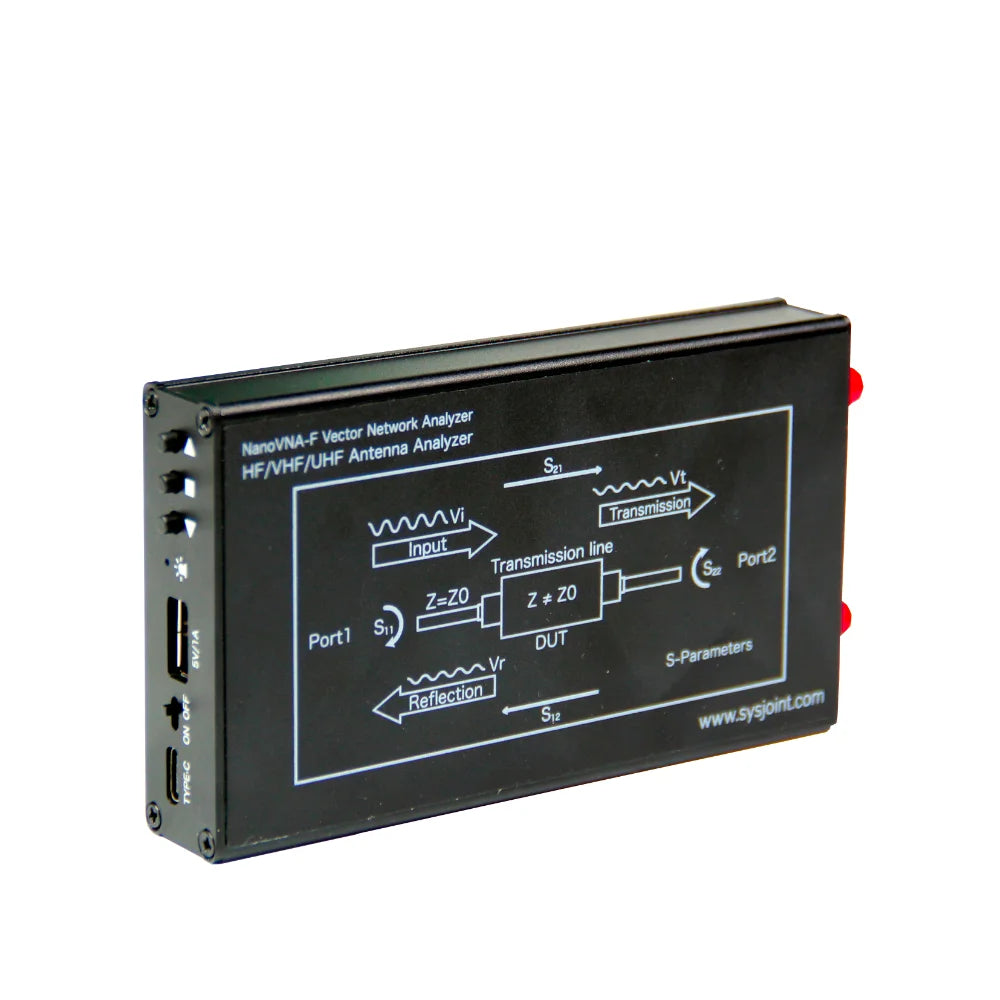

2. All aluminum alloy case, sturdy and durable, effectively shielding electromagnetic interference to ensure measurement accuracy;

3. The body size is 125mm*75mm*20mm, compact and portable;

5. The radio frequency interface is SMA, which is convenient for connecting various tested parts;

6. 5000mAh large-capacity lithium battery, battery life up to 7 hours;

7. Full touch screen design, with 3 side buttons at the same time, flexible and convenient operation;

8. Support Chinese and English interface;

9. Optimized UI design, convenient for users to perform measurement operations;

10. Support screen brightness adjustment;

11. The firmware can be upgraded through a virtual U disk, no programmer is needed, and the firmware can be upgraded through the included USB type-c data cable;

12. Standard high-quality calibration parts and RG405 phase-stable cable to ensure calibration accuracy;

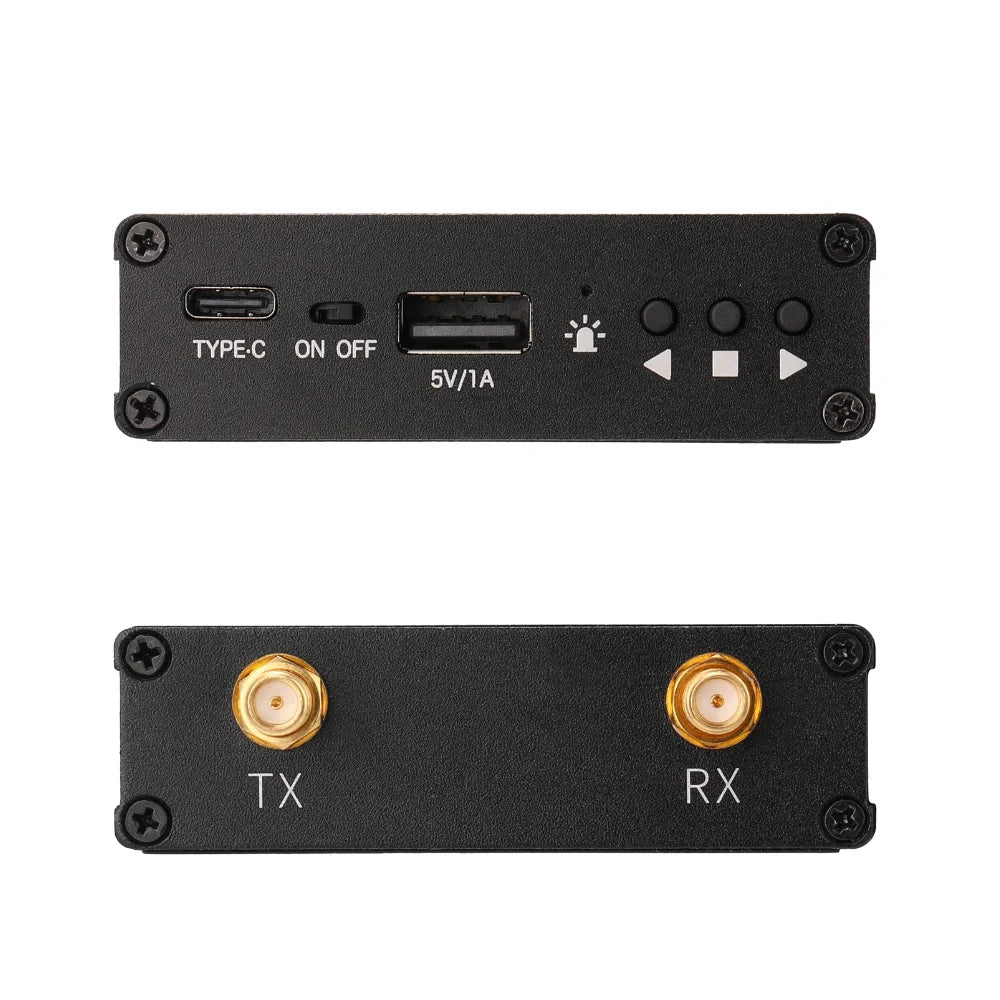

13. Designed with USB power output interface, which can support 5V/1A power output;

14. Using 2A high current charging IC, the charging time is shorter;

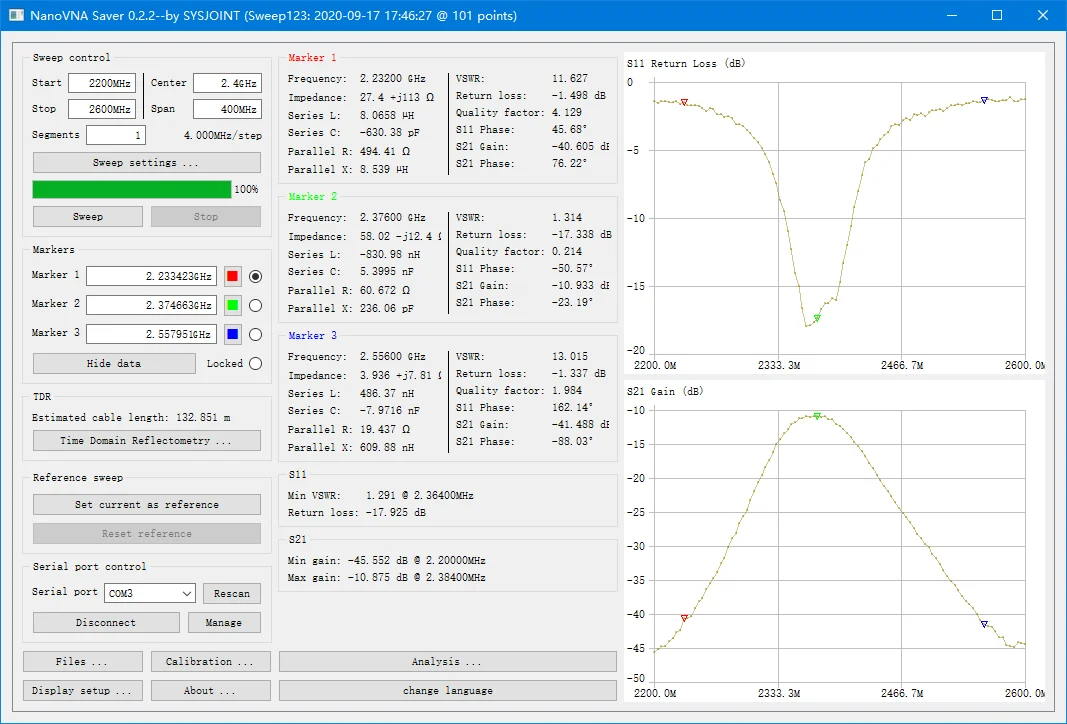

15. Supporting host computer software, the host computer supports Chinese and English interfaces;

16. The screen image of the device can be obtained by taking a screenshot of the host computer;

Product performance:

Frequency range: 50kHz-3GHz
RF output power: -9dBm (error within 1GHz: ±1dB)
Frequency accuracy: <0.5ppm
S21 dynamic range: 70dB (1.5GHz), 60dB (3GHz)
S11 dynamic range: 50dB (1.5GHz), 40dB (3GHz)
2-port return loss: 20dB typ (1.5GHz), 13dB min (3GHz)

Number of calibration points: 101 points
Number of scanning points: 101 points
Number of traces: 4
Number of mark points: 4 (the mark point bar can be moved up and down on the screen)
USB interface: USB Type-C communication mode: CDC (serial)
Setting save: 5 groups (after saving, it can be directly recalled when it is used next time, no need to recalibrate, and the saved parameters before the last shutdown will be automatically recalled when it is turned on next time)
Support calibration result interpolation, can measure without recalibration after adjusting the measurement frequency band
Scan time: about 1.9s/1 time (50kHz ~ 3000MHz full frequency band)

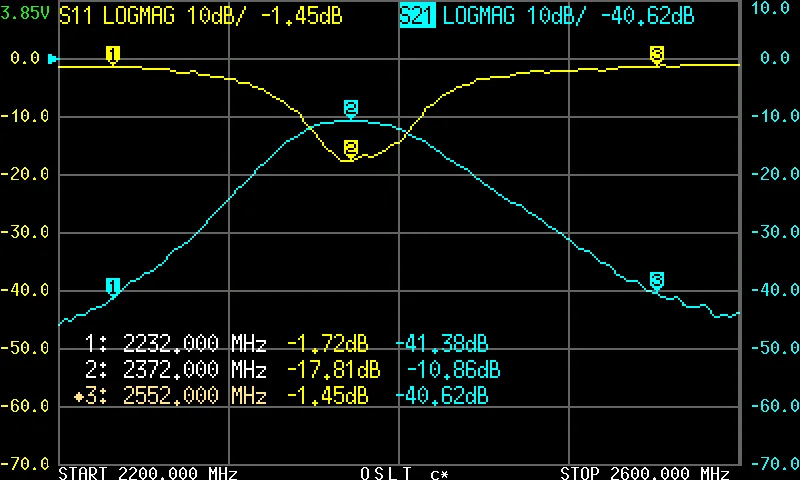

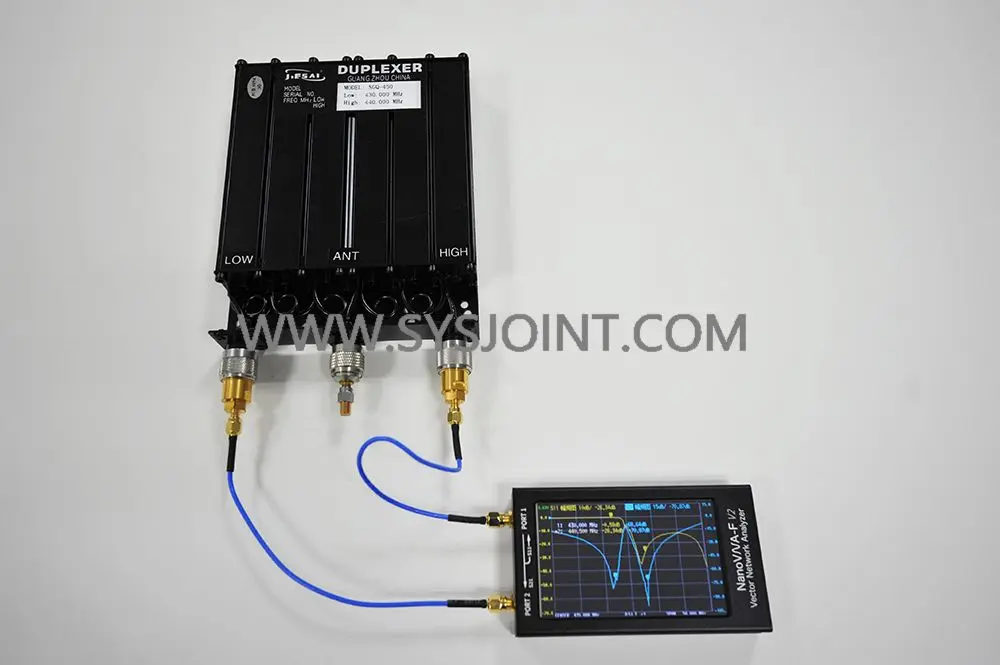

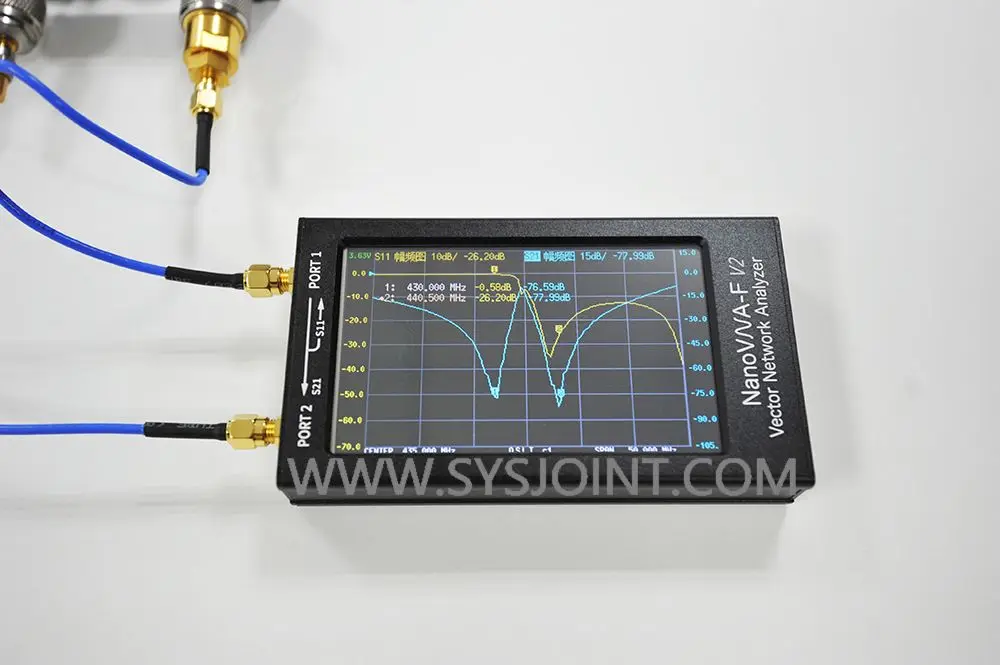

Can measure S parameters, voltage standing wave ratio, Smith chart, phase, group delay, etc.

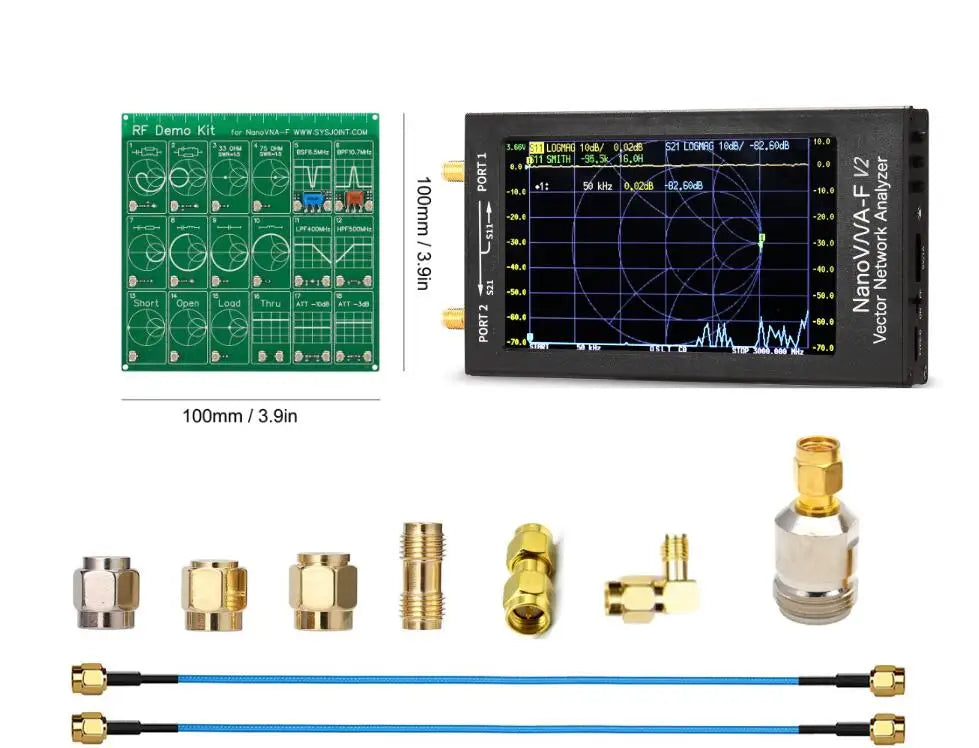

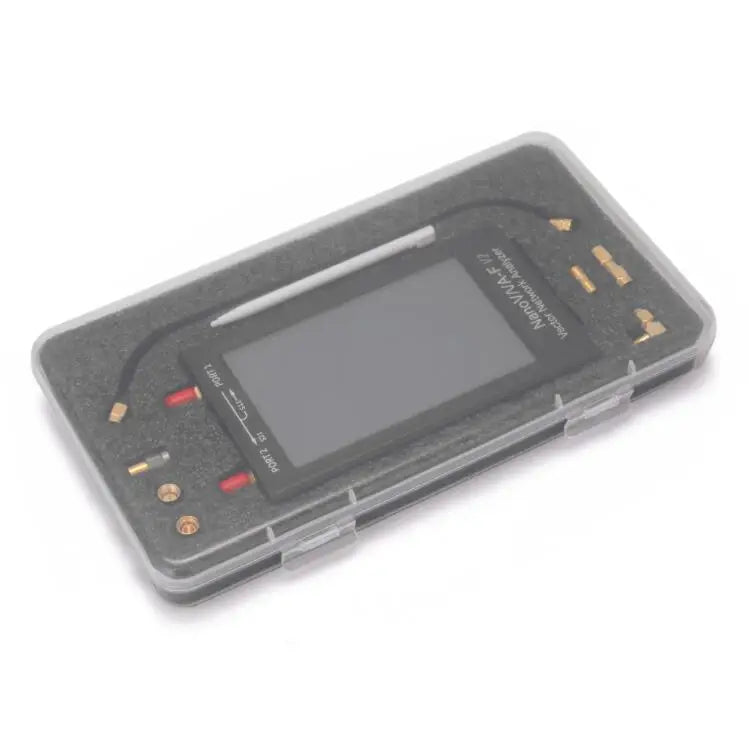

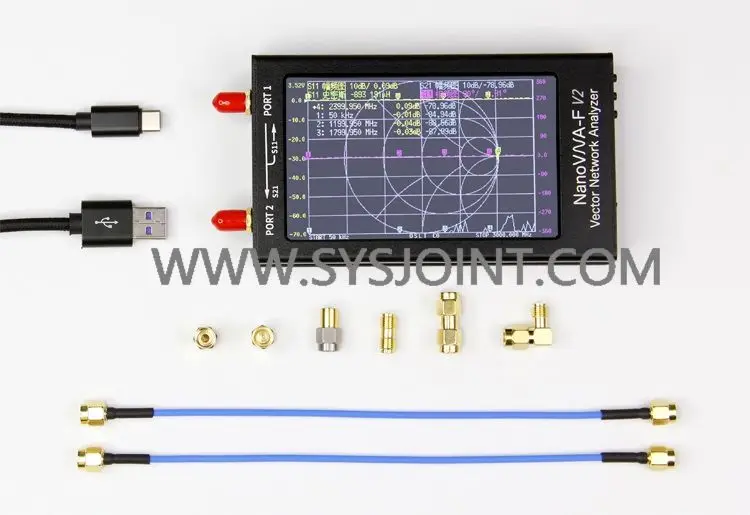

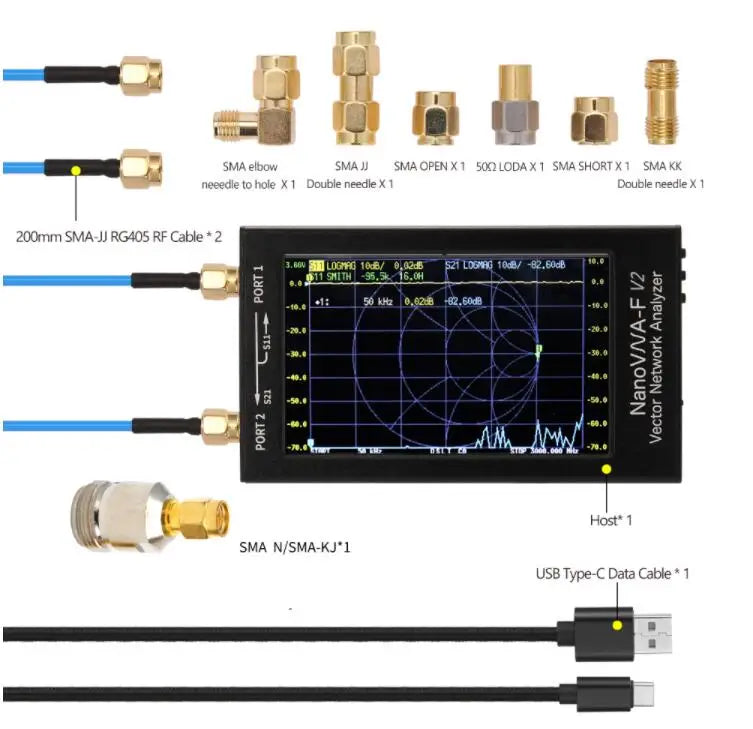

Product acessories:

Host x1

SMA open calibration kit x1

SMA short-circuit calibration kit x1

SMA 50Ω load calibration kit x1

SMA-KK double head female hole adapter x1

SMA-JJ double-head male pin adapter x1

SMA-JKW elbow outer screw inner hole to inner screw inner needle adapter x1

20cm SMA-JJ RG405 RF cable x2

USB type-C data cable x1

Stylus x1
