NanoVNA-H4 Vector Network Analyzer Lastest V4.3 10KHz-1.5GHz HF VHF UHF 4" Touch Screen Antenna Analyzer Ham Radio Measuring
NanoVNA-H4 Vector Network Analyzer Lastest V4.3 10KHz-1.5GHz HF VHF UHF 4" Touch Screen Antenna Analyzer Ham Radio Measuring
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout

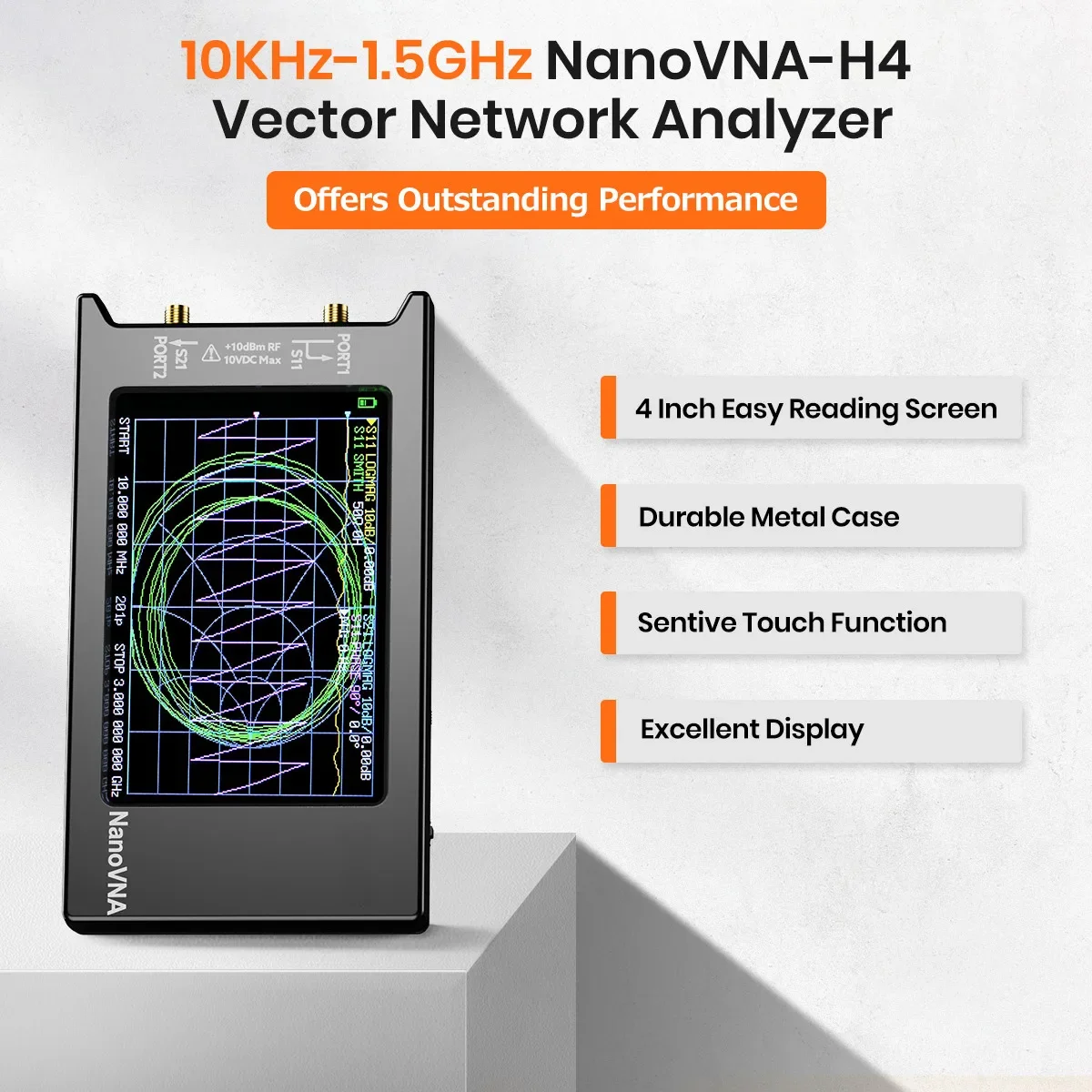

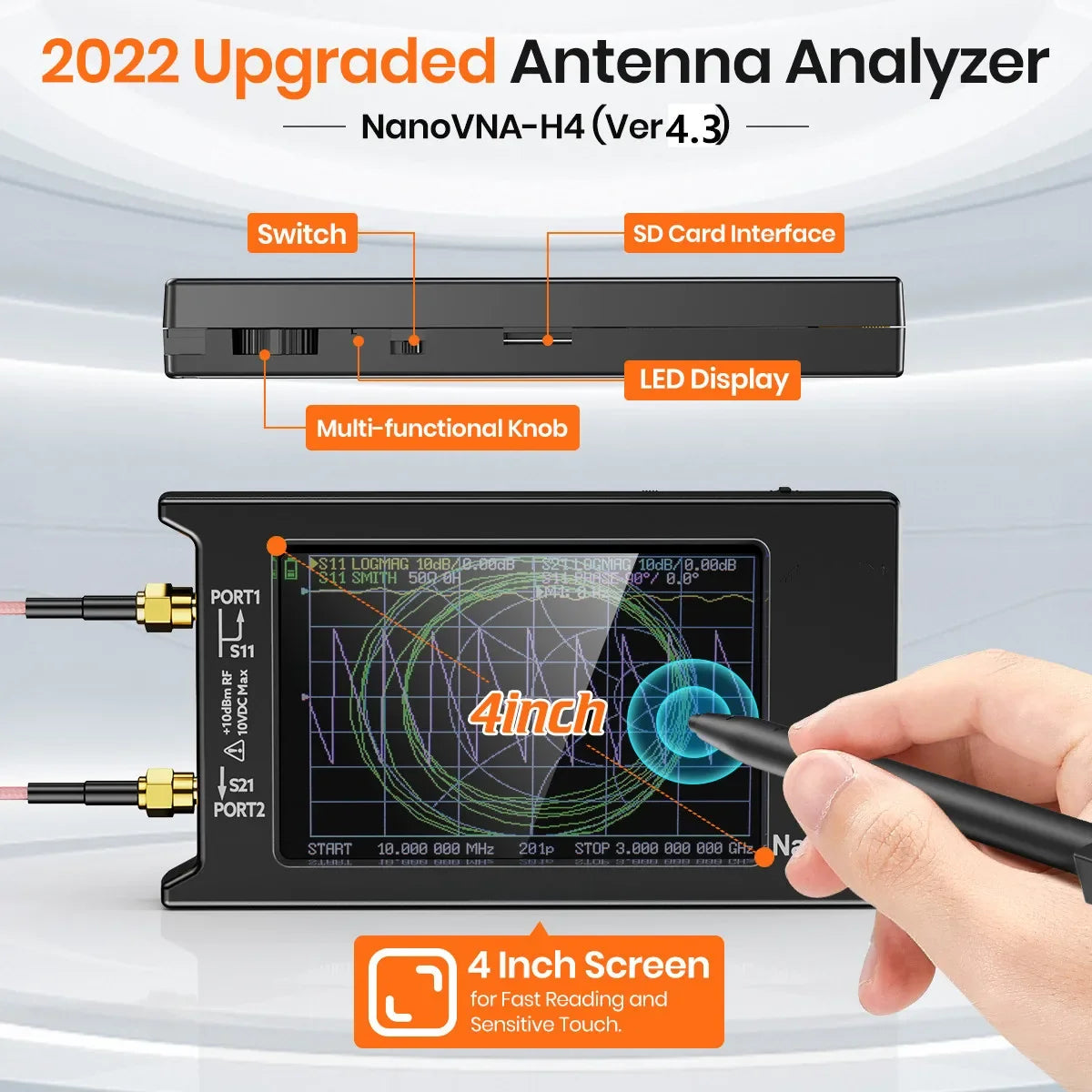

2024 10k-1.5GHz NanoVNA-H4 4inch Vector Network Analyzer HF VHF UHF Antenna Analyzer V4.3 with SD Card Slot
Features:
This Nano VNA is a DIY product that provides perfect vector network measurement capabilities, tiny and handheld, stand-alone with 4-inch LCD display, portable with 1950mAh battery powered or USB powered.
The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics.

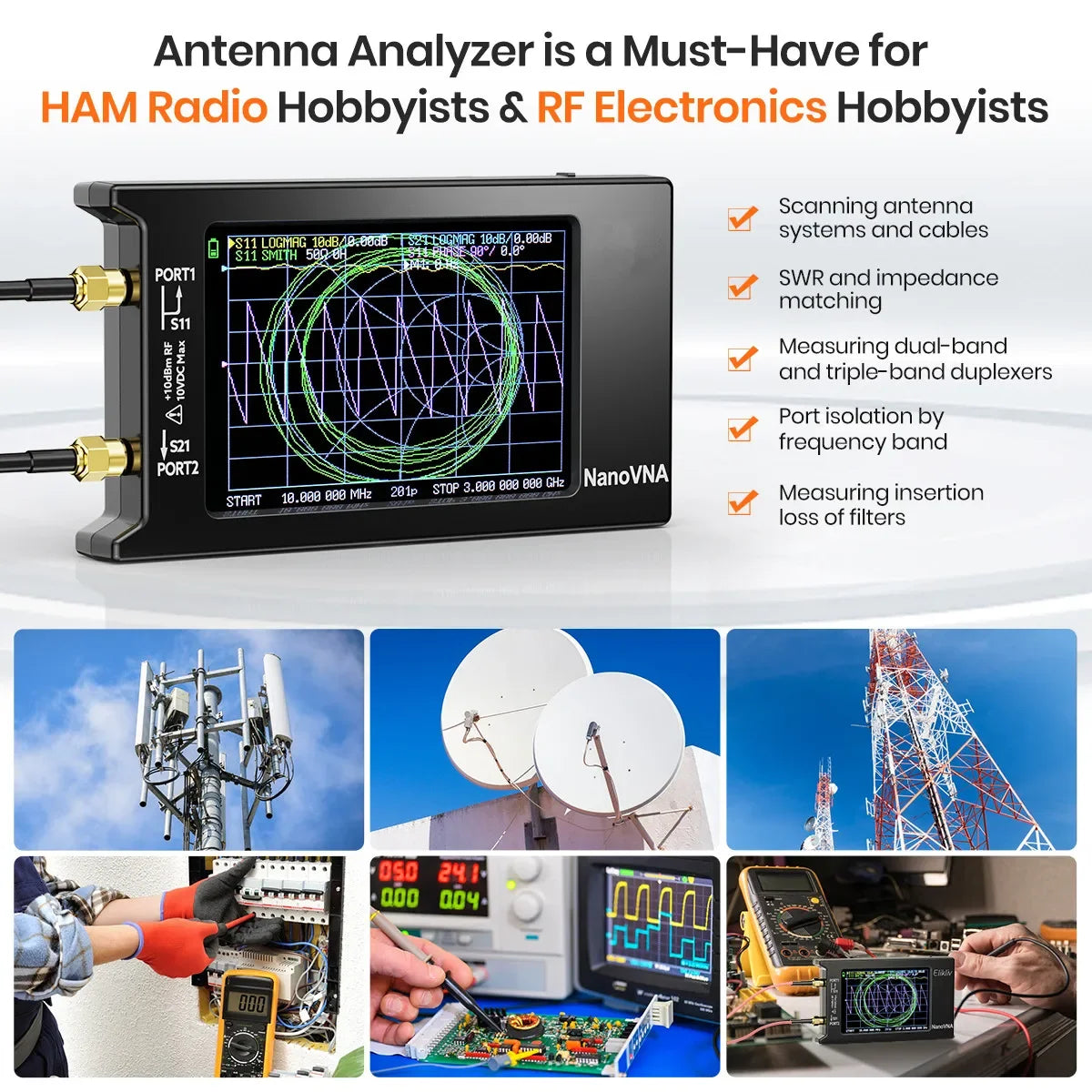

The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring
Using PC software NanoVNASaver, it can connect to a NanoVNA and extracts the data for display on a computer, and for saving to Touchstone files. We can export Touchstone (snp) files for various radio design and simulation software through PC software
The metal shield is designed to reduce the external interference and improve the measurement accuracy.
Sprcifiactions:
ABS case: 75mm x 133mm x 18mm (excluding protrusions)
Measurement frequency: 10KHz -1.5GHz
HW version:4.3
RF output: 0dbm (±2dbm)

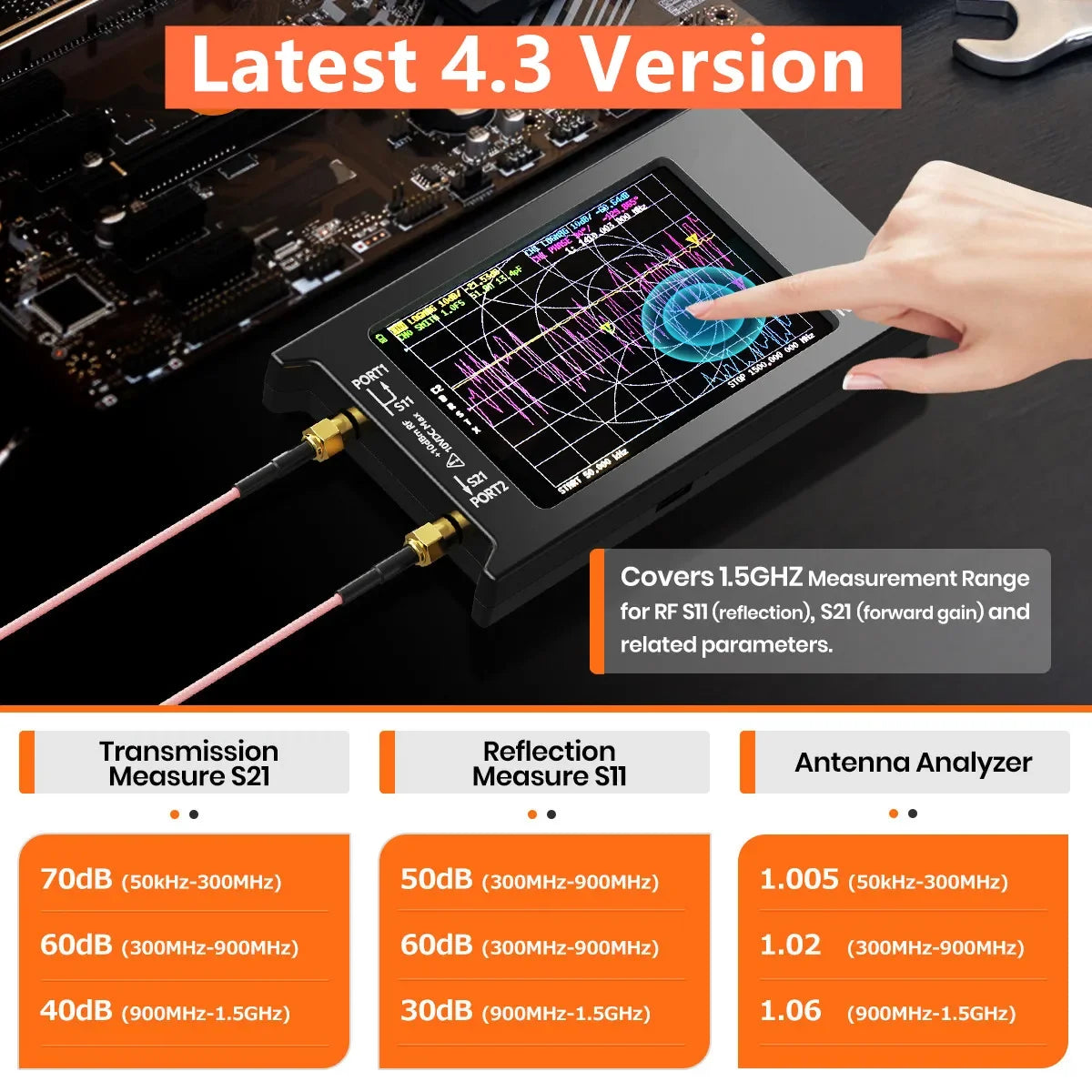

Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR: < 1.1
Display: 3.95 inch TFT (320 x 480)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:<2.5ppm
Frequency Stability:<0.5ppm

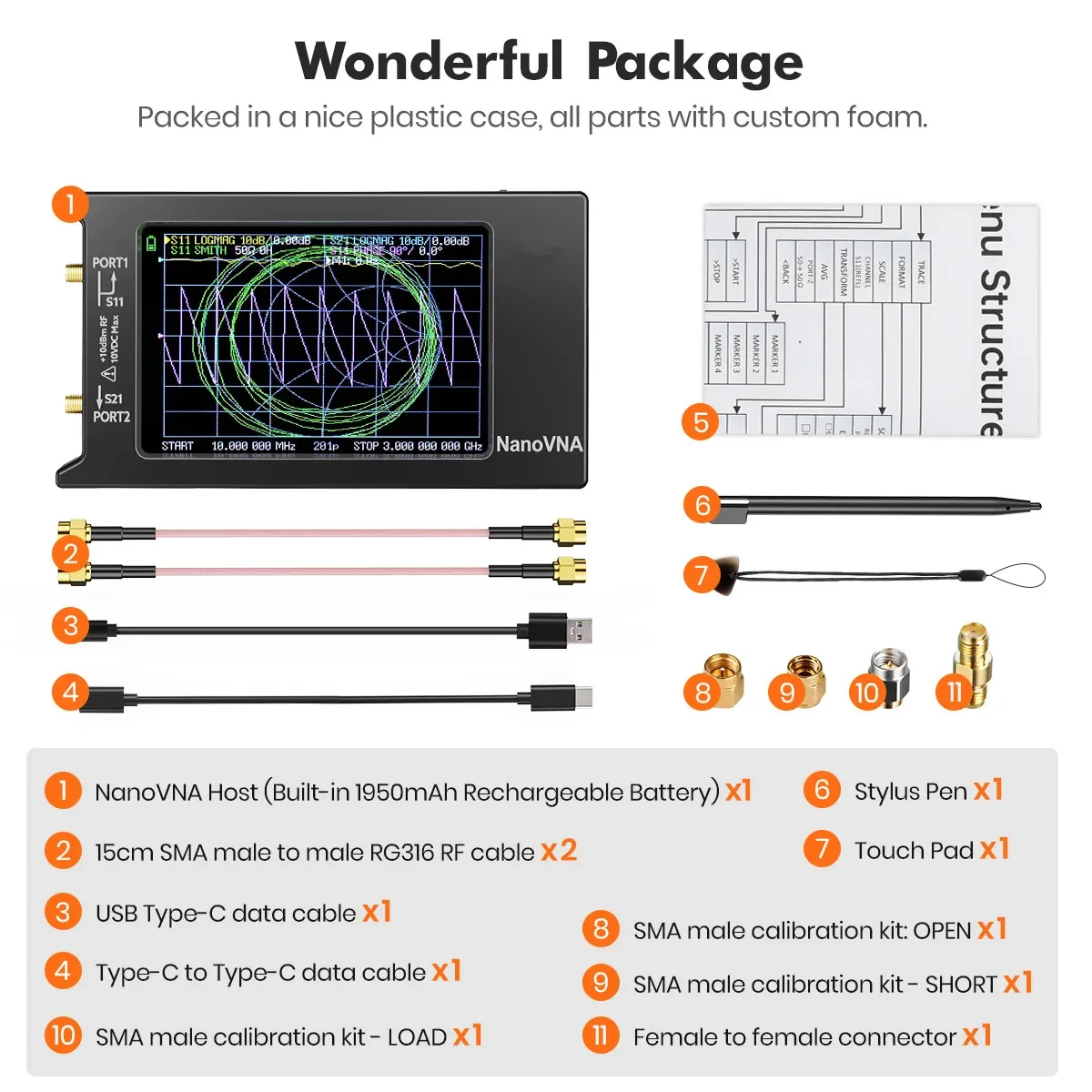

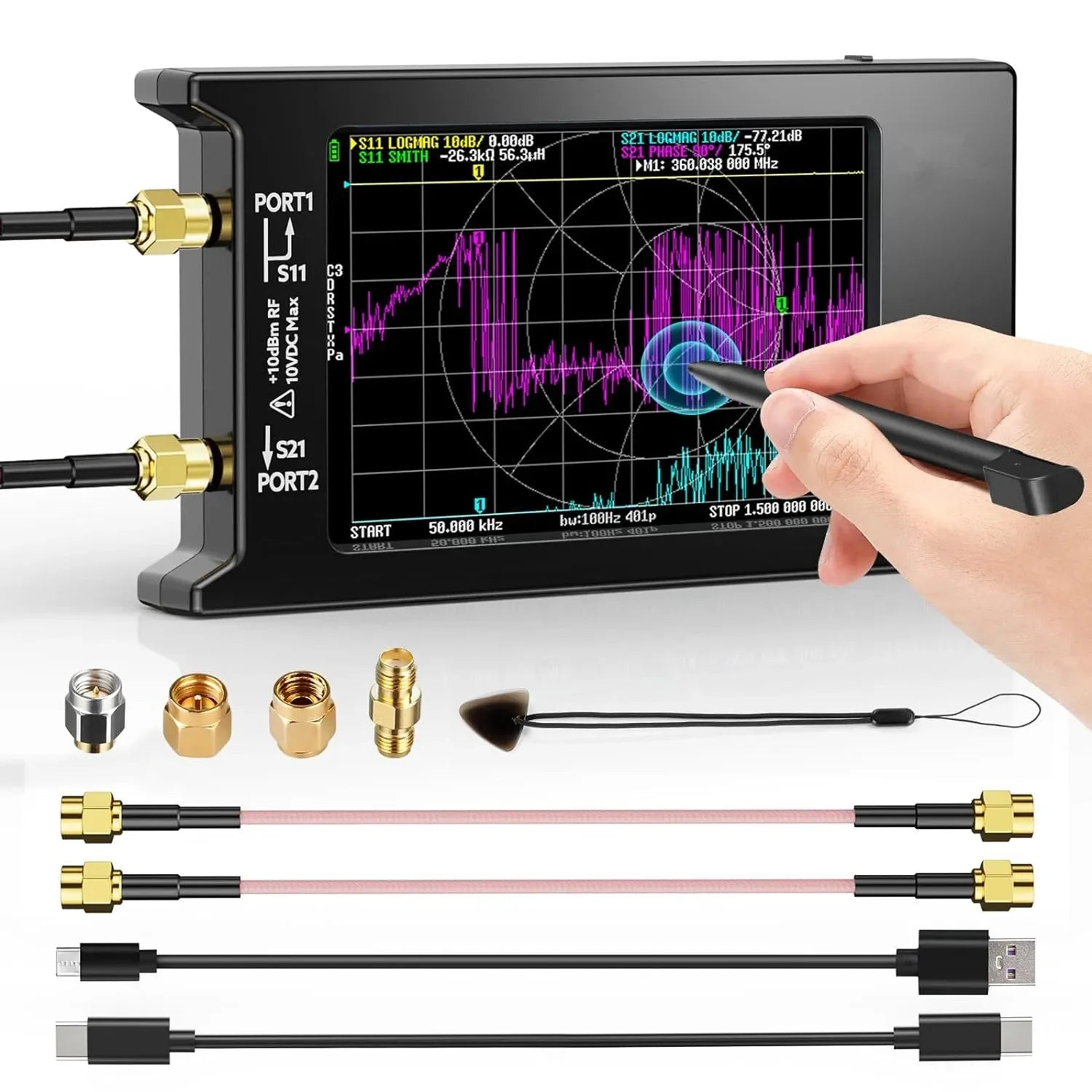

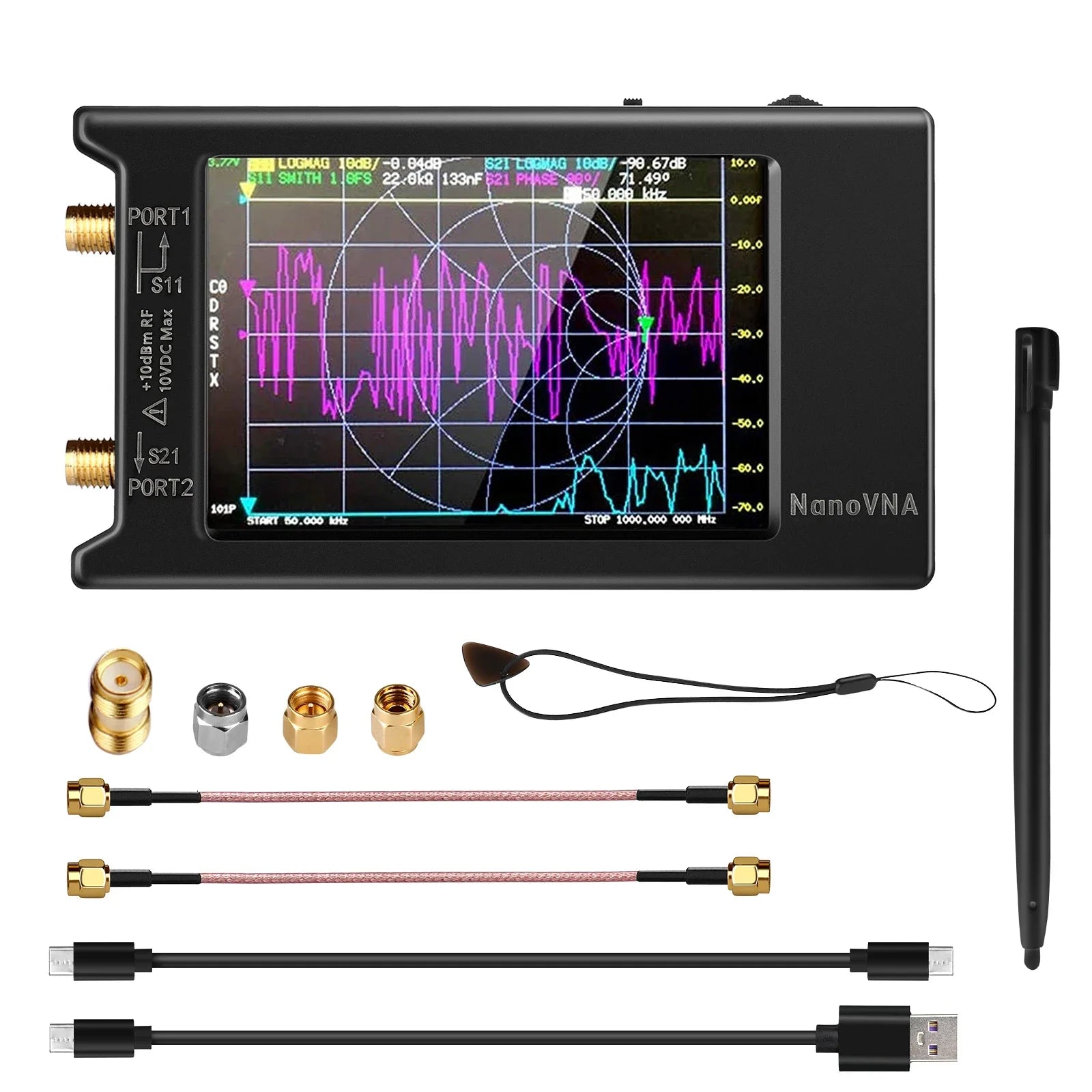

Package List:
1X NanoVNA-H4 (with 1950mAh battery)
1X USB Type-C data cable
1X Type-C To Type-C cable
2X 15cm SMA male to male RG316 RF cable
1X SMA male calibration kit - OPEN
1X SMA male calibration kit - SHORT
1X SMA male calibration kit - LOAD

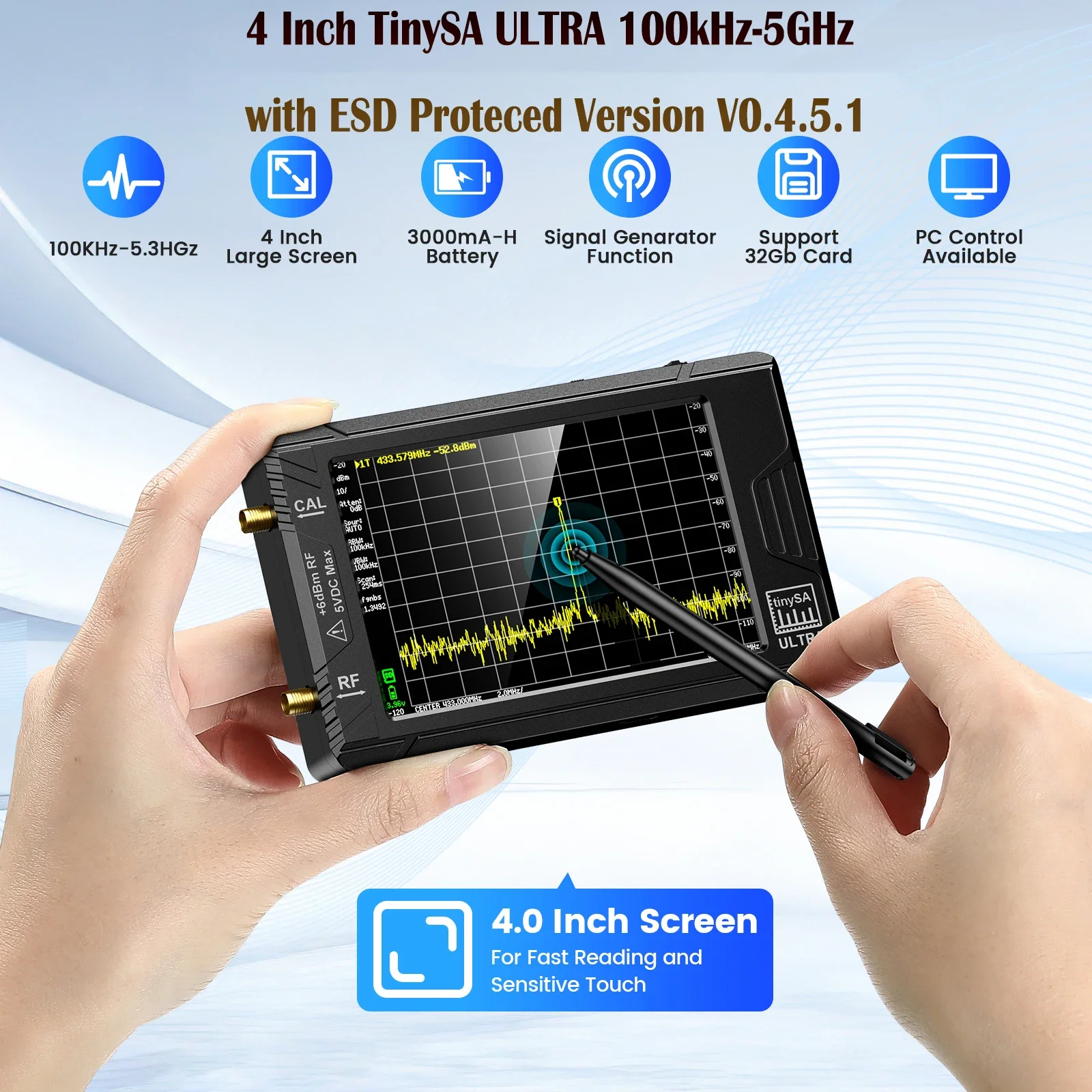

4" Ultra Option
Specification:
|
Parameter |
Specification |
|
Display size |
4" TFT LCD (480×320) |
|
Max low input frequency |
800MHz, 6GHz in Ultra mode |
|
Resolution filters in 1,3,10 steps |
from 200Hz to 850kHz |
|
Max output frequency |
Sinus up to 800MHz, Square wave up to 4.4GHz |
|
output level |
-104dBm to -16dBm |
|
Ultra mode |
Level calibrated up to 5.3GHz |
|
Internal LNA gain |
20dB up to 4GHz |
|
Displayed points per scan |
max 450 |
|
0-350MHz scan time |
165ms |
|
Shortest zero span time |
17ms |
|
DANL at 100MHz |
-153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On) |
|
DANL degrading in ultra mode |
10dB above 2.5GHz, 25dB above 5.3GHz |
|
Phase noise at 10kHz offset |
-92dBc/Hz |
|
Phase noise at 100kHz offset |
-110dBc/Hz |
|
Input 1dB compression level |
+0.5dBm (LNA Off) / -26.5dBm (LNA On) |
|
IIP3 without LNA |
+18dBm (at least 2MHz apart) / 0dBm (500Hz apart) |
|
IIP3 with LNA |
-8dBm (at least 2MHz apart) |
|
Frequency stability |
<1ppm ( -10℃ ~ +55℃) |
|

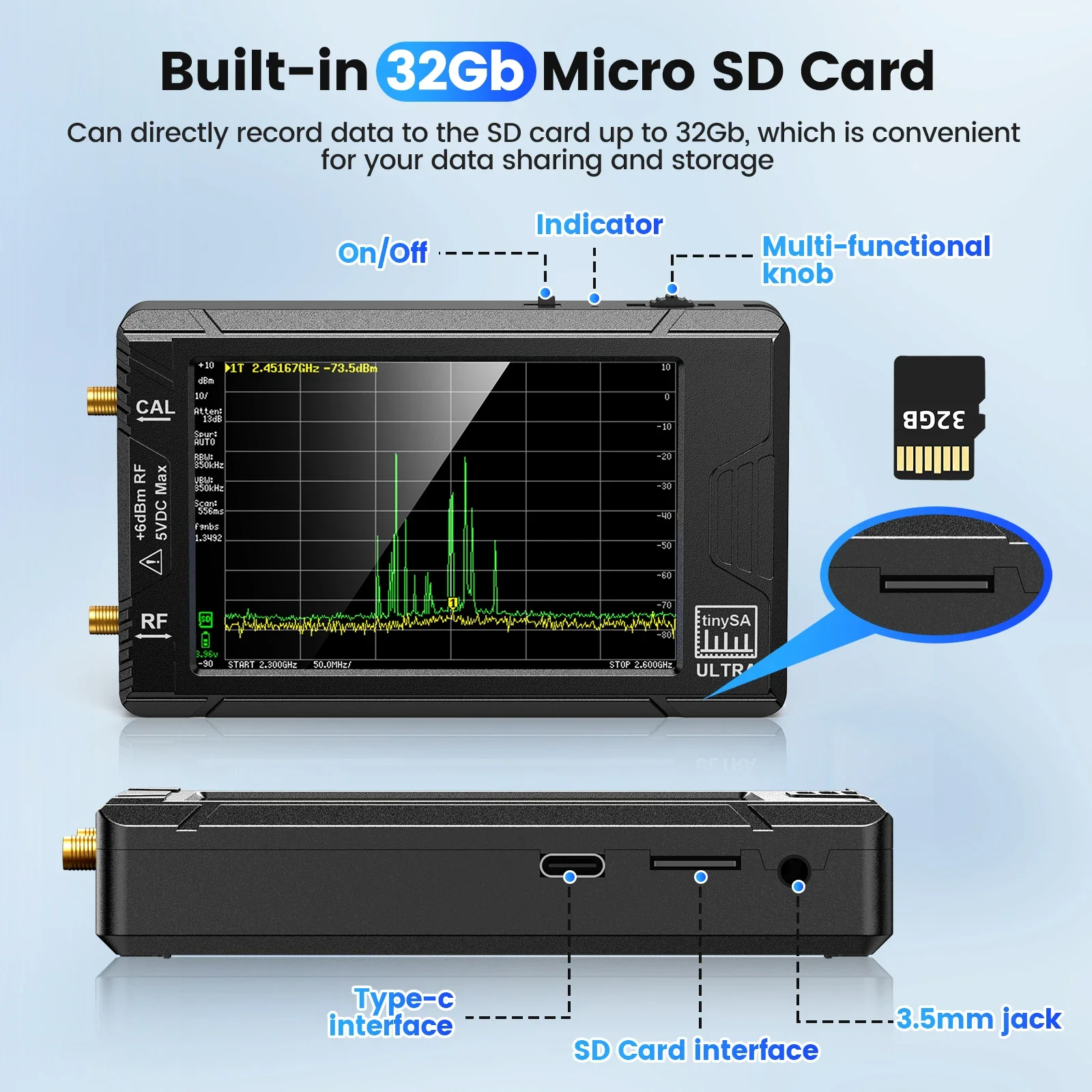

SD card slot |
micro SD card |
|
Audio out |
3.5mm headphone plug |
|
FW update mode activation |
Push jog button before switch on |
|
Maximum current consumption |
330mA |
|
Maximum charging current |
1300mA |
|
Battery |
Li-polymer 3.7V 3000mAh |
|
RF connectors |
SMA female |
|
Communication Interface |
USB-CDC(Type-C),UART-TTL(2.54mm Connector) |
|
Appearance Size |
117x72x23mm (Excluding protruding parts) |

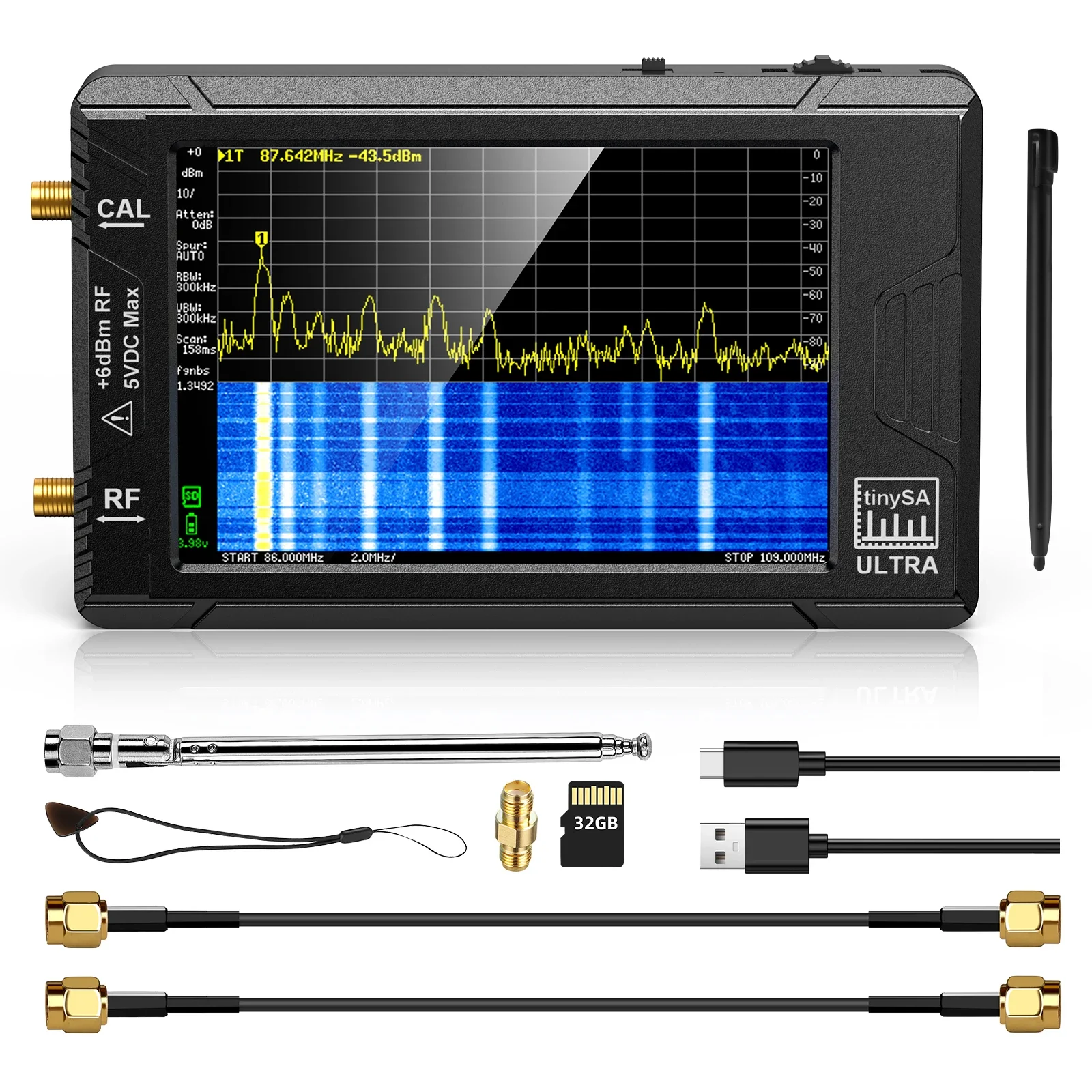

Package includes:
Host (with 3000mAh battery, 4"display) x 1
USB Type-C data cable x1
30cm ALSR100 SMA cables x2
SMA-SMA barrel connector x1
Antenna with SMA connector x1
Lanyard and touch plectrum x1
32GB MicroSD card(plugged in the host) x1
