NanoVNA Plus, It is a portable handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients. Originally designed by edv555. After multiple upgrades, NanoVNA Plus is currently the highest performing version, with a measurement frequency range upgraded to 50KHz-2.7GHz and better performance than the previous 1.5GHz old version
NanoVNA Plus Product Parameters:

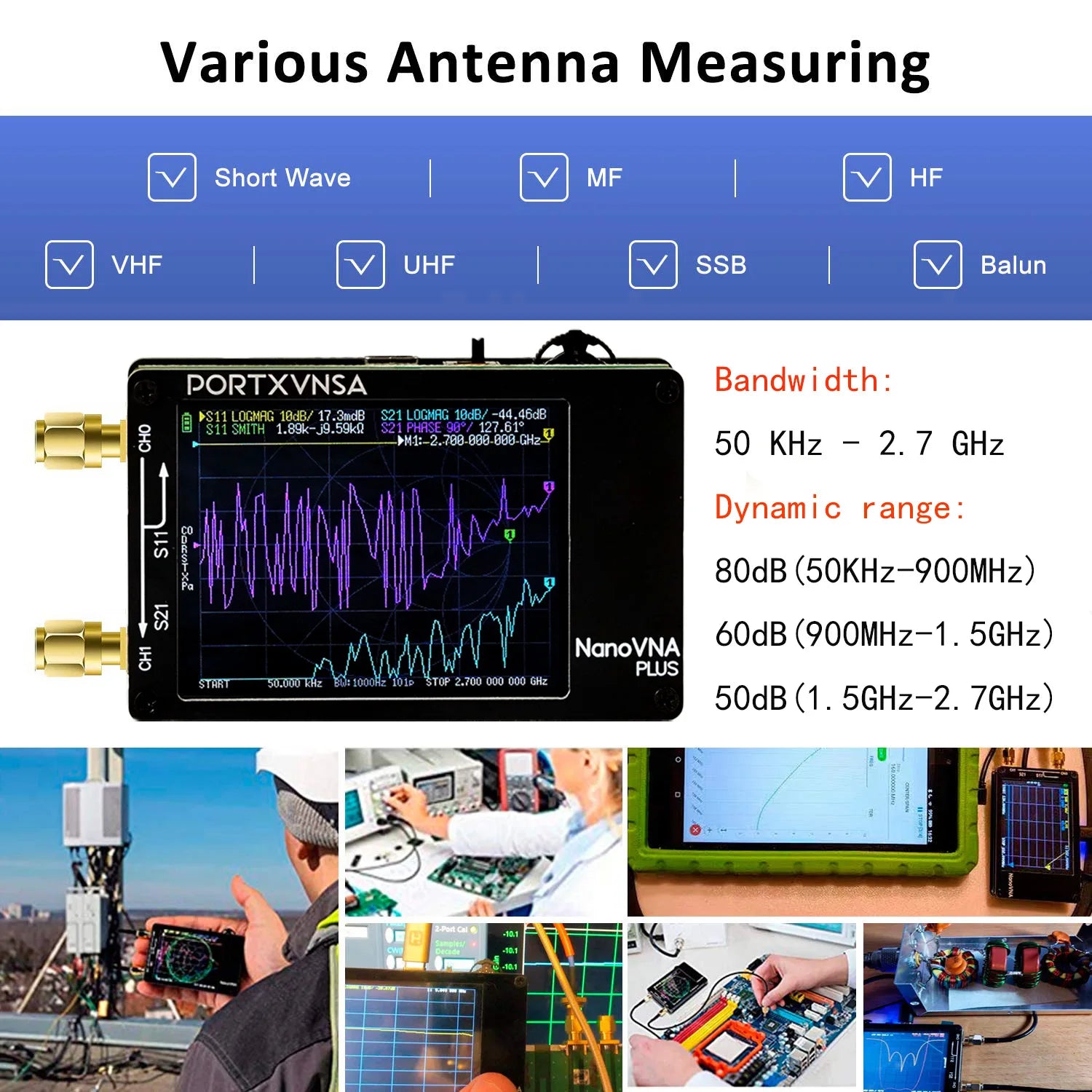

Bandwidth: 50KHz-2.7GHz
Dynamic range: 80dB (50KHz-900MHz) 60dB (900MHz-1.5GHz) 50dB (1.5GHz-2.7GHz)
Reflection coefficient: SWR:<1.1
Frequency accuracy:<0.5 ppm
Frequency stability:<2.5 ppm
Scanning points: 101

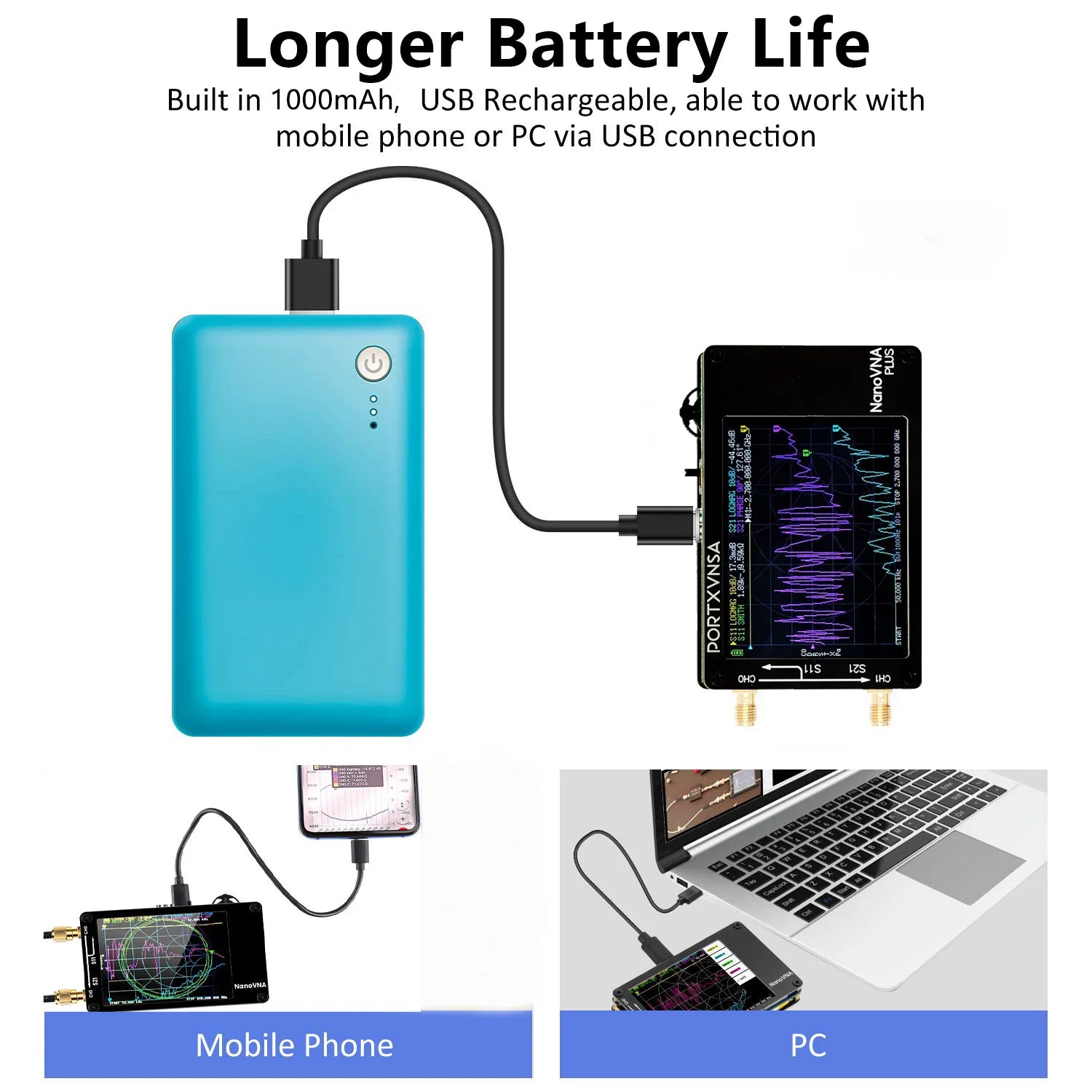

Built in 1000mAh battery

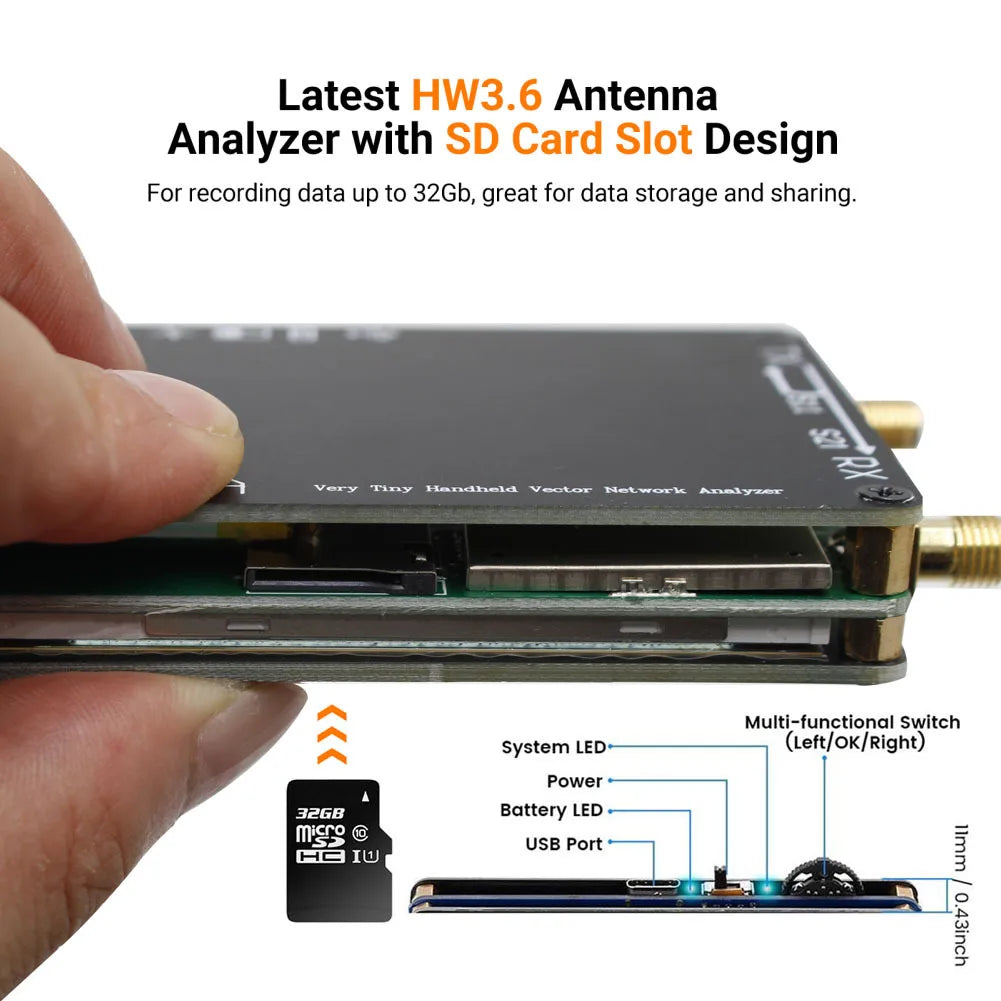

MicroSD supports a maximum of 32GB and only supports SPI mode.
Add RTC support;
Change the port names to Port1 and Port2
Measure S parameters, voltage standing wave ratio, phase, delay, Smith chart;
Packing List:
1. NanoVNA host * 1 (including 2.8-inch touch screen, 1000mAh battery)
2. 20cm SMA male to male RG174 RF cable * 2
3. Type-C to Type-C connection cable
4. USB Type-C data cable * 1
5. Simplified manual * 1
6. Touchpen * 1
7. Paddle * 1

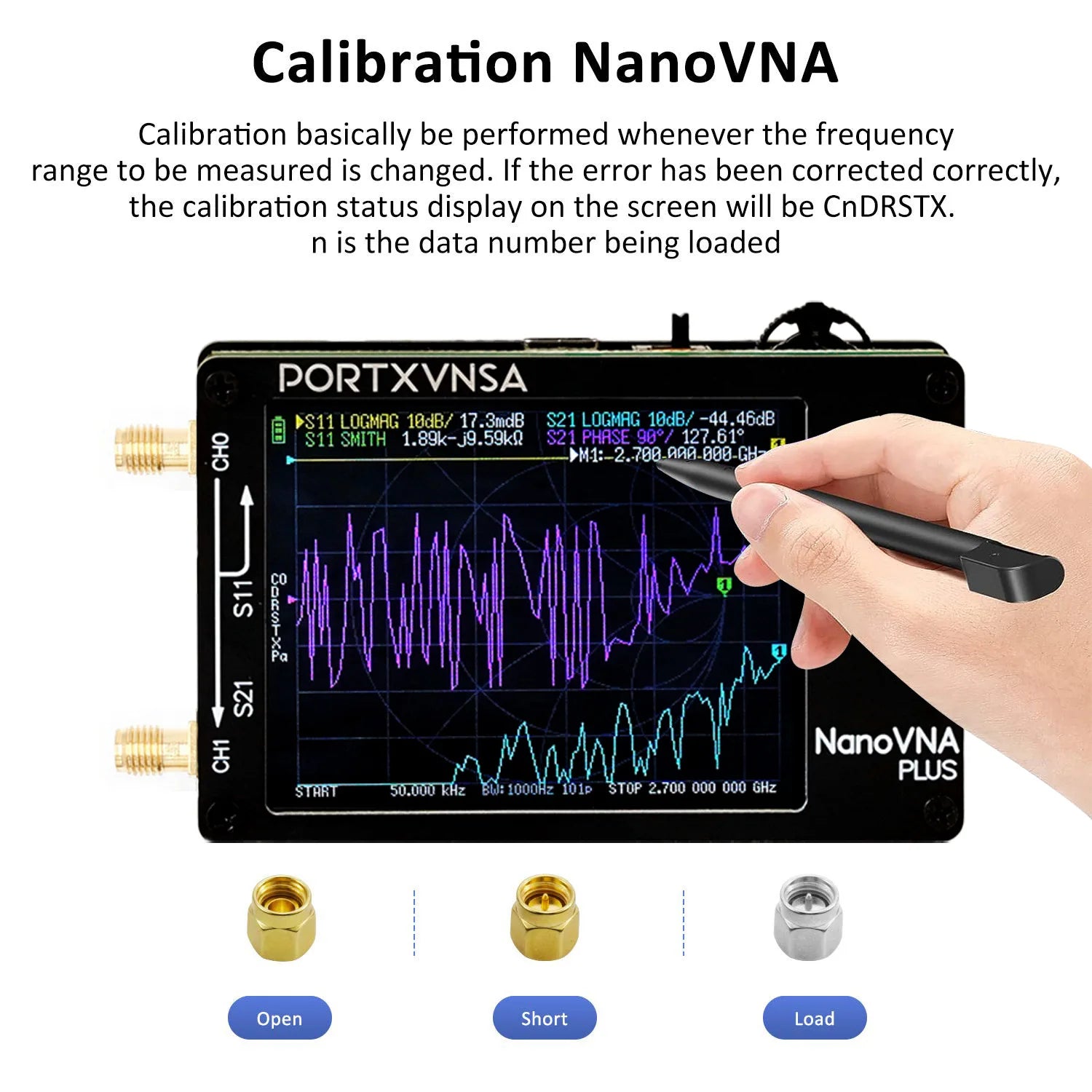

8. SMA simple calibration kit LOAD * 1
9. SMA Easy Calibration Kit OPEN * 1
10. SMA Easy Calibration Kit SHORT * 1
11. SMA female to female connector * 1
Without SD Card!
