NanoVNA-F V2 Vector Network Analyzer 50KHz-3GHz Antenna Analyzer Ham Radio HF VHF UHF 4.3inch screen 5000mAh Battery Measuring

NOTE: Please kindly note, there are 5 different models for sale, please choose the correct one model you need, different model different price.

NanoVNA-F V2-4.3 Inch

Description:

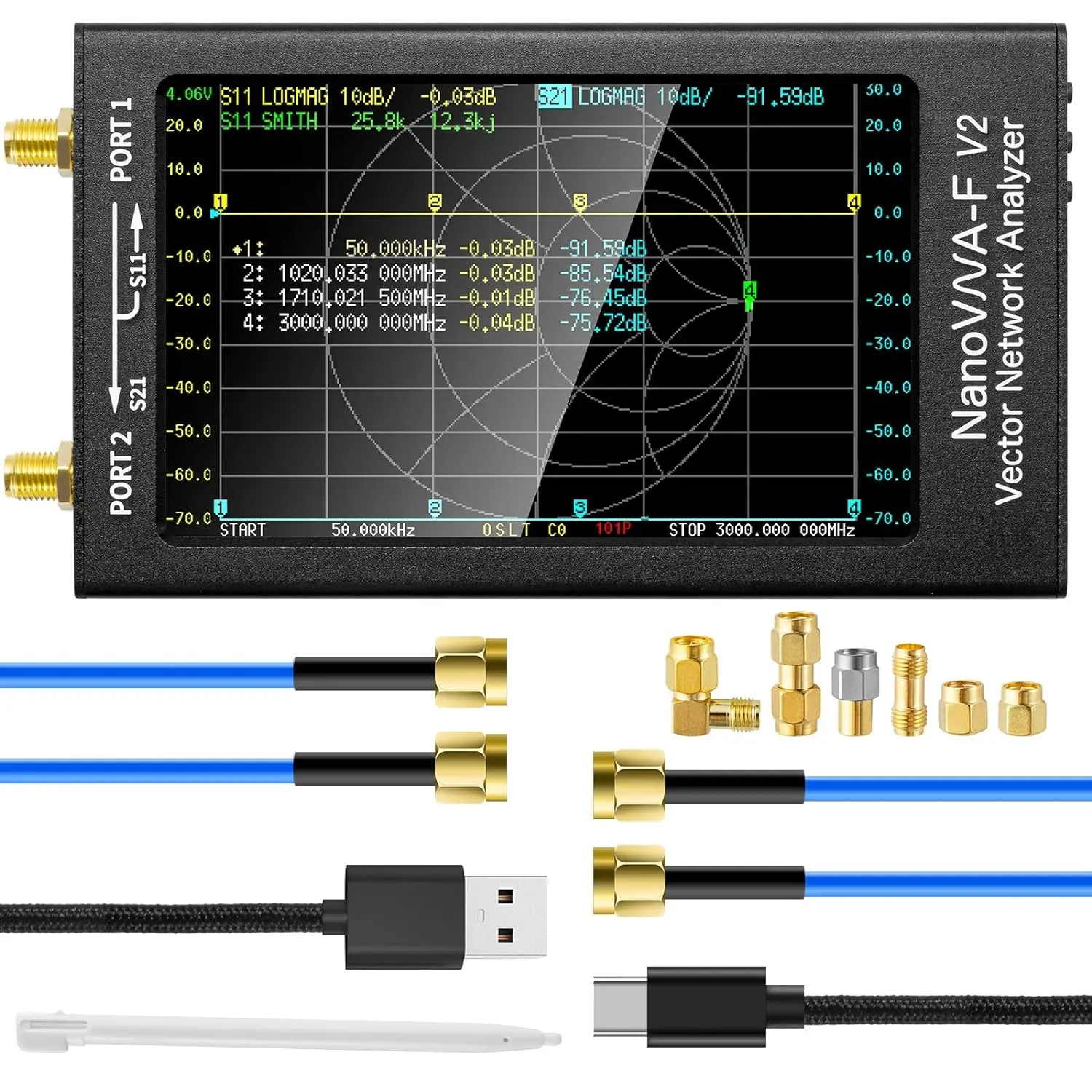

* The NanoVNA-F V2 is a new generation product provides perfect vector network measurement capabilities, tiny and handheld, stand-alone with 4.3-inch LCD display, more active, more colorful is within reach. it portable with 5000mAh battery powered or USB powered.Standby time is up to 7 hours.

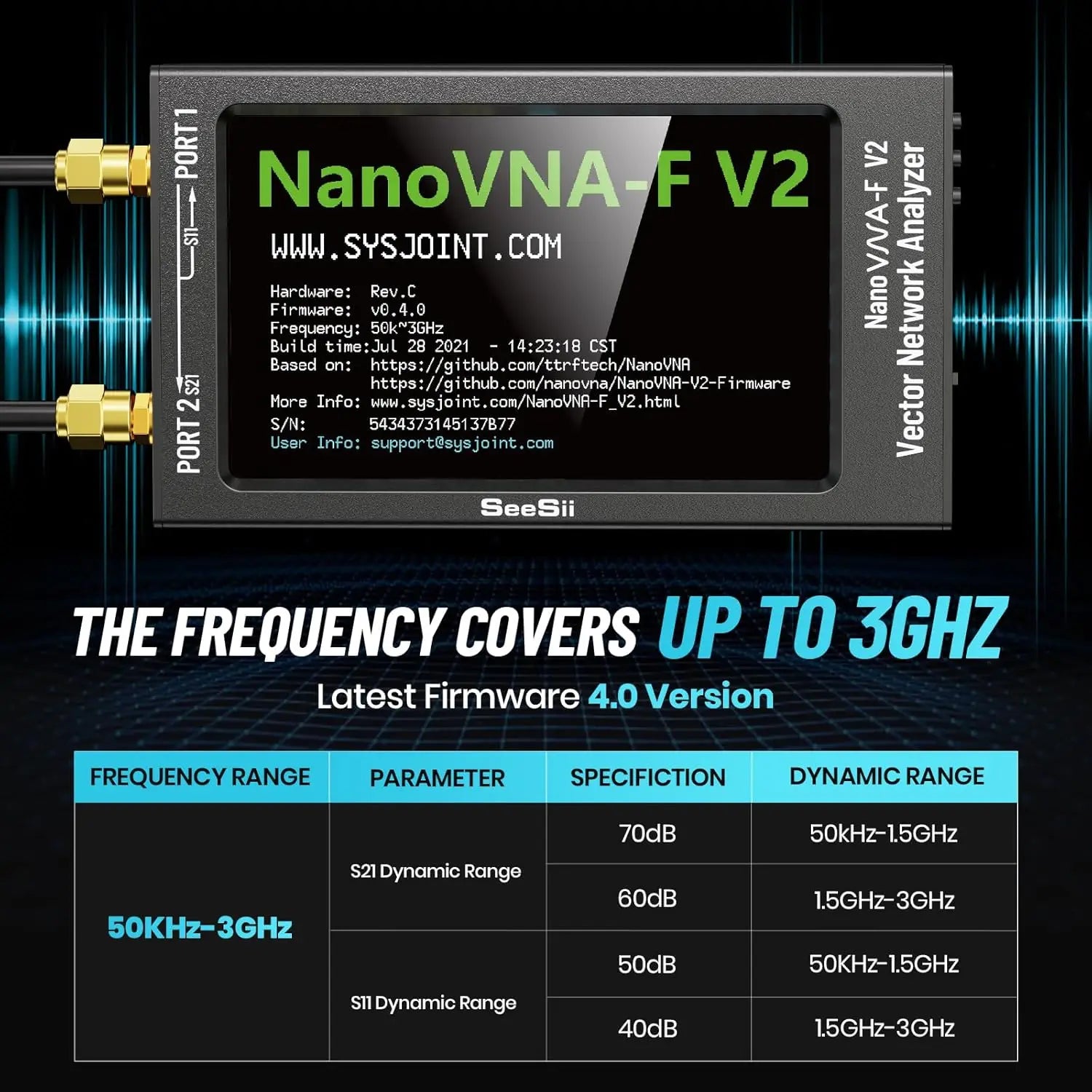

* The improved frequency measurement frequency up to 3GHz. The 50K-1500MHz frequency range output provides better than 70dB dynamic, 1500M-3000MHz band provides better than 60dB of dynamics.
* The metal shield is designed to reduce the external interference and improve the measurement accuracy.
* The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters.
* Also PC software NanoVNA-F V2 Saver can be used, it can connect to the instrument and extracts the data for display on a computer.

Features:

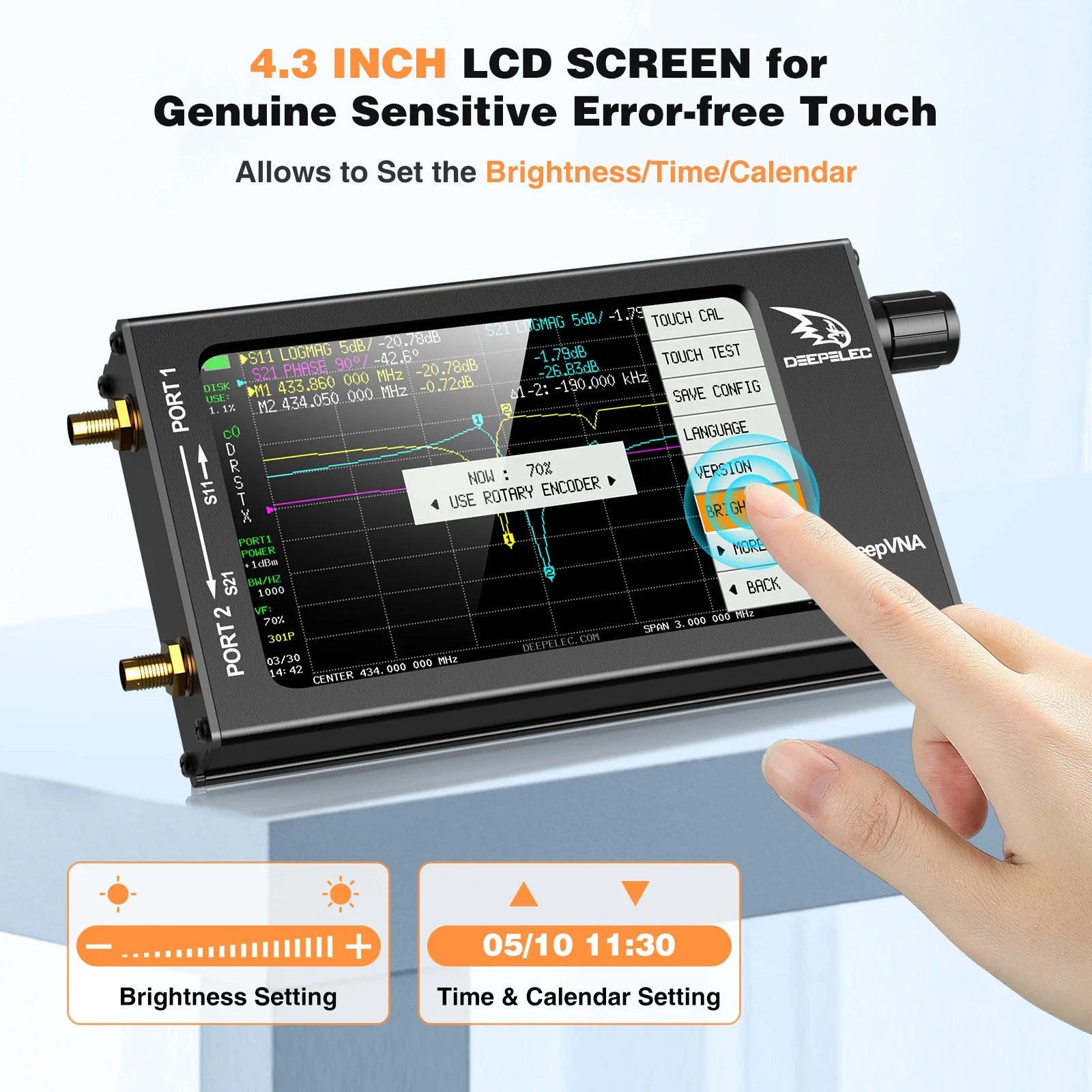

1. 4.3-inch IPS LCD display, resolution 800*480, ultra-wide viewing angle, long-term use does not hurt your eyes.
2. All aluminum alloy case, sturdy and durable, effectively shielding electromagnetic interference to ensure measurement accuracy.
3. The body size is 125mm*75mm*20mm, compact and portable.
4. The radio frequency interface is SMA, which is convenient for connecting all kinds of DUTs.
5. 5000mAh large-capacity lithium battery, battery life up to 7 hours.
6. Full touch screen design, with 3 side buttons at the same time, flexible and convenient operation.
7. Support Chinese and English interface.
8. Optimized UI design, convenient for users to perform measurement operations.
9. Support screen brightness adjustment.
10. The firmware can be upgraded through a virtual U disk, no programmer is needed, and the firmware can be upgraded through the included USB type-c data cable.
11. Standard high-quality calibration parts and RG405 phase-stable cable to ensure calibration accuracy.
12. A USB power output interface is designed to support 5V/1A power output.
13. Using 2A high current charging IC, the charging time is shorter.
14. Supporting host computer software, the host computer supports Chinese and English interfaces.
15. The screen image of the device can be obtained by taking a screenshot of the host computer.

Specification:
- Condition: 100% brand new and high quality
- Item Name: NanoVNA-F V2 Analyzer
- Color: Black
- Measurement frequency: 50KHz  -3GHz
- Display: 4.3inch, Resolution 800*480
- Battery: 5000mAh Li-ion Battery
- RF output power: -9dBm (error within 1GHz: ±1dB)
- Frequency accuracy: <0.5ppm
- S21 dynamic range: 70dB (1.5GHz), 60dB (3GHz)
- S11 dynamic range: 50dB (1.5GHz), 40dB (3GHz)
- 2-port return loss: 20dB typ (1.5GHz), 13dB min (3GHz)
- Number of calibration points: 101 points
- Number of scanning points: 101 points
- Number of traces: 4
- Number of mark points: 4 (the mark point bar can be moved up and down on the screen)
- USB interface: USB Type-C communication mode: CDC (serial)
- Setting save: 5 groups (after saving, it can be directly recalled when it is used next time, no need to recalibrate, and the saved parameters before the last shutdown will be automatically recalled when it is turned on next time)
- Support calibration result interpolation, can measure without recalibration after adjusting the measurement frequency band
- Scan time: about 1.9s/1 time (50kHz ~ 3000MHz full frequency band)
- Can measure S parameters, voltage standing wave ratio, Smith chart, phase, group delay, etc.


Package Included:
- 1 x Host

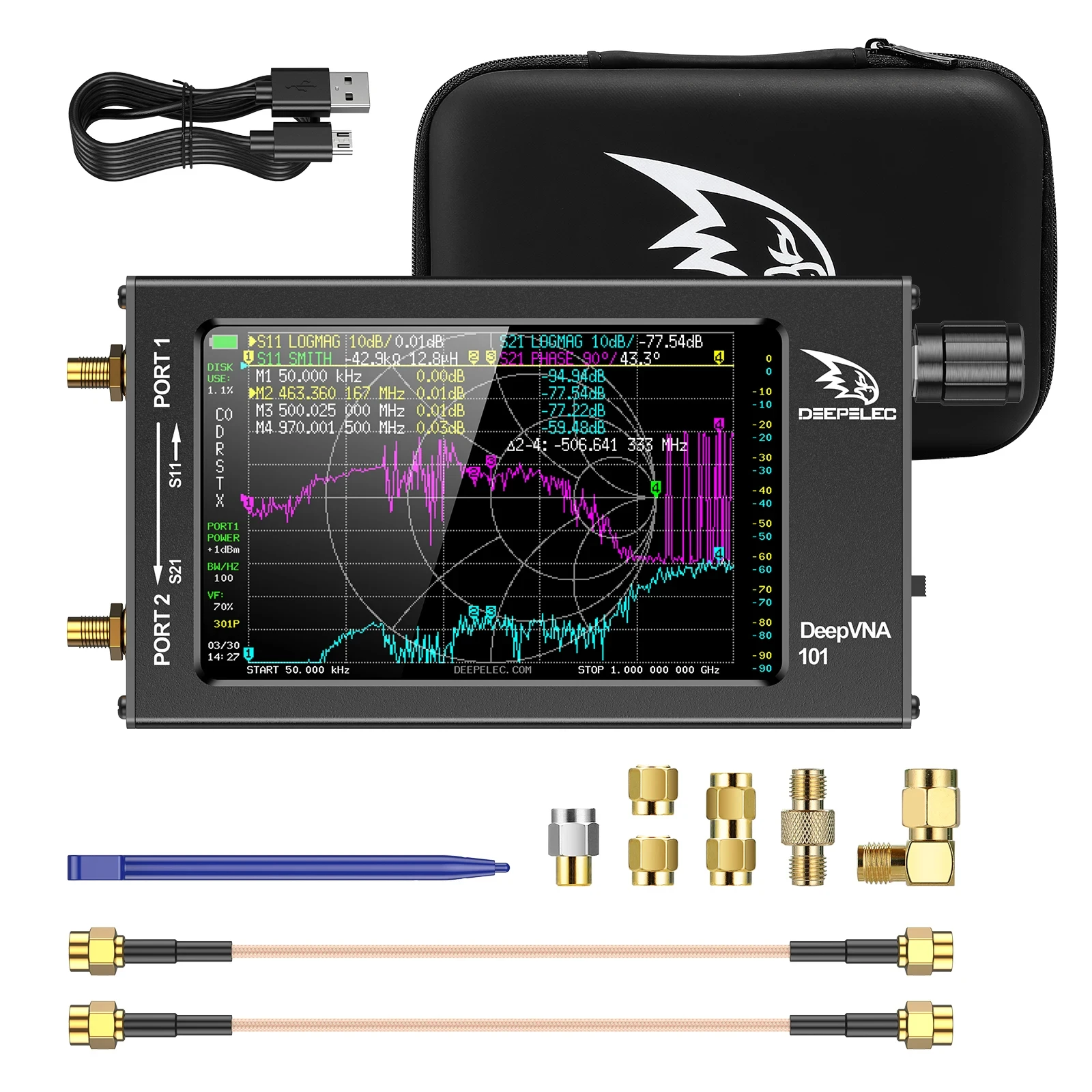

- 1 x SMA Open Circuit Calibration Part
- 1 x SMA Short-Circuit Calibration Kit
- 1 x SMA 50Ω Load Calibration Kit
- 1 x SMA-KK Double Head Female Adapter
- 1 x SMA-JJ Double Head Male Adapter
- 1 x SMA-JKW Elbow Female To Male adapter
- 2 x 20cm SMA-JJ RG405 RF Cables
- 1 x USB Type-C Data Cable
- 1 x Stylus Pen

Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Applications:
- NanoVNA-F V2 has a high dynamic range and can be used to test UV duplexers
- Measure 915MHz antenna
- Measure 868MHz antenna
- Measure 2.4G microstrip filter

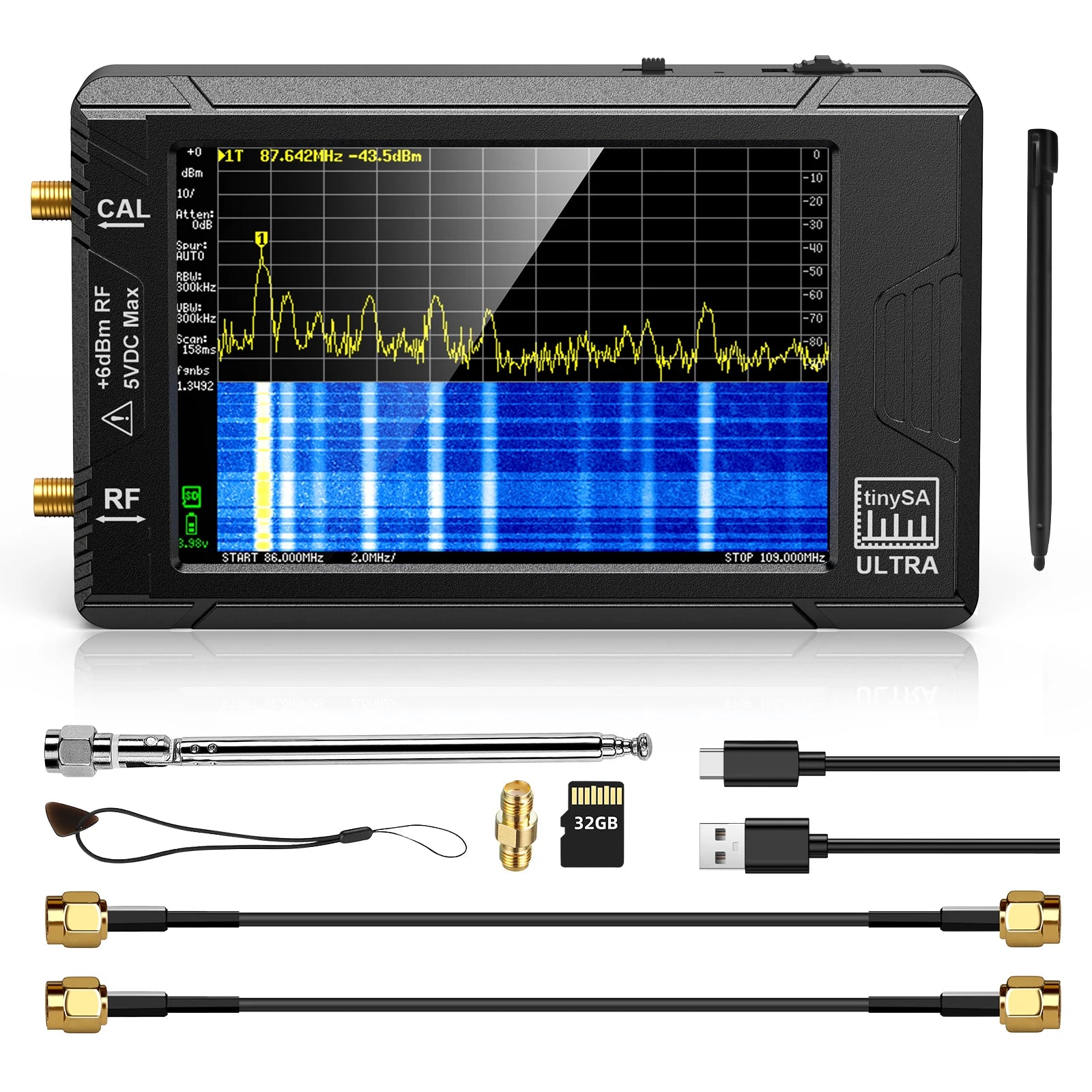

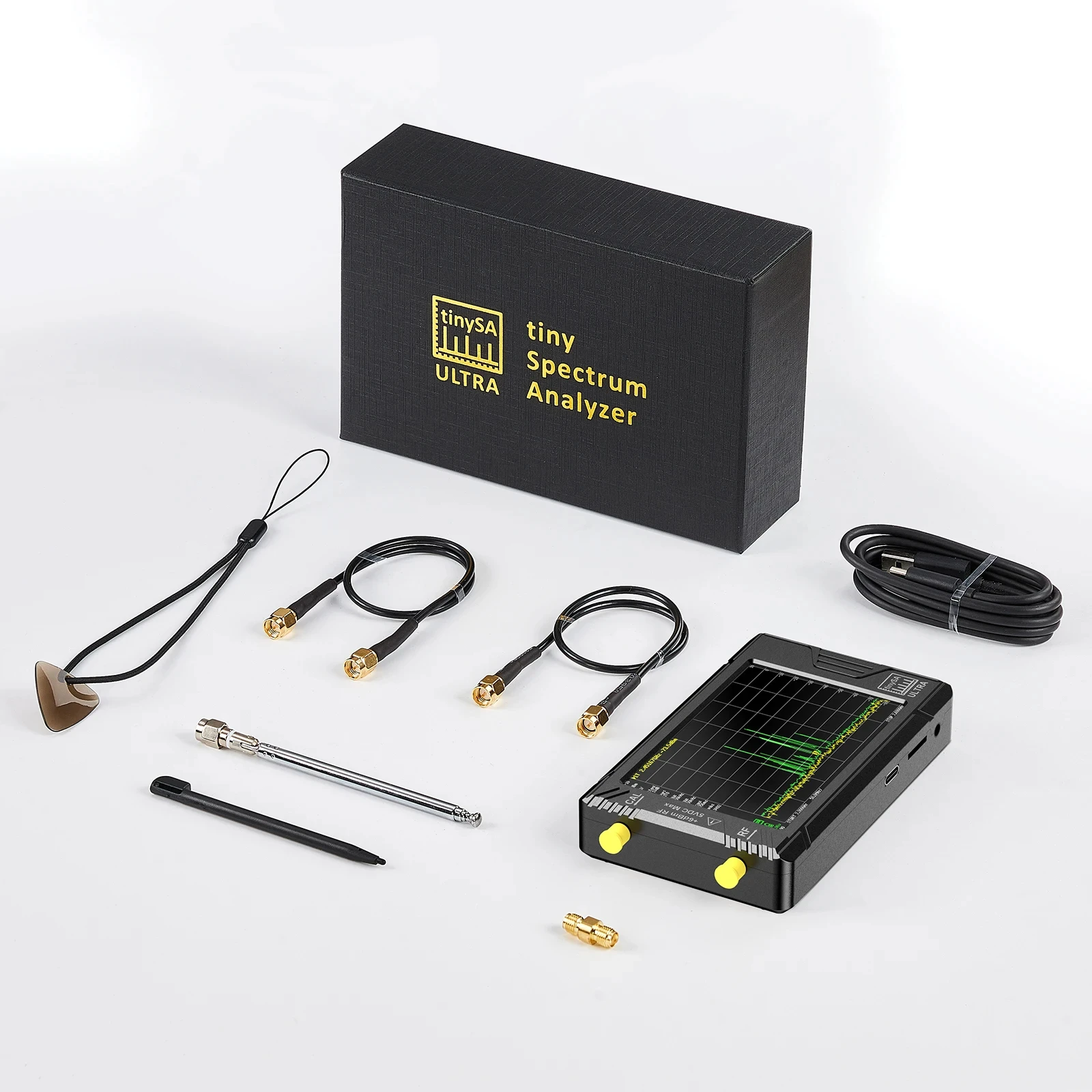

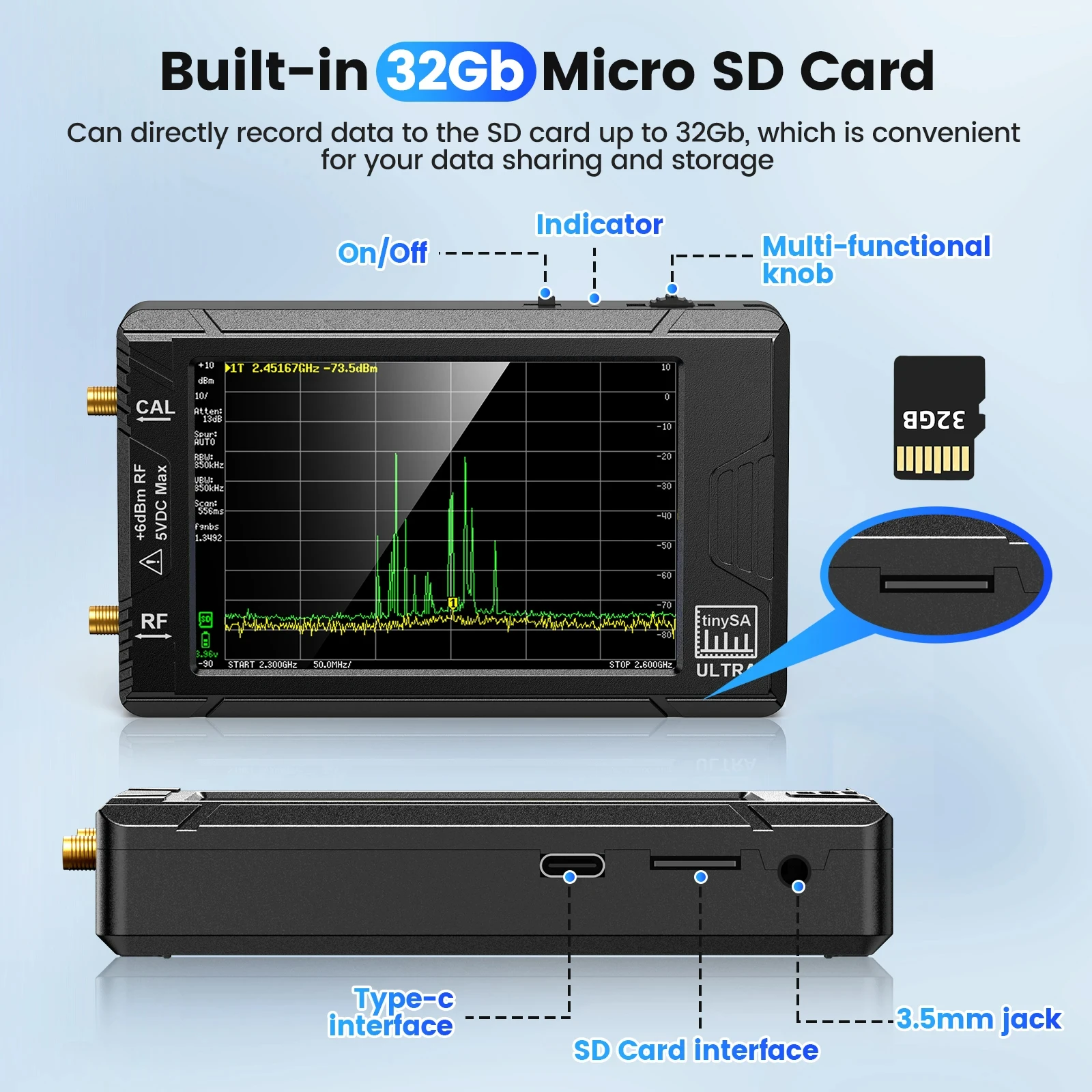

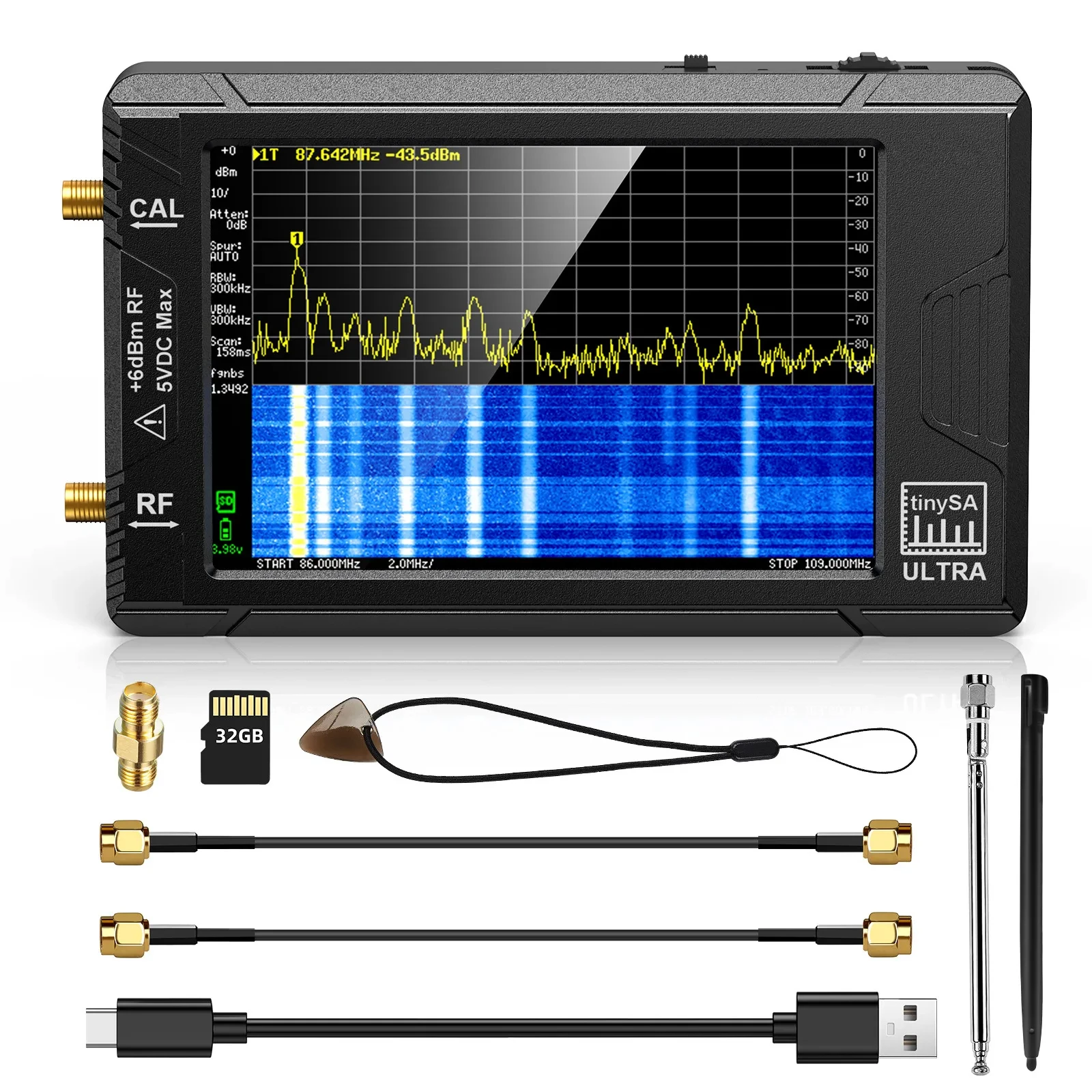

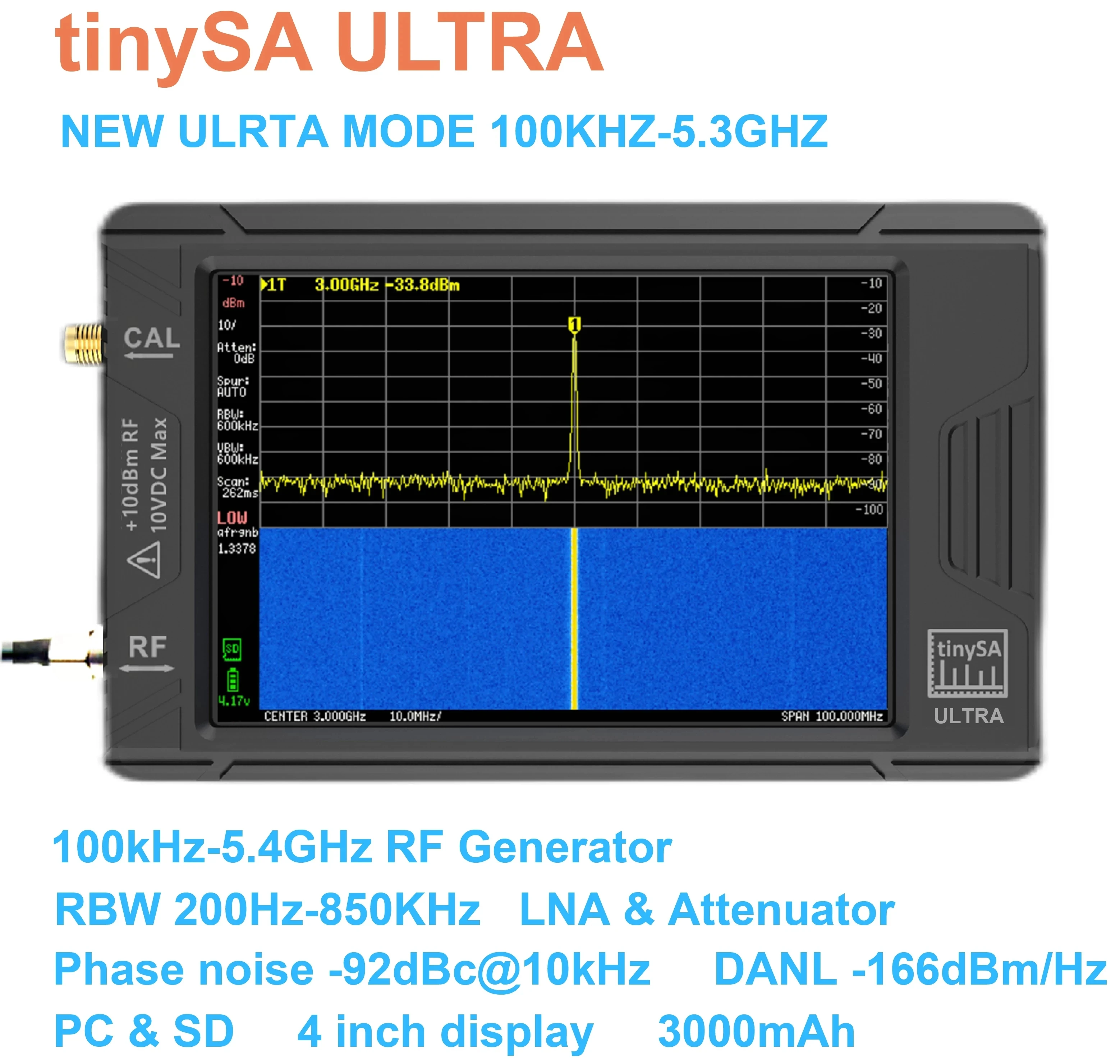

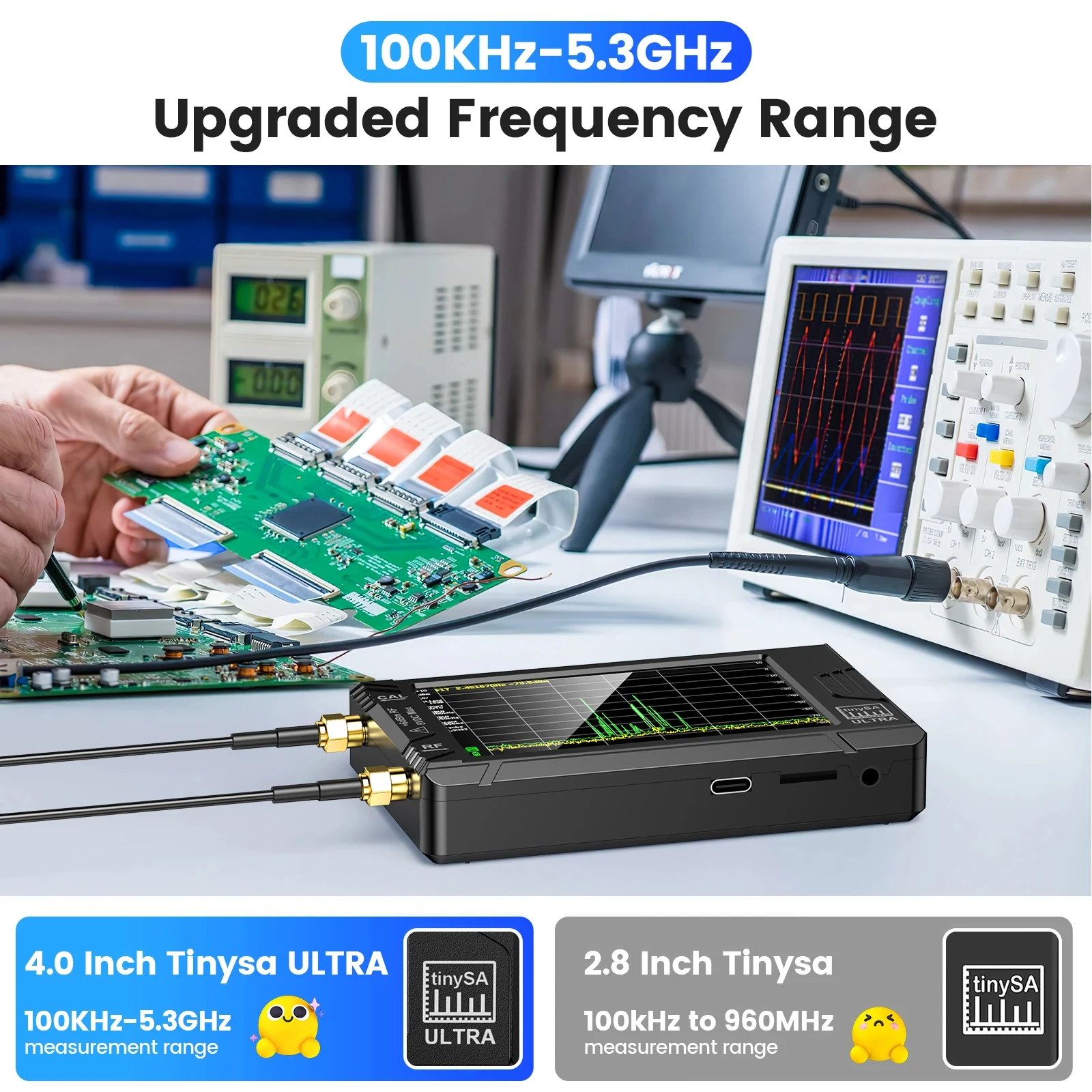

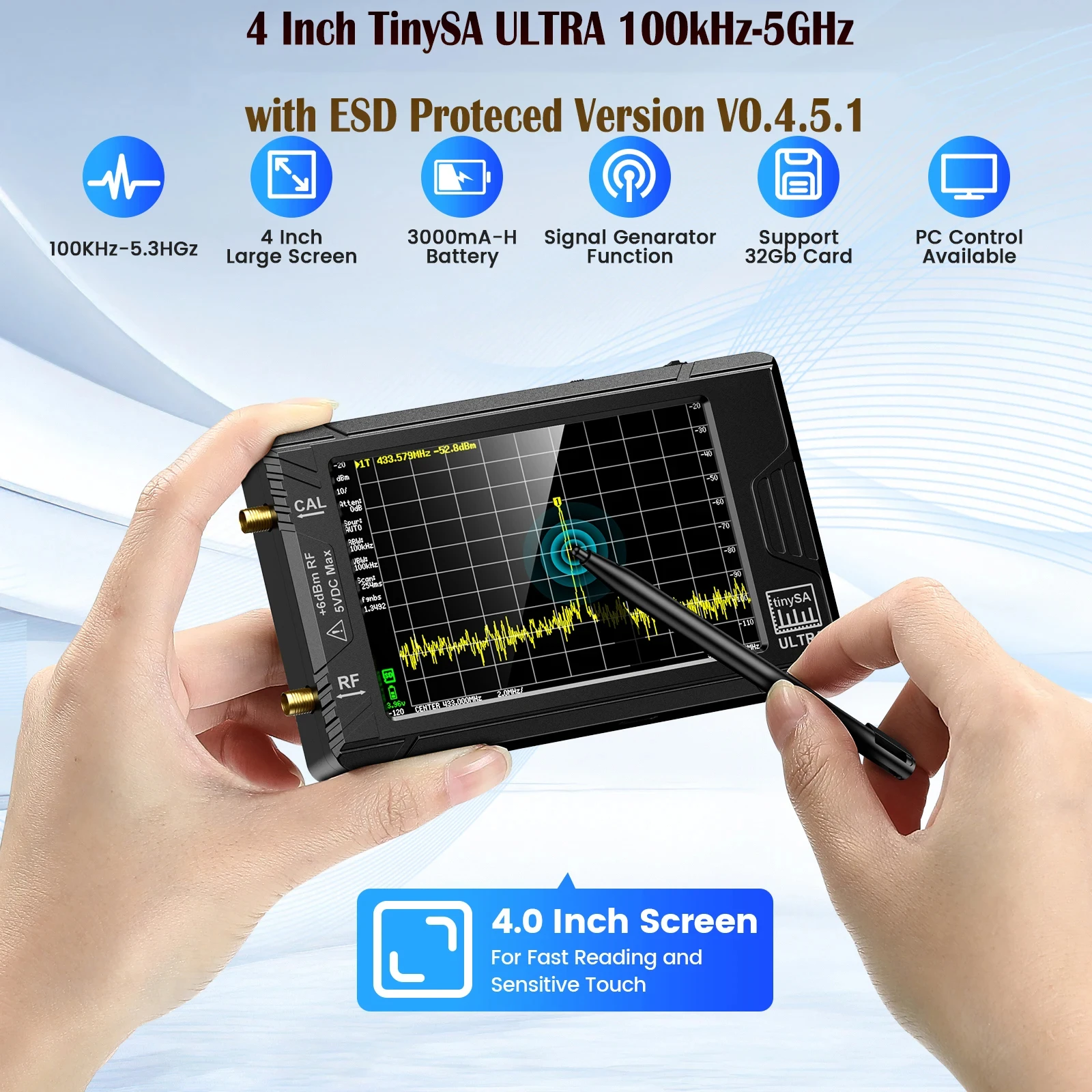

TinySA-ULTRA-4 inch option

LiteVNA-4 inch Option

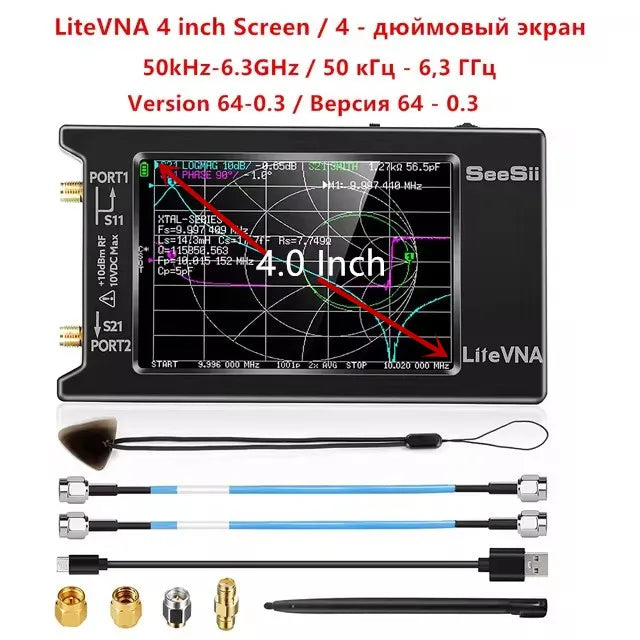

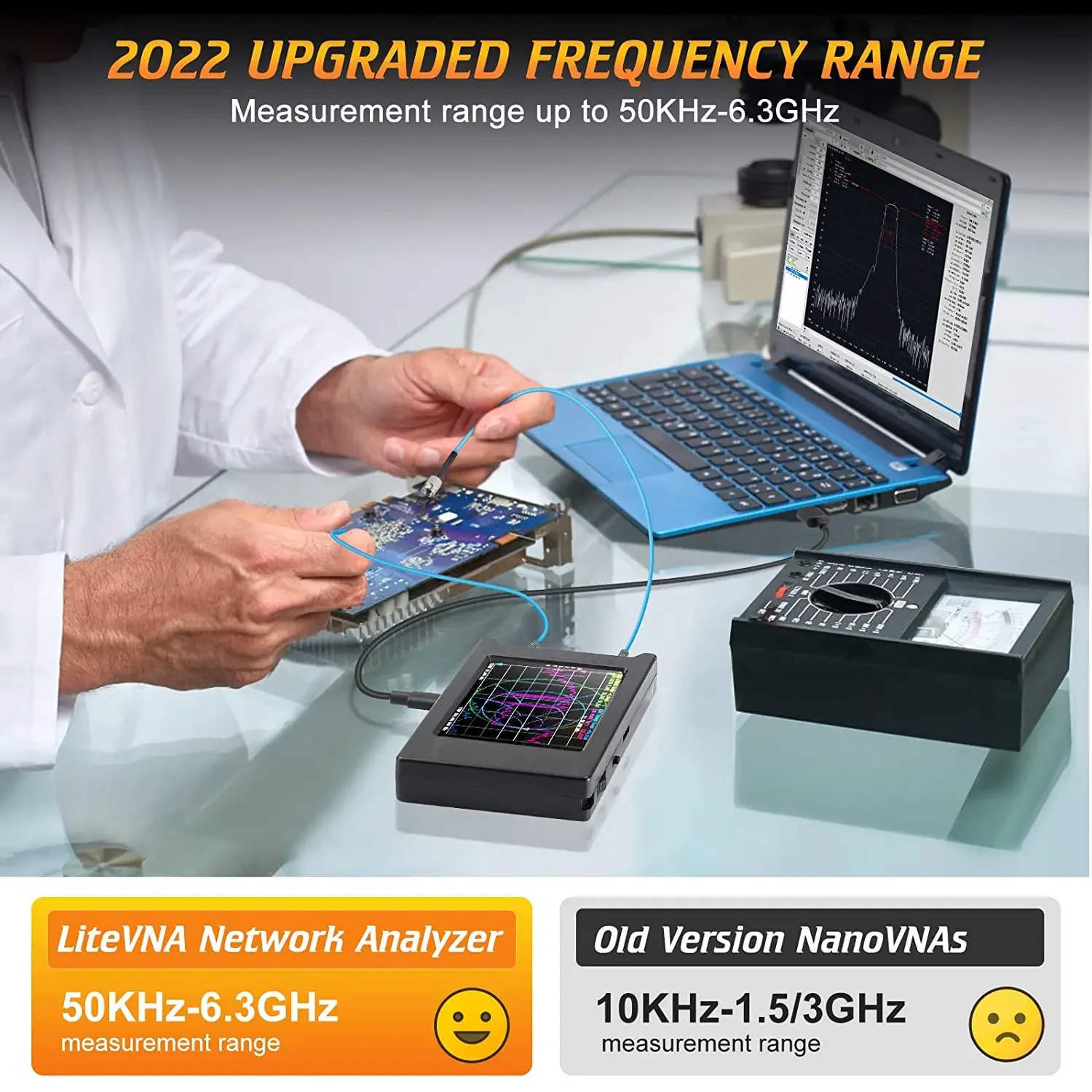

Upgraded 4 inch NanoVNA 50kHz-6.3GHz Vector Network Analyzer Antenna Analyzer HF VHF UHF SWR HW Version 64-0.3

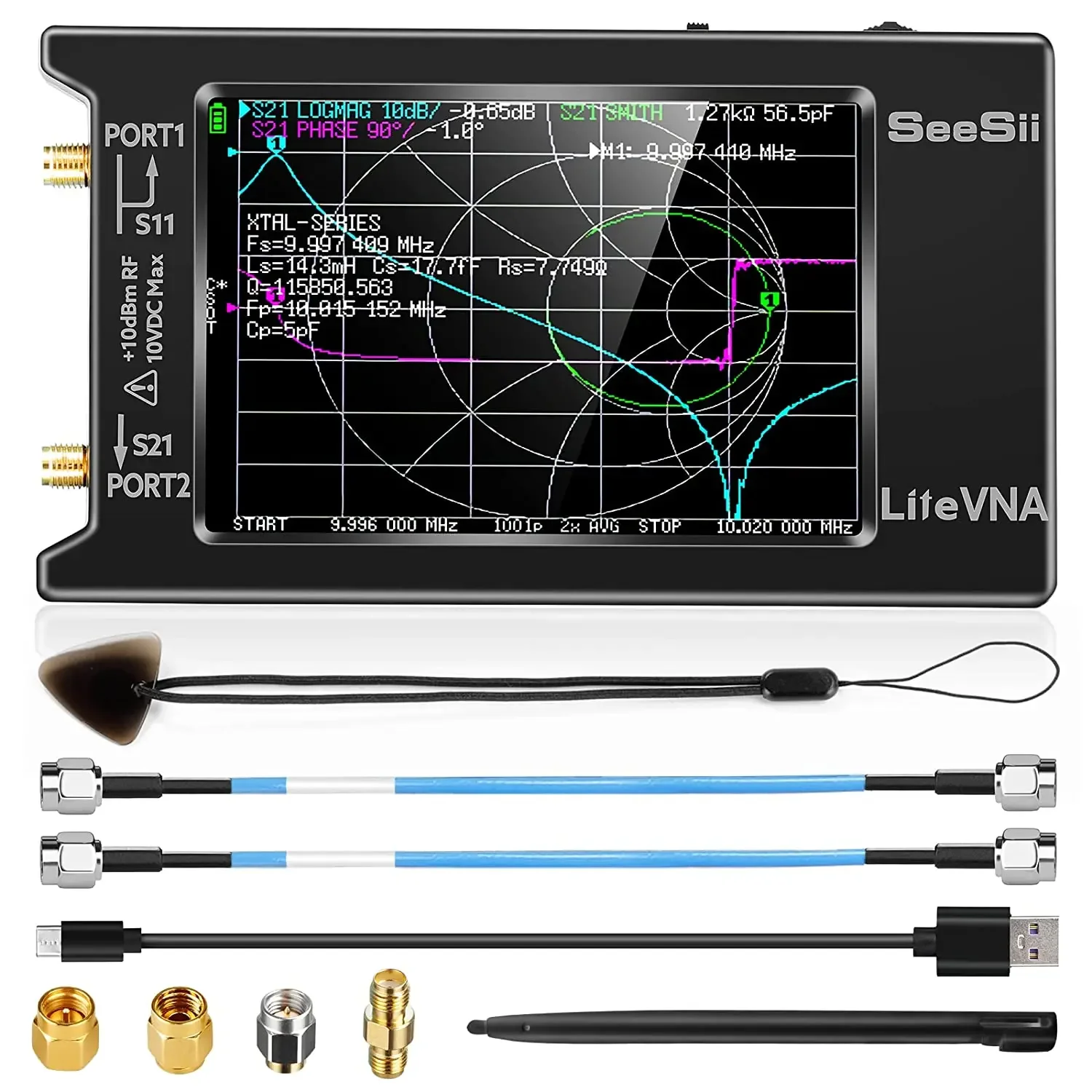

LiteVNA improves on the popular NanoVNA and SAA2. Now you can get a portable vector network analyzer (VNA) as small as the NanoVNA and capable of meeting the ultra-wide measurement range of 50 kHz to 6.3 GHz.
To minimize power consumption and size, the LiteVNA uses only one mixer, with multiple internal RF switches for S11 and S21 measurements, and IFFT calculations for TDR and DTF measurements.

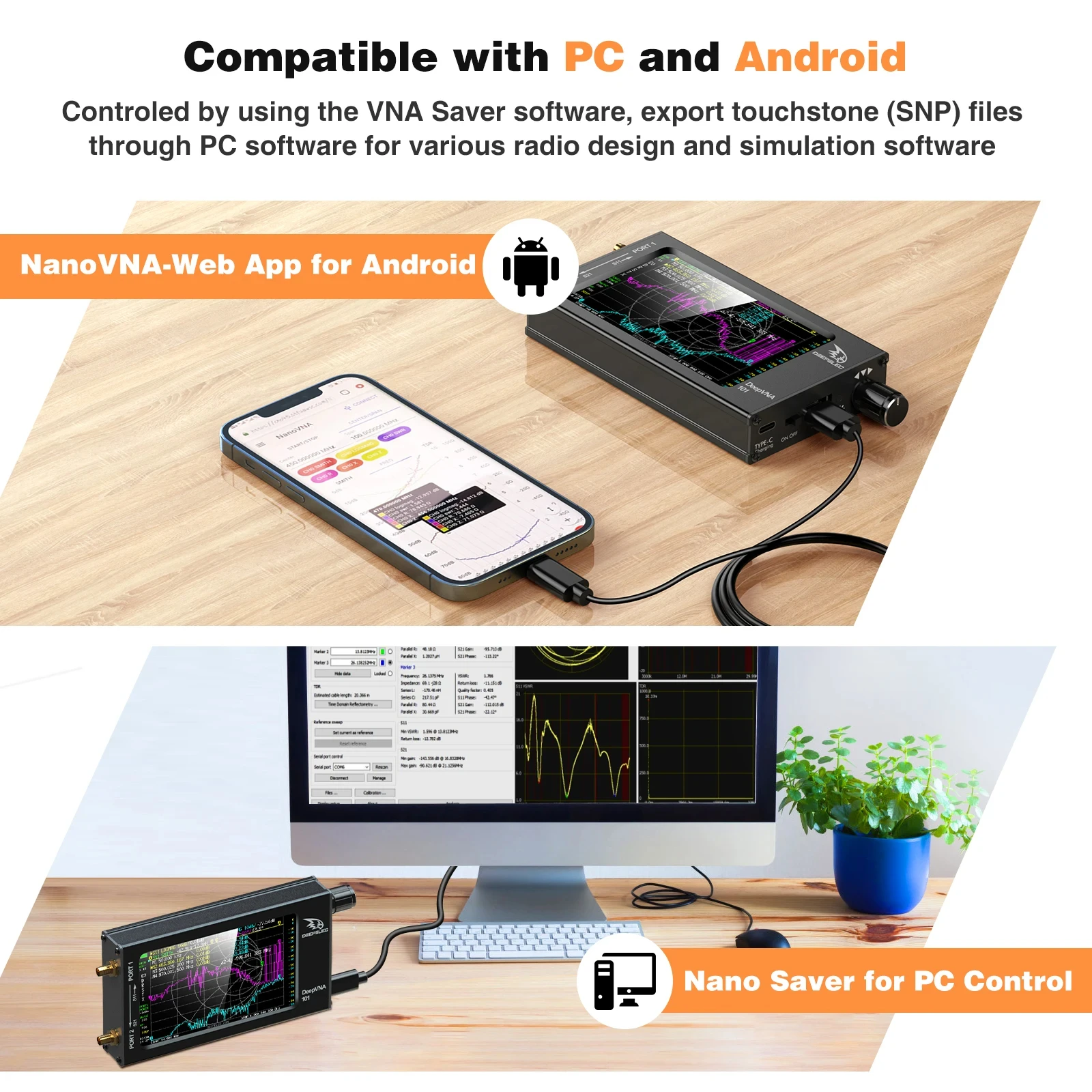

Designed with the community's input in mind, the LiteVNA now brings faster scanning speeds and more scan points in addition to a wider measurement range. Combined with an easy-to-use interface consistent with the NanoVNA, the LiteVNA can now be easily used as a field test tool.
LiteVNA includes a MicroSD slot, so you can save field test data or screens to a MicroSD card at any time. With a measurement range of up to 6.3GHz, the LiteVNA is capable of meeting common amateur radio and IoT applications, as well as emerging 5GHz testing, enabling the application of the latest 5.8GHz wifi and 5.8GHz image transmission.

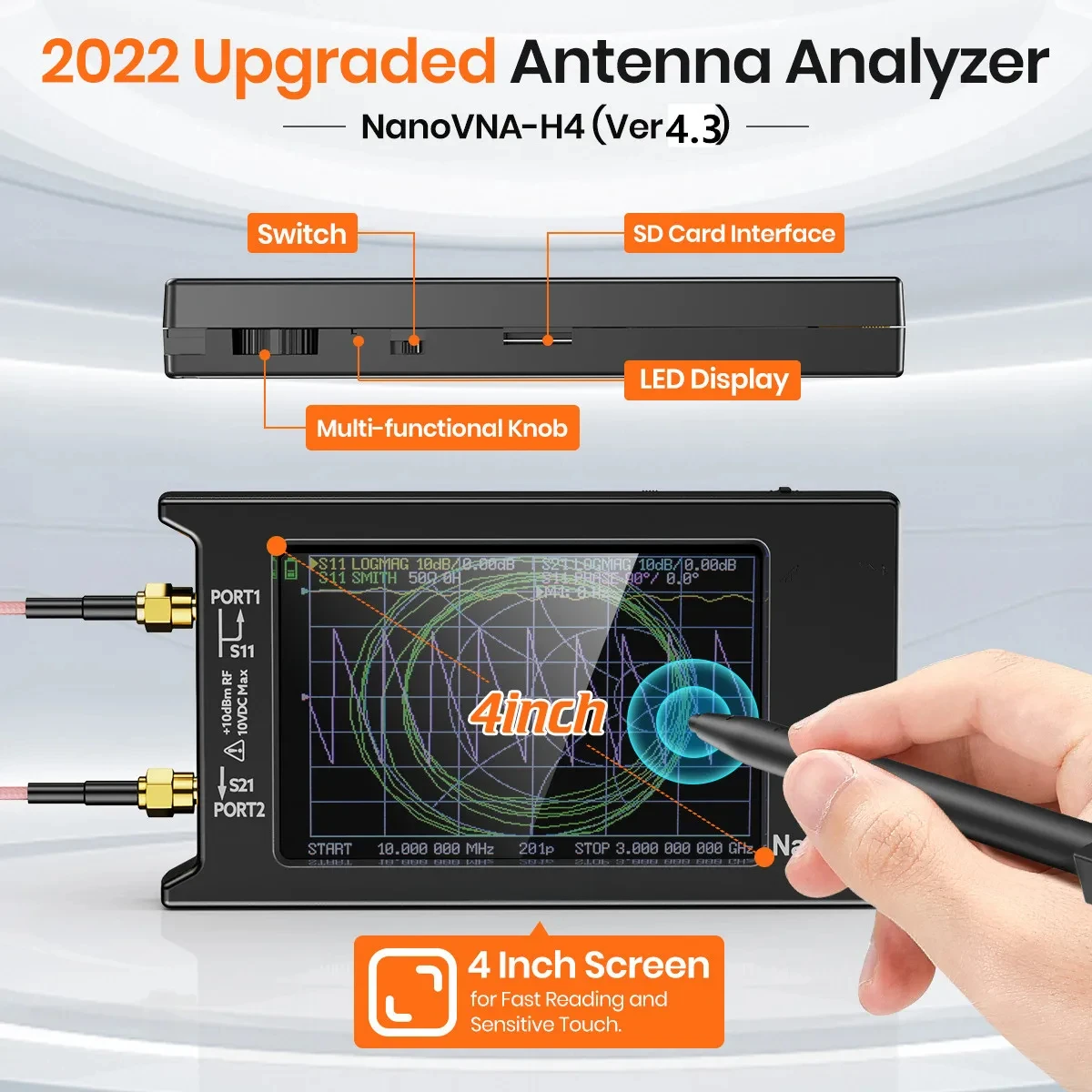

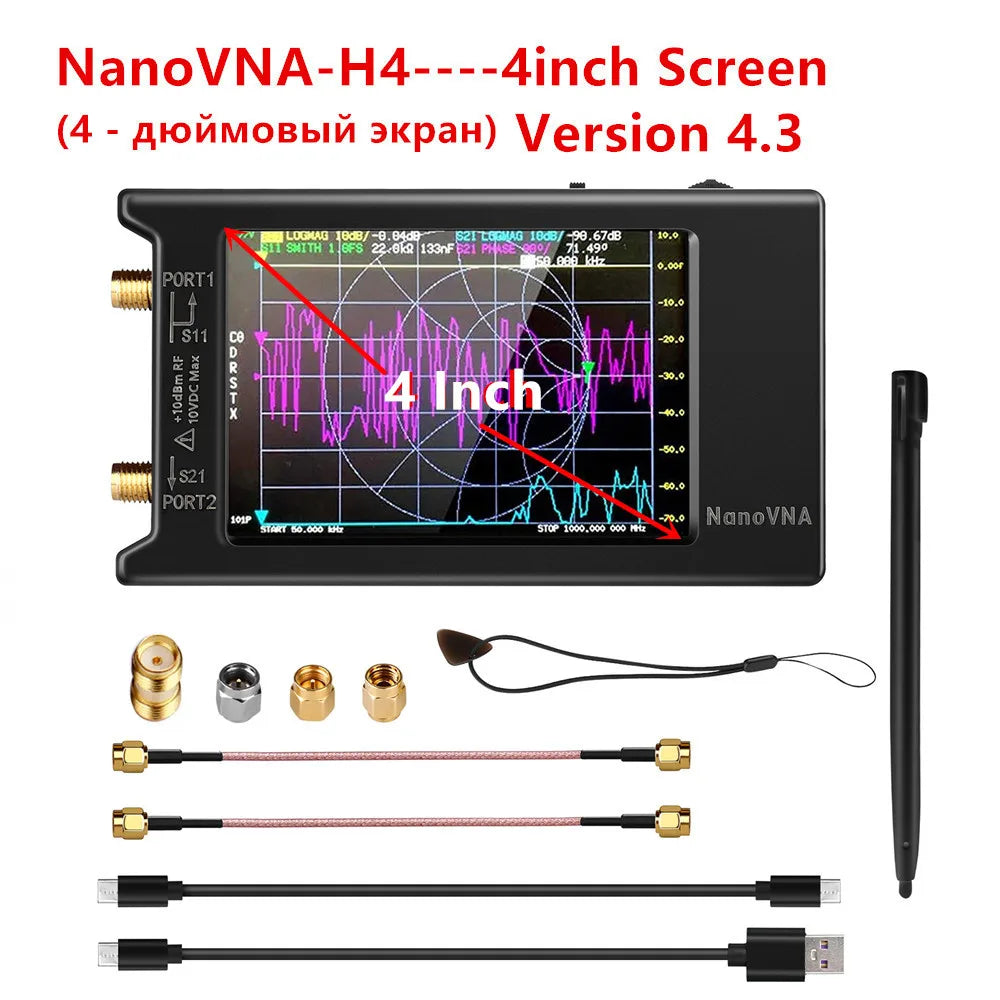

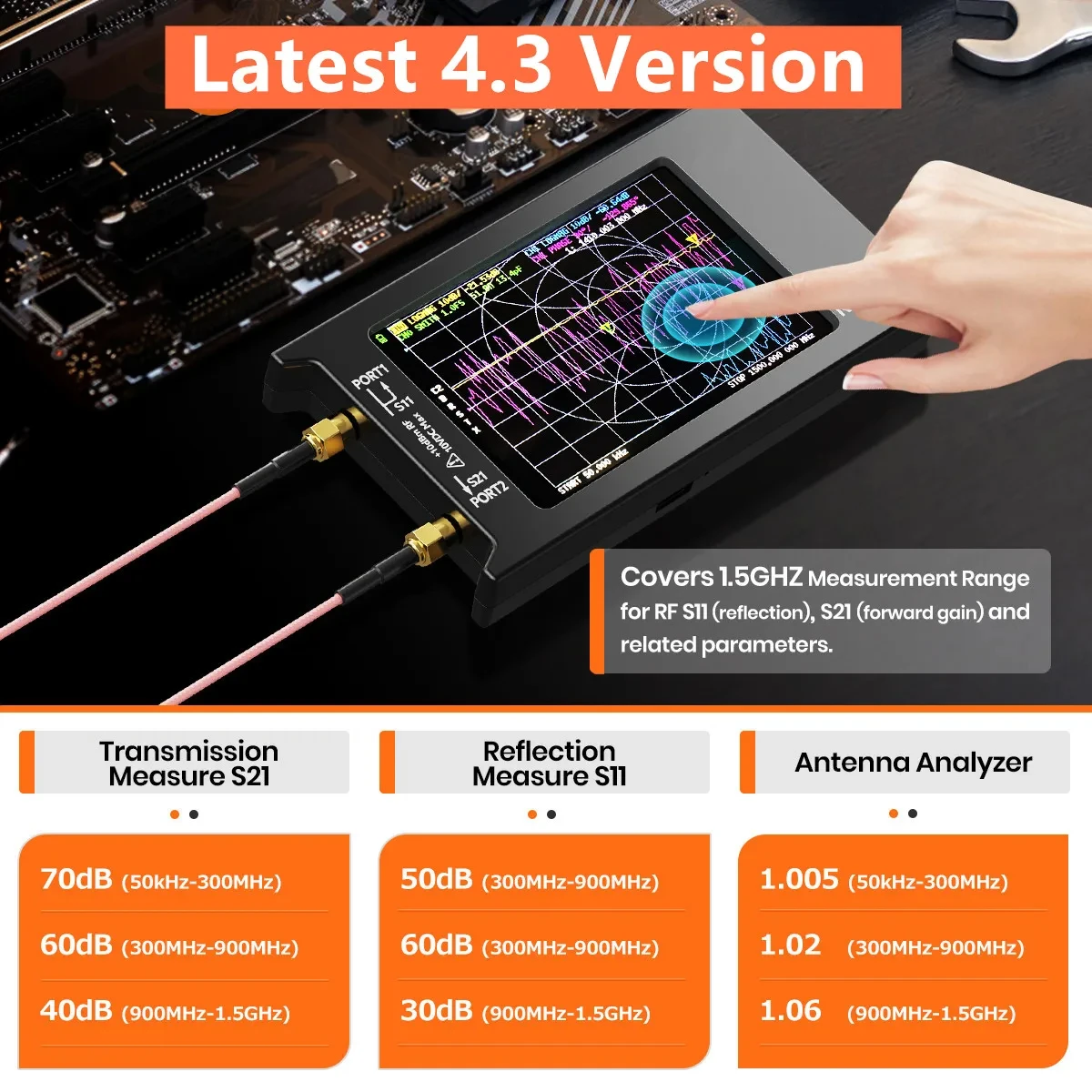

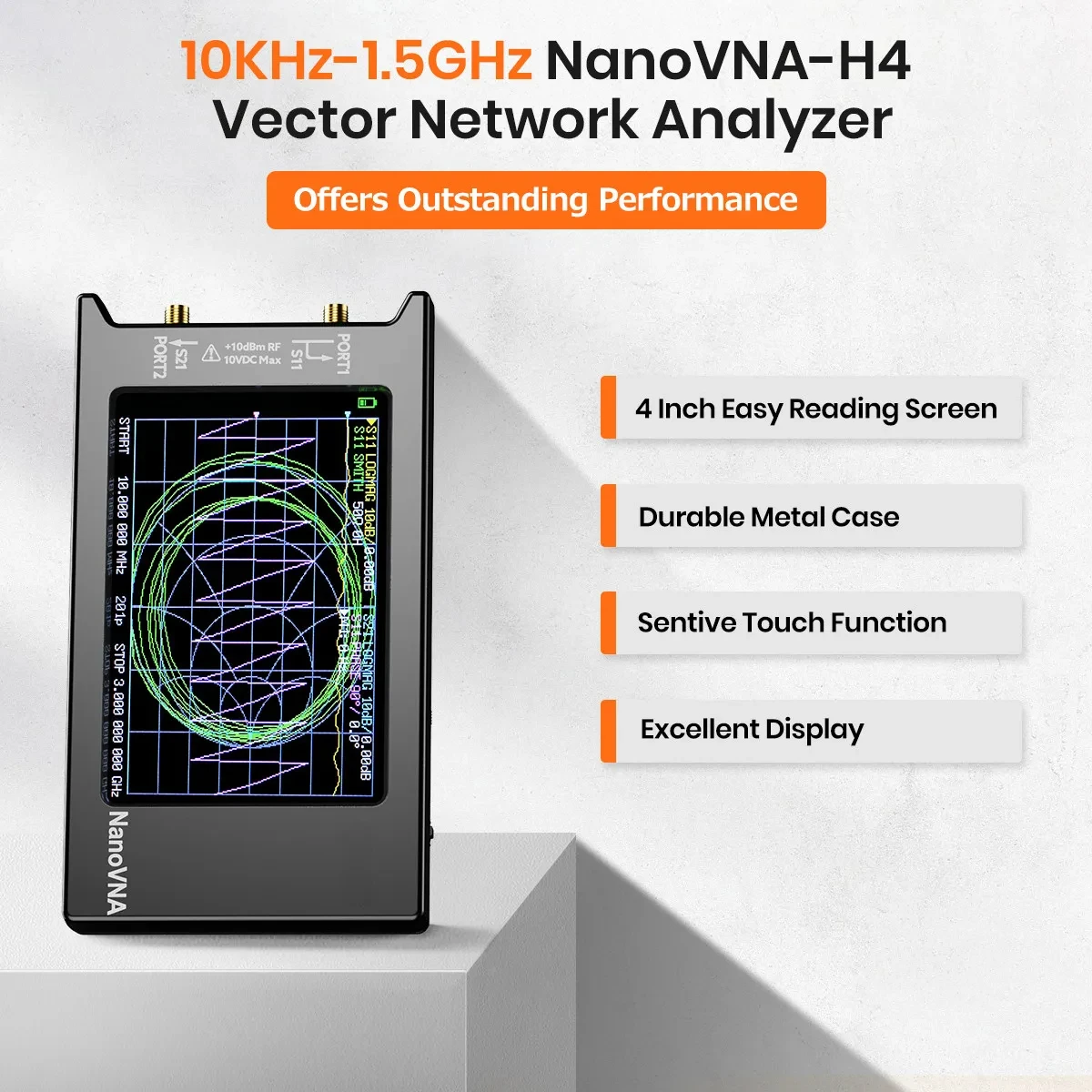

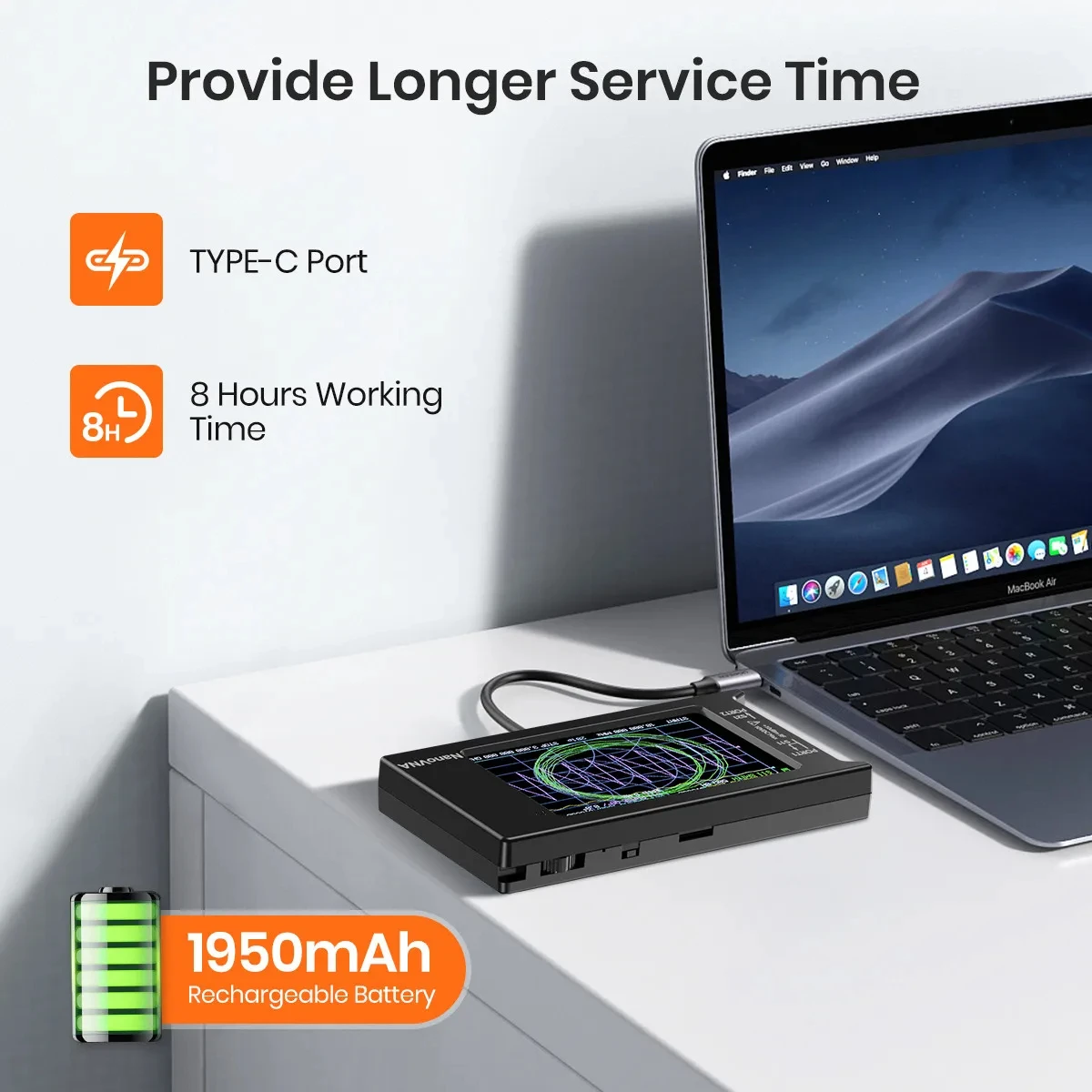

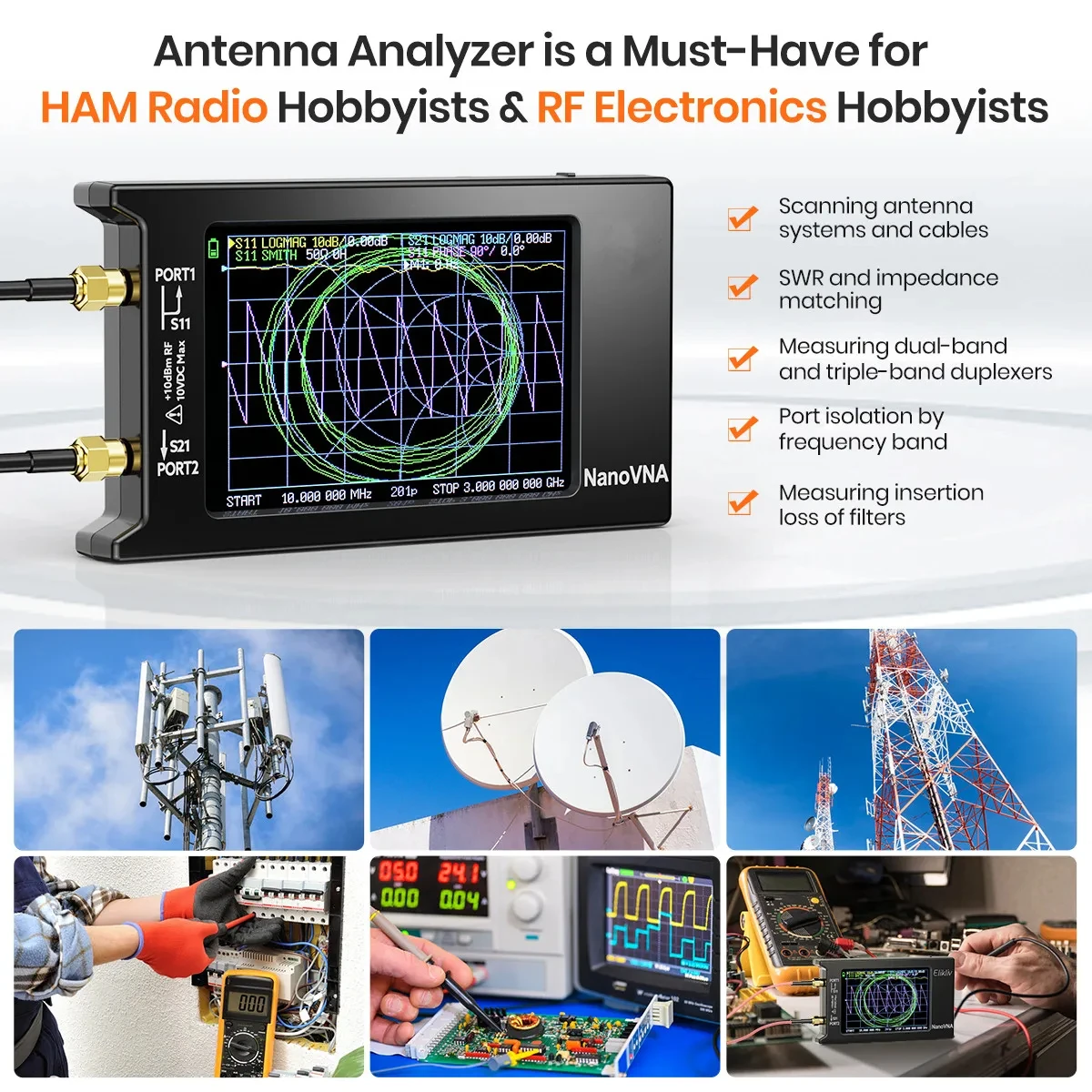

NanoVNA-H4 4 inch  option
