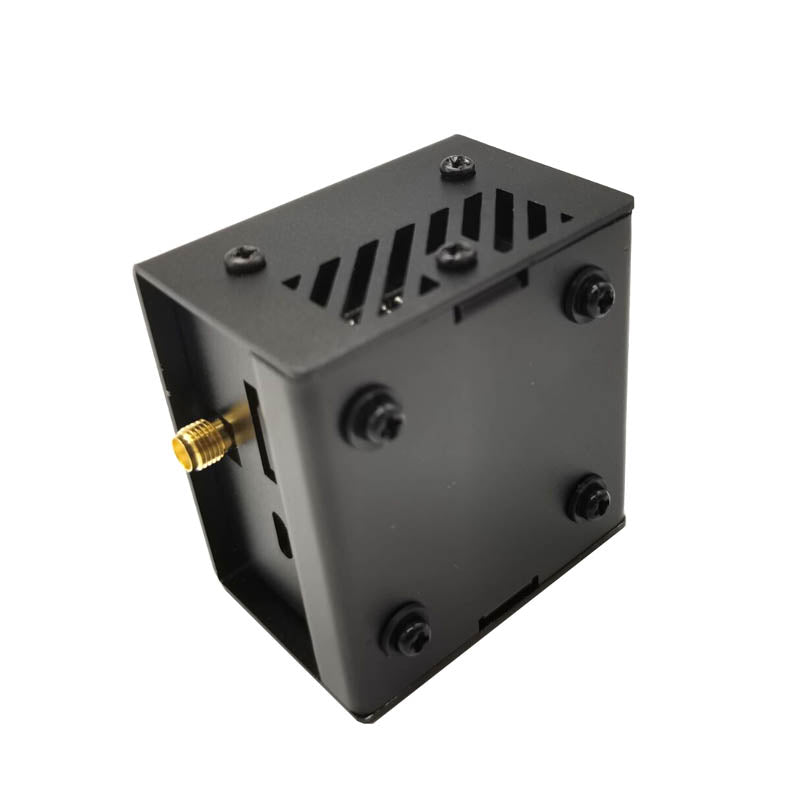

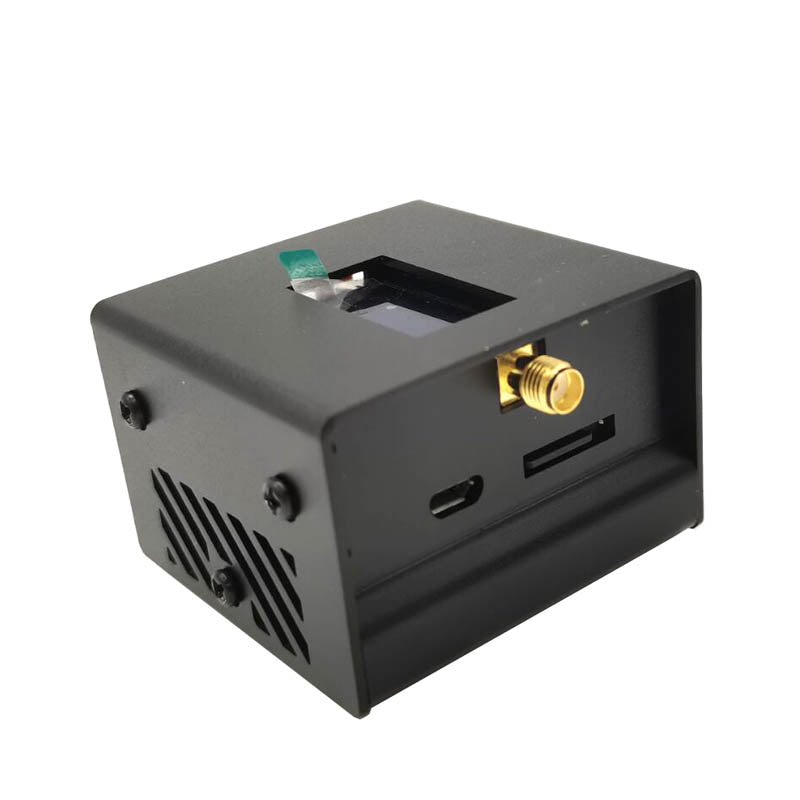

Jumbospot MMDVM Hotspot NanoPi NEO Replace Raspberry Pi UHF 433MHz DMR YSF P25 NXDN DSTAR POCSAG UV WiFi with Aluminum Case
Jumbospot MMDVM Hotspot NanoPi NEO Replace Raspberry Pi UHF 433MHz DMR YSF P25 NXDN DSTAR POCSAG UV WiFi with Aluminum Case
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
With wifi function
Features:
Mini and Portable, L/W/H 5.6x6x4.1mm, Two way circulation and natural heat dissipation to avoid fan noise
Support MMDVM mode: DMR/YSF/P25/NXDN/DSTAR/POCSAG
Frequency range: 144-146Mhz,420MHz-475MHz,842MHz-950MHz
3xFast Setting Speed then raspberry zerow /2w,don't wait.

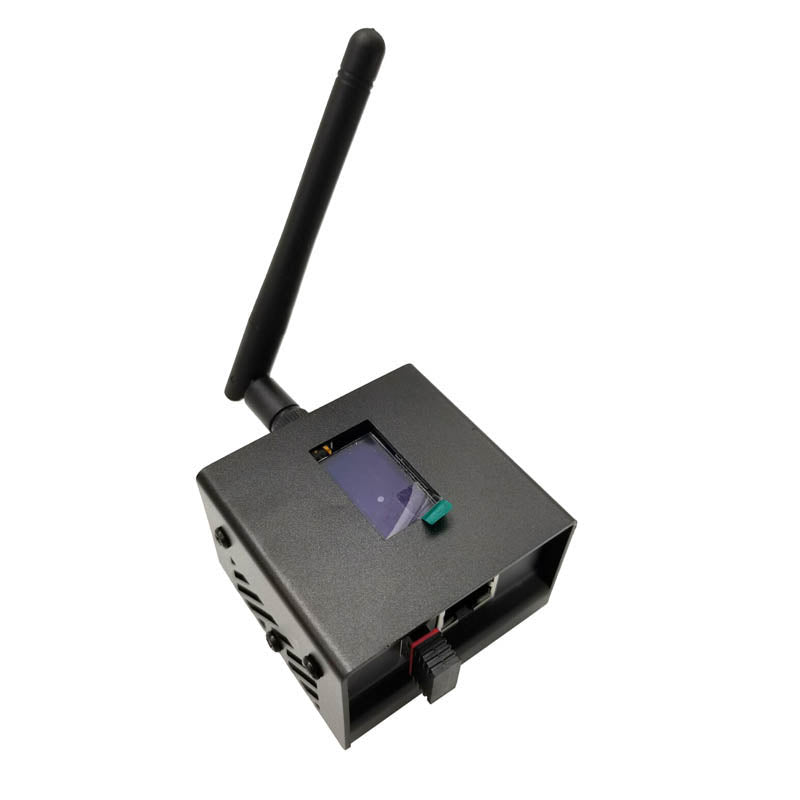

Replaceable folding antenna,center frequency 433MHz.
External USB port for USB wifi | rtlsdr stick |Usb to Serial connect Nextion 2.x-3.x tft screen
Certified seller:AURSINC/LUSYA with technical support
Including && components
1x MMDVM for nano PiHAT,
1x folding antenna,
1x Nanopi NEO 256M,
1x 16G/8G C10 TF Card

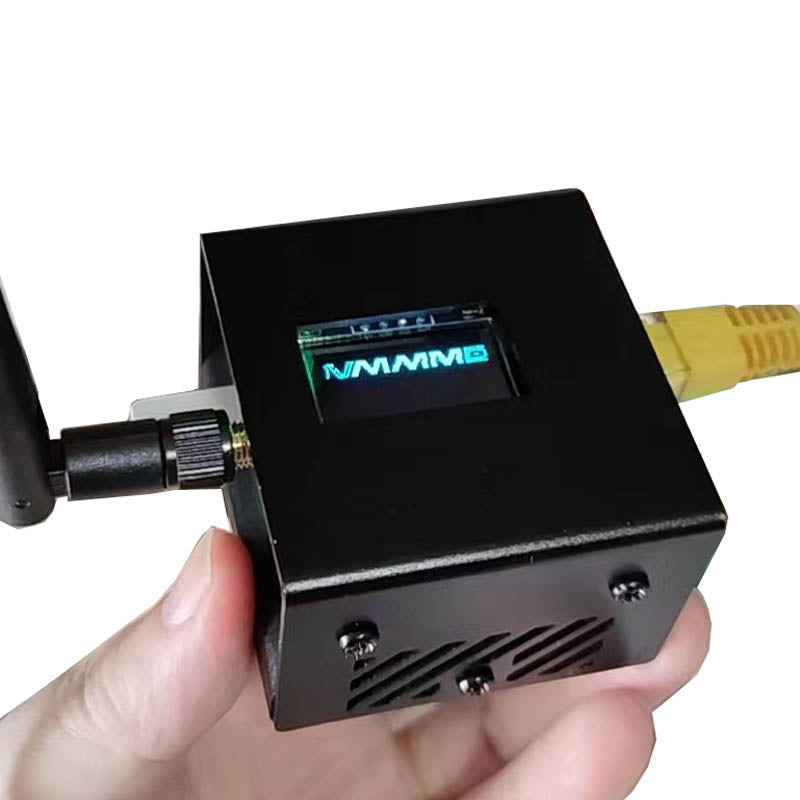

1x 0.96-inch OLED
Options:
1.USB to Usart ,use for link and power Nextion display.

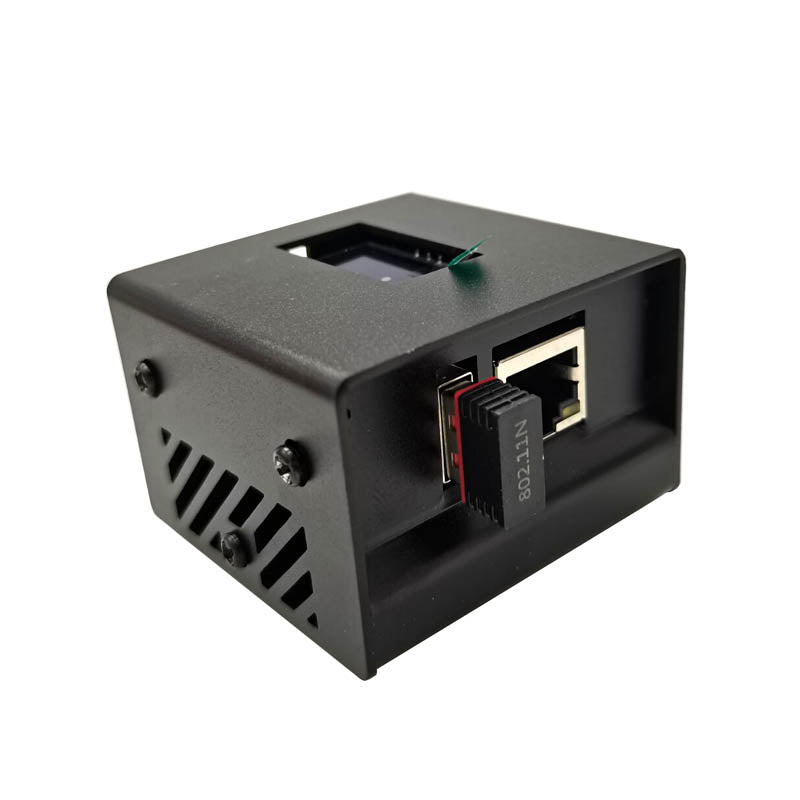

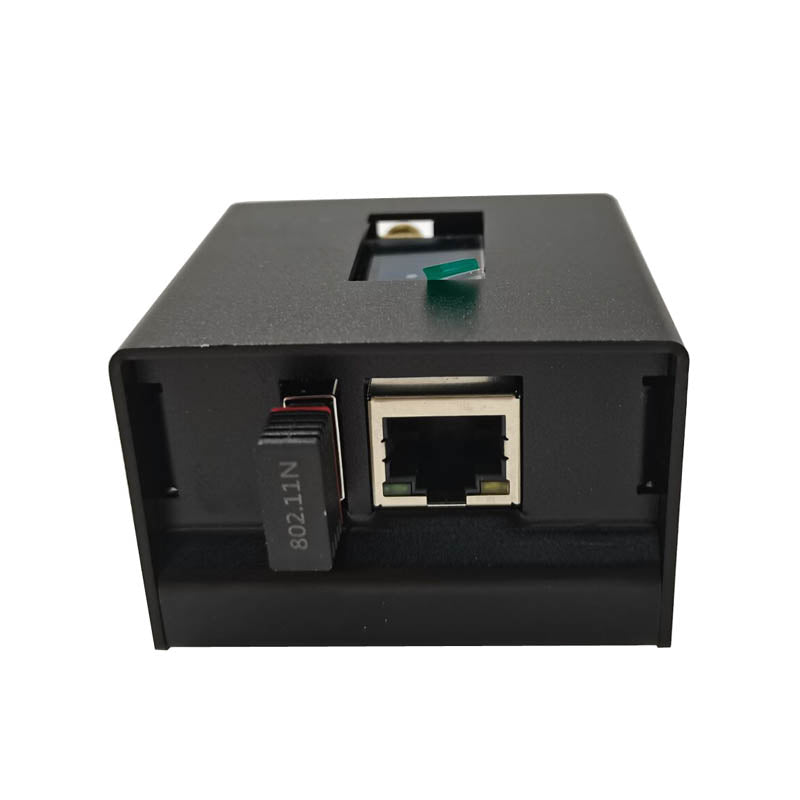

2.USB WiFi support wifi function
Specs and Docs:
Power require: 5V2A
MCU: F103C8T6
Transceiver IC: ADF7021,Programmable output power: -16dBm to +10dBm
TCXO: 14.7456MHz,±2.5 ppm
PCB: 40mmx40mmx1.2mm
Host: NanoPi NEO 256M RAM,v1.4,A3 Architecture
Options USB WiFi: RTL8188CUS
OLED: I2C 128*64px, blue color
SDCard: 8Gb
Charging cable: Micro USB can transfer data, support 5V2A
**Modem TYPE:"MMDVM_HS_NPi Hat (VR2VYE) for Nano Pi(GPIO)"
update FW: sudo pistar-vyehsflash nano_hs**
Warning:
Be sure to use a qualified power supply 5V2A, non-conforming power will lead to bit error rate(BER) instability, Overvoltage will burn this NanoPi and HAT!
