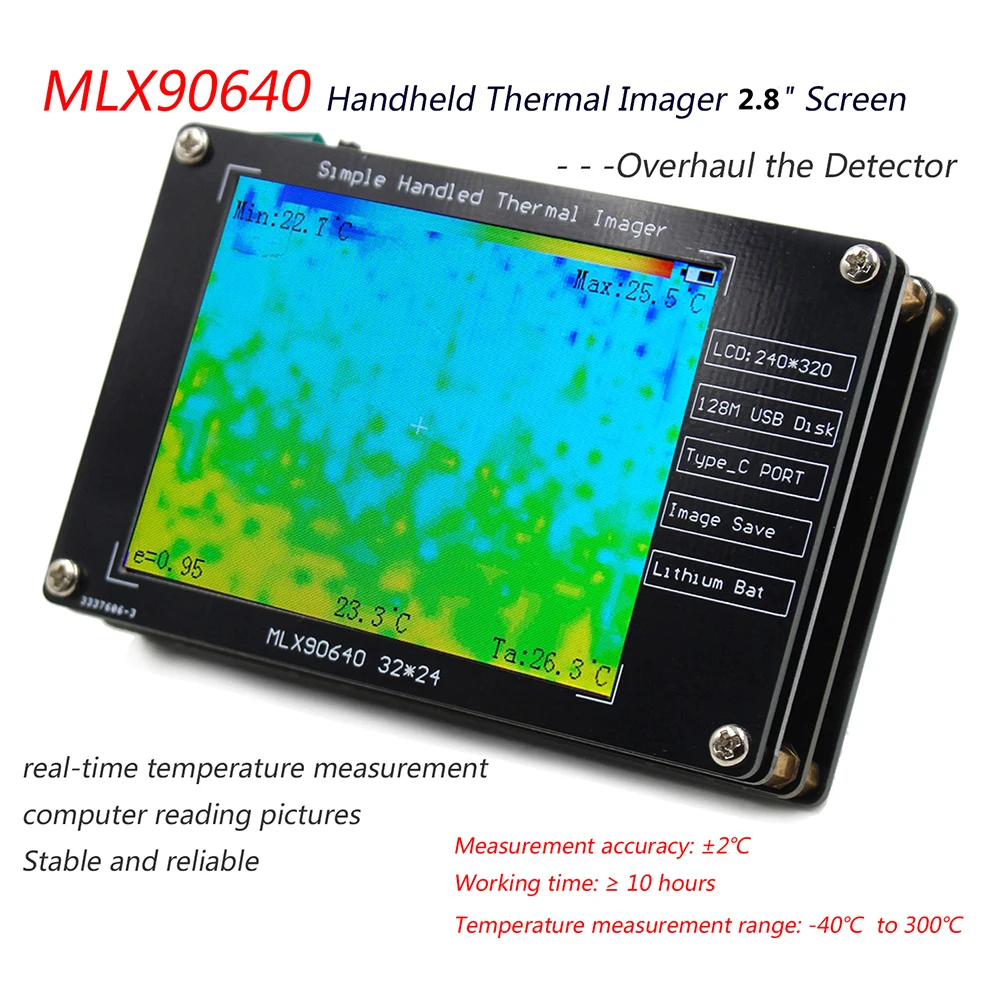

This is a hand-held multi-function thermal imager with the characteristics of small size and light weight. With a 2.8 "TFT display, the data is clear at a glance. It can be used in many occasions and is an indispensable tool for home and industrial use.
Features:
-Measuring range: - 40 ℃ to+300 ℃, 8Hz dynamic refresh rate

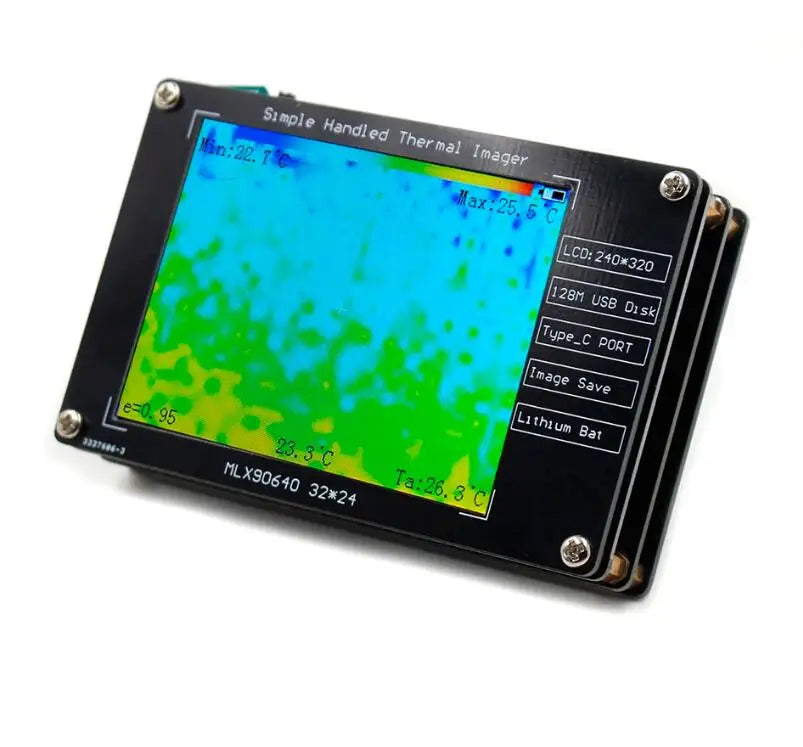

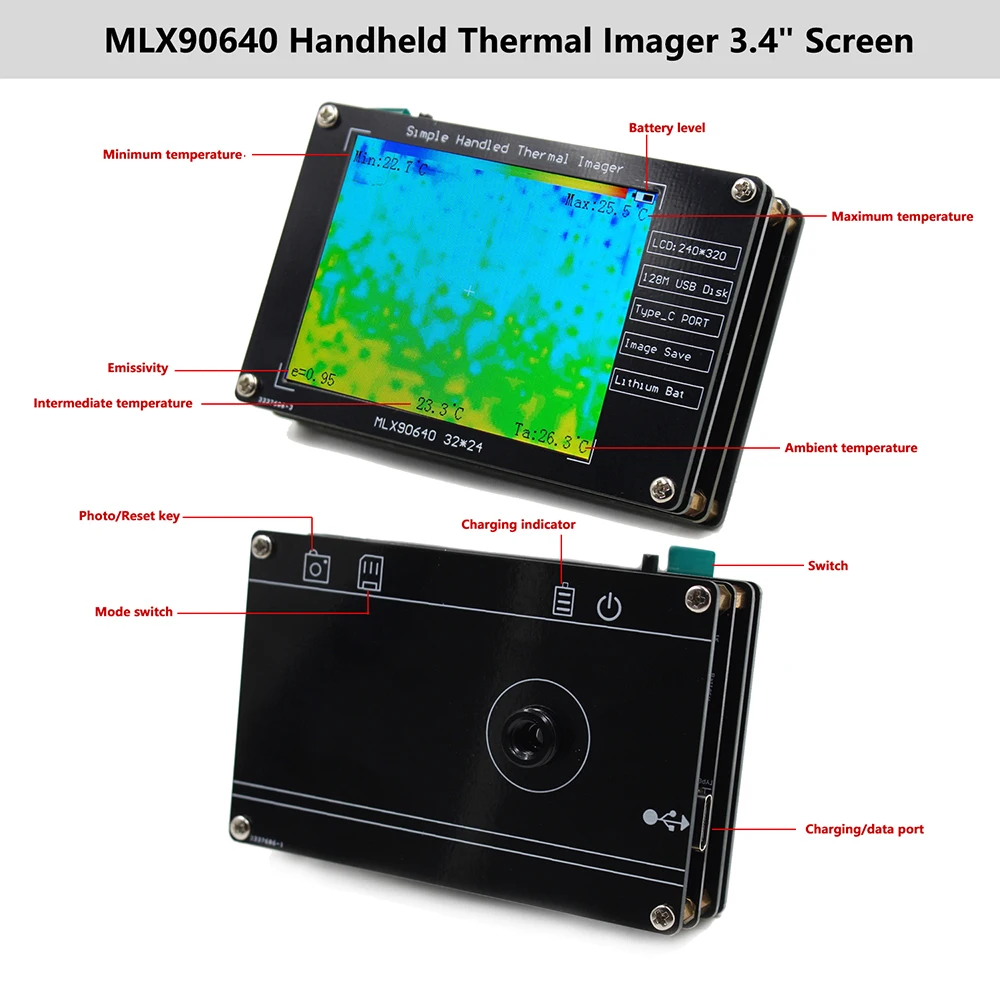

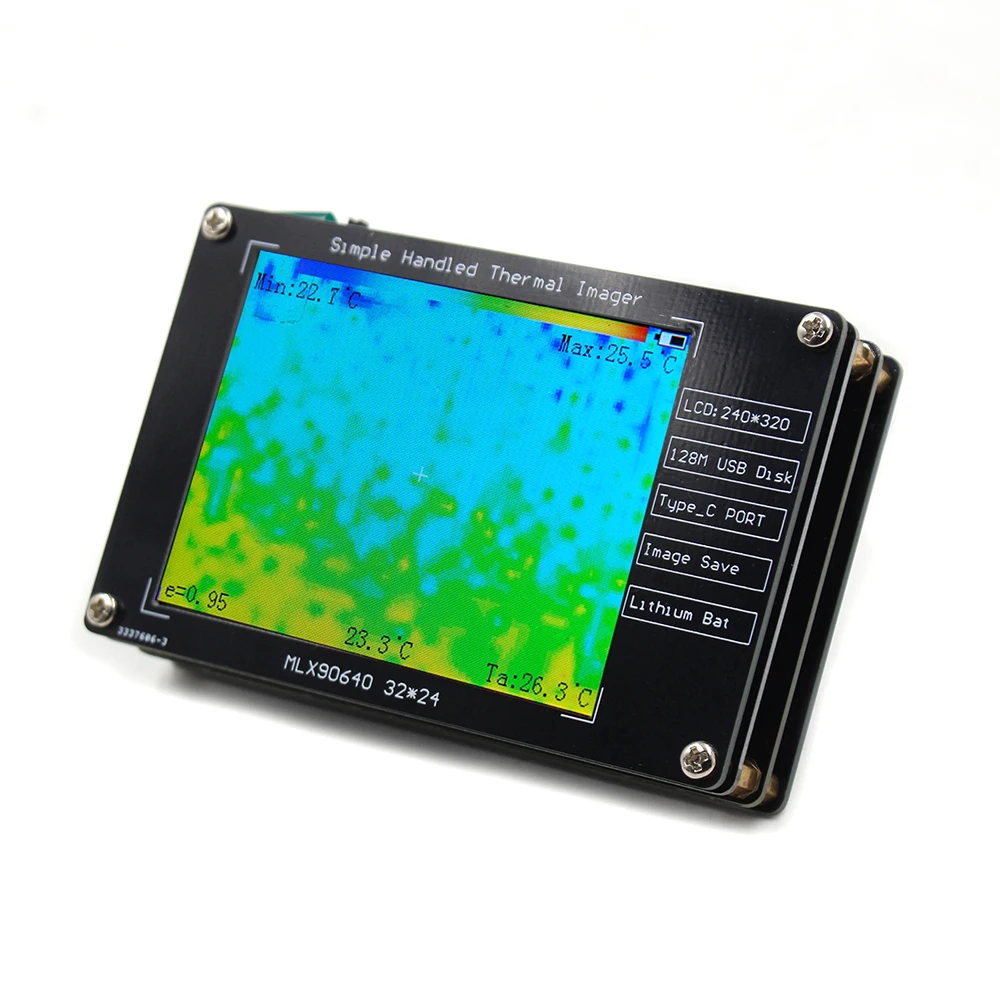

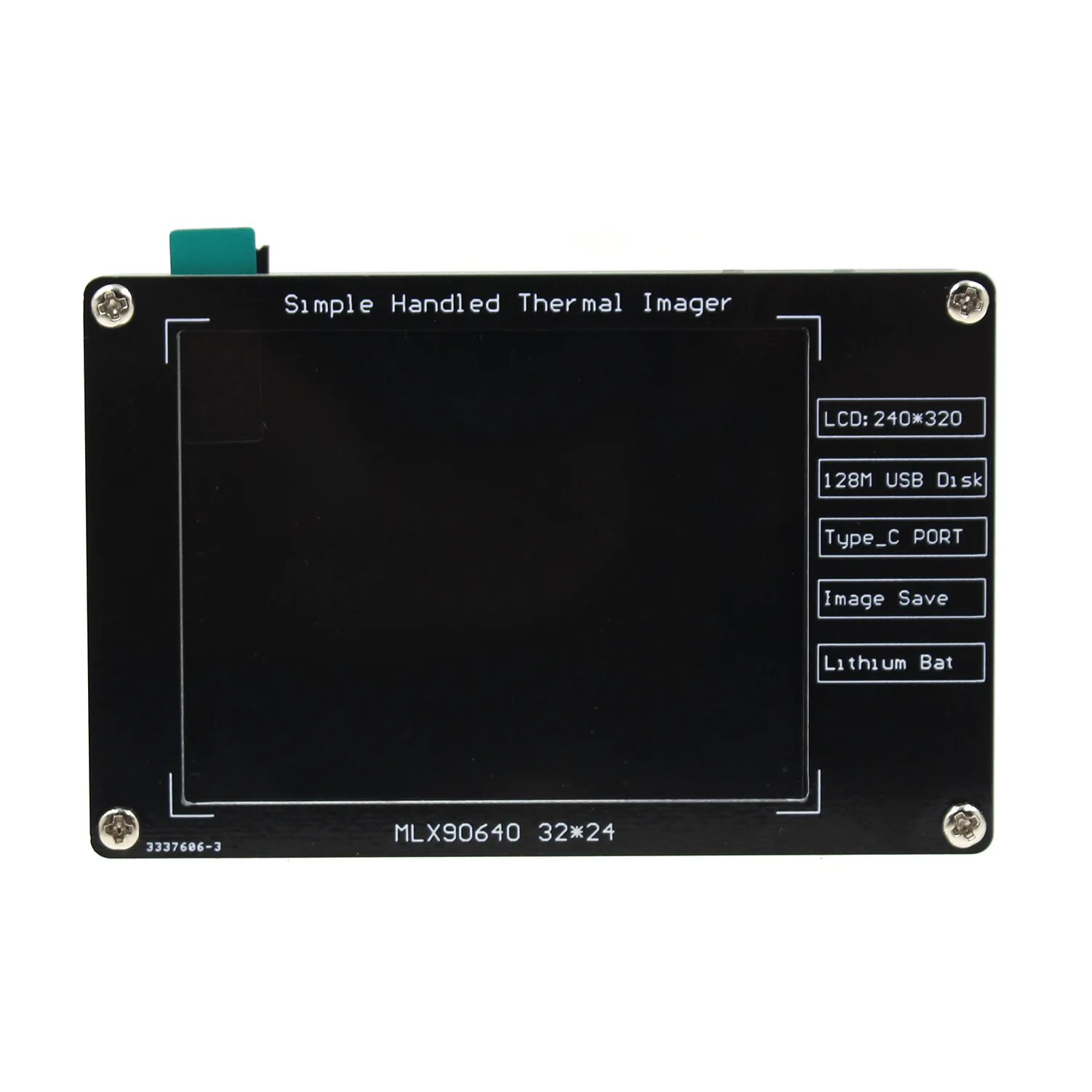

-2.8 "screen resolution is 320 * 240; the screen can display and track the maximum temperature, minimum temperature and center point temperature

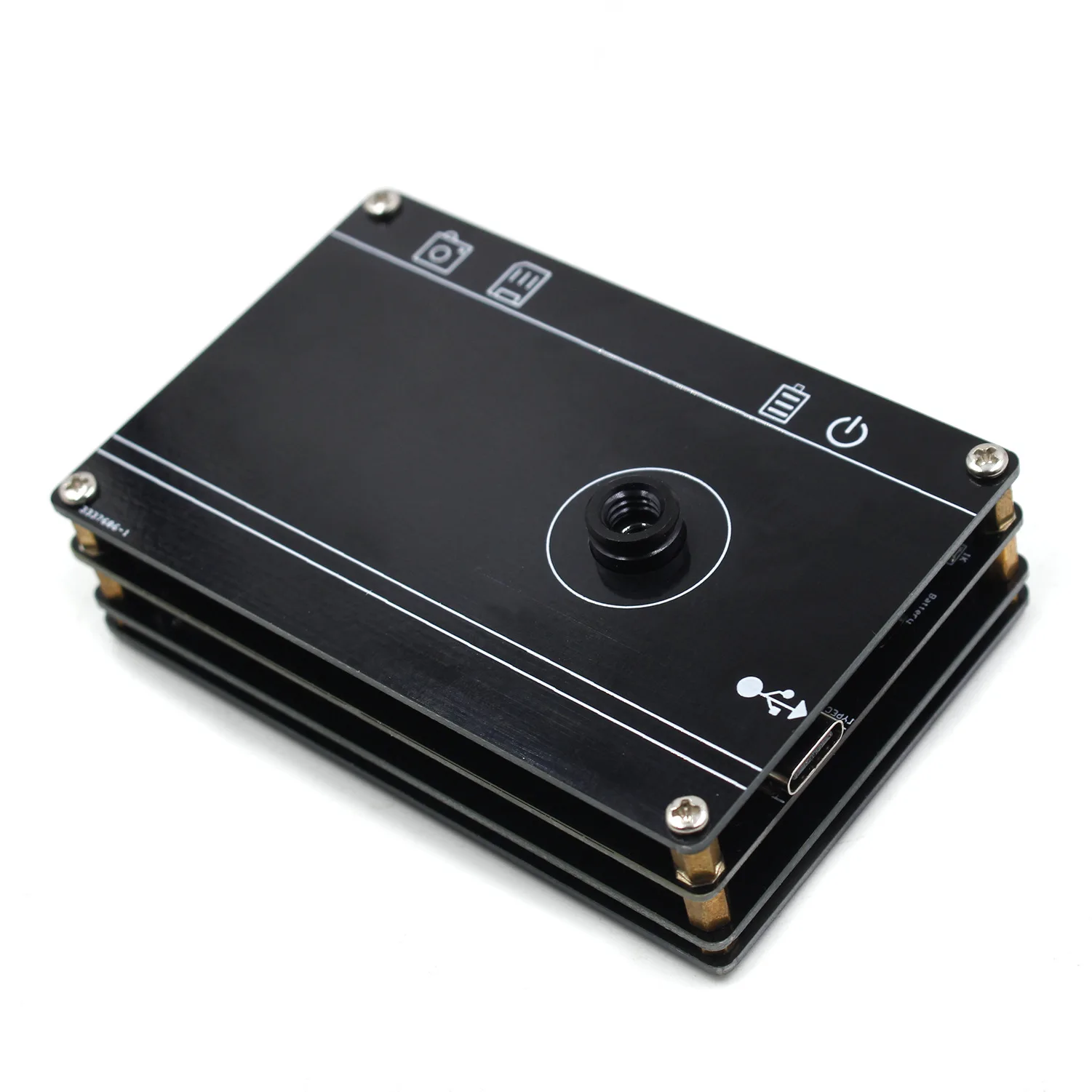

-The shell is made of FR4 epoxy sheet, which better protects the internal components and has a long service life
-Small size, easy to carry

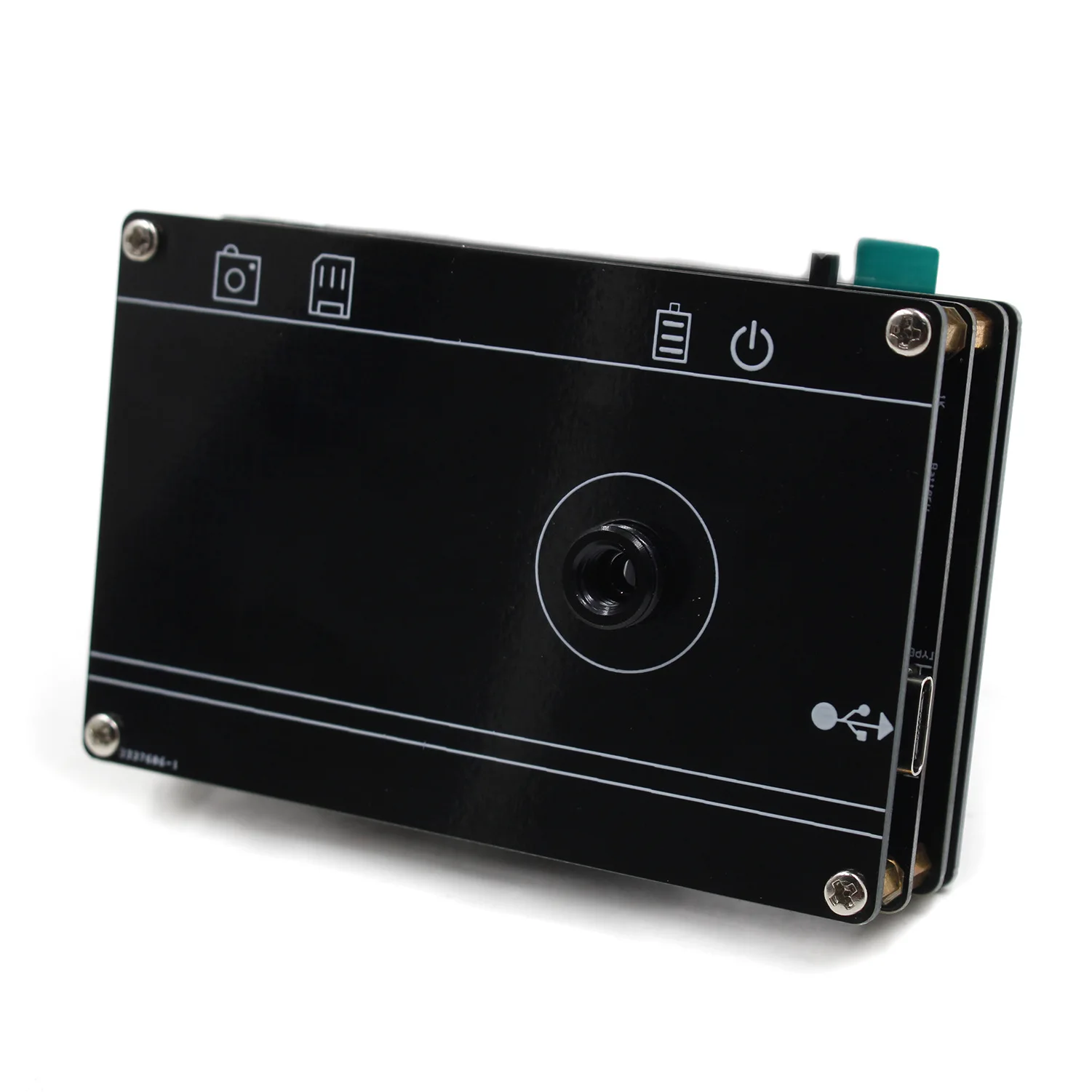

-Lithium ion battery power supply. USB-C charging; Up to 4 hours battery life. Can be used while charging
-Built in SPI Flash chip, which can store 100 pictures. View and copy image files by connecting a data cable to a computer or mobile phone
-Integrated design without external equipment
Specifications:
-Material: epoxy resin board+printed circuit board
-Infrared sensor: MLX90640ESF-BAB
-Hardware resolution: 32 * 24 pixel far-infrared array
-Screen resolution: 320 * 240 pixels
-Temperature measurement range: - 40 ℃ to 300 ℃,
-Measurement accuracy: ± 2 ℃,
-Operating temperature: 0 to 50 ℃,
-Working humidity: ≤ 70%
-Refresh rate: 8Hz
-Field of vision: horizontal 55 ° x vertical 35 °
-Emissivity: 0.95
-Charging specification: USB Type-C5V/1A

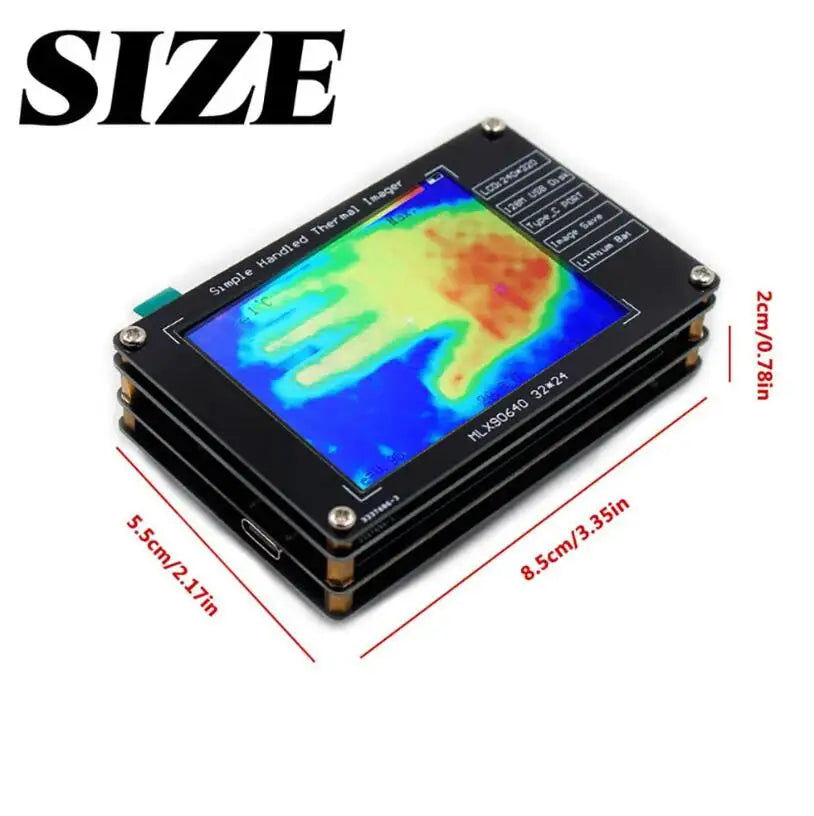

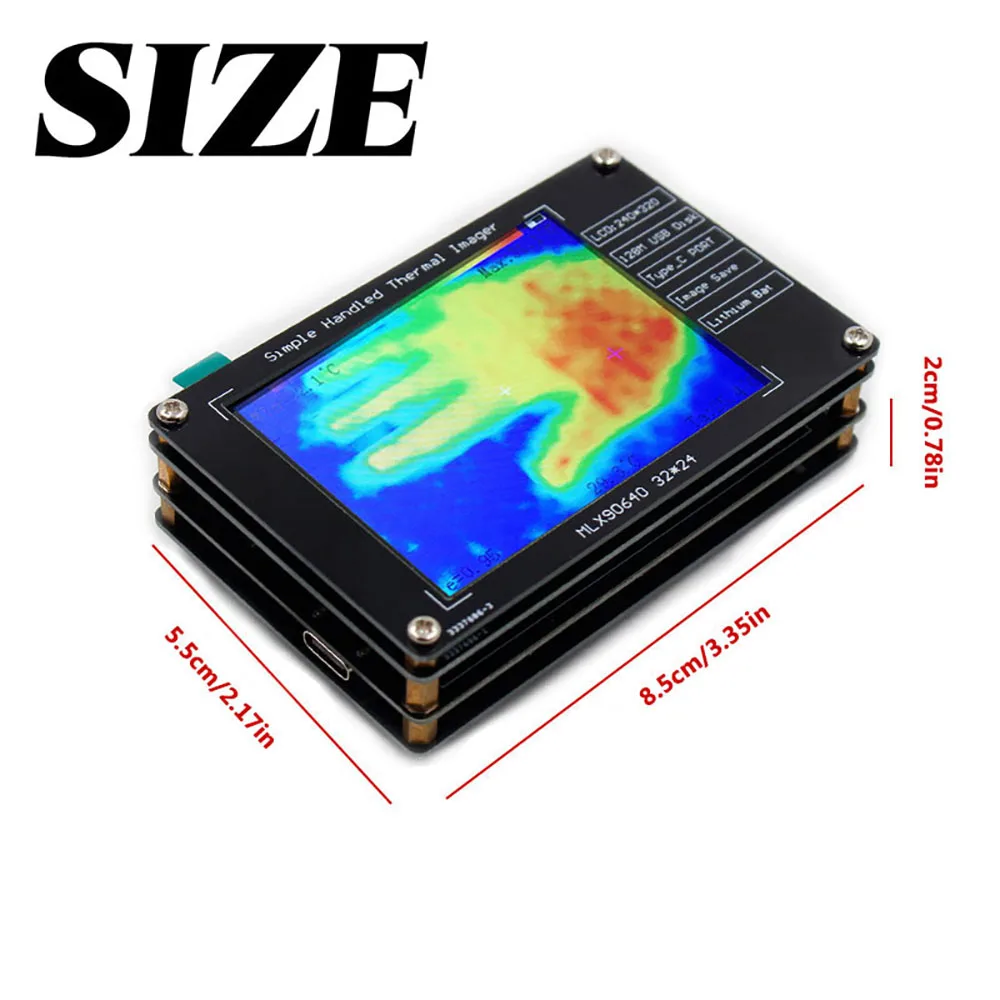

-Product size: 85 * 55 * 30mm
-Battery: 3.7V 800mAh lithium ion battery
-Working time: ≥ 4 hours

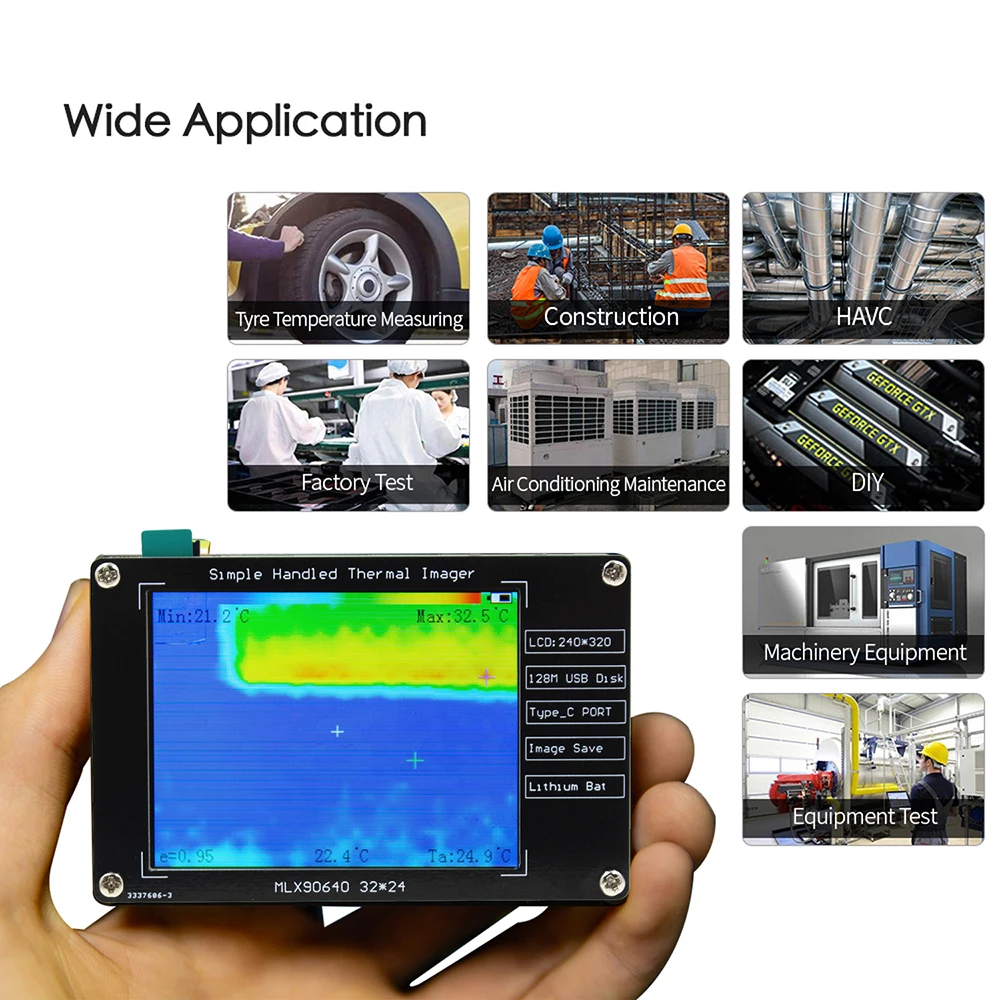

Application:
-High precision non-contact temperature measurement
-Security and intrusion detection

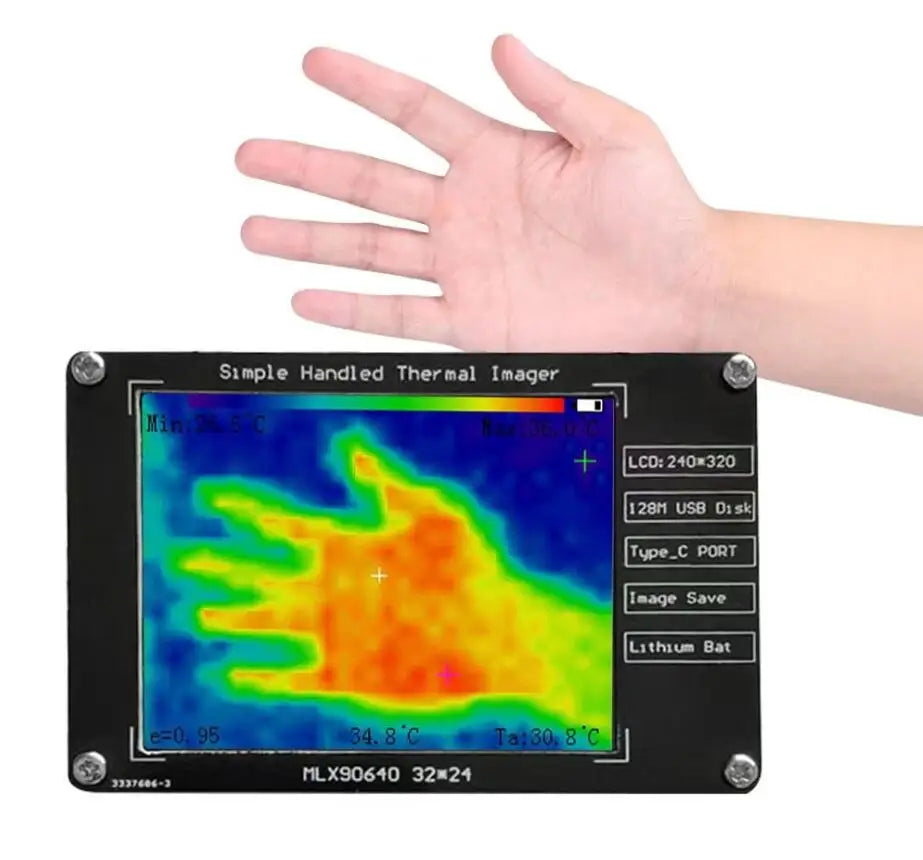

-Body temperature detection
-Ambient temperature measurement and control of intelligent buildings
-Automobile air conditioning control
-Microwave oven and oven temperature detection and control
-Temperature Monitoring of Industrial Parts
-Visual temperature sensor
-Side leakage and maintenance of floor heating equipment
-Thermal detection of circuit boards and components
Packing list:
1 * Thermal imager
1 * Mirror wiping cloth
1*USB Type-C
