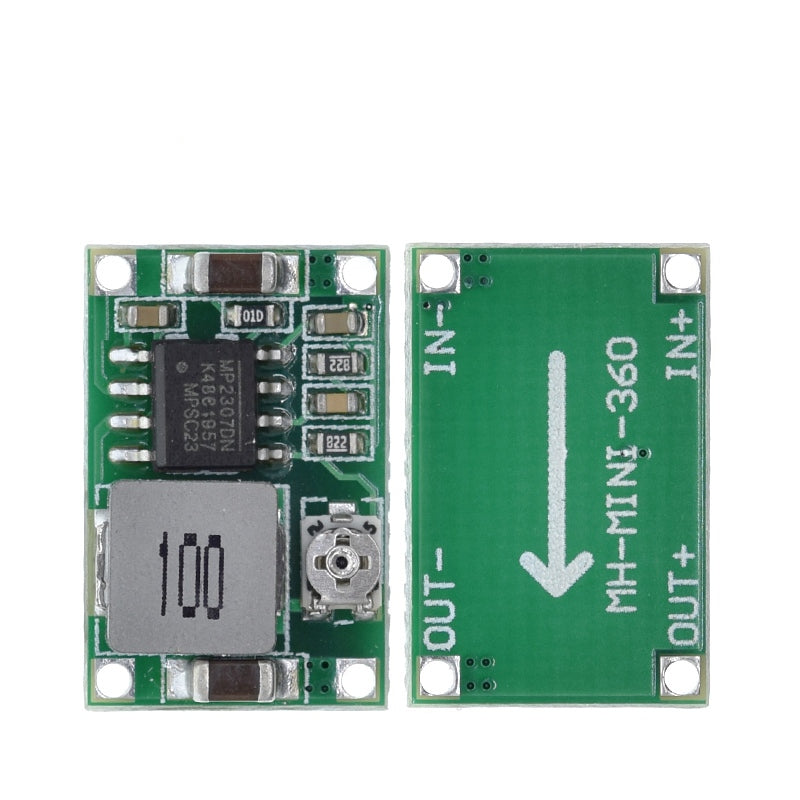

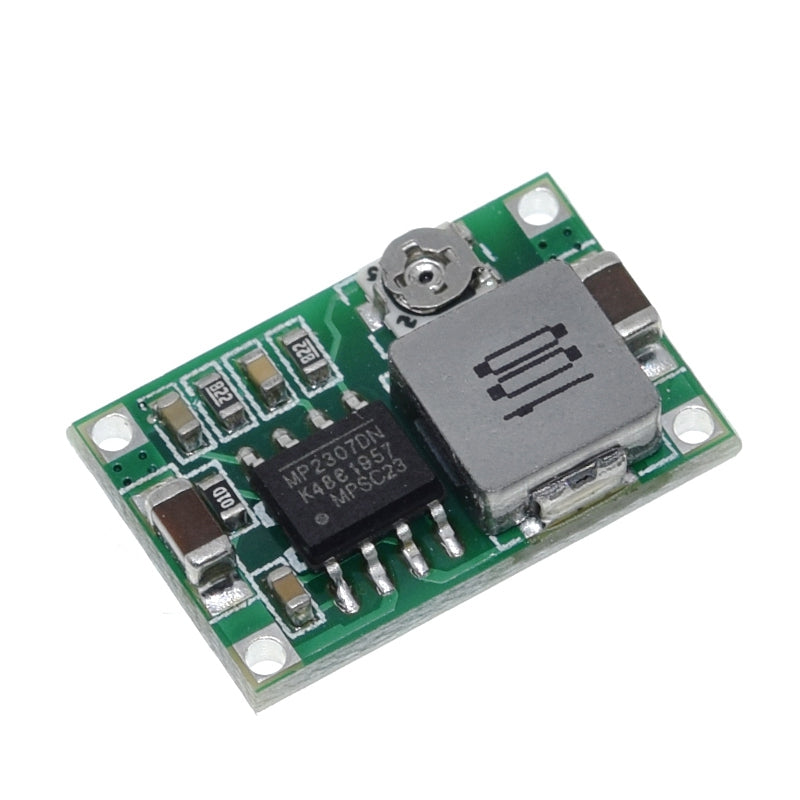

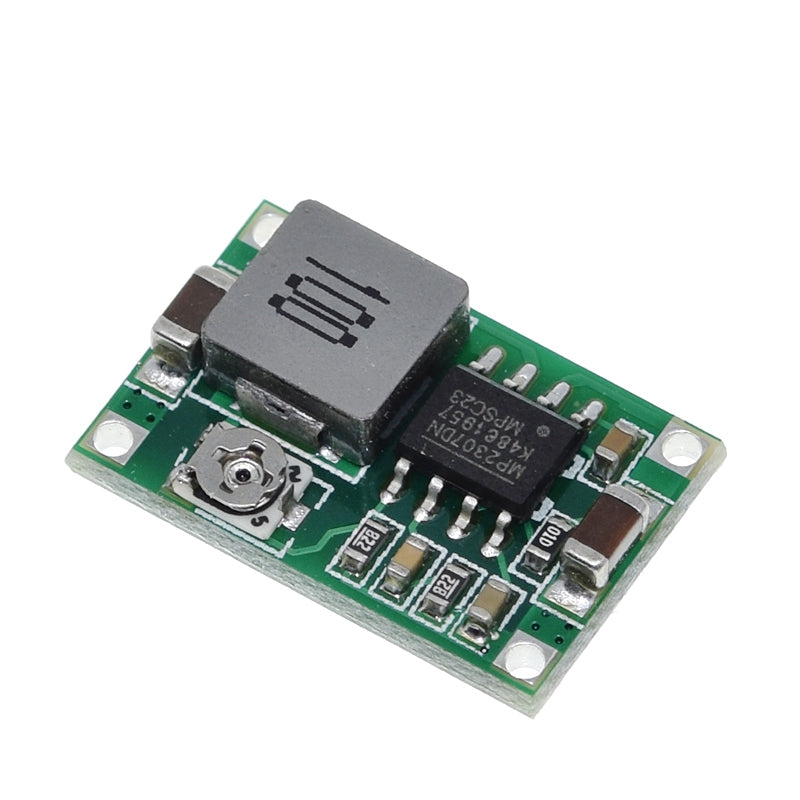

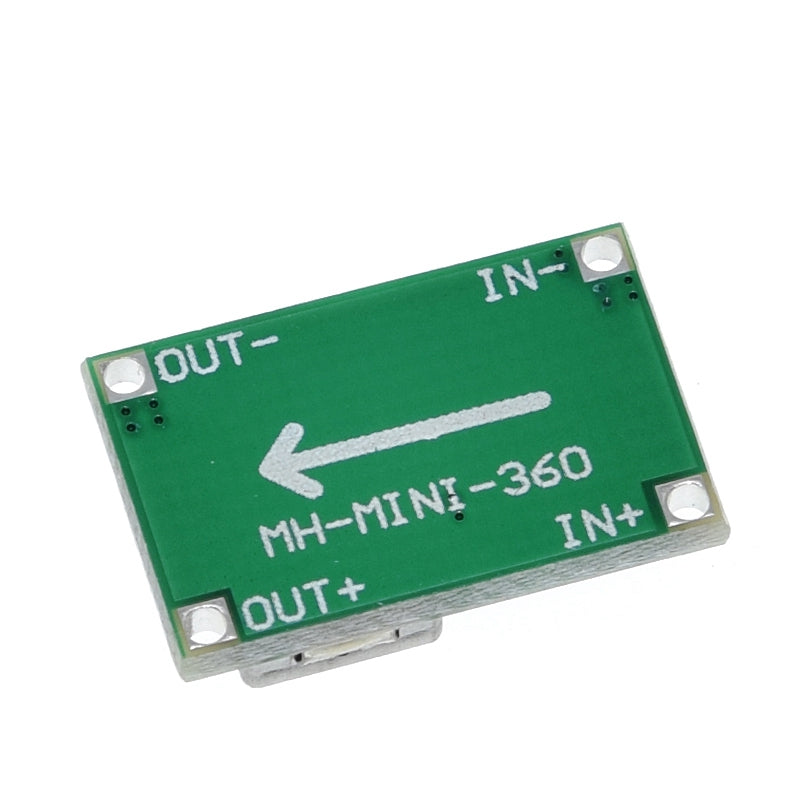

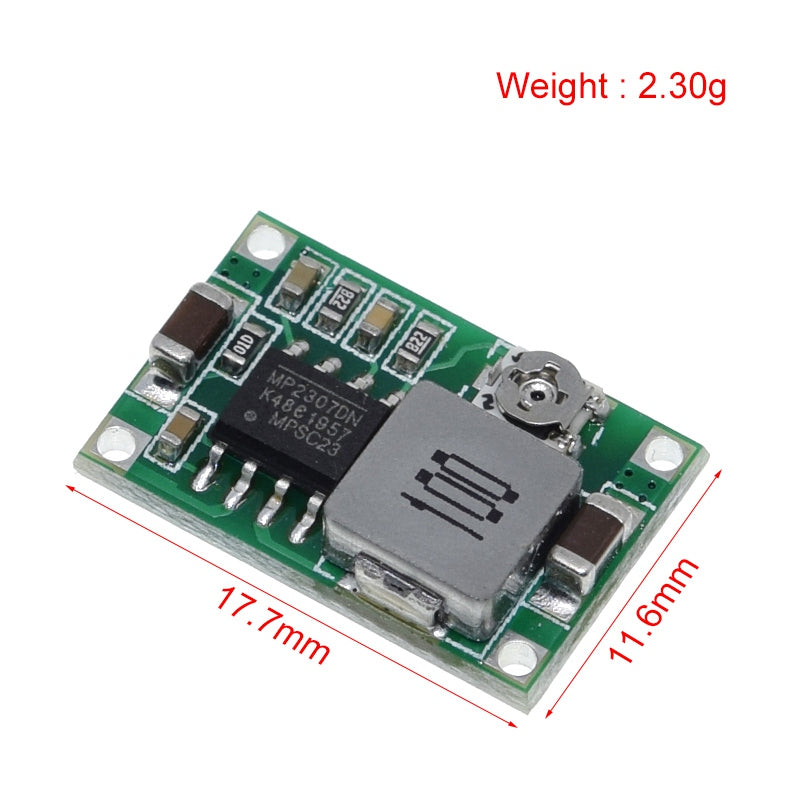

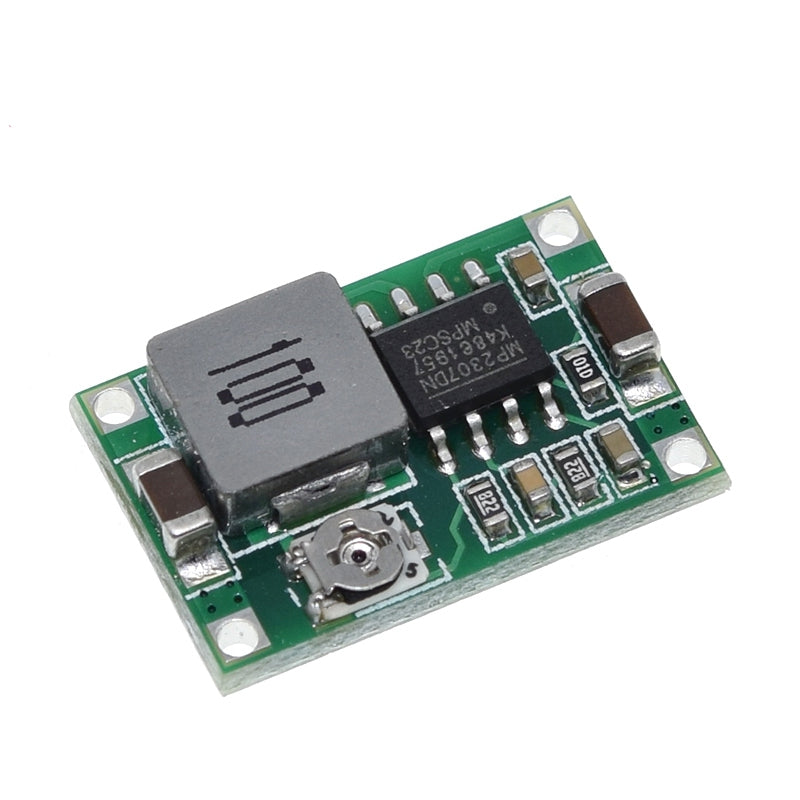

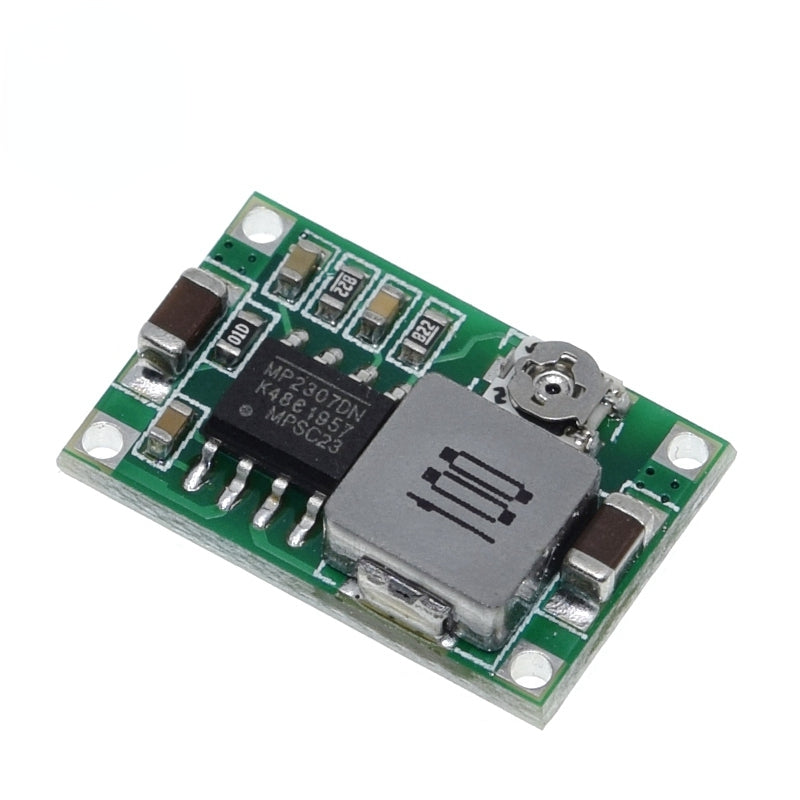

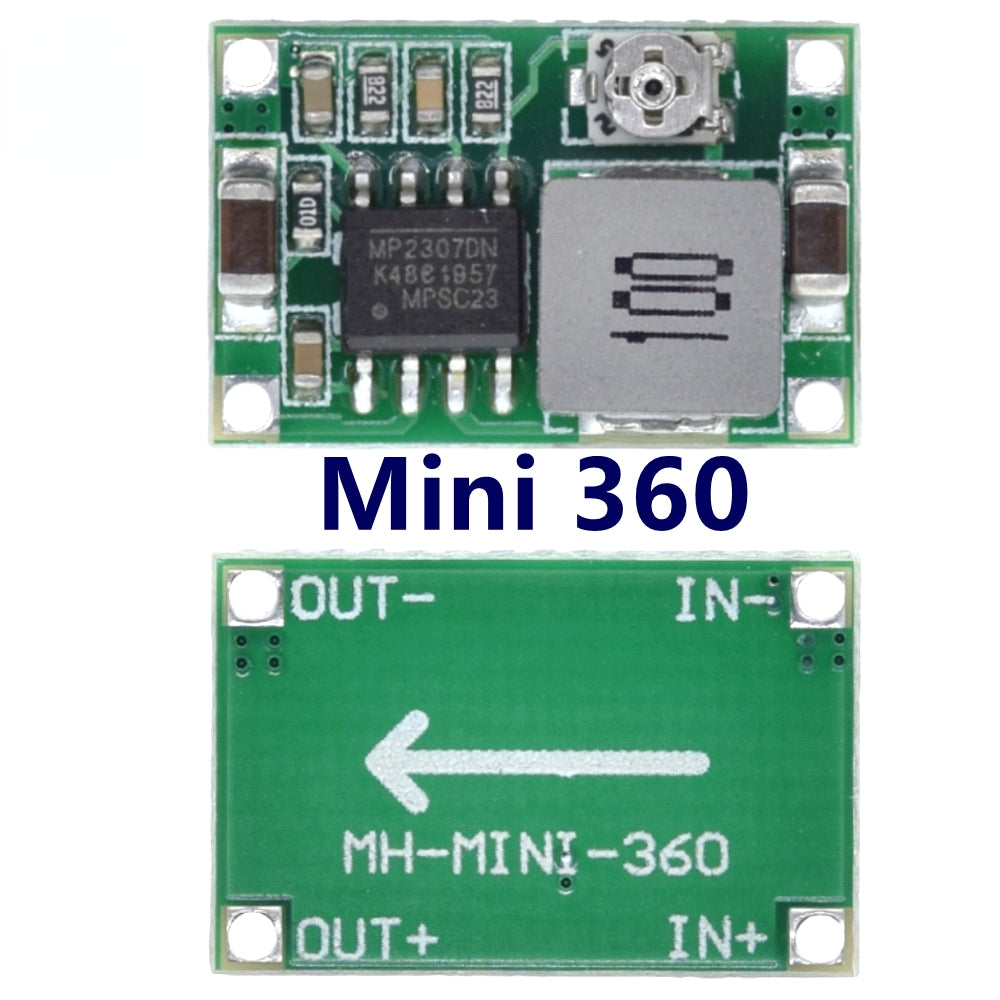

Mini360 DC-DC Buck Converter Step Down Module 4.75V-23V To 1V-17V 17x11x3.8mm SG125-SZ+
Mini360 DC-DC Buck Converter Step Down Module 4.75V-23V To 1V-17V 17x11x3.8mm SG125-SZ+
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
-
Model Name:Mini-360 (ultra small size DC-DC synchronous rectifier buck module)
-
Module Properties:non-isolated buck
-
Rectification:synchronous rectification
-
Input voltage:4.75V-23V
-
Output voltage:1.0V-17V
-
Output Current:lowering the value of 3A, long 1.8A
-
Conversion efficiency:96% (maximum)
-
Switching Frequency:340KHz
-
Output ripple:30mV (no-load)
-
Load regulation:± 0.5%
-
Voltage regulation:± 2.5%
-
Working temperature:-40 Celsius to +85 Celsius
-
Features:Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
-
Description
Description
-
Model Name:Mini-360 (ultra small size DC-DC synchronous rectifier buck module)
-
Module Properties:non-isolated buck
-
Rectification:synchronous rectification
-
Input voltage:4.75V-23V
-
Output voltage:1.0V-17V
-
Output Current:lowering the value of 3A, long 1.8A
-
Conversion efficiency:96% (maximum)
-
Switching Frequency:340KHz
-
Output ripple:30mV (no-load)
-
Load regulation:± 0.5%
-
Voltage regulation:± 2.5%
-
Working temperature:-40 Celsius to +85 Celsius
-
Features:Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
-
