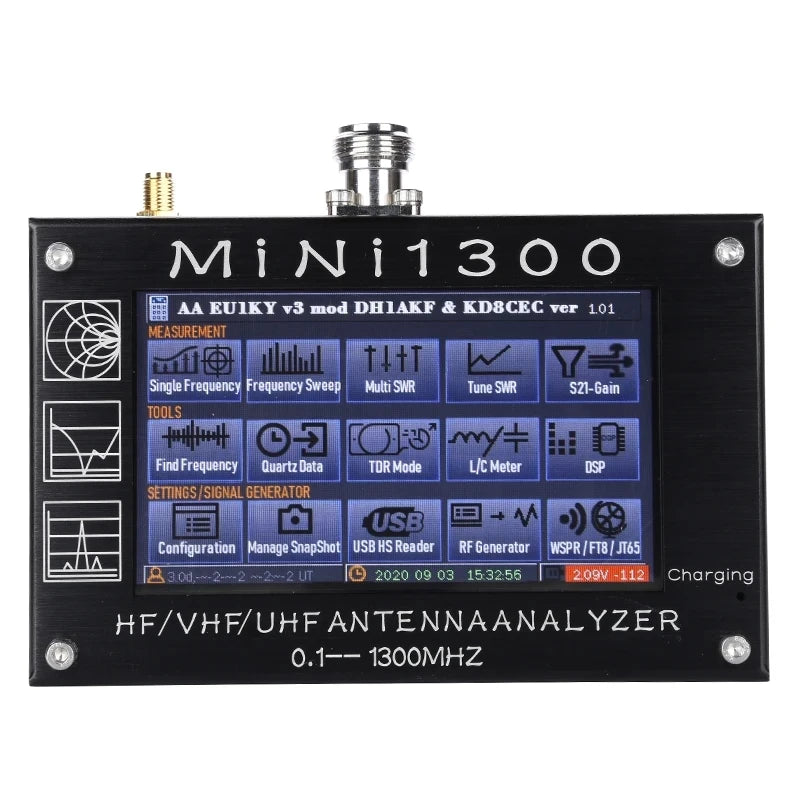

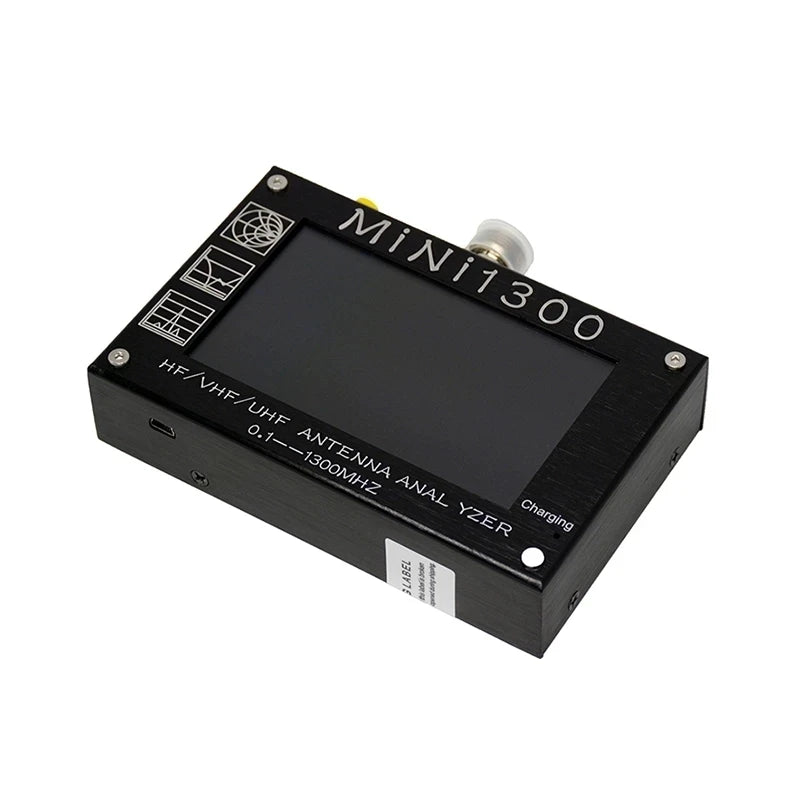

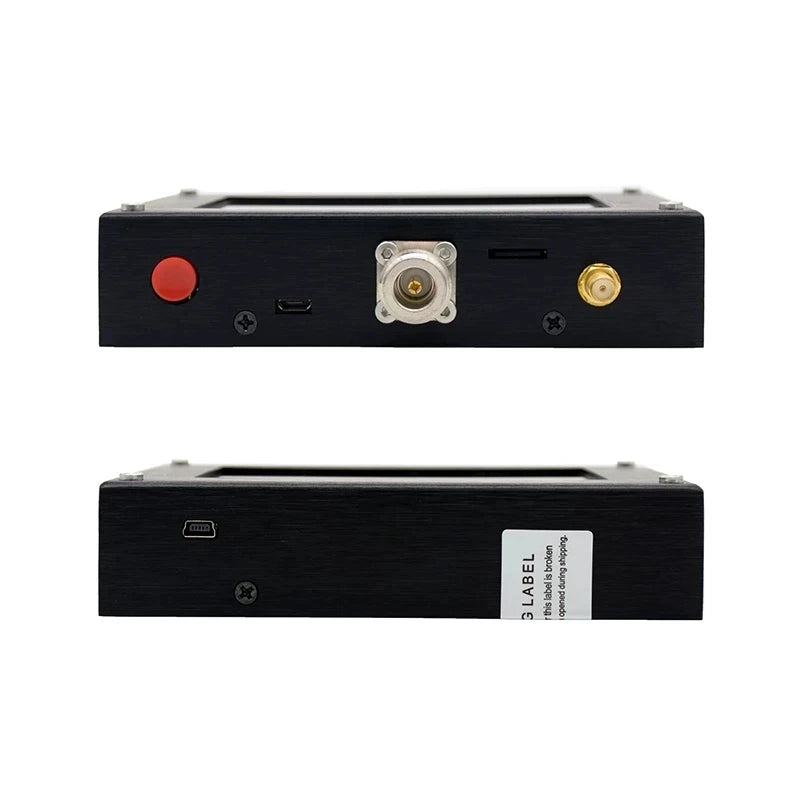

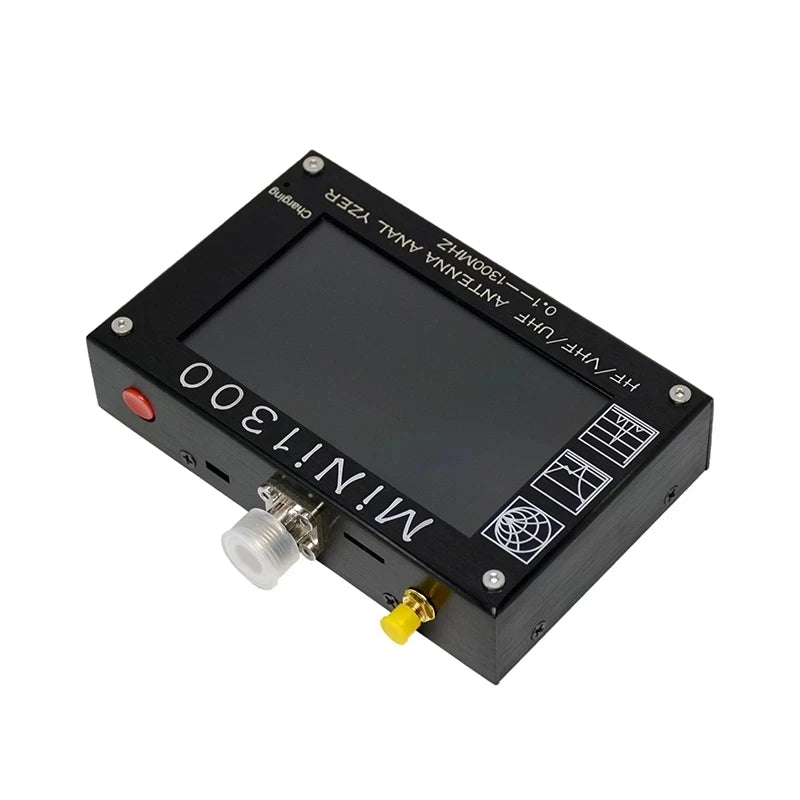

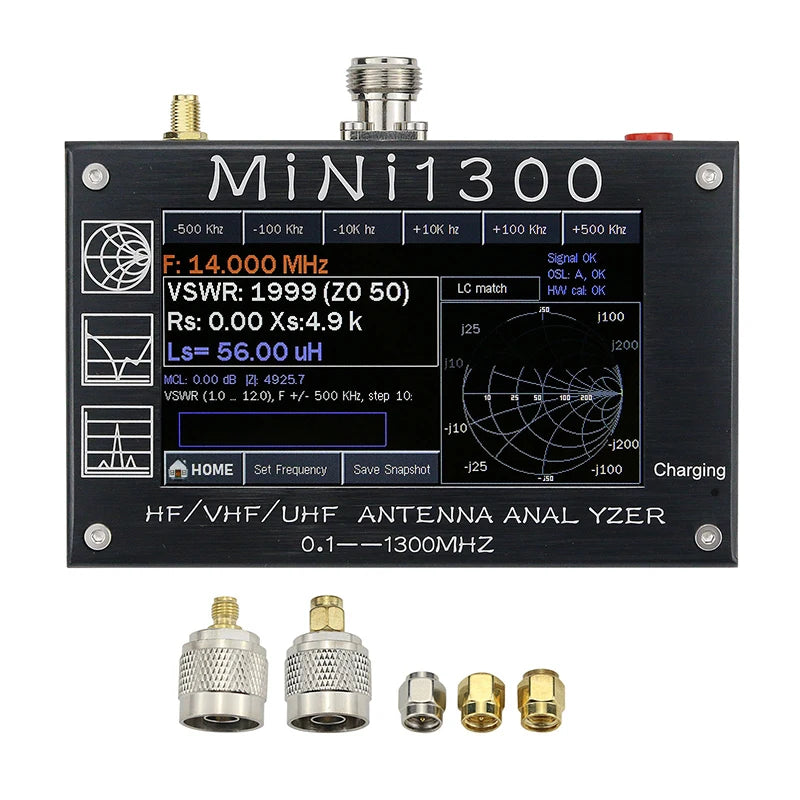

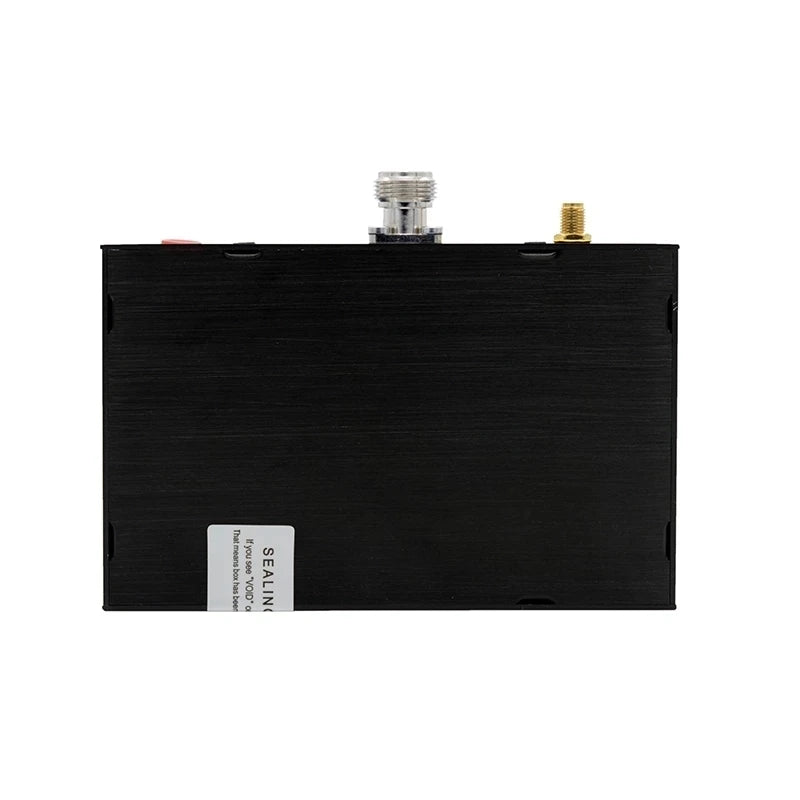

Mini1300 4.3 inch LCD Touch Screen 0.1-1300MHz HF/VHF/UHF ANT SWR Antenna Analyzer Meter Tester
Mini1300 4.3 inch LCD Touch Screen 0.1-1300MHz HF/VHF/UHF ANT SWR Antenna Analyzer Meter Tester
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Specifications:
- Frequency Range: 0.1-1300MHz
- HF/VHF/UHF continuous coverage
- In/Out Impedance: 50 ohms
- Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss
- Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
- SWR Measurement Range: 1.0-1999（Single Point Mode), 1.0-20.0 (Scan Mode)
- Display Modes: Numerical display, curve display, simith chart
- Connector Type: UHF N-type connector
- VNA: SMA
- SMA OPEN-SHORT
-LOAD Calibration Kit x 1
- LCD size: 480x272 4.3" TFT LCD display
- Touch Screen Type: Capacitive
- Power Source: USB or Internal Power Supply
- Built-in charging circuitry and DC-DC booster
- Maximum charging current: 5V/1.5A
- External Storage Method: TF card
- Dimensions: 133 x 85 x 29 mm (Not including connector and switch)
- Weight: 550g
Package Included
Description
Description
Specifications:
- Frequency Range: 0.1-1300MHz
- HF/VHF/UHF continuous coverage
- In/Out Impedance: 50 ohms
- Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss
- Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
- SWR Measurement Range: 1.0-1999（Single Point Mode), 1.0-20.0 (Scan Mode)
- Display Modes: Numerical display, curve display, simith chart
- Connector Type: UHF N-type connector
- VNA: SMA
- SMA OPEN-SHORT
-LOAD Calibration Kit x 1
- LCD size: 480x272 4.3" TFT LCD display
- Touch Screen Type: Capacitive
- Power Source: USB or Internal Power Supply
- Built-in charging circuitry and DC-DC booster
- Maximum charging current: 5V/1.5A
- External Storage Method: TF card
- Dimensions: 133 x 85 x 29 mm (Not including connector and switch)
- Weight: 550g
Package Included
