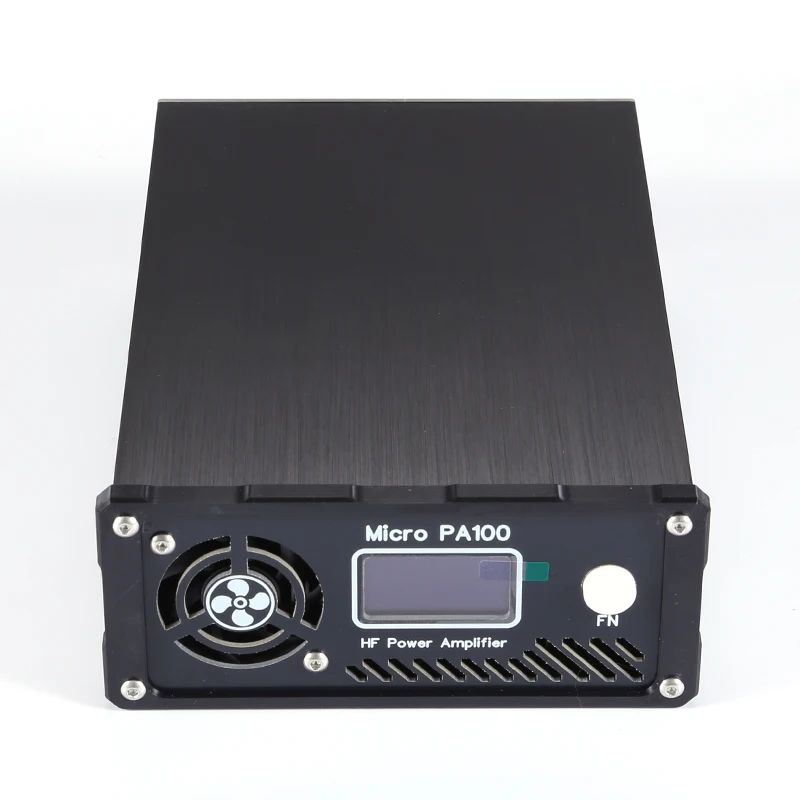

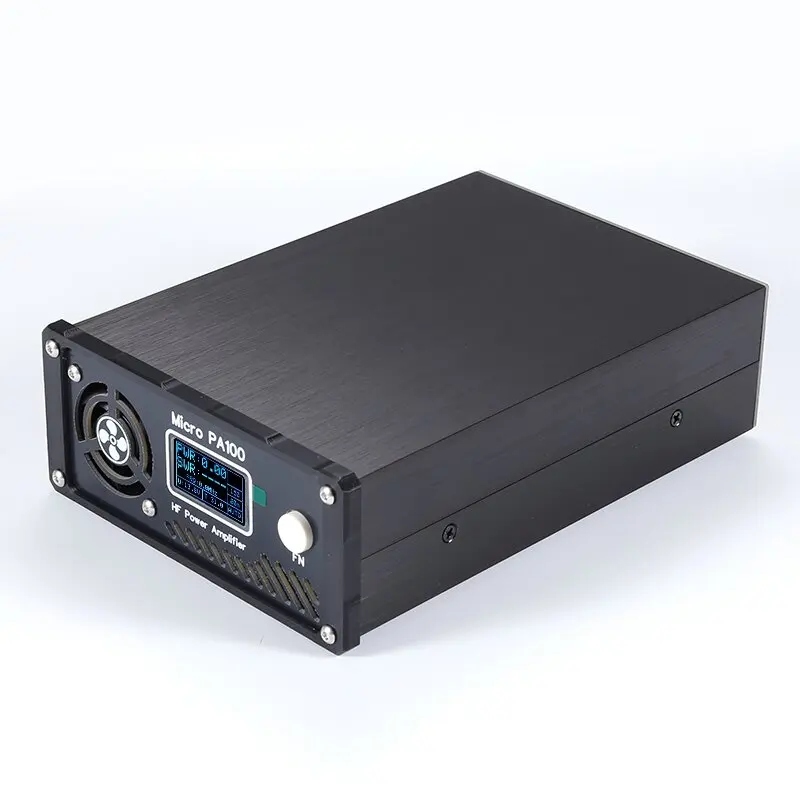

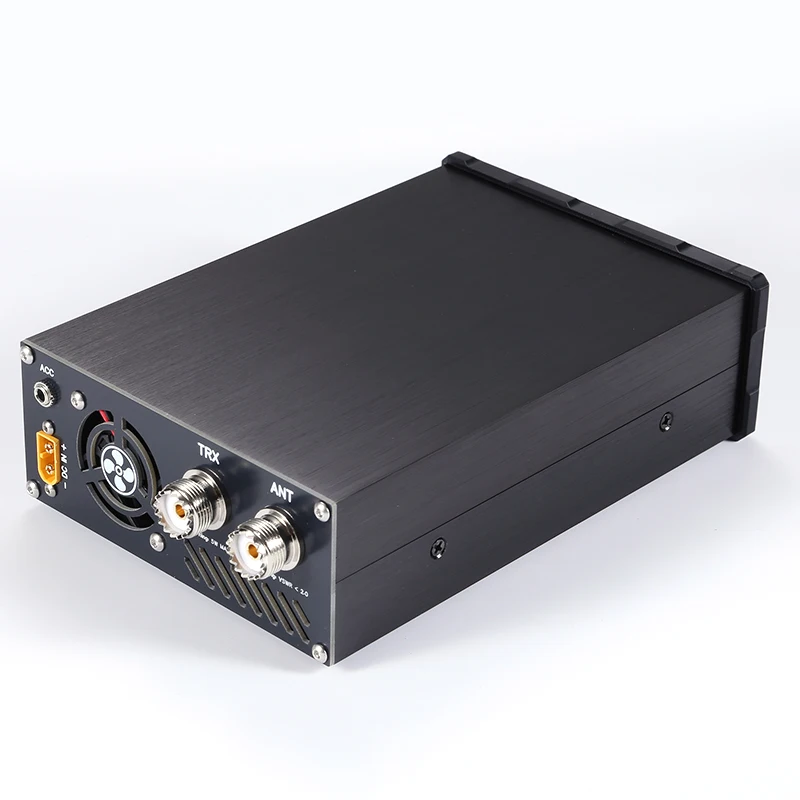

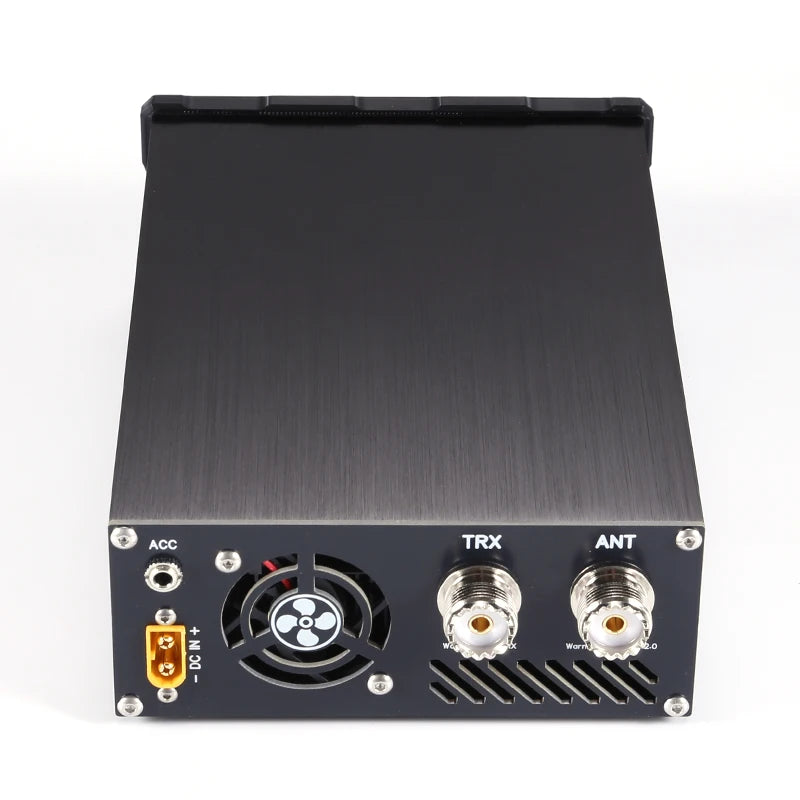

Micro PA100 portable/base dual-use intelligent 100w shortwave amplifier.

Introduction:

△ 100W power intelligent portable/base shortwave frequency band power amplifier.

△ High speed automatic transmission and reception switching, with RF triggering, can automatically switch transmission and reception states even without PTT SEND;

△ High speed automatic switching of LPF filter, no need to connect ACC control line, can automatically switch the corresponding LPF, 5 sets of 5th order LPF cover all HAM dedicated short wave communication frequency ranges from 80 meters to 10 meters;

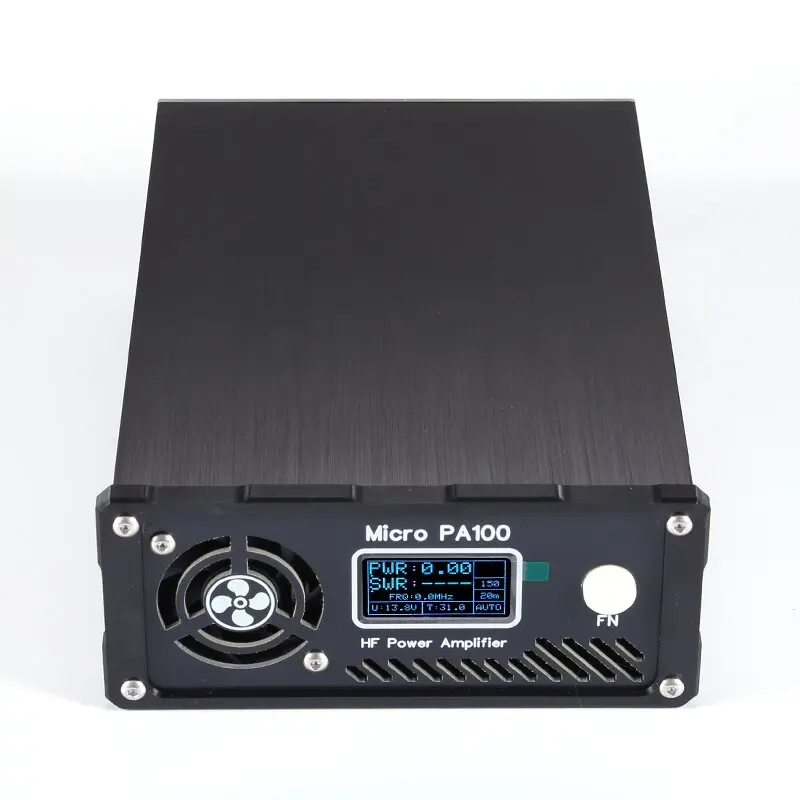

△ Power and standing wave display and protection ensure reliable equipment safety under poor antenna conditions and are not easily damaged;

△ Wide voltage range, voltage display and protection, more convenient for outdoor use of lithium battery power supply;

△ Temperature display, temperature protection, intelligent dual fan cooling;

△ Half insertion mode function, which can have half insertion function even without connecting PTT SEND;

△ Supports ICOM, YAESU, and XIEGU band switching protocols (requires ACC control line connection).

Parameters:

Frequency range: 3.5MHz-30MHz

Input power: 1-5W (maximum 7W)

Output power: 100W ± 1.5dB @ 13.8V

Output impedance: 50 Ω

Supply voltage: 10V-15V; 13.8V (typical value) (note: lower voltage will provide lower power output)

Current consumption: ≤ 18A

Working temperature: ≤ 55℃

Dimensions: 125 * 51 * 180 (excluding protrusions); 132 * 58 * 198 (including protrusions)

Weight: ≈ 1.1kg

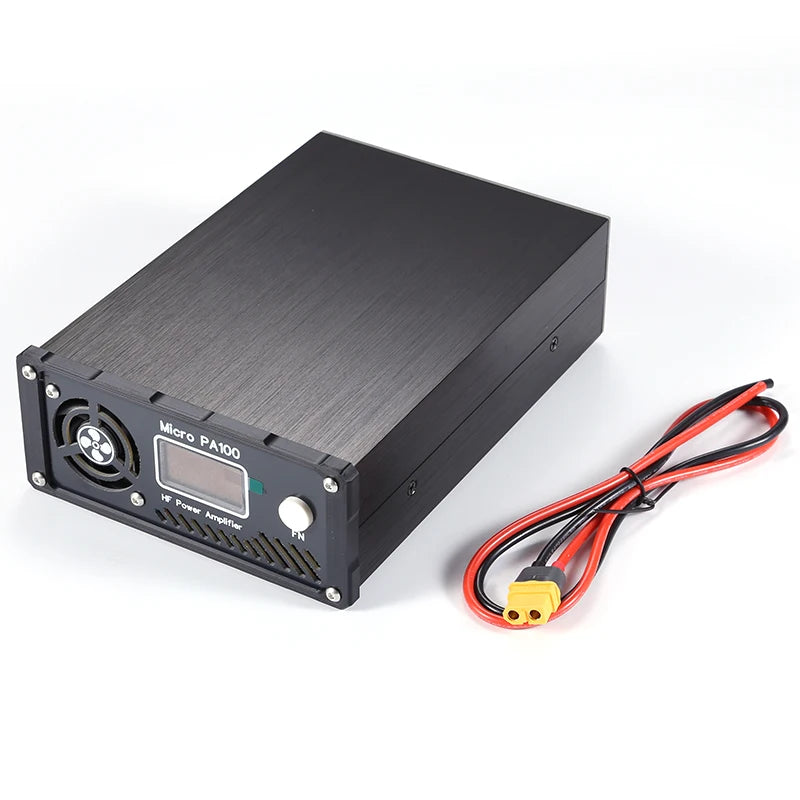

Package includeds:

1 x PA100 power amplifier

1 x power cord
