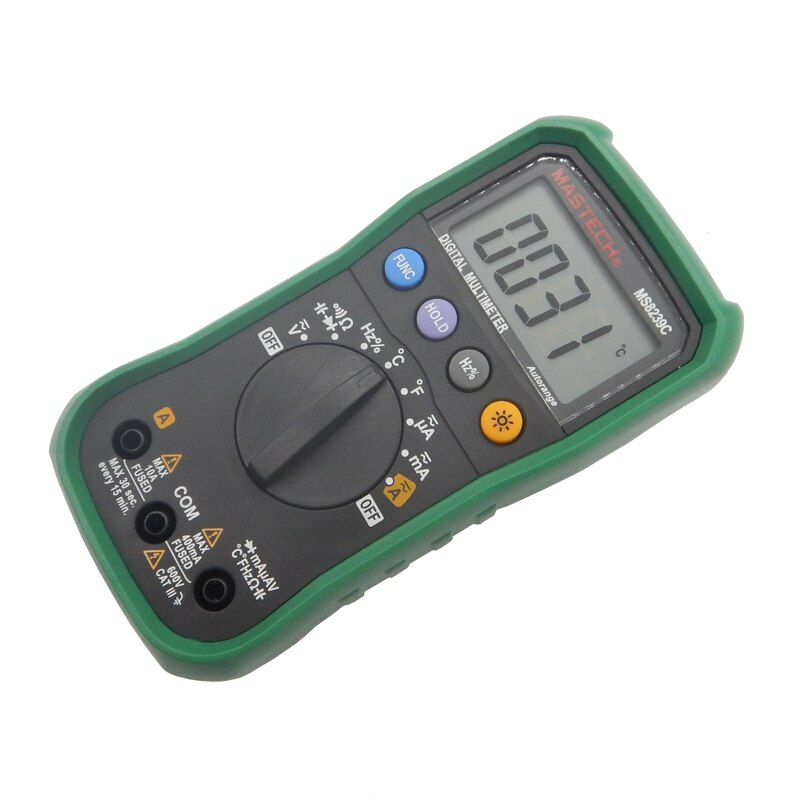

MASTECH Digital Multimeter MS8239C Handheld Auto Range AC DC Voltage Current Capacitance Frequency Temperature Tester

Save $16
CartoolshopSKU: MS8239C

Price:
$55 $71

Tax included Shipping calculated at checkout

Stock:
In stock

Description

MASTECH Digital Multimeter MS8239C Handheld Auto Range AC DC Voltage Current Capacitance Frequency Temperature Tester

Feature:

The Mastech MS8239C is a budget multimeter, it can test AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, temperature, diode, continuity check etc.

Besides, the portable hand-hold appearance design , high qaulity, accuracy and simple visible operation interface will make it very popular in electrical testing field.

Specifications:

Environmental Conditions : 600V CAT III, Pollution Degree : II.  Altitude <2000 m

Working temperature and humidity : 0 ~ 40 ° C (<80% RH, <10° C is not considered ) .

Storage temperature and humidity : -10 ~ 60 ° C (<70% RH, battery removed )

Temperature Coefficient: 0.1 ' Accuracy /° C (<18 ° C or > 28 ° C).

Allowed maximum voltage between the measuring terminal and the earth  : 600V DC or 600V AC RMS

Fuse protection : mA file: Fuse F400mA/500V

                           10A file: Fuse F10A/500V

Sampling rate: about 3 times / sec

Display: 3 3/ 4 LCD display

Over-range indication: LCD will show "OL"

Low battery indication: When the battery voltage is lower than the normal operating voltage , " " will be displayed on the LCD screen

input polarity indication : Auto shows " - " sign

DC voltage 400mV/4V/40V/400V/600V ± (0.5% +3)

AC voltage 4V/40V/400V/600V ± (1.2% +5)

DC current 400uA/4000uA/40mA/400mA ± (1.0% +5),   10A ± (2.0% +10)

AC current 400uA/4000uA/40mA/400mA ± (1.2% +5),    10A ± (2.5% +10)

Resistance 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ± (0.8% +5)

Capacitance 5nF/50nF/500nF/5uF/50uF/100uF ± (3.0% +5)

Frequency 9.999HZ ~ 9.999MHz ± (1.5% +5)

Duty cycle 0.1% ~ 99.9% ± (3.0% +5)

Temperature (° C) -20 ° C ~ 1000 ° C ± (3.0% +3)

Temperature (° F) -4 ° F ~ 1832 ° F ± (3.0% +3)

Diode and continuity

Power supply: 2 × 1.5V AAA (not include in package)

Size: 150mm × 74mm × 41mm

Weight: 202g

835691

Package Content:

1 * MS8239C Meter(No batteries)
