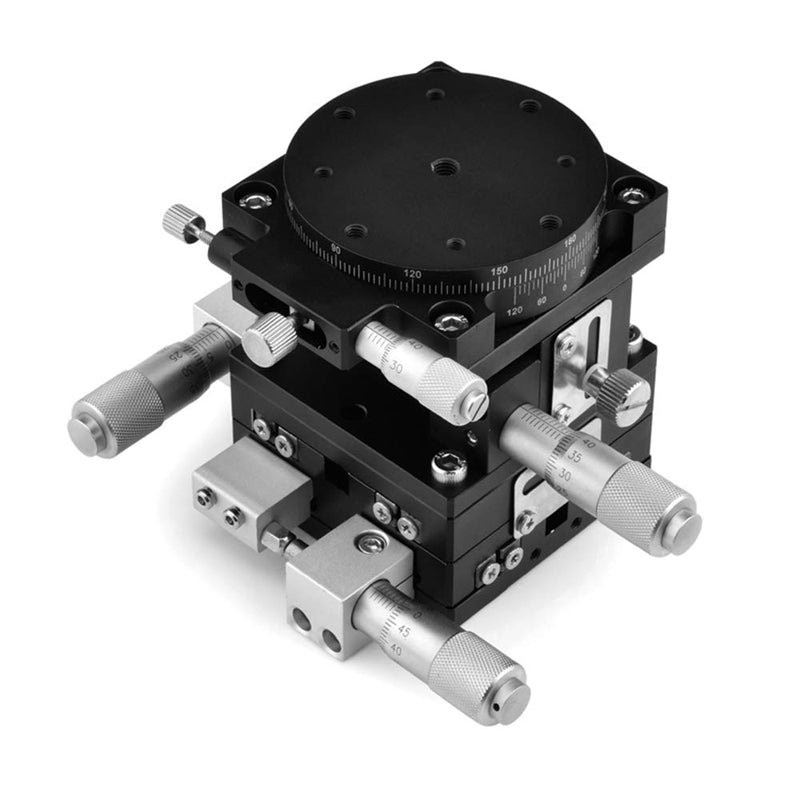

Machifit LT60-LM XYZR 4 Axis Trimming Platform Manual Linear Stage Bearing Tuning Sliding Table
Machifit LT60-LM XYZR 4 Axis Trimming Platform Manual Linear Stage Bearing Tuning Sliding Table
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /04/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Description:
Machifit LT60-LM XYZR 4 Axis Trimming Platform Manual Linear Stage Bearing Tuning Sliding Table
Specification:
| Model | LT60-LM |
| Move direction | XYZR axis |
| Rail Type | V-type rail |
| Material | Aluminum alloy |
| Drive mode | Micrmeter head |
| Size | 60mm |
| Stroke |
XY axis: ±6.5mm Z axis: 10mm R axis: 360°rough adjustment, ±5°fine adjustment |
| Load | 29.4N (3kgf) |
| Minimum scale | 0.01mm |
| Weight | 0.91kg |
Features:
Using cross roller guide for high accuracy and smooth movement.
The main material for aluminum, light weight, suitable to be built for other devices.
For precision movement, precise positioning, stable performance, easy installation and removal.
Differential head drive, left hand type.
Applications:
1. DVD, MD, CD-related disc reading lens and writable optical head production and testing equipment. Mainly arcuate positioning platform.
2. LCD projector prism positioning and loading.
3. The optical fiber positioning, optical communication system products and testing equipment.
4. LCD production and testing equipment.
5. The semiconductor related production. equipment and testing equipment evaluation.
Package Included:
| 1 x | manual displacement platform |
Description
Description
Description:
Machifit LT60-LM XYZR 4 Axis Trimming Platform Manual Linear Stage Bearing Tuning Sliding Table
Specification:
| Model | LT60-LM |
| Move direction | XYZR axis |
| Rail Type | V-type rail |
| Material | Aluminum alloy |
| Drive mode | Micrmeter head |
| Size | 60mm |
| Stroke |
XY axis: ±6.5mm Z axis: 10mm R axis: 360°rough adjustment, ±5°fine adjustment |
| Load | 29.4N (3kgf) |
| Minimum scale | 0.01mm |
| Weight | 0.91kg |
Features:
Using cross roller guide for high accuracy and smooth movement.
The main material for aluminum, light weight, suitable to be built for other devices.
For precision movement, precise positioning, stable performance, easy installation and removal.
Differential head drive, left hand type.
Applications:
1. DVD, MD, CD-related disc reading lens and writable optical head production and testing equipment. Mainly arcuate positioning platform.
2. LCD projector prism positioning and loading.
3. The optical fiber positioning, optical communication system products and testing equipment.
4. LCD production and testing equipment.
5. The semiconductor related production. equipment and testing equipment evaluation.
Package Included:
| 1 x | manual displacement platform |
