Machifit 60x60mm XYZ 3-Axis Linear Stage Adjustable Manual Displacement Platform Sliding Table

Save $25
CartoolshopSKU: Manual Displacement Platform

Price:
$148.99 $173.99

Tax included Shipping calculated at checkout

Stock:
In stock

Description

Description:

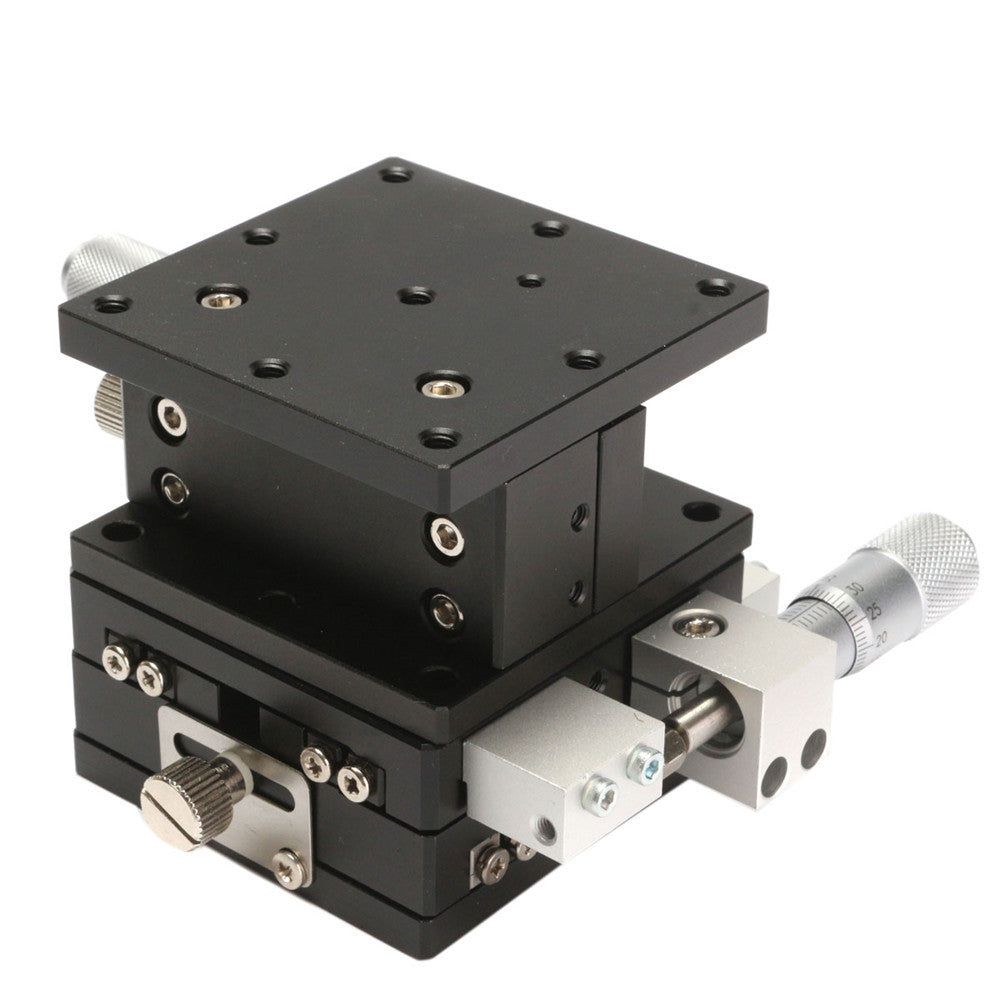

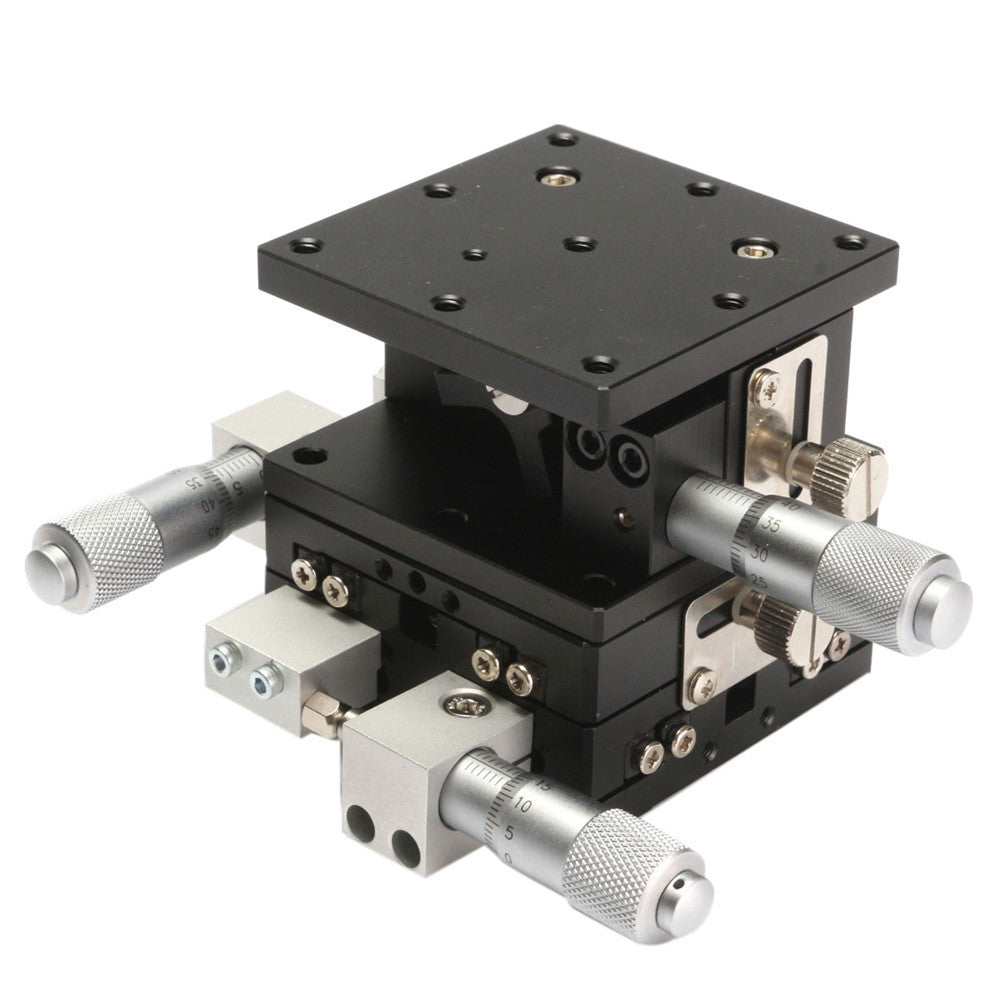

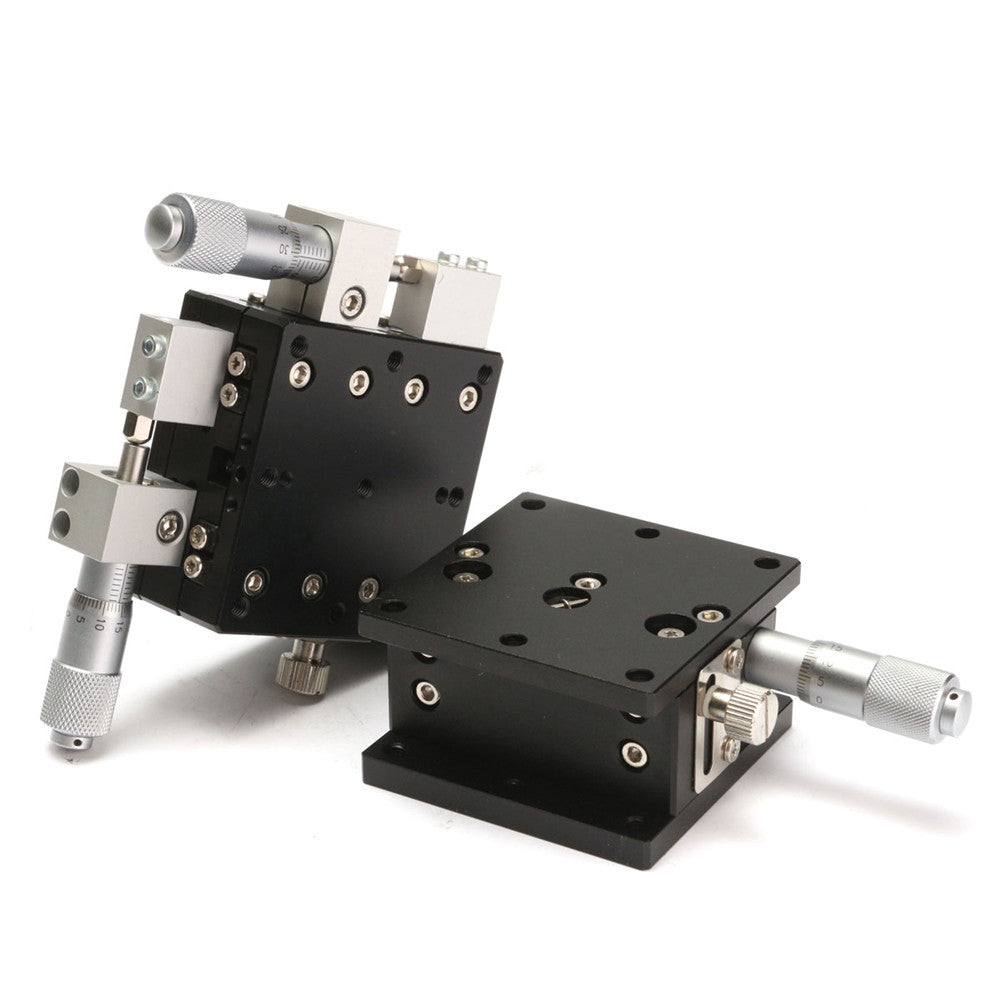

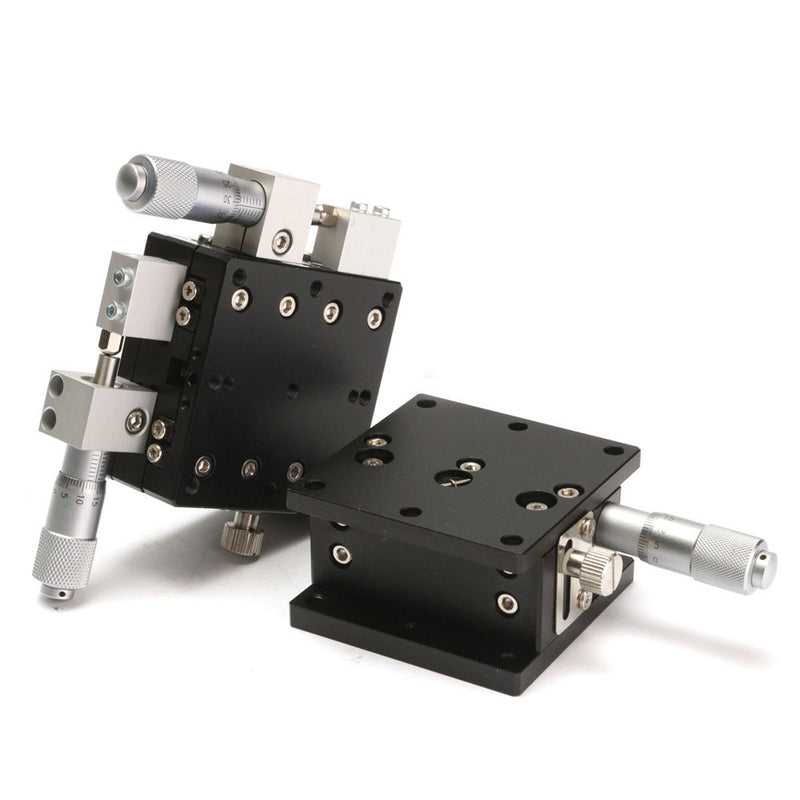

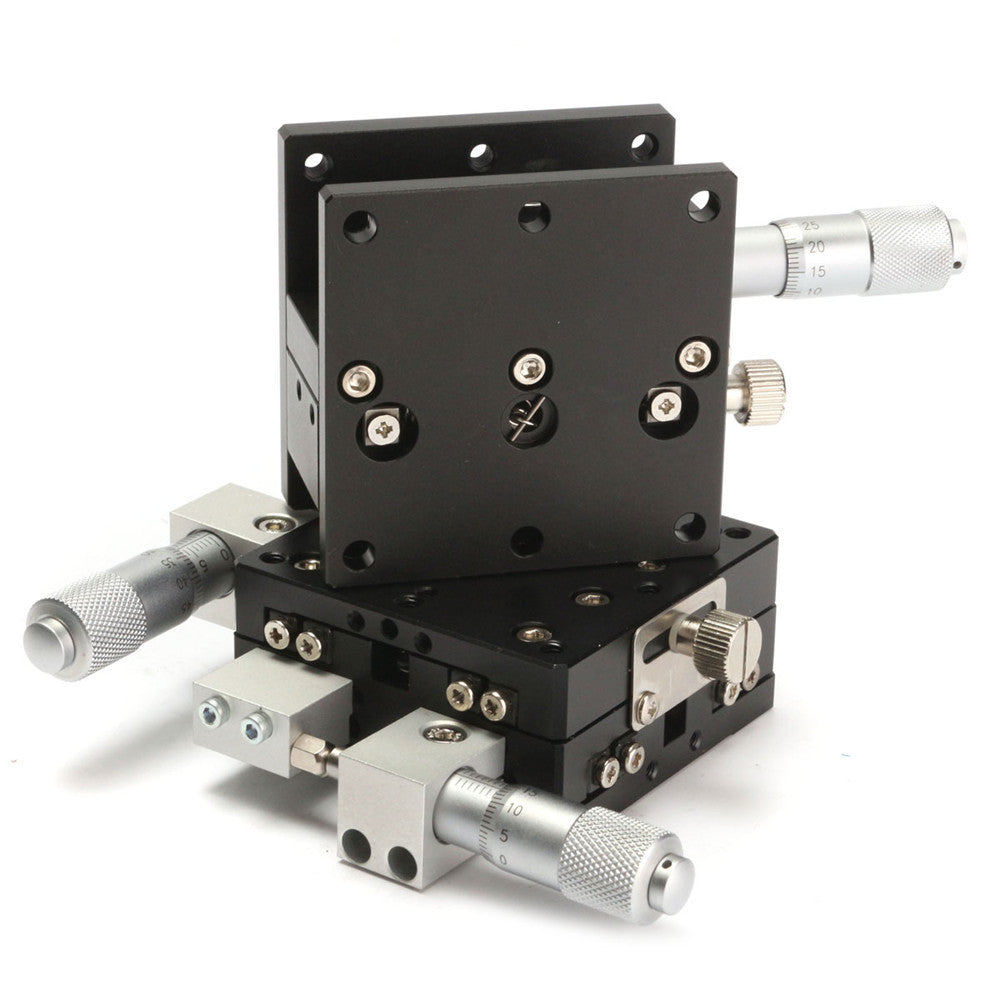

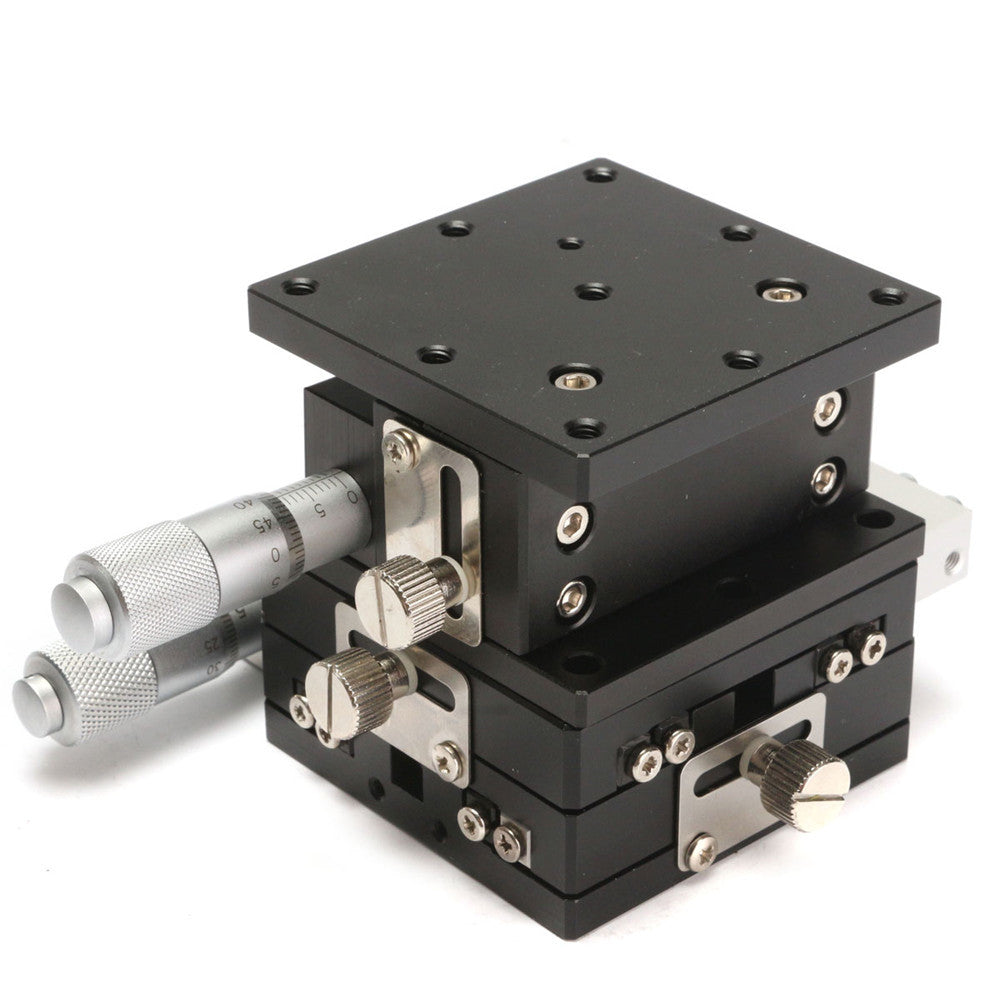

60x60mm XYZ 3-Axis Linear Stage Adjustable Manual Displacement Platform Sliding Table

Specification:
Model LD60-LM
Move direction XYZ axis three degree of freedom
Rail Type V-type rail
Material Aluminum
Dimension 60 * 60mm (mm)
Stroke XY + (-) 6.5mm, Z 10mm
Load 29.4N (3kgf)
Minimum scale 0.01mm
Accuracy 0.01mm


Features:
It uses cross roller guide can achieve high precision, smooth movement.

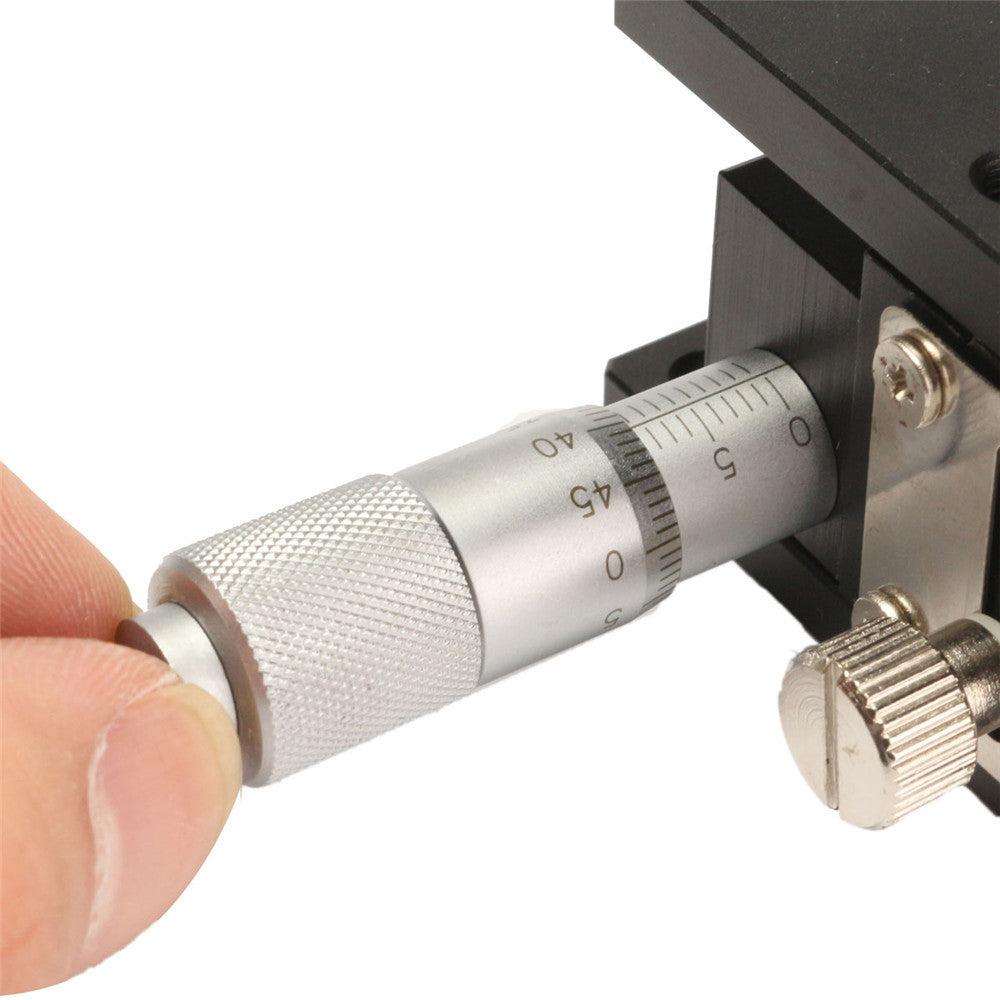

The main material for aluminum. Micrometer head driving .
For precision movement, precise positioning, stable performance, easy installation and removal.

Applications:
1. DVD, MD, CD-related disc reading lens and writable optical head production and testing equipment. Mainly arcuate positioning platform.
2. LCD projector prism positioning and loading.
3. The optical fiber positioning, optical communication system products and testing equipment.
4. LCD production and testing equipment.
5. The semiconductor related production. equipment and testing equipment evaluation.

Package Included:
1 x manual displacement platform

More Details:




60x60mm XYZ 3-Axis Linear Stage Adjustable Manual Displacement Platform Sliding Table

60x60mm XYZ 3-Axis Linear Stage Adjustable Manual Displacement Platform Sliding Table

60x60mm XYZ 3-Axis Linear Stage Adjustable Manual Displacement Platform Sliding Table

60x60mm XYZ 3-Axis Linear Stage Adjustable Manual Displacement Platform Sliding Table

60x60mm XYZ 3-Axis Linear Stage Adjustable Manual Displacement Platform Sliding Table

60x60mm XYZ 3-Axis Linear Stage Adjustable Manual Displacement Platform Sliding Table

60x60mm XYZ 3-Axis Linear Stage Adjustable Manual Displacement Platform Sliding Table
