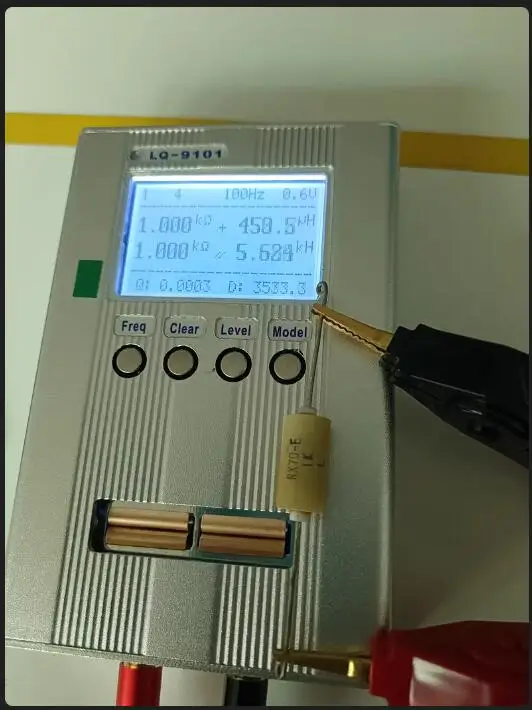

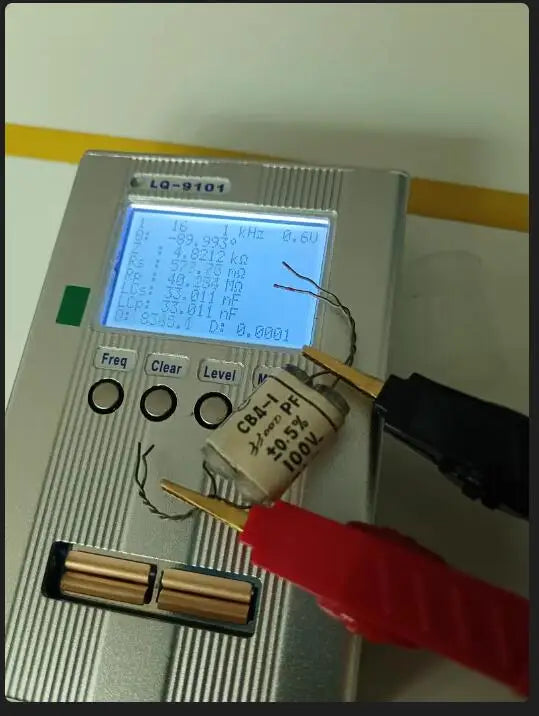

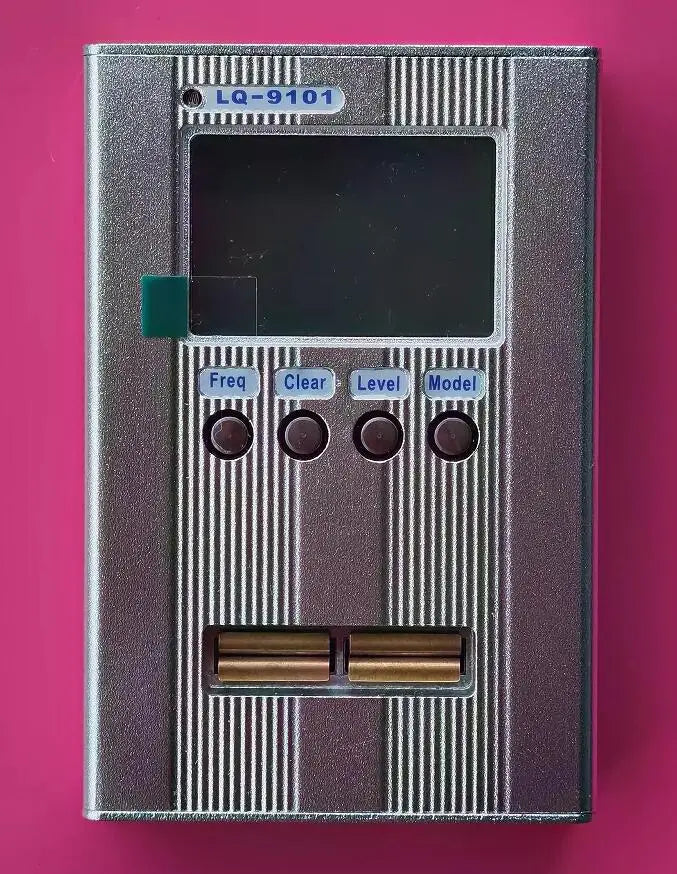

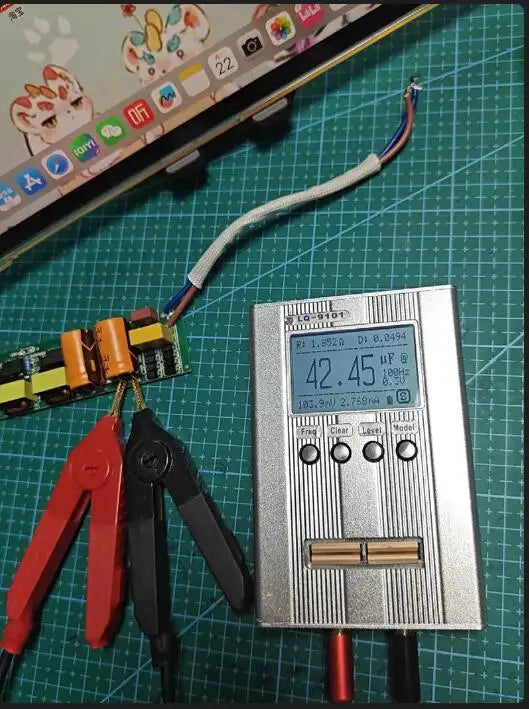

LQ-9101 Digital Bridge 10KHz LCR tester, resistance, capacitance, inductance meter + Two clips
LQ-9101 Digital Bridge 10KHz LCR tester, resistance, capacitance, inductance meter + Two clips
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Update of the 2023 new version
1. OHz (DCR) level, upgraded from fixed 0.56V to adjustable(0.54V 0.27V 0 09V),corresponds to AC 0.3V 0.30V 0.1V;
2. The basic measurement level of the new version is 0Hz 0.54V, and other frequency points are 0.6V, with better accuracy than the old version, within 1%;

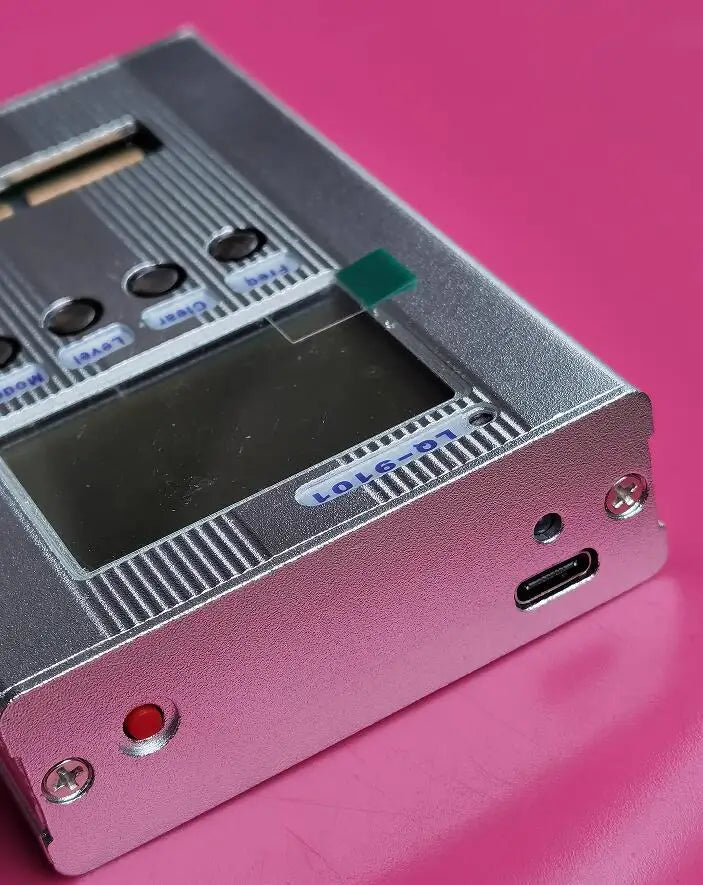

3. Charging port, upgraded from DC3.5 to TypeC port, with charging and communication functions, and built-in CH340E chip
4. The microcontroller TTL communicates with the local computer. new version is well compatible with 3.3V and 5V
5. The highest resolution at 10KHz for small capacitors can reach 0.001PF for old version and 0.01PF for new version
Measurement Source:
- Frequency: 0Hz (DC) 100Hz 120Hz 1000Hz 10kHz; Error ± 100 ppm
- Voltage 0 Hz (DC): 0.56 V ± 5% AC AC RMS: 100 mV 300 mV 600 mV ± 5%
- Internal resistance AC DC Constant 100Ω ± 5%
Basic Accuracy:
- Z / R / L / C: ± reading × 0.2%
- Θ: 100 Hz 120 Hz 1 KHz & lt; 0.005 ° 10 KHz & lt; 0.05 °
Display Range:
- Four significant figures, decimal 0000--9999.
- Impedance / resistance: 0.1mΩ-999.9MΩ (the minimum resolution is only 0.1mΩ, 100mΩ the following three significant figures)
- Inductance / Capacitance: 0.000uH - 999.9KH 0.000P - 999.9mF
- Quality factor / loss factor: Q: 0.0000 --- 99999 D: 0.0000 --- 99999
- Impedance angle θ: -179.99 ° --- 0.0000 --- + 180.00 °
Measurement Method:
- Automatic range control

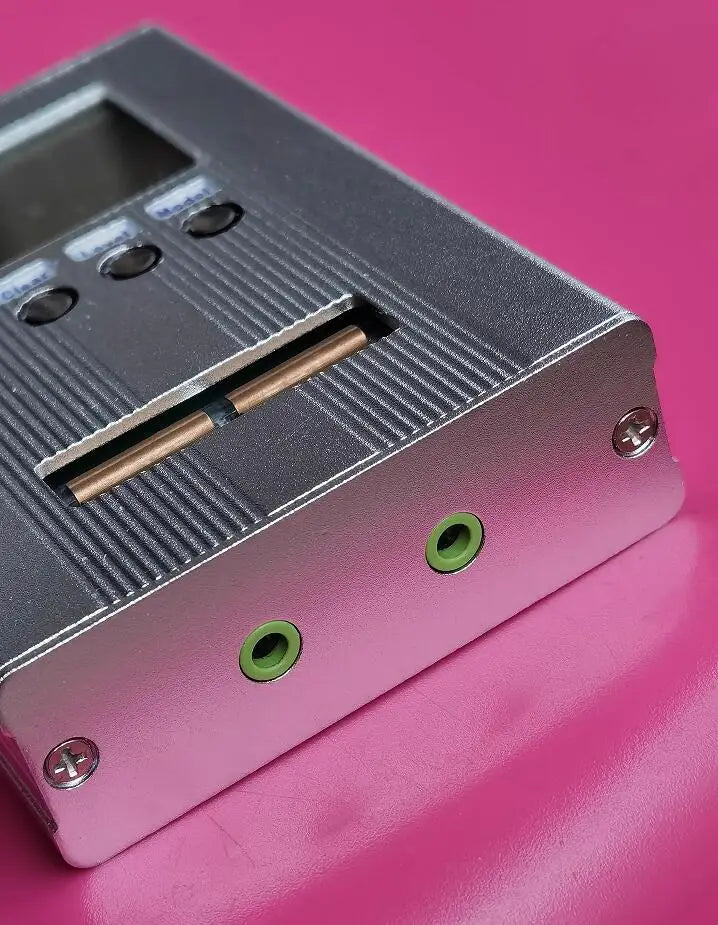

Body clip clip socket: direct four-wire mode
External test line: external four-wire or two-wire mode
- Measurement results display and model
Resistance, inductance, capacitance, Q value, D value, phase angle
Ls (Cs) -Rs-Q model, Lp (Cp) -Rp-D model, Z-theta model
- Measurement Time
Since the measured components from the start, the main parameters of about 1 second secondary parameters ≥ 1 second
Size and Weight:
- 103 × 69 × 24 mm
- 180g
Package Included:
1 x LQ-9101Digital Bridge
1 x Kelvin Clips
1 x Test Leads
1 x USB cable
Description
Description
Update of the 2023 new version
1. OHz (DCR) level, upgraded from fixed 0.56V to adjustable(0.54V 0.27V 0 09V),corresponds to AC 0.3V 0.30V 0.1V;
2. The basic measurement level of the new version is 0Hz 0.54V, and other frequency points are 0.6V, with better accuracy than the old version, within 1%;
3. Charging port, upgraded from DC3.5 to TypeC port, with charging and communication functions, and built-in CH340E chip
4. The microcontroller TTL communicates with the local computer. new version is well compatible with 3.3V and 5V
5. The highest resolution at 10KHz for small capacitors can reach 0.001PF for old version and 0.01PF for new version
Measurement Source:
- Frequency: 0Hz (DC) 100Hz 120Hz 1000Hz 10kHz; Error ± 100 ppm
- Voltage 0 Hz (DC): 0.56 V ± 5% AC AC RMS: 100 mV 300 mV 600 mV ± 5%
- Internal resistance AC DC Constant 100Ω ± 5%
Basic Accuracy:
- Z / R / L / C: ± reading × 0.2%
- Θ: 100 Hz 120 Hz 1 KHz & lt; 0.005 ° 10 KHz & lt; 0.05 °
Display Range:
- Four significant figures, decimal 0000--9999.
- Impedance / resistance: 0.1mΩ-999.9MΩ (the minimum resolution is only 0.1mΩ, 100mΩ the following three significant figures)
- Inductance / Capacitance: 0.000uH - 999.9KH 0.000P - 999.9mF
- Quality factor / loss factor: Q: 0.0000 --- 99999 D: 0.0000 --- 99999
- Impedance angle θ: -179.99 ° --- 0.0000 --- + 180.00 °
Measurement Method:
- Automatic range control
Body clip clip socket: direct four-wire mode
External test line: external four-wire or two-wire mode
- Measurement results display and model
Resistance, inductance, capacitance, Q value, D value, phase angle
Ls (Cs) -Rs-Q model, Lp (Cp) -Rp-D model, Z-theta model
- Measurement Time
Since the measured components from the start, the main parameters of about 1 second secondary parameters ≥ 1 second
Size and Weight:
- 103 × 69 × 24 mm
- 180g
Package Included:
1 x LQ-9101Digital Bridge
1 x Kelvin Clips
1 x Test Leads
1 x USB cable
