LOTO OSCH02H 2 Channel USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer

Save $64
CartoolshopSKU: LOTO OSCH02H

$425.99 $489.99

Tax included Shipping calculated at checkout

In stock



Hand-held portable, 153(L) x 93(W) x 30(H) mm
1G/250M Maximum sampling rate, 100M bandwidth,2 channels.
8 Bit ~ 13 Bit vertical resolution.
Open source hardware interface to support expansion modules.
USB 2.0 interface, USB powered.Comes with PWM output.
72 hours long time data logger.
Optional logic analyzer, Signal generator,and isolated differential input   support module.
Waveform recording and playback review.
Support waveform image import as the comparison reference for real-time waveform.
Support Serial bus decoding (RS-232,RS-485/422, I²C, CAN,SPI).
Supports a variety of current clamps and other physical volume custom probes.
Support buffer waveform preview and mouse wheel operations.
Historical change trend statistics and analysis functions.
Pass / Fail detection.
Support spectrum analysis and frequency response curve mapping.
Support FIR Digital Filtering function.
General-purpose and precision testing.
Embedded in industrial testing equipment for use.
Embedded electronics courses for the educational market.
Ripple and noise measurements for power supply characterization.
Multi-sensor systems and Serial bus decoding.
Car inspection and maintenance.
Current/Voltage recording and analysis System for Solar Power Supply and Lighting System.
Diagnosis device for field engineers.
Basic equipment for DIY makers to develop their own modules.




 Connector type :



2 channels with BNC sockets, 20 mm spacing.



  Vertical resolution:



8 Bit ~ 13 Bit .



  Maximum sampling rate (S/s):



250M (real time), 1G (equivalent)



  Bandwidth ( −3 dB):






 Input coupling:






 Input characteristics:



1MΩ || 25pF.



  PC OS requirements:



Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit).



  Over-voltage protection:



±60.0v (x1), ±600.0v (x10). (DC + AC peak)



  Triggering type:



Rising/falling edge according to trigger level, Pulse width trigger.



  Triggering mode:



None, auto, normal, single.



  Pre-trigger capture:



1%~99% of capture size.



  Automatic measurements:



Maximum, minimum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak-to-peak value.



  Frequency response mapping


Scanning the frequency, record the process frequency and magnification data, and draw the frequency response curve.




  Measurement statistical curve:



The historical trend of the automatically measured quantities can be plotted for statistics and analysis.



  Pass / Fail detection:



You can set the upper and lower limits of the measurement quantity, and perform Pass / Fail detection and fault alarm function on the measured signal.



  Deep measurement:



With this function, the waveform jump points are automatically numbered and marked, and the time difference between the two adjacent numbers is automatically displayed.



  Samples Interpolation:



Linear or sin(x)/x.






1024 ~ 16K points.



  FFT window function:



Rectangle, Hanning, Hamming, Blackman.






A+B, A-B, AxB, X-Y.



  Acquisition Modes:



Normal mode / High Resolution mode / Peak detect mode.



  Waveform recording and playback:

File format :






Record depth:



50 ~ 450 frames.



File size:



6 MB ~ 20GB.



  Save as file:



txt, csv, excel,  oscxxx, jpg.



  Comparison reference:



Support waveform image import and real-time waveform comparison reference. It can import waveform pictures, set gray level and transparency, move up and down, and zoom in and out horizontally and longitudinally.



  Data logger Sampling Interval:



1 second to 1 hour.



  Data logger Record Duration:



1 minute ~ 72 hours.



  Temperature range:



Operating: 0 °C to 40 °C (20 °C to 30 °C for stated accuracy). Storage: −20 °C to +60 °C.



  Reference Output:



1K Hz, 1.5 V square wave output with 50% duty cycle. Software-configurable PWM output with adjustable frequency and duty cycle.






153(L) x 93(W) x 23(H) mm.



  Languages (full support):



English, Chinese (simplified).









  Net weight:



210 g.



  Input sensitivity (10 vertical divisions):



20 mV/div to 2 V/div.



  Input ranges( probe x1):



±100 mV to ±5 V full scale, in 7 ranges.



  Timebase selection (10 horizontal divisions):



5 ns/div ~ 60 s/div, in 32 ranges.



Typical noise

(peak to peak voltage):



20 mV/div



2 mV



50 mV/div



5.8 mV



100 mV/div



8 mV



200 mV/div



22 mV



500 mV/div



38.8 mV



1 V/div



88.2 mV



  Memory depth



 (byte /Ch):






50 ms/div






200 ms/div






500 ms/div






1 s/div






2 s/div






10 s/div






20 s/div






30 s/div






40 s/div






50 s/div






60 s/div



  Trigger type:






  Trigger source:



Channel A



  Power consumption:



5 v || (248~279) mA



  Protocols decoding:



UART/RS-232/485/422, I²C,CAN,SPI



  FIR Filtering:



Band-pass, Band-stop



  Custom probes



Support two-point calibration of any current clamp on the market.













OSCH02F+ Isolated differential input  model.






Input channels:






Maximum sampling rate (S/s):





Bandwidth (−3 dB):









Data logger:



I/O extension:



Serial bus decoding:



Hardware trigger:



Pulse width triggersupport:



Signal generator module  support:



Logic analyzer module :



Android Phone/ Tablet support



Isolated differential input  model



Custom probes



Frequency response mapping



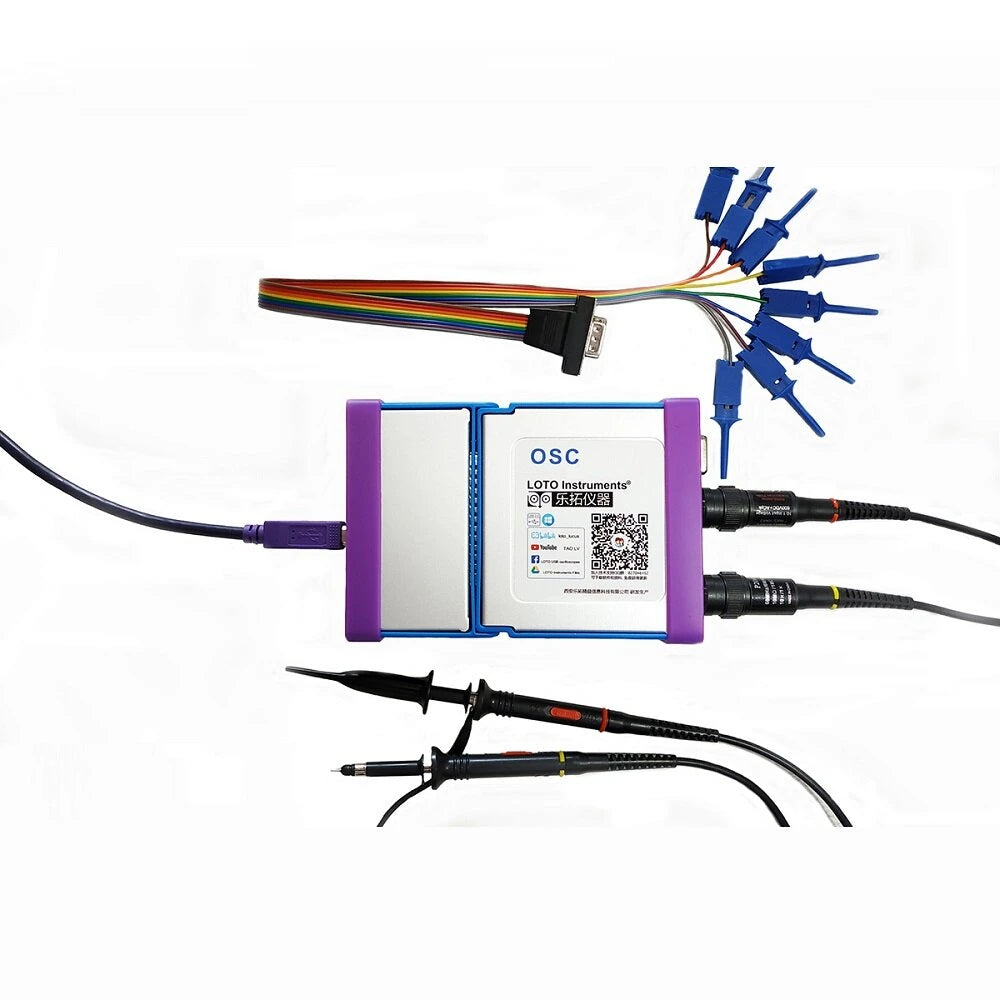

Package includes:

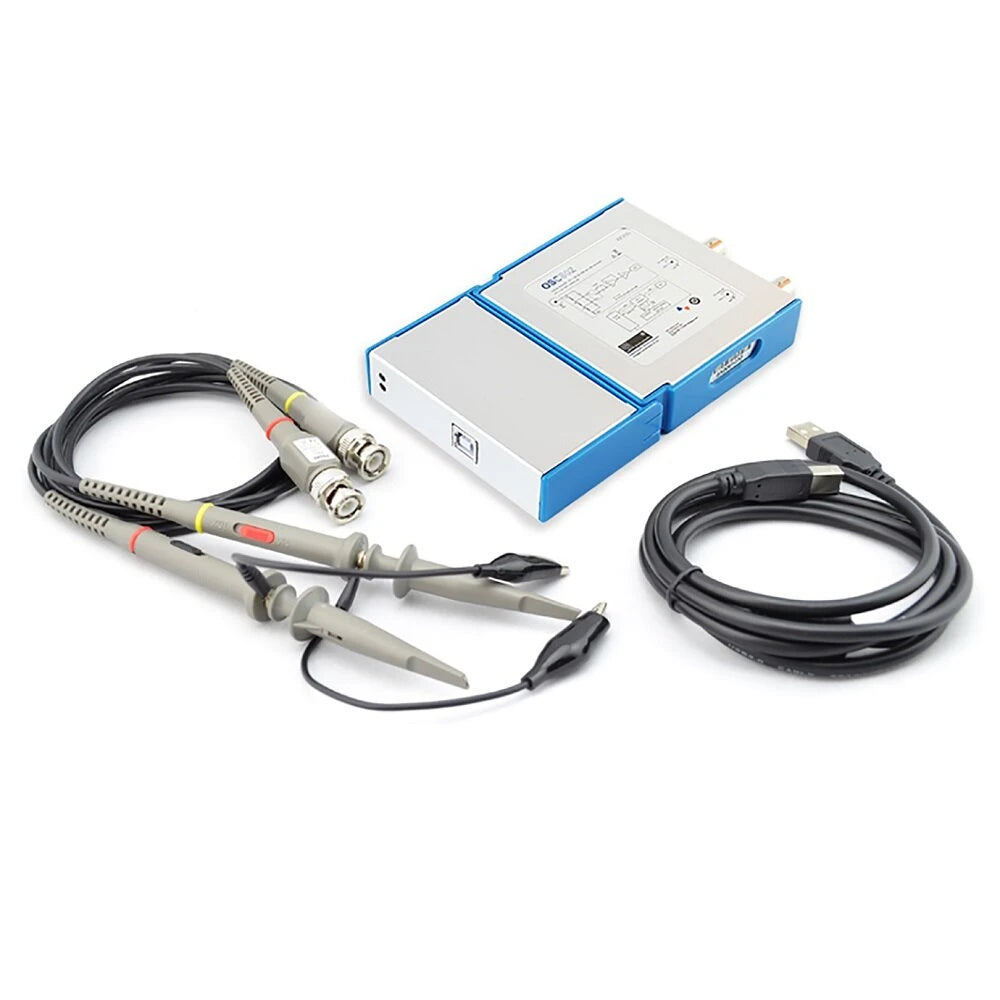

1 x Oscilloscope host device
1 x USB cable
2 x Passive voltage probe, 60 MHz x1/x10
1 x Logic analyzer module
1 x Signal generator module
1 x Signal output cable
1 x Adapters for Android phone
1 x Isolated differential input module

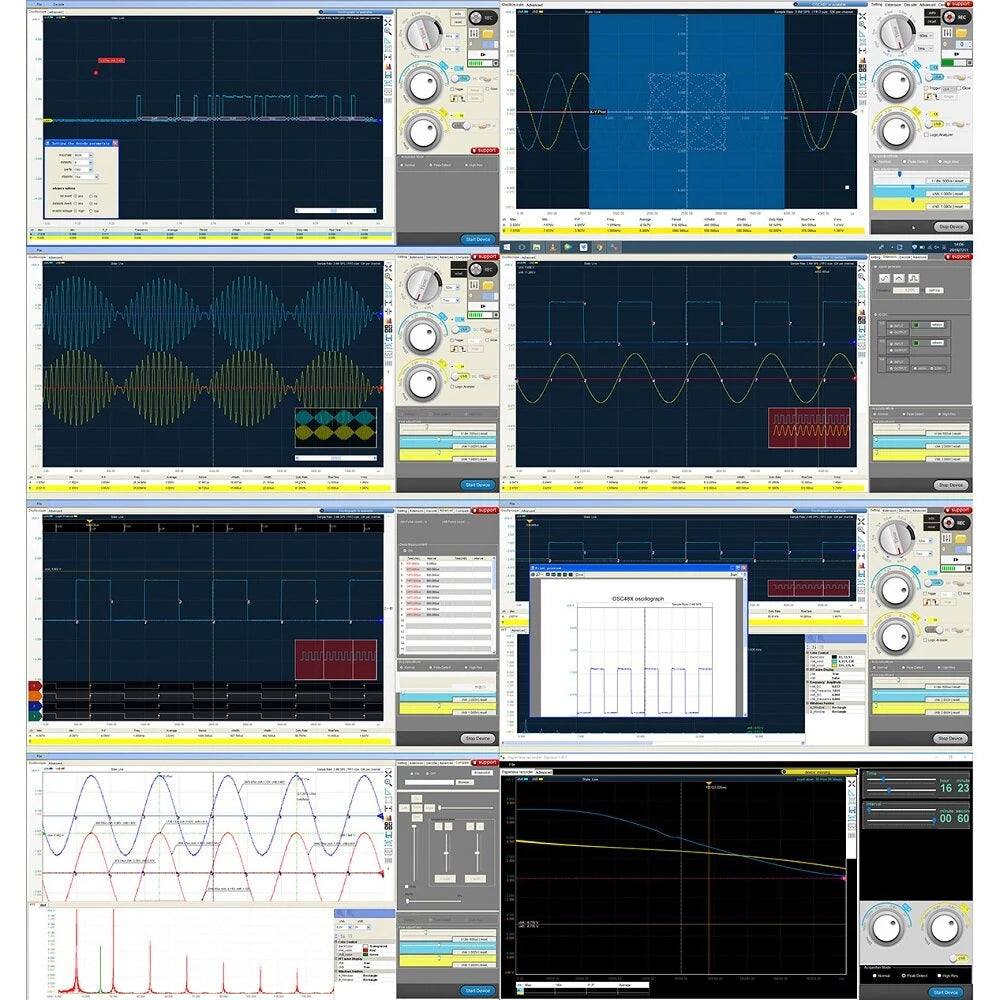

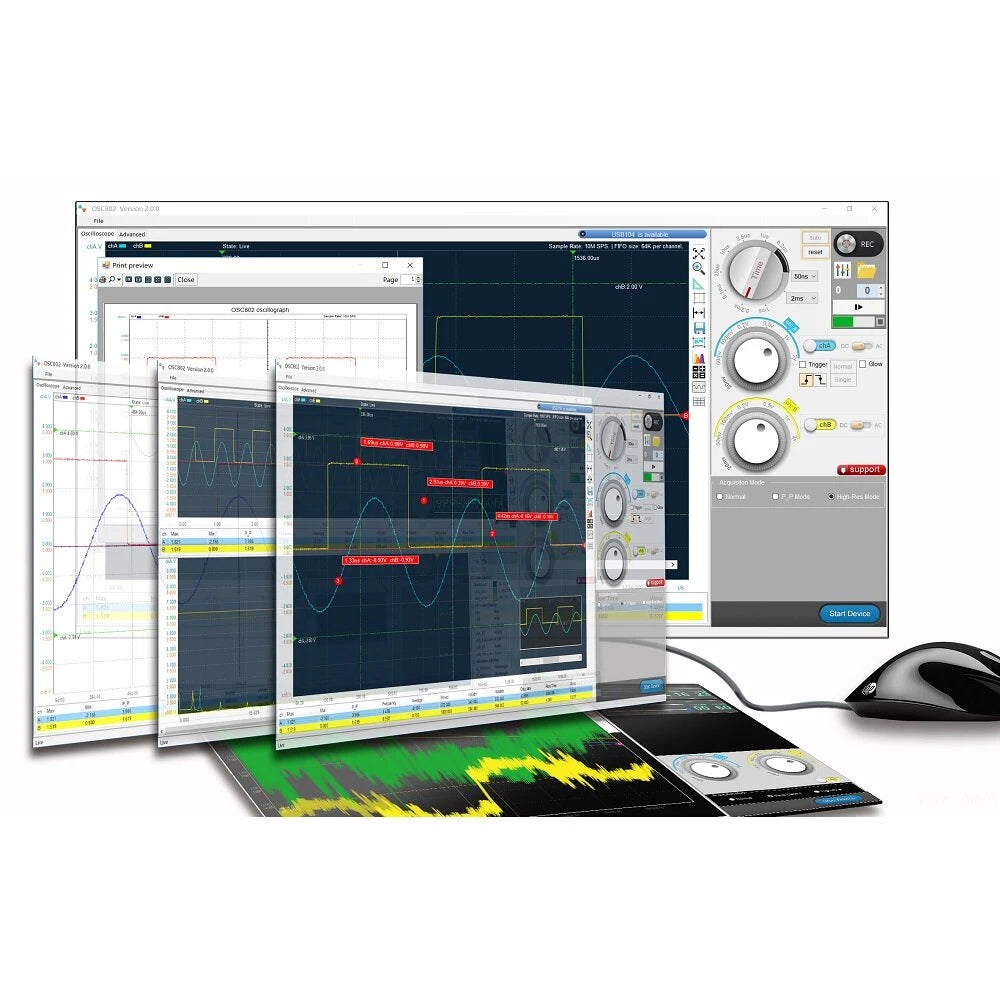

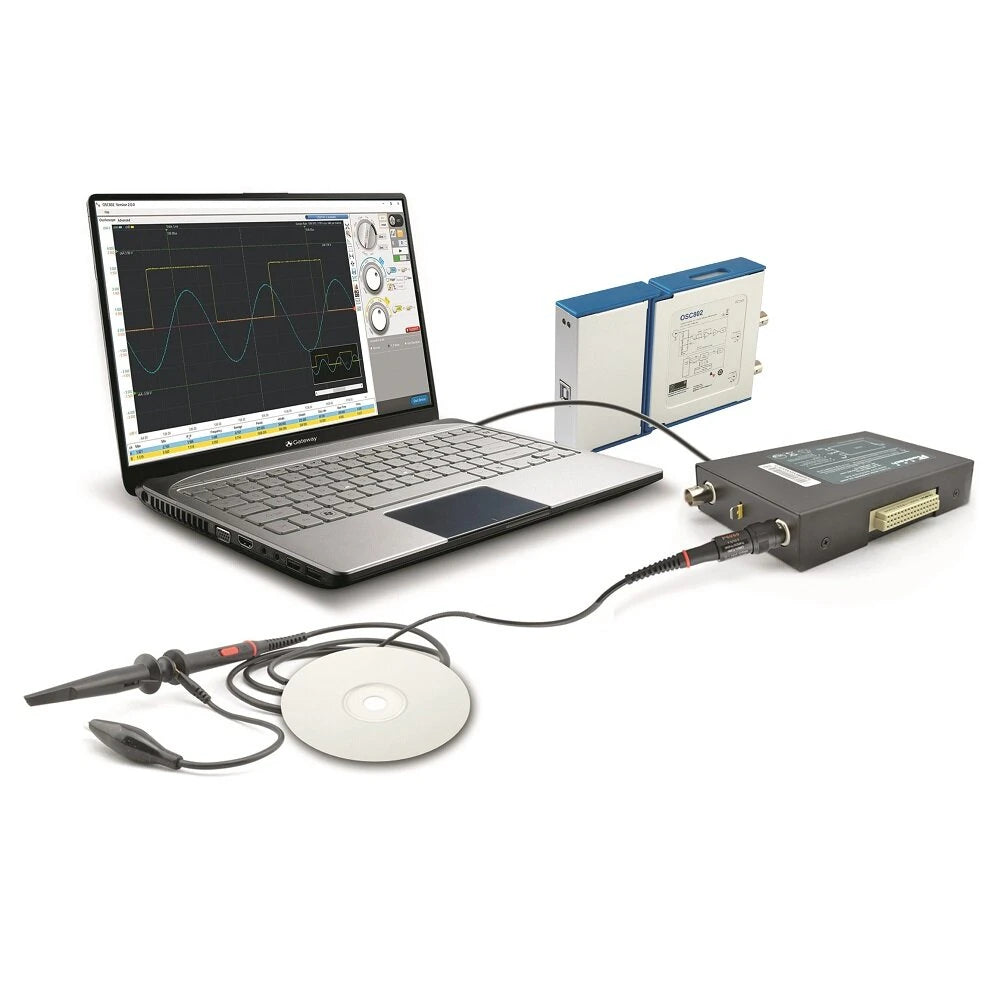

Details pictures:
