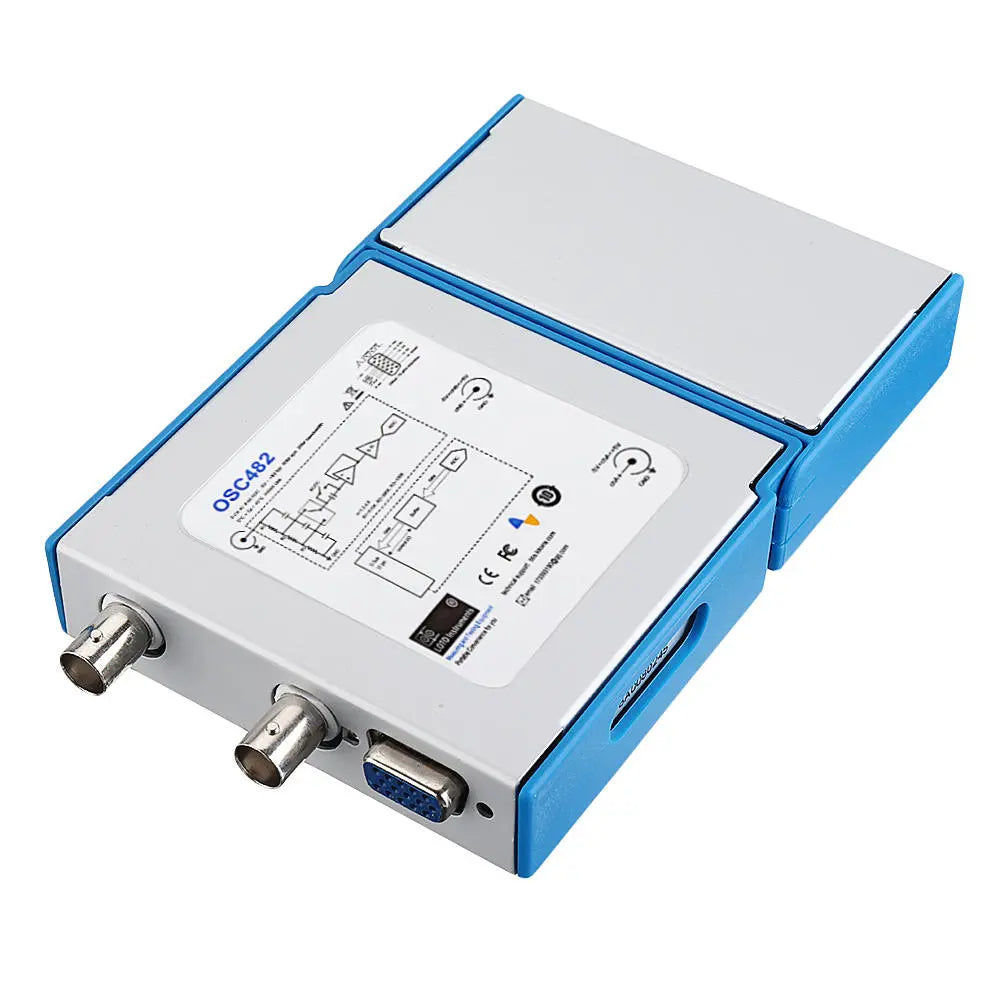

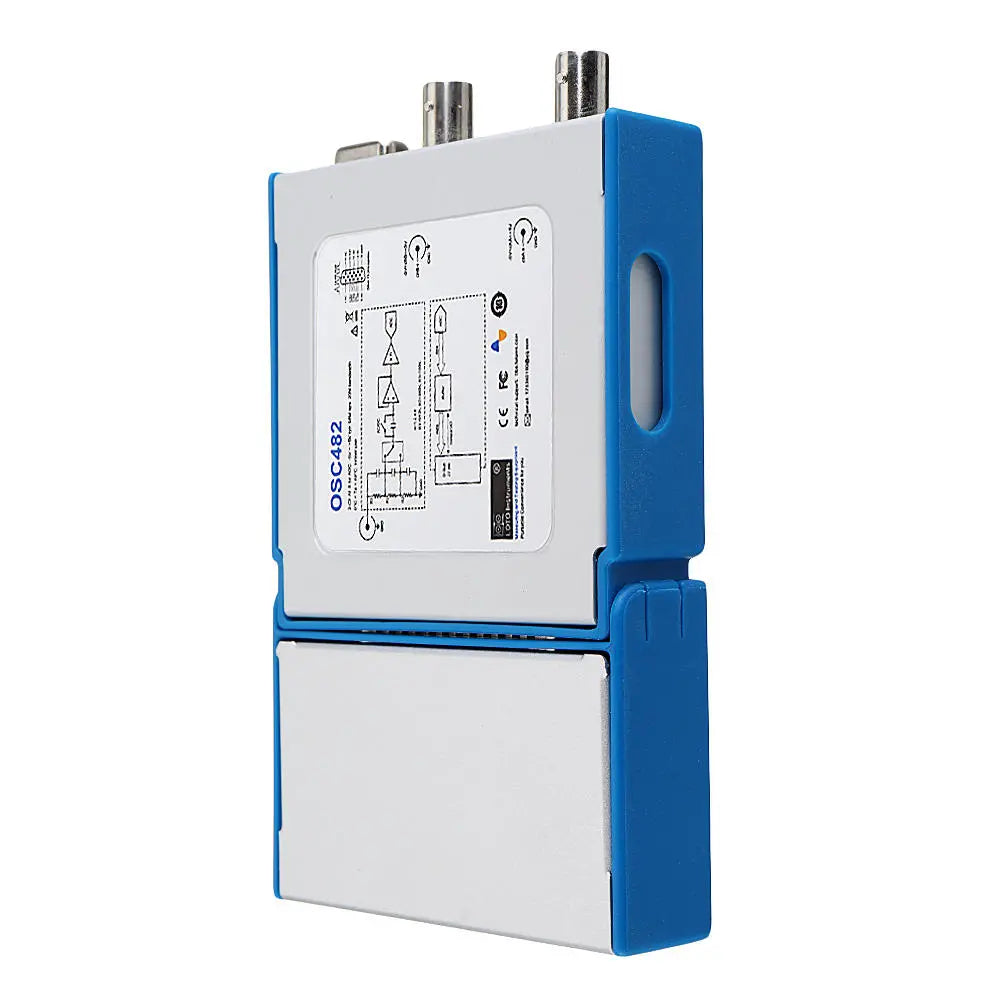

LOTO OSC482S Digital Portable Oscilloscope OSC482S PC USB 2.0 Virtual 2CH Bandwidth Oscilloscope with 13M Hz Signal Generator


$135.99 $175.99

Tax included Shipping calculated at checkout

In stock



    Small size for easy carrying, 153 (long) x 93 (wide) x 23 (height) mm. Suitable for laptops, Android phones, production line maintenance adjustments, easy to use for business trips
    More than 20 automatic measurement functions FFT spectrum analysis
    Provide GPIO interface Provide software interface protocol for secondary development of customers.
    The USB 2.0 interface draws power directly from the host without the need for additional power
    The oscilloscope and data logger PC PC phone software is completely free.

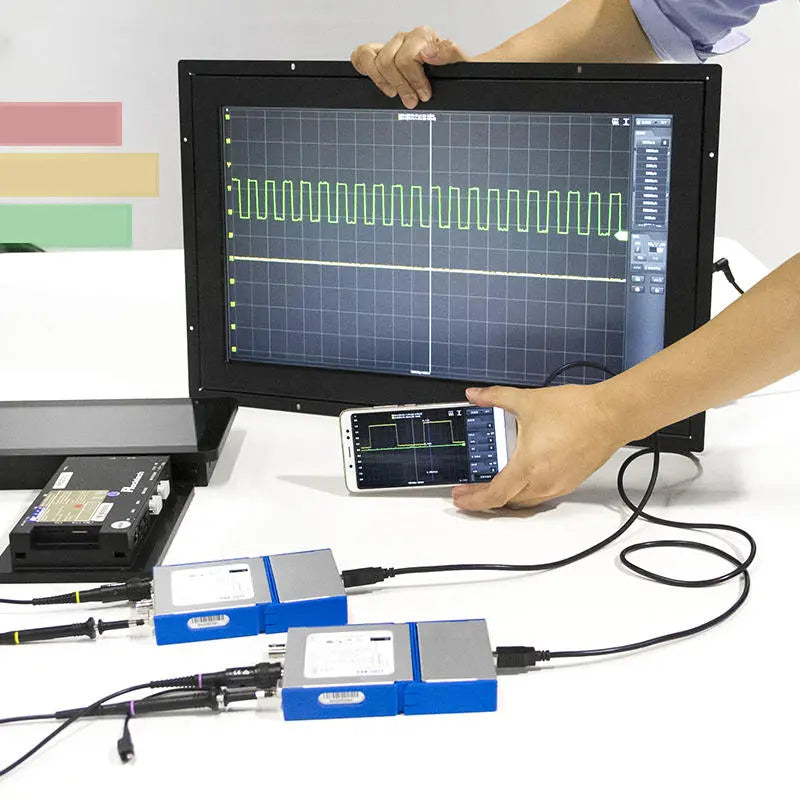

    Achieve PC large screen display and PC desktop oscilloscope similar interface, easy to get started
    Support multiple serial protocol decoding.
    Support for Android phones

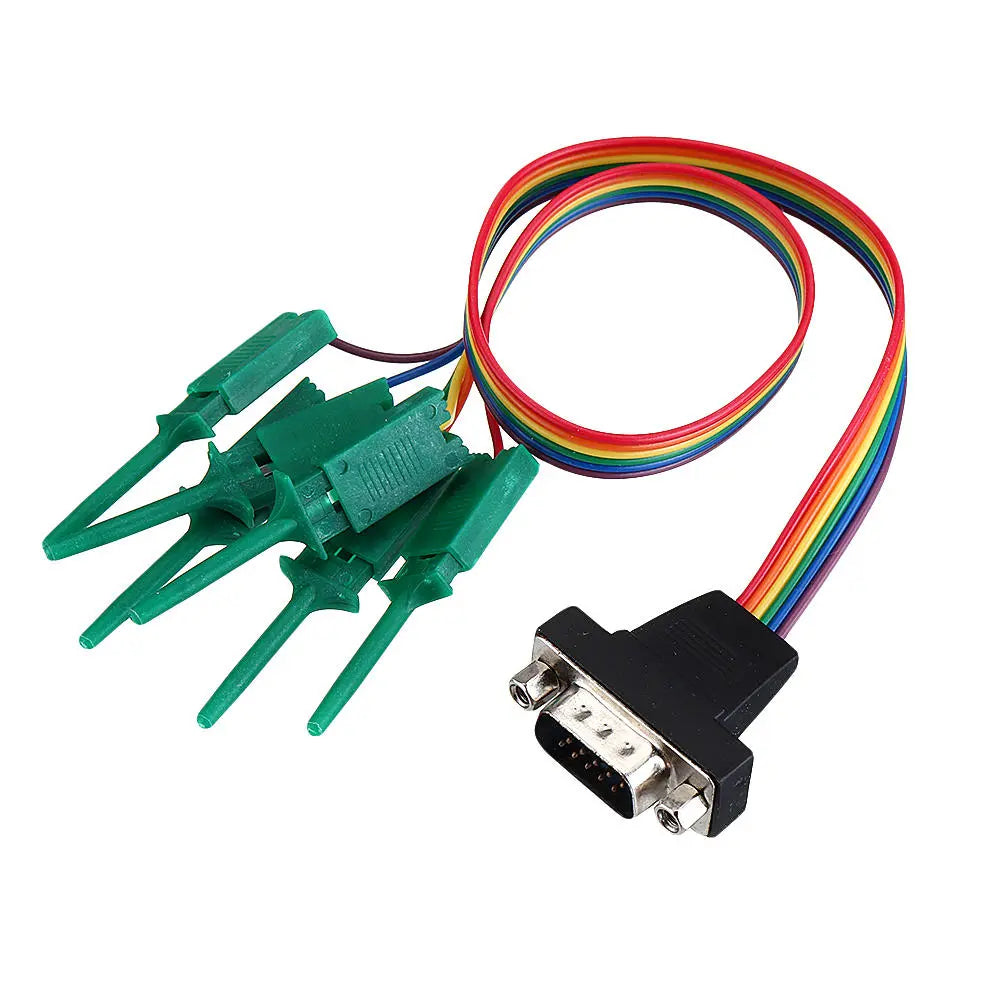

    TTL level with 13MHZ signal generator function + 4 channel logic analyzer function
    Software supports Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit) and Android phone/tablet. Voice Chinese English can be switched
    General and precision testing.
    Embedded in teaching equipment or industrial test systems.
    Power ripple and noise detection.
    Multi-sensor system and serial bus decoding.
    Analog data acquisition and secondary development applications for digital IO control projects.
    Analysis of voltage/current data records for solar systems and lighting systems.
    On-site maintenance engineer's troubleshooting tool.
    DIY enthusiasts and basic tools for makers.
    Model: OSC482 OSC482M OSC482S OSC482L OSC482X OSC482F
    Detail: Support Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit).    OSC482 + 13M Hz Signal generator. OSC482 + 4 channels Logic analyzer. OSC482+13M Hz Signal generator + 4 channels Logic analyzer. OSC482M + 13M Hz Signal generator + 4 channels Logic analyzer.
    Support Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit) and Android phone/tablet.
    Input channels: 2 2 2 2 2 2
    Maximum sampling rate : 50M S/s 50M S/s 50M S/s 50M S/s 50M S/s 50M S/s
    Bandwidth: 20M Hz 20M Hz 20M Hz 20M Hz 20M Hz 20M Hz
    Data logger:
    I/O extension:
    Signal generator module  support: X X X
    Logic analyzer module  support: X X X
    Net weight: 198 g.
    Input sensitivity (10 vertical divisions): 20 mV/div to 2 V/div.
    Input ranges( probe x1): ±100 mV to ±5 V full scale, in 7 ranges.
    Timebase selection (10 horizontal divisions): 50 ns/div ~ 2 s/div, in 19 ranges.
    Typical noise (peak to peak voltage): 20 mv/div 2 mv
    50 mv/div 3.4 mv
    100 mv/div 6.4 mv
    200 mv/div 21 mv
    500 mv/div 32 mv
    Connector type : 2 channels with BNC sockets, 20 mm spacing.
    Vertical resolution: 8 Bit.
    Maximum sampling rate (S/s): 50M
    Bandwidth ( −3 dB): 20MHz
    Input coupling: AC/DC.
    Input characteristics: 1MΩ || 25pF.
    PC OS requirements: Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit).
    Overvoltage protection: ±60.0v (x1), ±600.0v (x10). (DC + AC peak)
    Triggering type: Rising/falling edge according to trigger level.
    Triggering mode: None, auto, normal, single.
    pre-trigger capture: 50% of capture size.
    Automatic measurements:  Maximum, minimum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak-to-peak value, Deep measurement.
    Samples Interpolation: Linear or sin(x)/x.
    FFT: 1024 ~ 16k points.
    FFT window function: Rectangle, Hanning, Hamming, Blackman.
    Math: A+B, A-B, AxB, X-Y.
    Acquisition Modes: Normal mode / High Resolution mode / Peak detect mode.
    Waveform recording File format :  *.oscxxx.
    and playback: Record depth: 50 ~ 450 frames.
      File size: 6 MB ~ 20GB.
    Data logger Sampling Interval: 1 second to 1 hour.
    Data logger Record Duration: 1 minute ~ 72 hours.
    Temperature range: Operating: 0 °C to 40 °C (20 °C to 30 °C for stated accuracy). Storage: −20 °C to +60 °C.
    Reference Output: 1K Hz, 1.5 V square wave output with 50% duty cycle.
    Size: 153(L) x 93(W) x 23(H) mm.
    Languages (full support): English, Chinese (simplified).
    Compliance: CE, FCC.

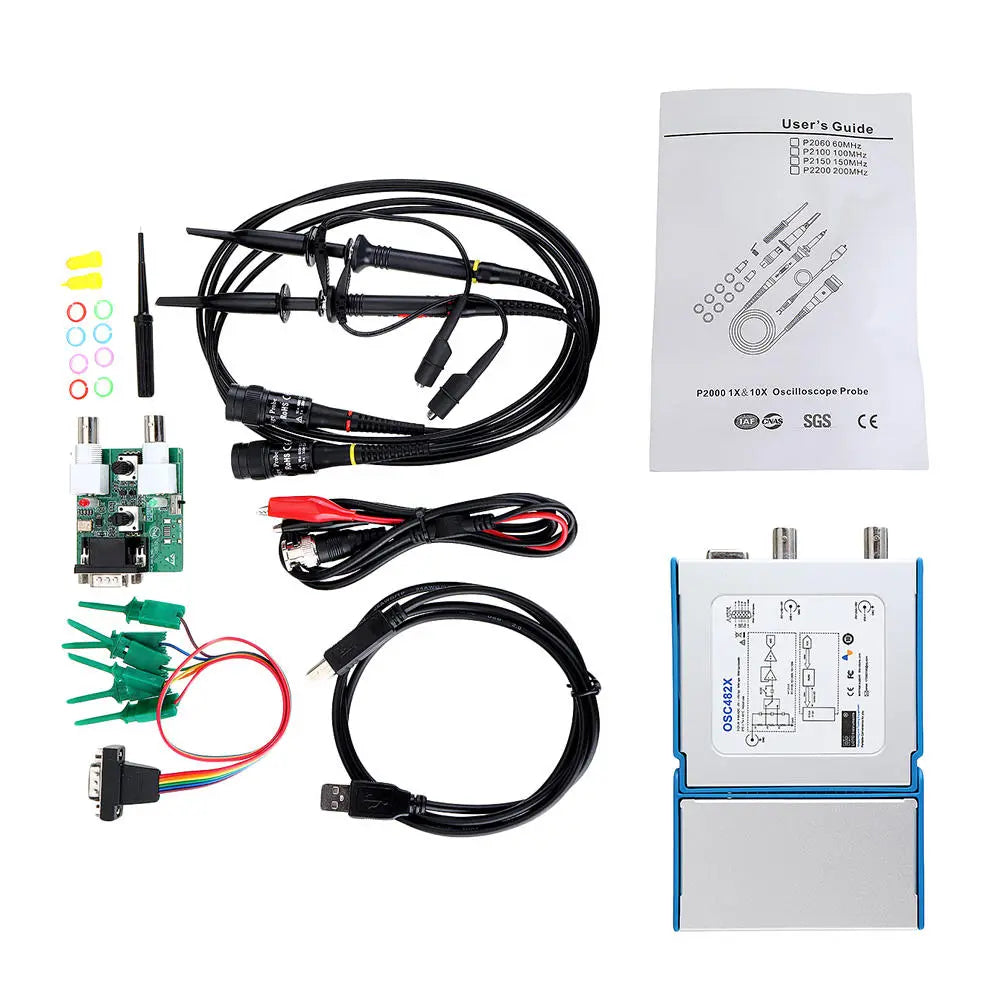

    Package included:
    1 x Digital Hand-held Oscilloscope
    2 x High Voltage Probe
    1 x USB Cable
    1 x Compensation Adjusting Rod
    8 x Identification Ring
    2 x Tip Locating Sleeve
    1 x

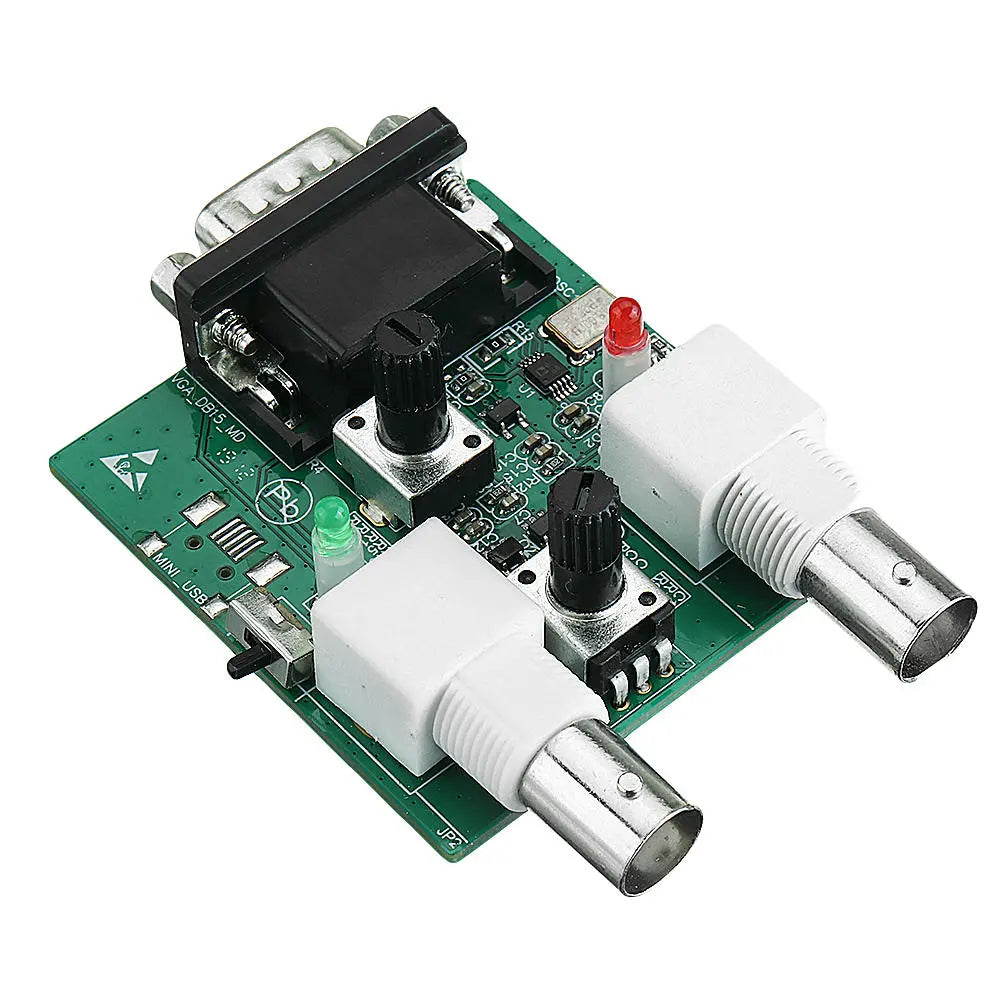

    Signal Generator
    Details pictures:
