LOTO OSC2002L(OSC2002+Logic Analyzer) PC Virtual Digital Handheld Oscilloscope 2 Channel Bandwidth 50Mhz Sampling Data 1G with Probe USB Cable
LOTO OSC2002L(OSC2002+Logic Analyzer) PC Virtual Digital Handheld Oscilloscope 2 Channel Bandwidth 50Mhz Sampling Data 1G with Probe USB Cable
Sale
Sold out
Pre-order
Regular price
$171.99 USD
Regular price
$234.99 USD
Sale price
$171.99 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Features:

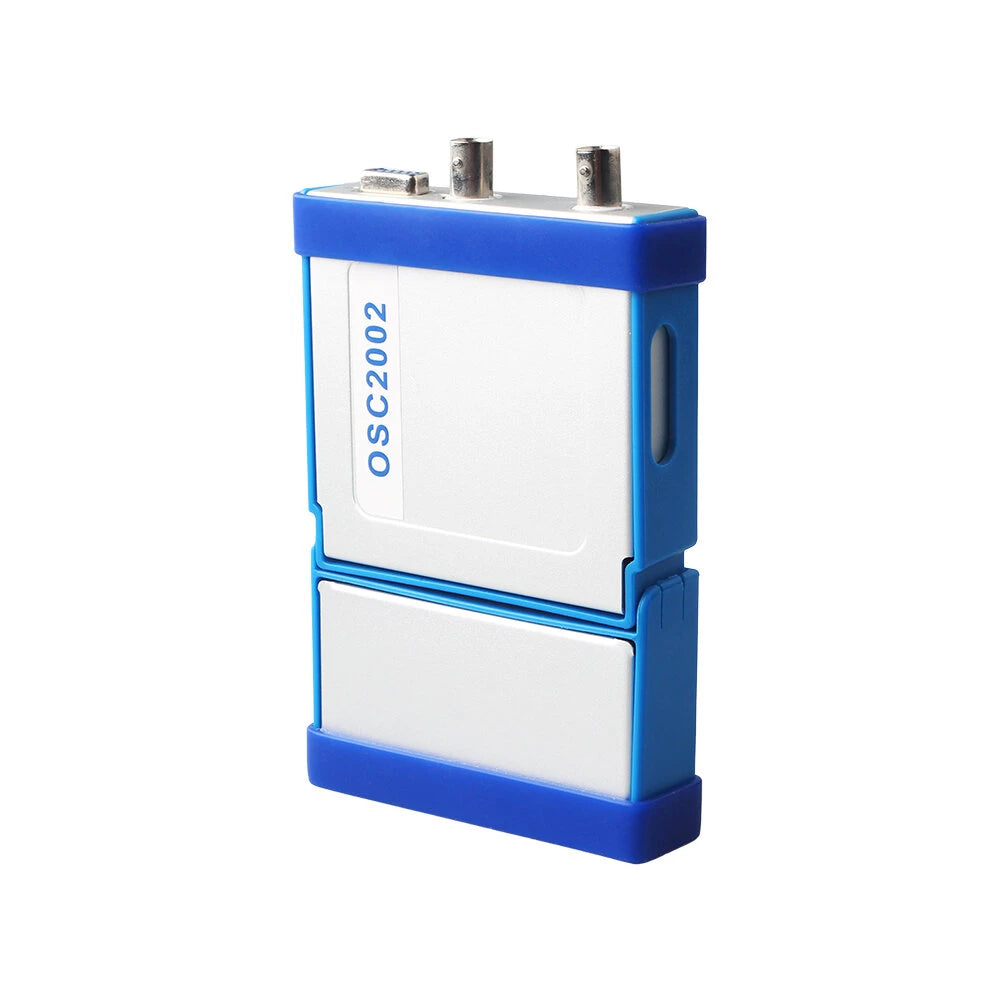

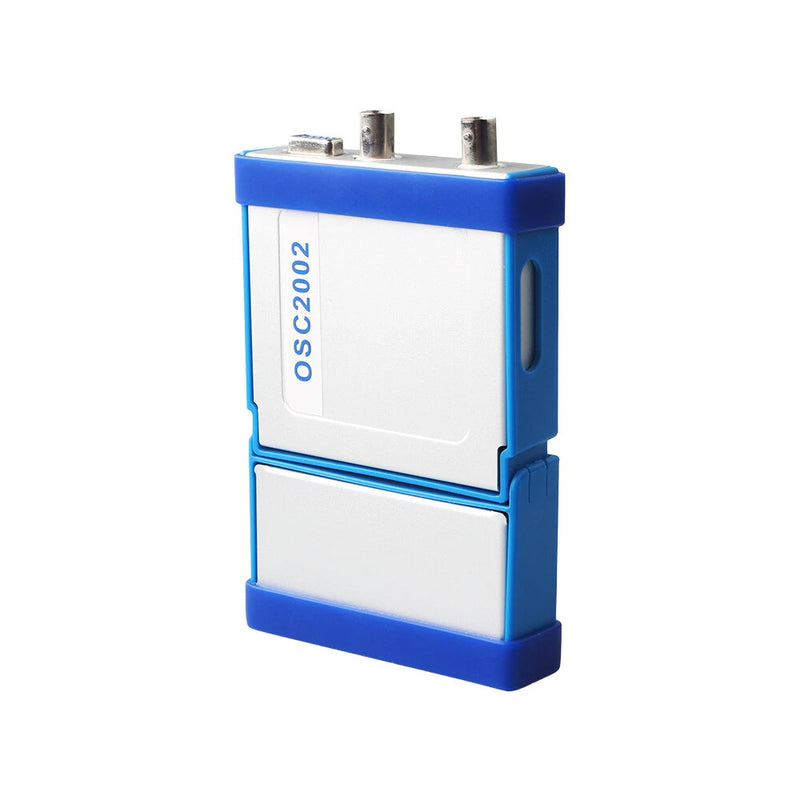

Hand-held portable, 153(L) x 93(W) x 23(H) mm, up to 210g.
General Purpose I/O interface (TTL 3.3V).

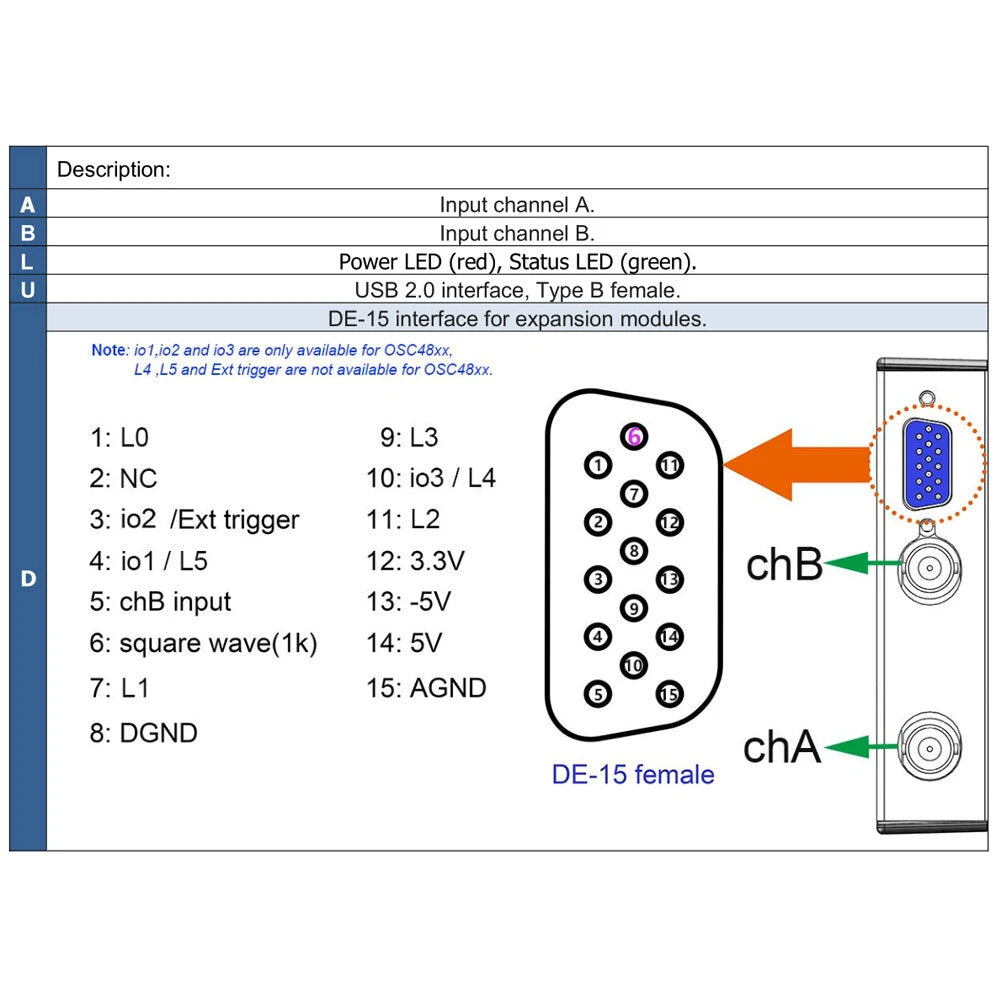

Open source hardware interface to support expansion modules.
Open software API for third party development.
USB 2.0 interface, USB powered.
72 hours long time data logger.

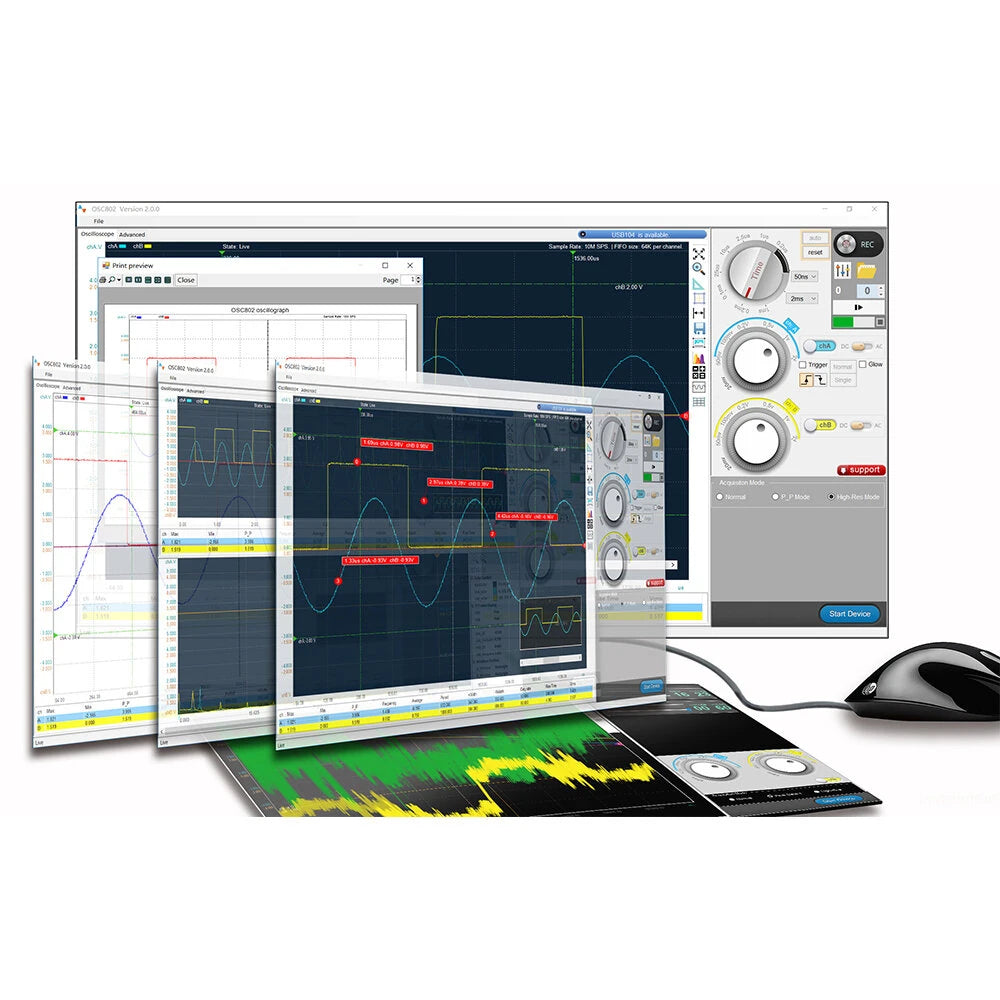

Waveform recording and playback review.
Support waveform image import as the comparison reference for real-time waveform.
Support Serial bus decoding (selected models).
Support buffer waveform preview and mouse wheel operations.
Specification:
APPLICATIONS:
General and precision testing.
Embedded in teaching equipment or industrial test systems.
Power supply ripple and noise detection.
Multi-sensor system and serial bus decoding.
Analog data acquisition and secondary development of digital IO control projects.
Voltage/current data recording analysis of solar energy systems and lighting systems.
A troubleshooting tool for field maintenance engineers.
DIY enthusiasts and basic tools for makers.
| Model: | OSC2002 | OSC2002L |
| Detail: | Support Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit). | OSC2002 + 4 channels Logic analyzer. |
| Support Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit). | ||
| Input channels: | 2 | 2 |
| Maximum sampling rate (S/s): | 1G | 1G |
| Bandwidth (−3 dB): | 50M Hz | 50M Hz |
| FFT: | √ | √ |
| Data logger: | √ | √ |
| I/O extension: | x | x |
| Serial bus decoding: | √ | √ |
| Hardware trigger: | √ | √ |
| Ext trigger support: | √ | √ |
| Signal generator module support: | x | x |
| Logic analyzer module : | x | √ |
| Android Phone/ Tablet support | x | x |
| Connector type : | 2 channels with BNC sockets, 20 mm spacing. | |
| Vertical resolution: | 8 Bit. | |
| Maximum sampling rate (S/s): | 1G (equivalent) | |
| Bandwidth ( −3 dB): | 50MHz | |
| Input coupling: | AC/DC. | |
| Input characteristics: | 1MΩ || 25pF. | |
| PC OS requirements: | Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit). | |
| Overvoltage protection: | ±60.0v (x1), ±600.0v (x10). (DC + AC peak) | |
| Triggering type: | Rising/falling edge according to trigger level. | |
| Triggering mode: | None, auto, normal, single. | |
| pre-trigger capture: | 50% of capture size. | |
| Automatic measurements: | Maximum, minimum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak-to-peak value, Deep measurement. | |
| Samples Interpolation: | Linear or sin(x)/x. | |
| FFT: | 1024 ~ 16K points. | |
| FFT window function: | Rectangle, Hanning, Hamming, Blackman. | |
| Math: | A+B, A-B, AxB, X-Y. | |
| Acquisition Modes: | Normal mode / High Resolution mode / Peak detect mode. | |
| Waveform recording | File format : | *.oscxxx. |
| and playback: | Record depth: | 50 ~ 450 frames. |
| File size: | 6 MB ~ 20GB. | |
| Data logger Sampling Interval: | 1 second to 1 hour. | |
| Data logger Record Duration: | 1 minute ~ 72 hours. | |
| Temperature range: | Operating: 0 °C to 40 °C (20 °C to 30 °C for stated accuracy). Storage: −20 °C to +60 °C. | |
| Reference Output: | 1K Hz, 1.5 V square wave output with 50% duty cycle. | |
| Size: | 153(L) x 93(W) x 23(H) mm. | |
| Languages (full support): | English, Chinese (simplified). | |
| Compliance: | CE, FCC. | |
| Net weight: | 210 g. | |
| Input sensitivity (10 vertical divisions): | 50 mV/div to 2 V/div. | |
| Input ranges( probe x1): | ±250 mV to ±5 V full scale, in 6 ranges. | |
| Timebase selection (10 horizontal divisions): | 5 ns/div ~ 2 s/div, in 21 ranges. | |
| Typical noise (peak to peak voltage): | 50 mv/div | 5.8 mv |
| 100 mv/div | 8 mv | |
| 200 mv/div | 22 mv | |

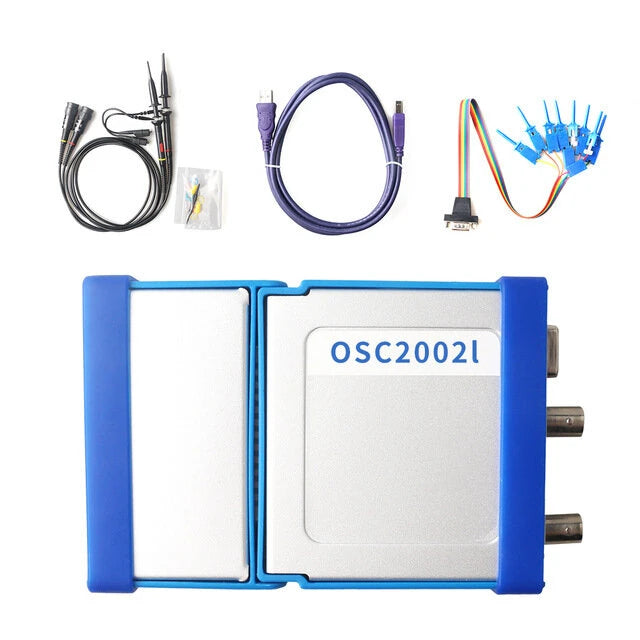

1 X Oscilloscope host device
1 X USB cable
2 X Passive voltage probe,60 MHz x1/x10
1 X Logic analyzer module
Details pictures:
