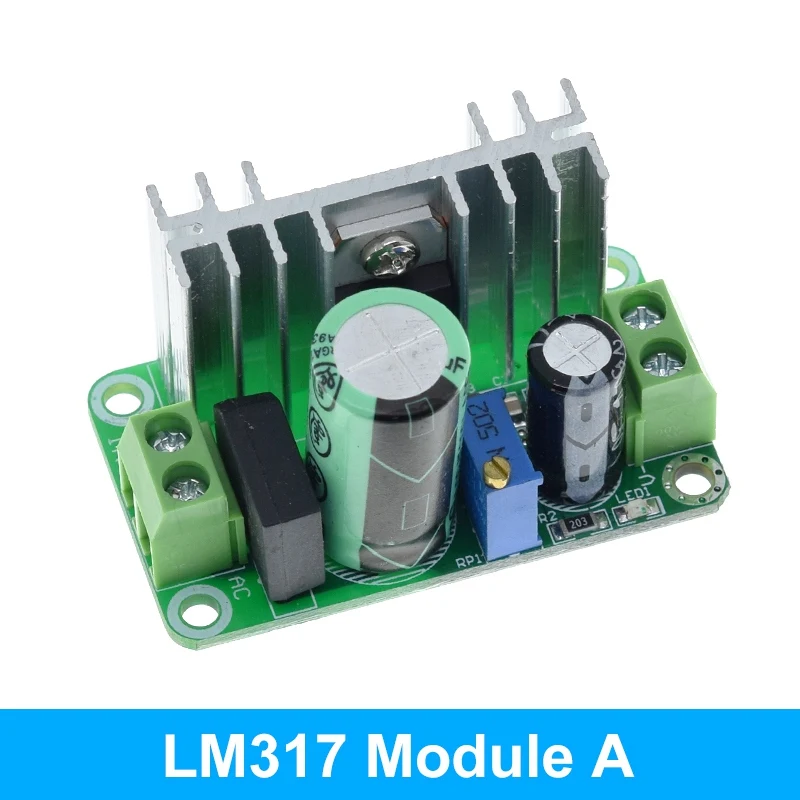

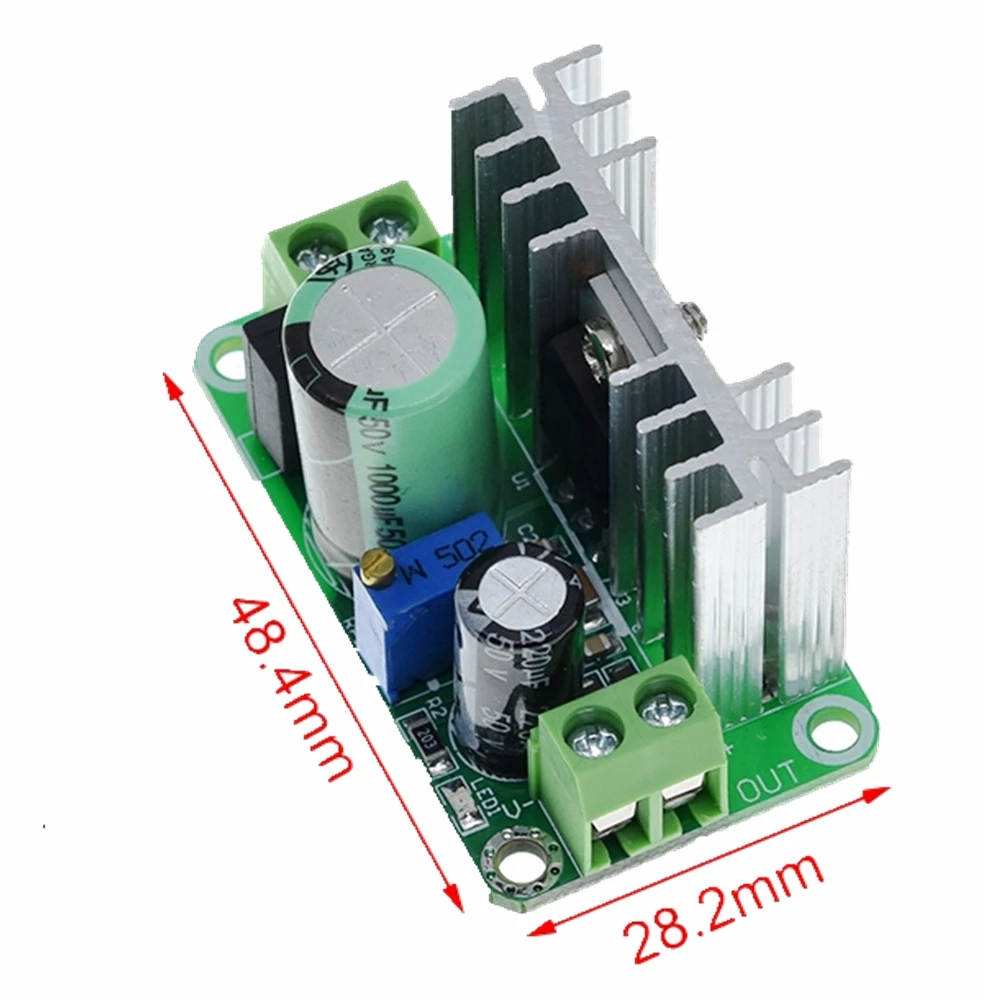

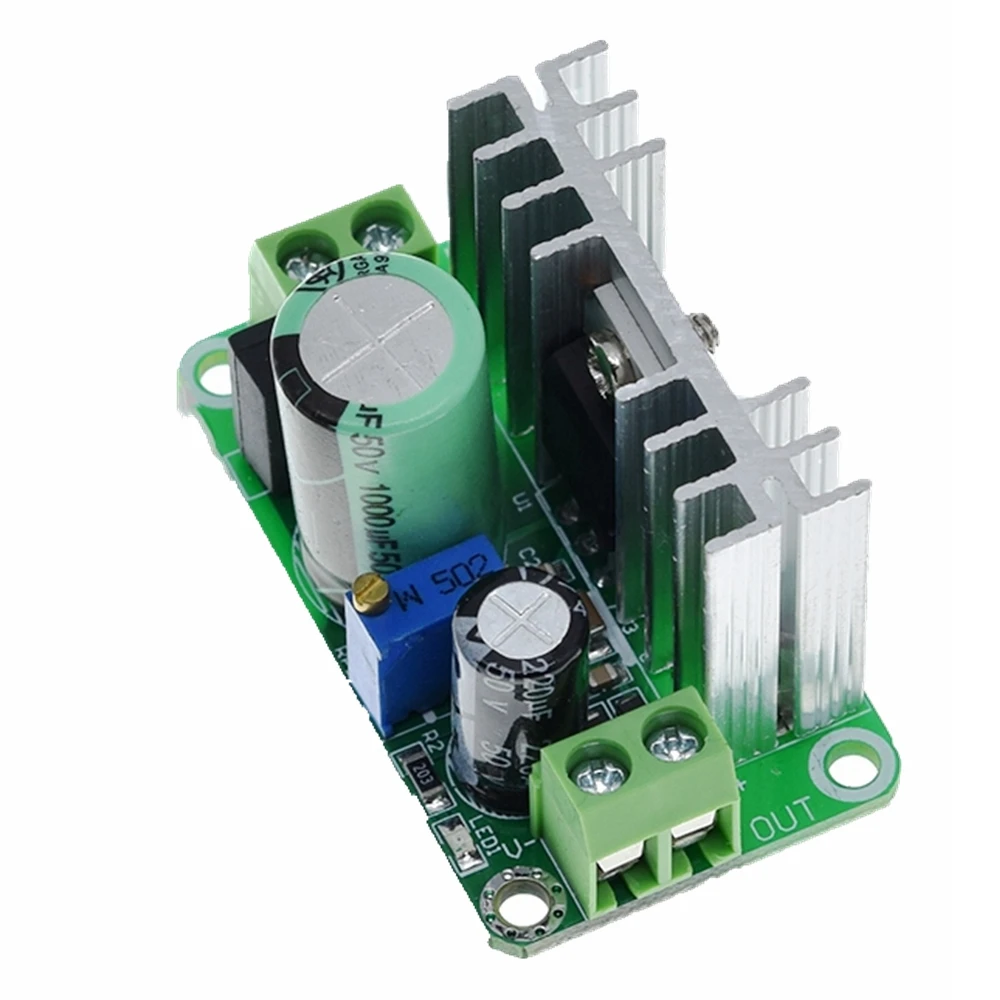

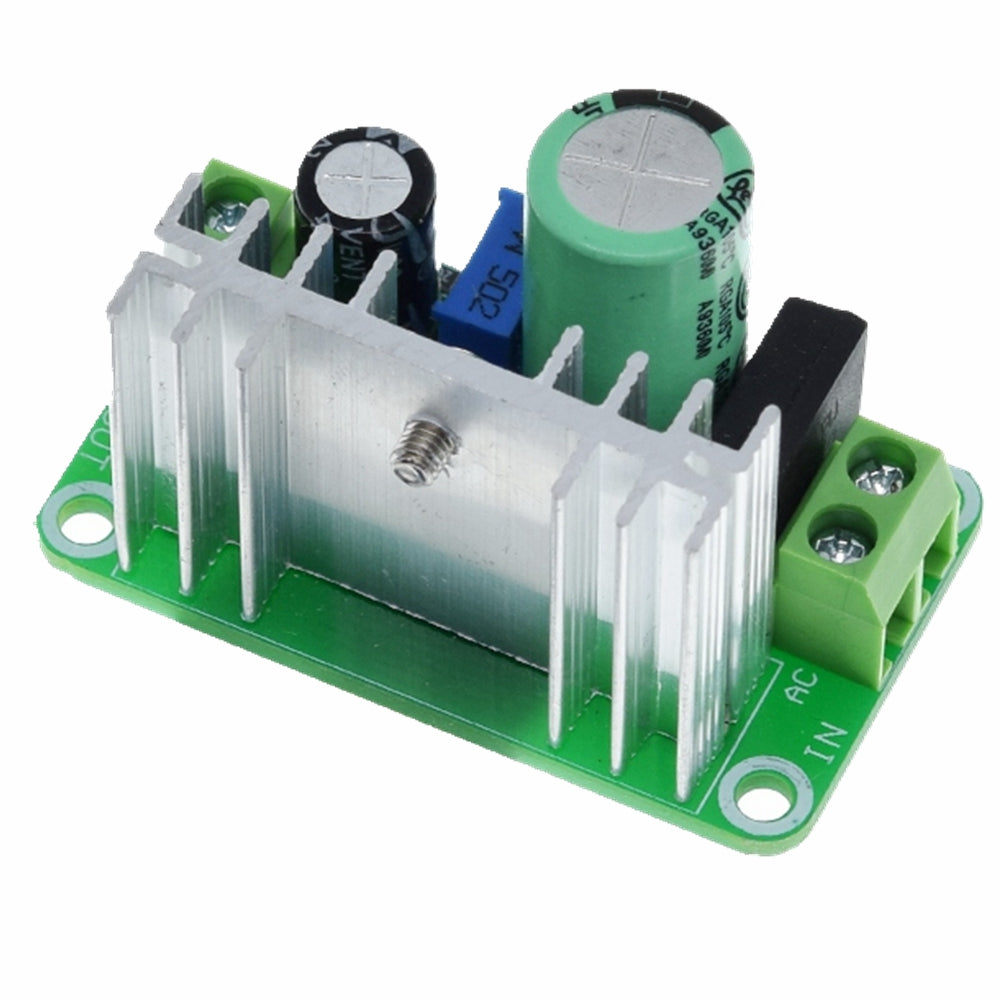

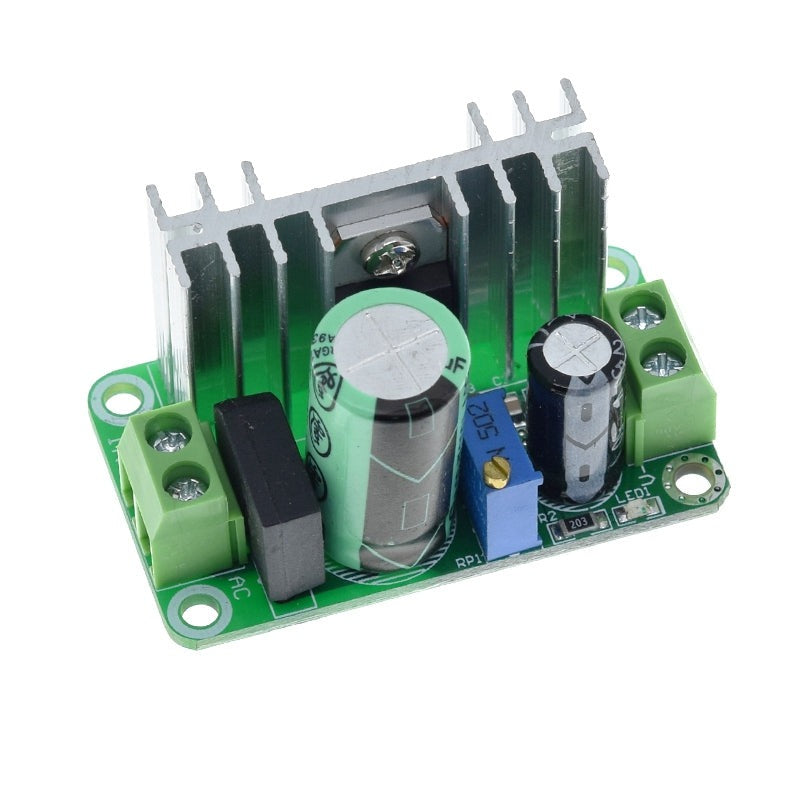

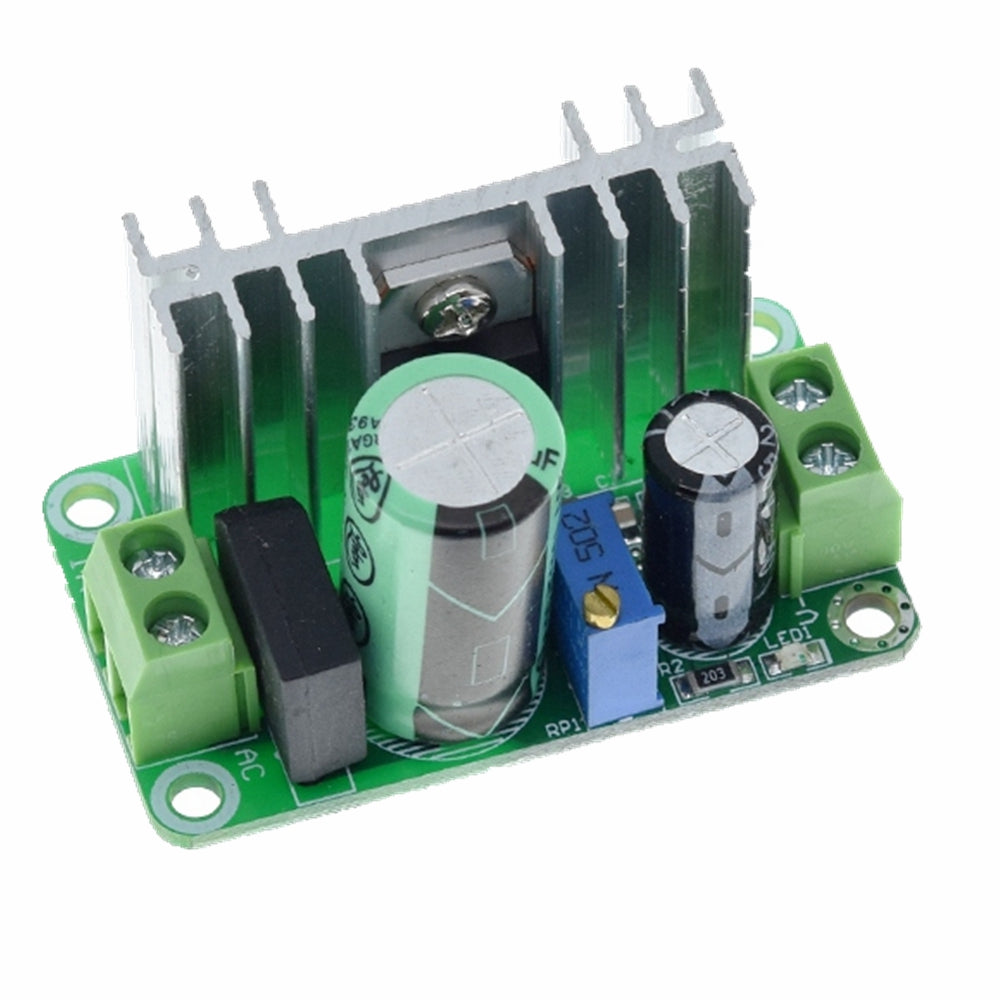

LM317T Molule A:
LM317T as an excellent voltage regulator, with high stability, high temperature resistance, high linearity and other characteristics, the output voltage range can be up to 1.25v ~37V continuously adjustable, the maximum working current more than 1A(using large radiator or active cooling measures).The plate is equipped with a rectifier bridge and a filter capacitor of 1000uF, which can effectively reduce output ripple and interference.
Input voltage range: dc5v-35v, ac5v-22v
Output voltage range: dc1.25v-37v (continuously adjustable)
Output current range: the maximum continuous working current is <600mA(the pressure difference is not more than 10V), when the pressure difference is more than 10V, please ensure that the output current is <400mA
Operating temperature range: 0 ° C to 100 ° C (to prevent thermal damage, can increase the cooling or use other active cooling way)
Applications
Mobile phone, MP3, MP4, PSP and many other charging equipment
Description
Description
LM317T Molule A:
LM317T as an excellent voltage regulator, with high stability, high temperature resistance, high linearity and other characteristics, the output voltage range can be up to 1.25v ~37V continuously adjustable, the maximum working current more than 1A(using large radiator or active cooling measures).The plate is equipped with a rectifier bridge and a filter capacitor of 1000uF, which can effectively reduce output ripple and interference.
Input voltage range: dc5v-35v, ac5v-22v
Output voltage range: dc1.25v-37v (continuously adjustable)
Output current range: the maximum continuous working current is <600mA(the pressure difference is not more than 10V), when the pressure difference is more than 10V, please ensure that the output current is <400mA
Operating temperature range: 0 ° C to 100 ° C (to prevent thermal damage, can increase the cooling or use other active cooling way)
Applications
Mobile phone, MP3, MP4, PSP and many other charging equipment
