LF-3GHZ-120DB Bidirectional RF Numerical Control Attenuator 0.25DB Step
LF-3GHZ-120DB Bidirectional RF Numerical Control Attenuator 0.25DB Step
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
LF-3GHZ-120DB 0.25DB Stepped Bidirectional RF Numerical Control Attenuator
A: numerical control attenuator demonstration video (Baidu cloud)
Link:https://pan.baidu.com/s/154__nuh0h_b01HGf-yIWOA
Extraction code:WYDZ
B:(Upper computer software)+drive+Instructions for use)
Link:https://pan.baidu.com/s/1IOQD0nDgIYfRNPJW3o3_Gw
Extraction code:WYDZ
Module parameters
1. Supply voltage:+5V(TYPE-CPower supply)
2. Input and output impedance:50ohm

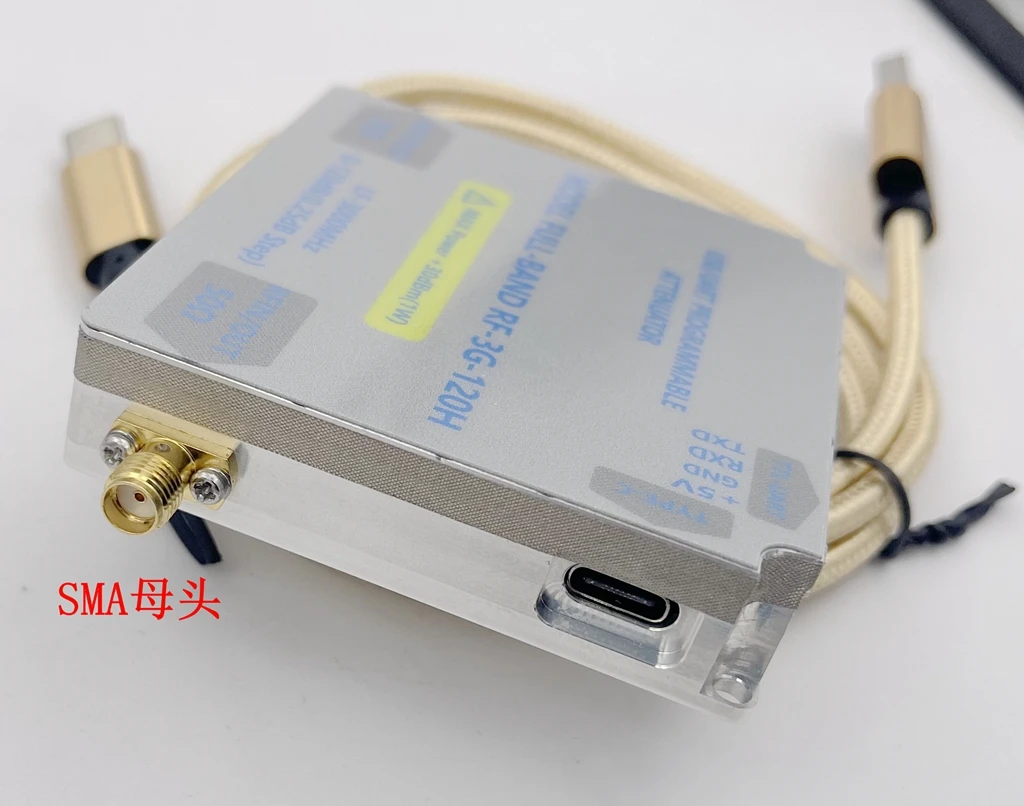

3, output interface:SMAFemale head
4, Minimum attenuation step:0.25DB,Maximum input power:30dBm(1W)
5, Size: Long*wide=7.4*6.6CM(Excluding protrusionsSMA) Height:1.5CM
6, shipment: attenuation module+TYPE-Cline

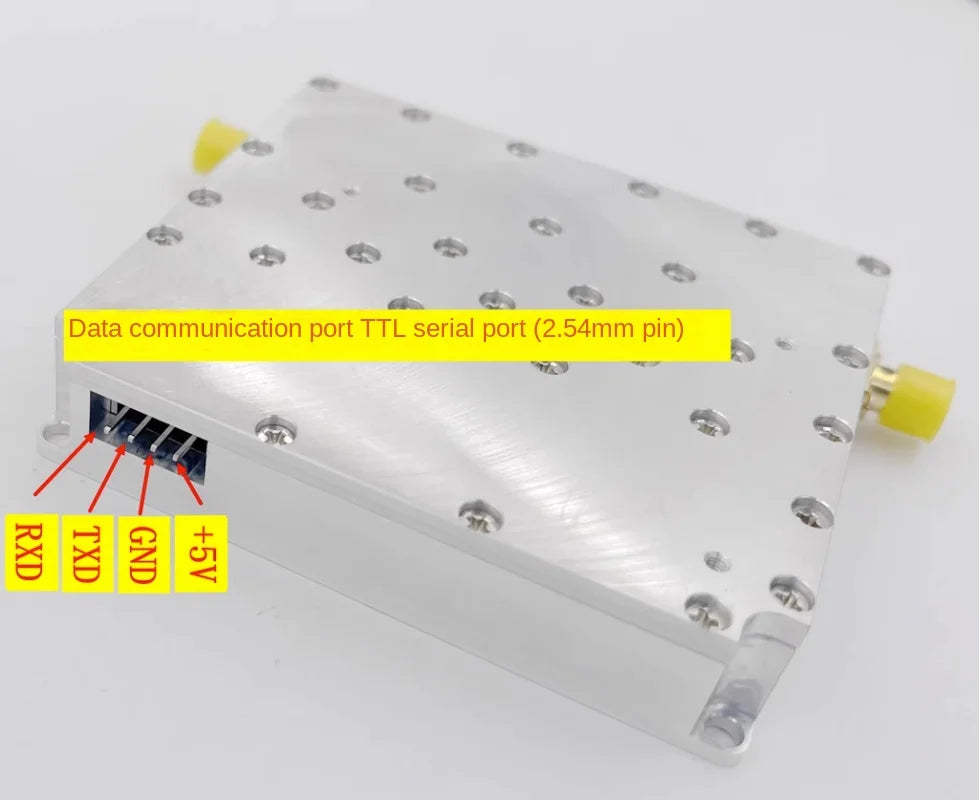

7, Provide communication protocol: support at the same timeUSBandTTLSerial communication
8, input loss and standing wave parameters (refer to vector measurements)
9, working frequency range:LF-3GHz
10. Isolation degree:120DB

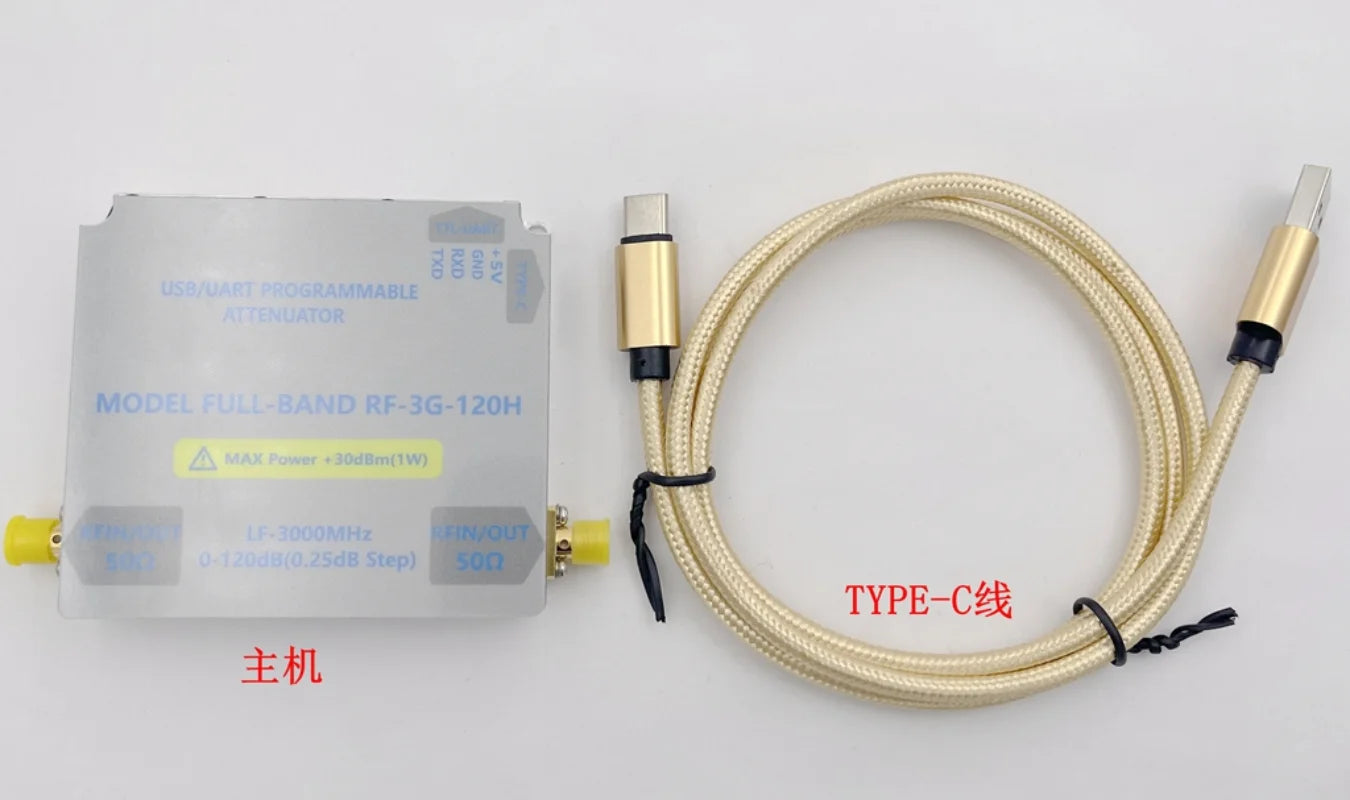

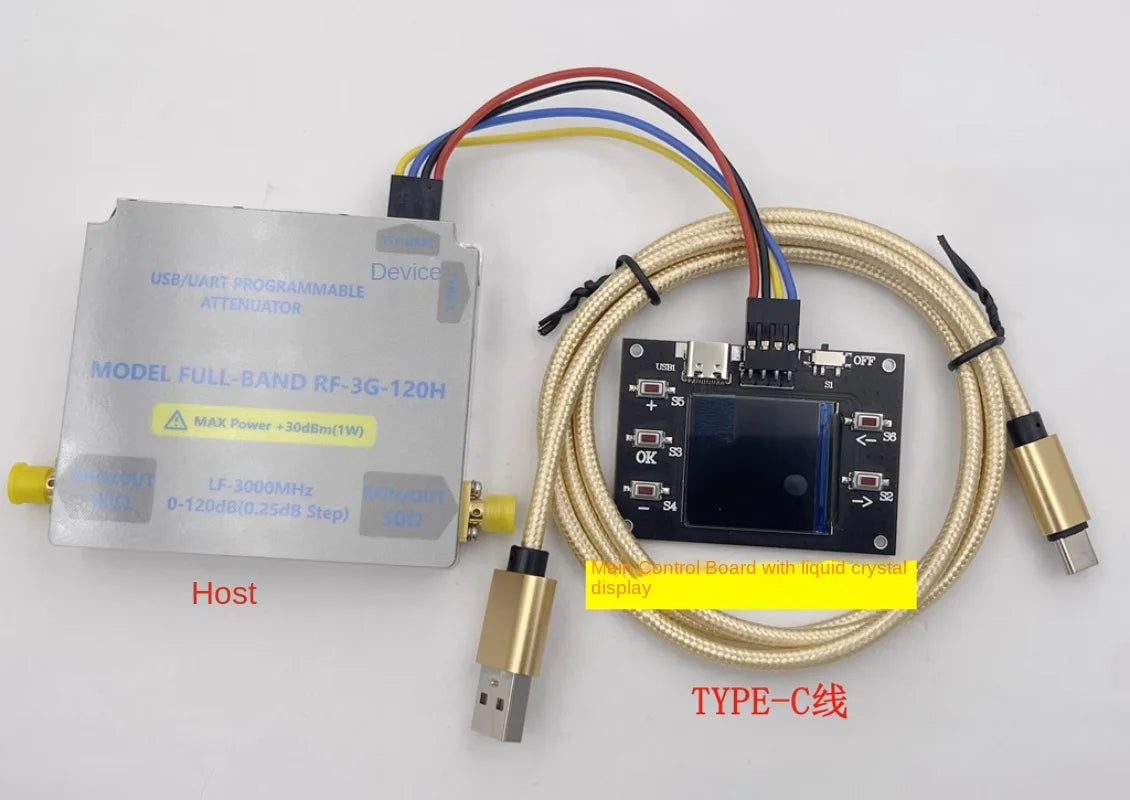

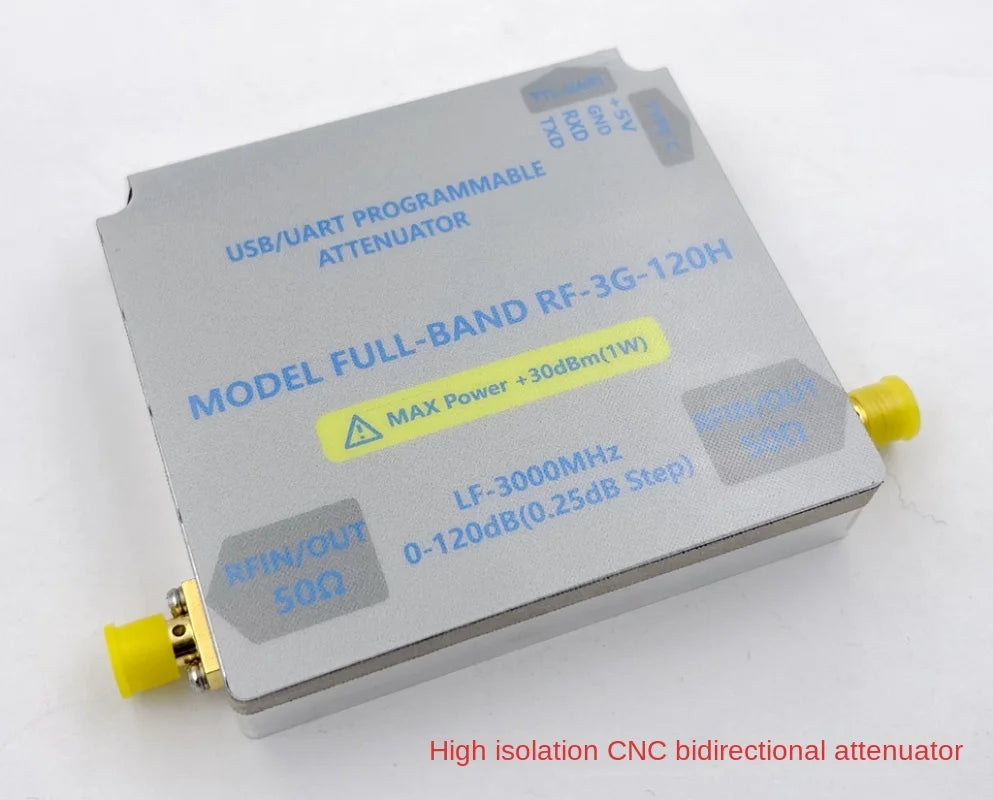

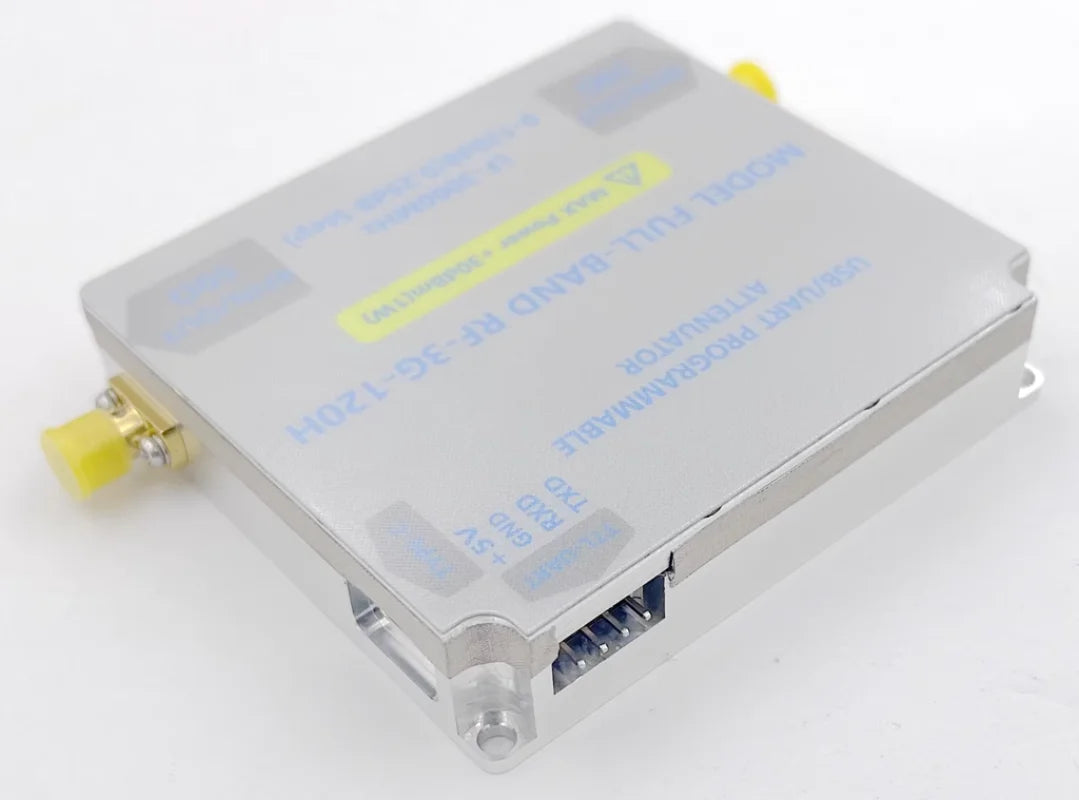

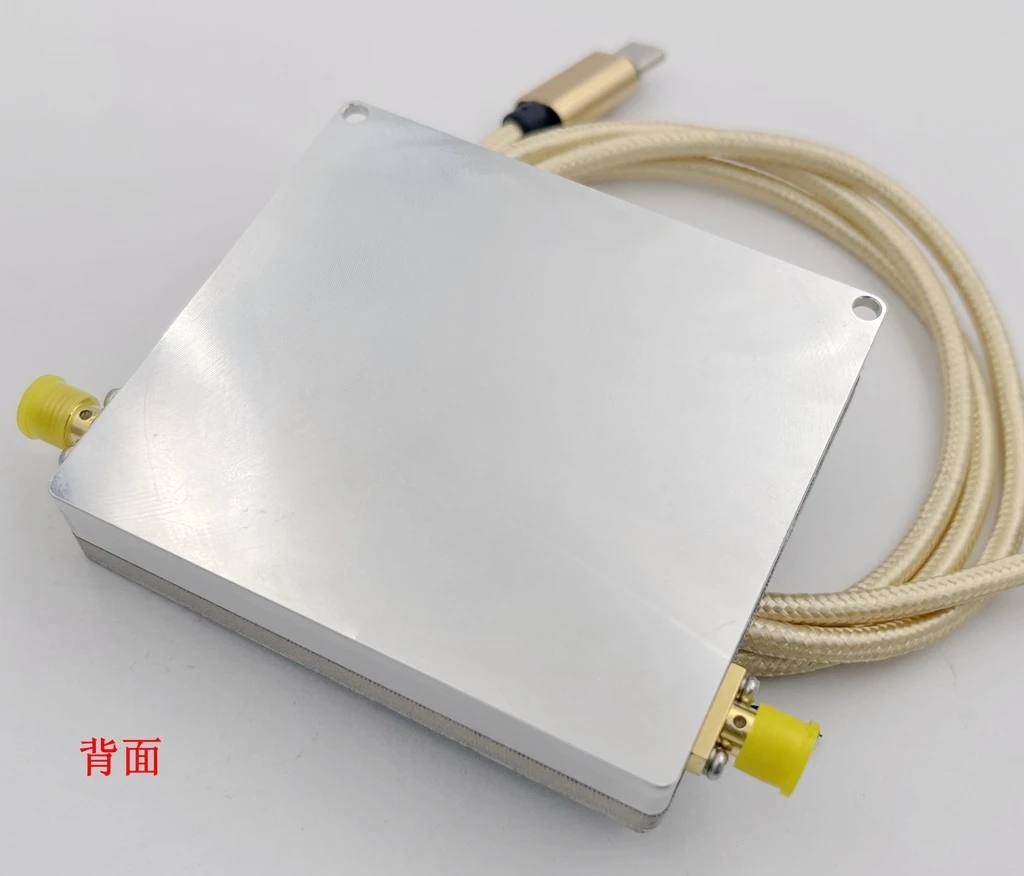

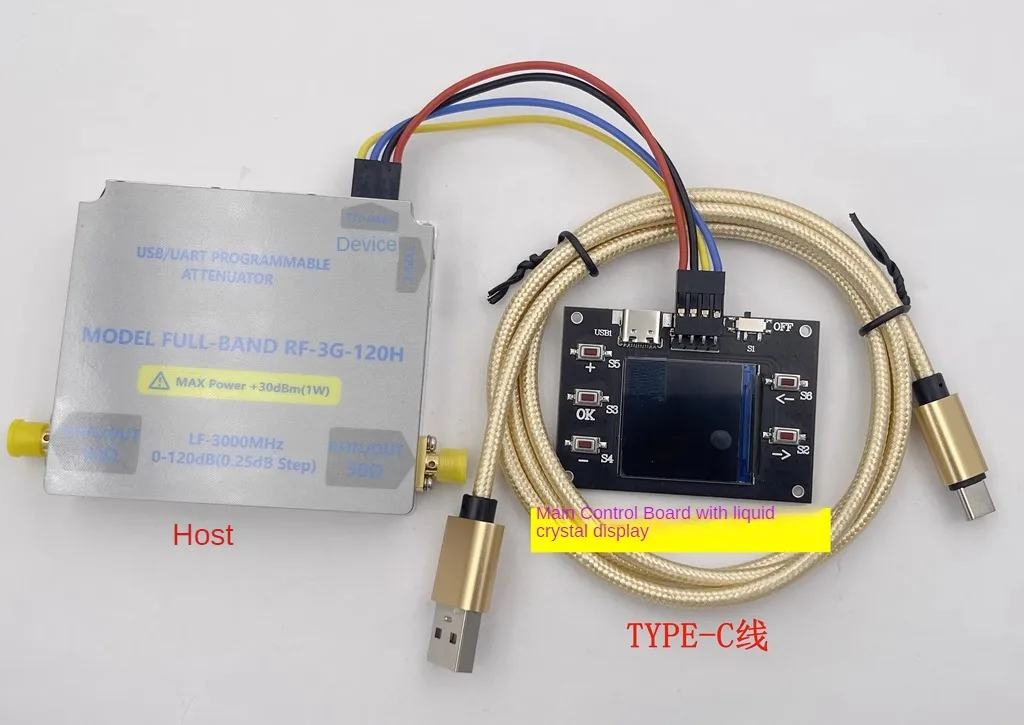

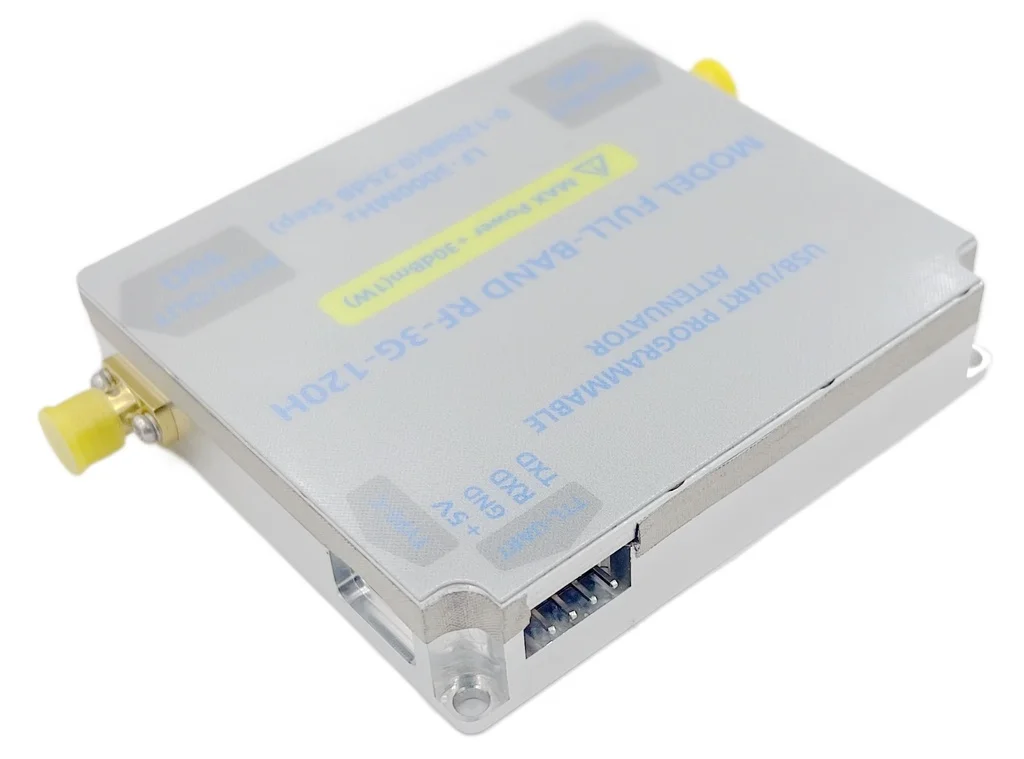

3, Physical drawing of module
4, Provide upper computer communication software

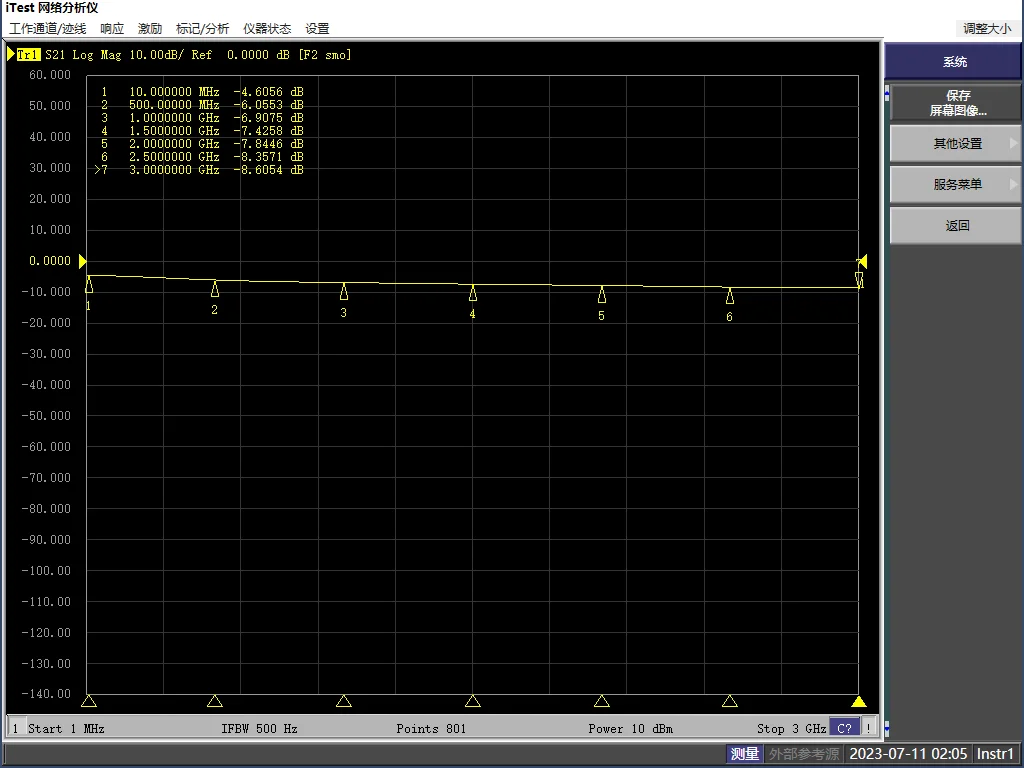

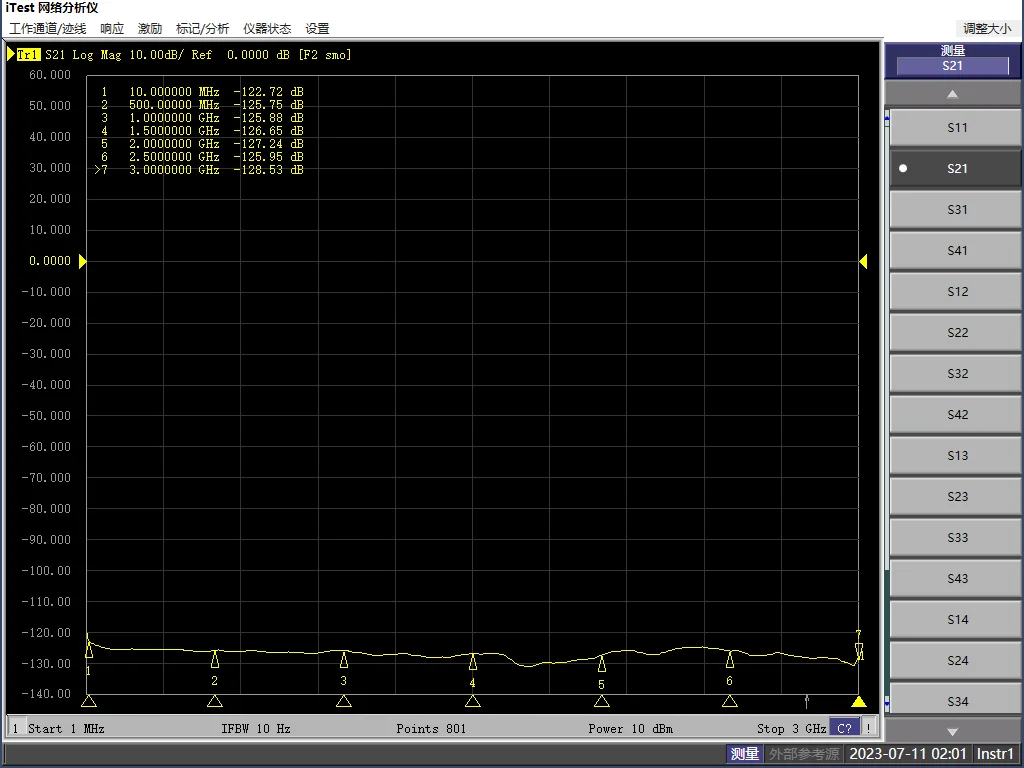

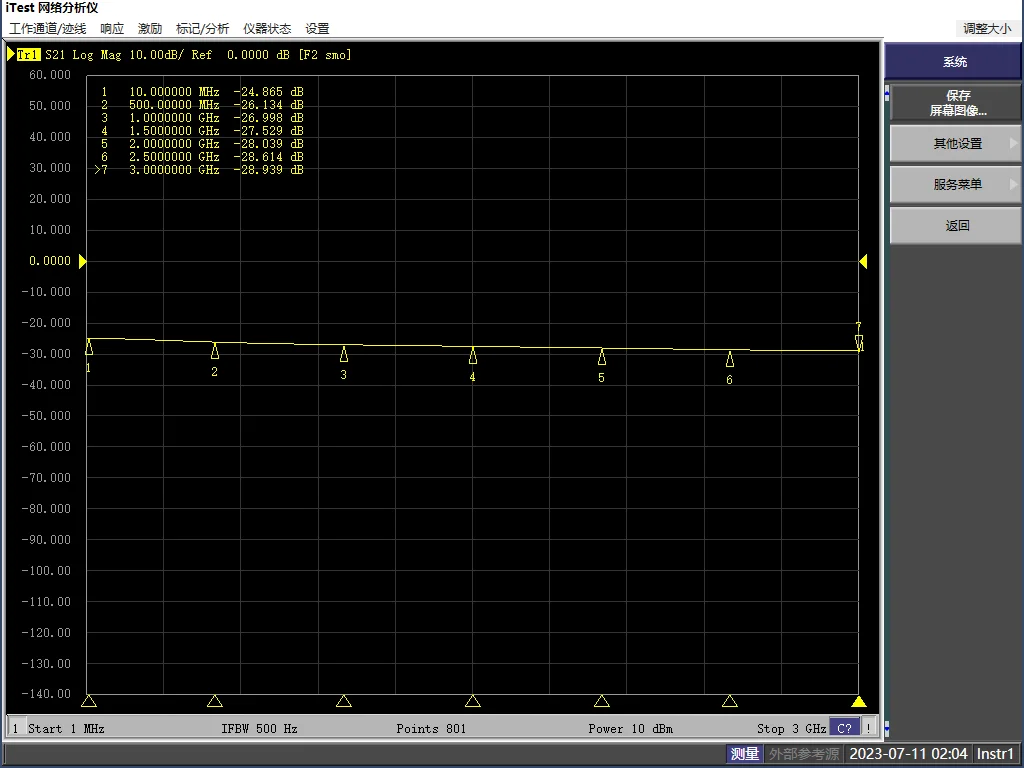

V. Module measurement (measured by vector network analyzer)
衰减0DB
Description
Description
LF-3GHZ-120DB 0.25DB Stepped Bidirectional RF Numerical Control Attenuator
A: numerical control attenuator demonstration video (Baidu cloud)
Link:https://pan.baidu.com/s/154__nuh0h_b01HGf-yIWOA
Extraction code:WYDZ
B:(Upper computer software)+drive+Instructions for use)
Link:https://pan.baidu.com/s/1IOQD0nDgIYfRNPJW3o3_Gw
Extraction code:WYDZ
Module parameters
1. Supply voltage:+5V(TYPE-CPower supply)
2. Input and output impedance:50ohm
3, output interface:SMAFemale head
4, Minimum attenuation step:0.25DB,Maximum input power:30dBm(1W)
5, Size: Long*wide=7.4*6.6CM(Excluding protrusionsSMA) Height:1.5CM
6, shipment: attenuation module+TYPE-Cline
7, Provide communication protocol: support at the same timeUSBandTTLSerial communication
8, input loss and standing wave parameters (refer to vector measurements)
9, working frequency range:LF-3GHz
10. Isolation degree:120DB
3, Physical drawing of module
4, Provide upper computer communication software
V. Module measurement (measured by vector network analyzer)
衰减0DB
